High Output LED Cabinet Lighting - 12v

Housing Available in Four Styles

Protected from drips of waterClass 3 - This fitting is low voltage and will require a transformer or driver.Yes, this product is dimmable - See the specifications tab for more detailsBulbs IncludedNo driver or transformer is supplied with this fixture (sold separately)

Kelvin Chart

Product Ref: 5548

From £10.68 inc VAT

If you want more light then these 12v LED lights are the solution the light output from these fixtures is broad and gives 320 lux at 0.5 metres and 110 lux at 1.0 metre.

The range comes in brushed stainless steel and you can choose between:

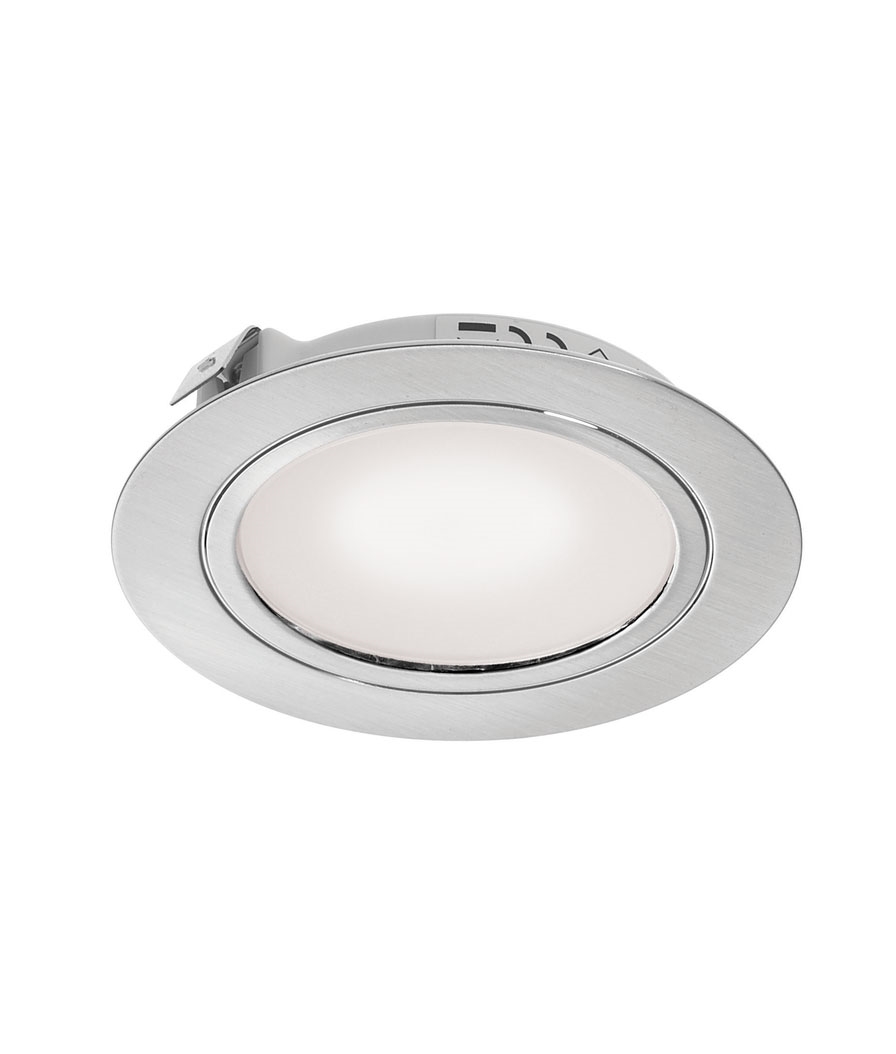

Round - Fully Recessed
For use in kitchen cabinets (top or bottom) or in flyover panels
61mm Drill bit required.
Frosted diffuser

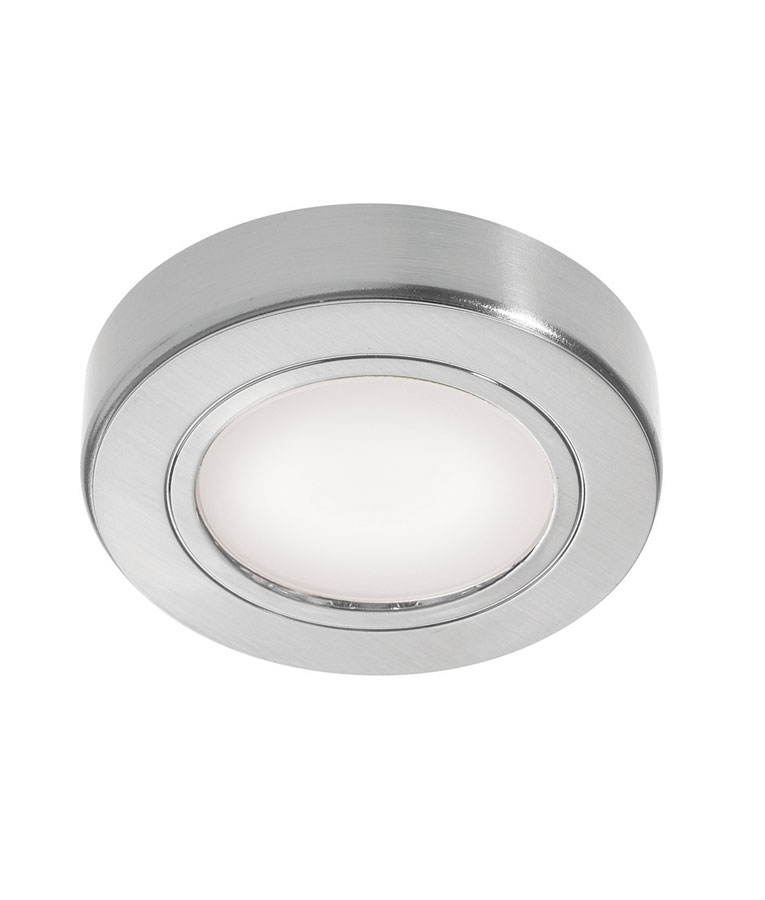

Round - Surface Mounted
The LED is housed in a low profile housing 14mm deep and 68mm in diameter.
Frosted diffuser

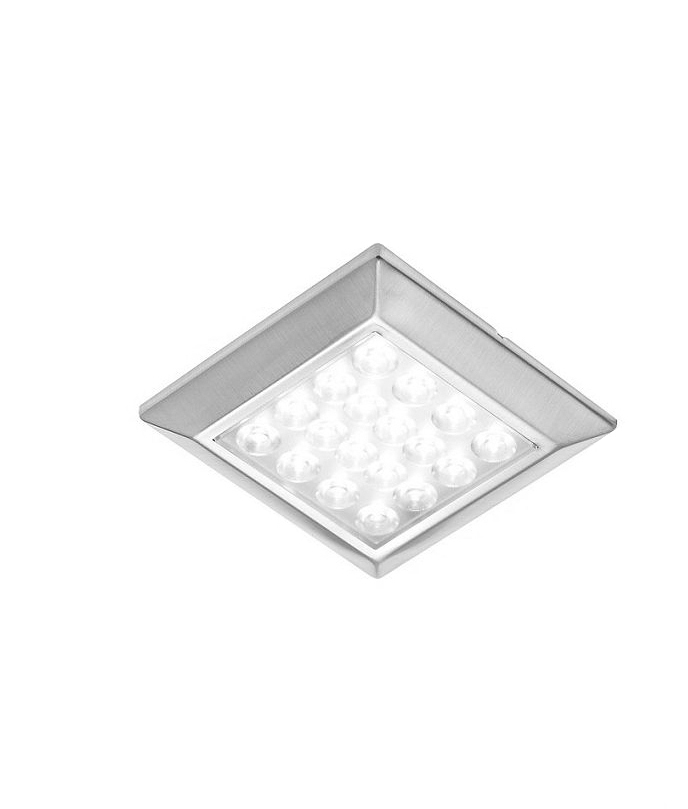

Square - Surface Mounted
As the above but square measuring 66mm x 66mm.
Clear diffuser

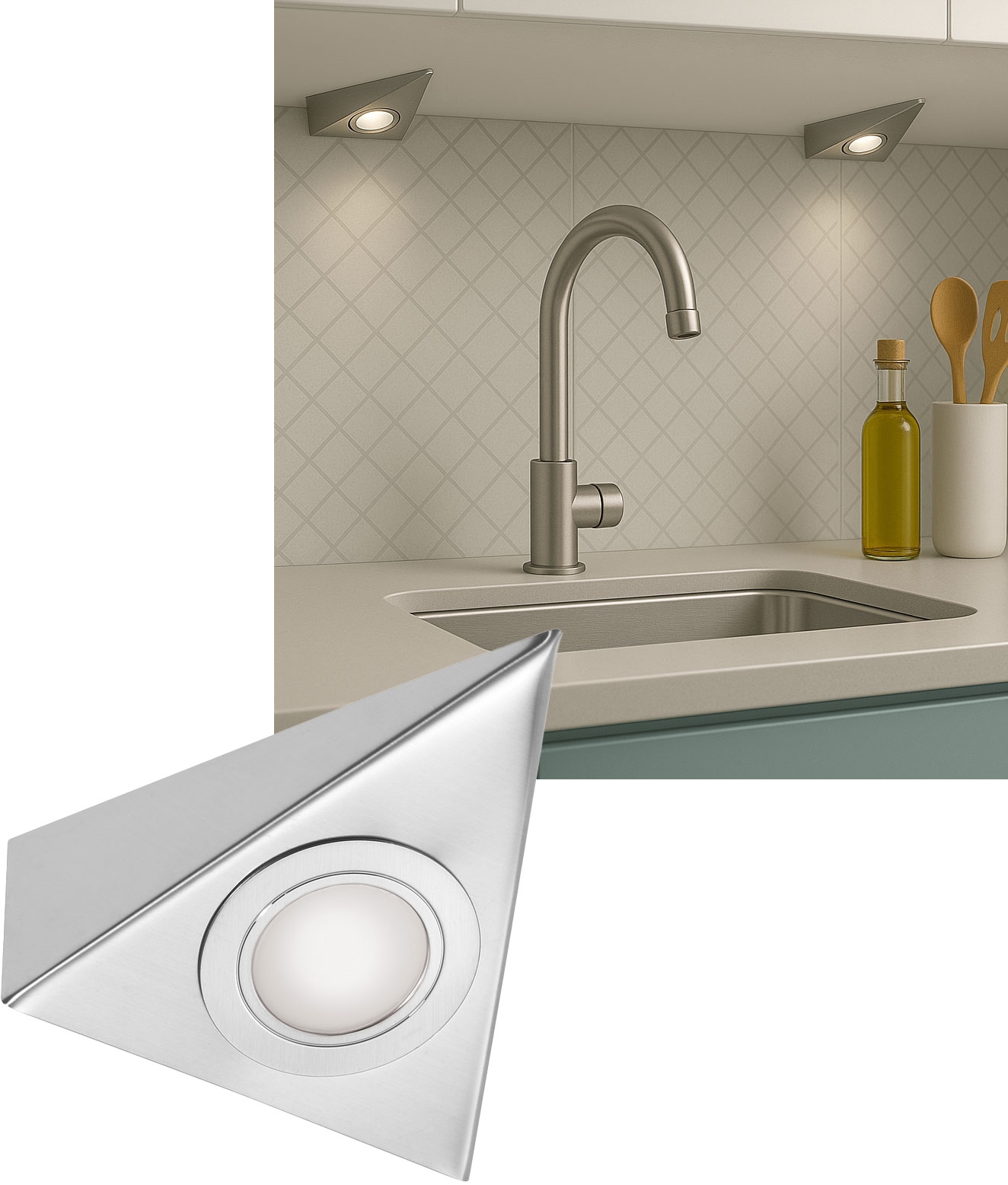

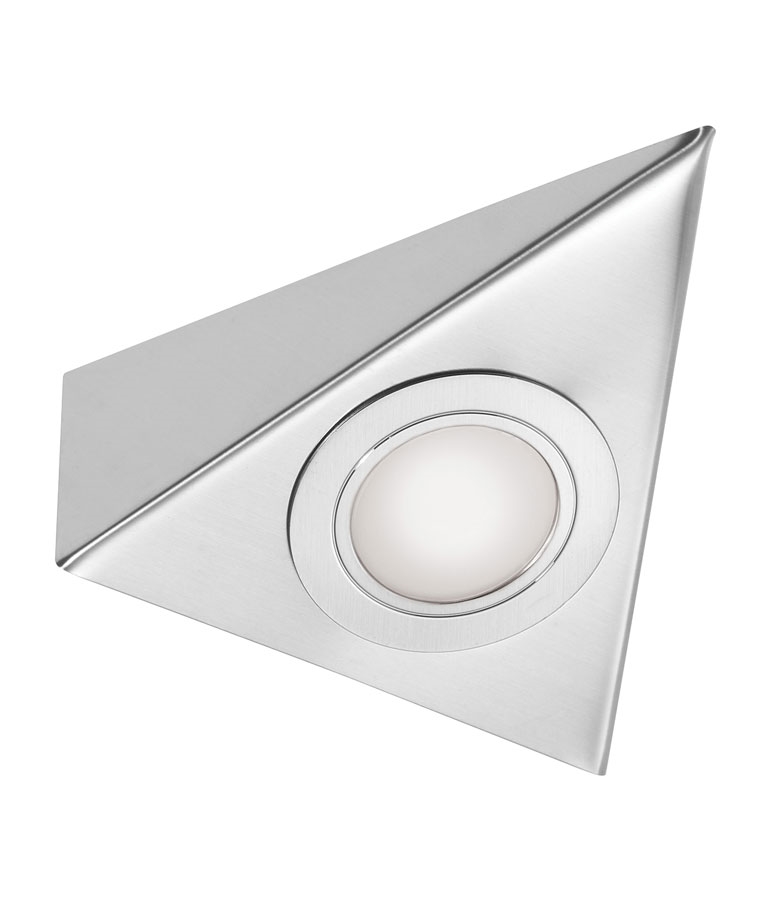

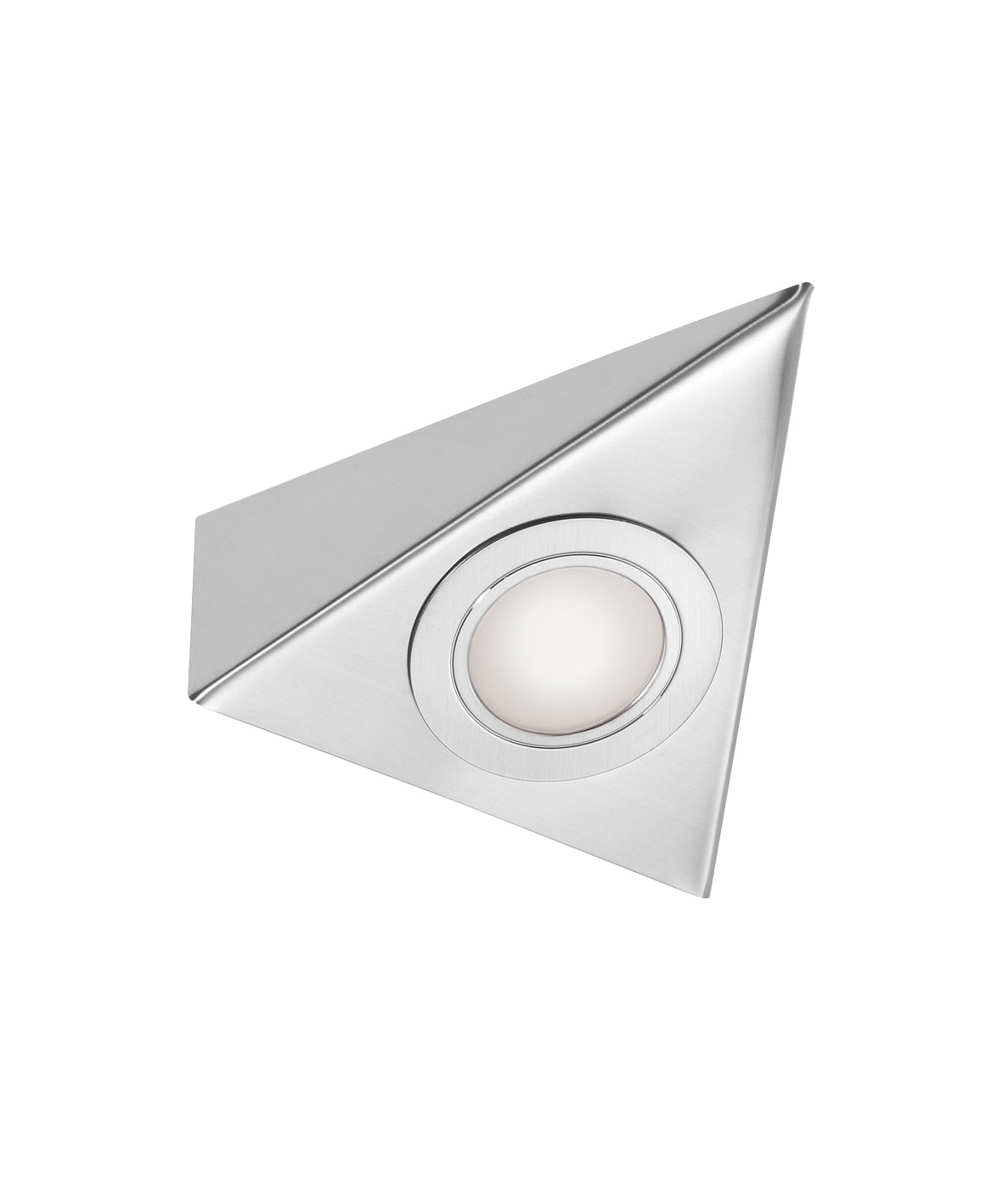

Triangle - Surface Mounted
Typically fixed at the rear on the underside of cabinets
125mm wide and 47mm deep
Frosted diffuser

All designs are available in a choice of colour temperatures:

3000ºk (warm white) light output enhances the colours of warm tones and wood materials
5000ºk (cool white) light output enhances the colour of white, blue, black and silver materials

These high output LED under cabinet lights are suitable for recessing into furniture. This makes them suitable for flyover pelmets and for use in the top of kitchen cabinets. They can be used on the underside of cabinets only if you are competent enough to cut a rebate 10mm deep into the carcass with a plunge-cut router.

The lights are made from steel with a brushed stainless steel finish. They are pre-wired with 2000mm flex.

2 watts per fixture.

12V CONSTANT VOLTAGE DRIVER is required to operate this product - a selection of suitable power supplies are listed below.

A recessed motion sensor which allows you to turn the cabinet lights on/off and dim is available can be found here

We offer a wireless PIR sensor and receiver kit accessory that can activate lights from up to 10 meters away. The kit also includes a touch dimmer allowing you to choose the light level you require, all while being battery operated.
See the specification tab for the full details.

Lamp TypeLong Life LED light source
Part L Compliant LuminaireNo
Lamps IncludedYes
Dimmable?Yes - when using the specified equipment
Max Wattage2w
Width65mm
Suggested Void Depth10mm
Cut-Out Diameter60mm
ConstructionStainless Steel and Glass
Wiring DetailsClass 3 - Requires a low voltage supply
IP RatingIP21
DriverNo driver or transformer is supplied with this fixture (sold separately)
PDF Document(s)Wireless PIR Sensor Datasheet
Availability: Call for Stock Advice
We offer free delivery on orders over £50 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
Recessed Round
JGDLKSSCW
Requires Power Supply
Recessed Round 12v LED u/c Light - Cool White
£10.68
£8.90 exc VAT
JGDLKSSWW
Requires Power Supply
Recessed Round 12v LED u/c Light - Warm White
£10.68
£8.90 exc VAT
Surface Round
JGDLKSMSSCW
Requires Power Supply
Surface Round 12v LED u/c Light - Cool White
£11.88
£9.90 exc VAT
JGDLKSMSSWW
Requires Power Supply
Surface Round 12v LED u/c Light - Warm White
£11.88
£9.90 exc VAT
Surface Square
JGSQ12LEDCWSS
Requires Power Supply
Surface Square 12v LED u/c Light - Cool White
£10.80
£9.00 exc VAT
JGSQ12LEDWWSS
Requires Power Supply
Surface Square 12v LED u/c Light - Warm White
£10.80
£9.00 exc VAT
Surface Triangle
JGTRKSSCW
Requires Power Supply
Surface Triangle 12v LED u/c Light - Cool White
£12.96
£10.80 exc VAT
JGTRKSSWW
Requires Power Supply
Surface Triangle 12v LED u/c Light - Warm White
£12.96
£10.80 exc VAT
Suitable Easy Install Power Supplies
JGDRV126WTOP6
12v 6w LED PSU - supplies 1 - 3 fittings
£12.72
£10.60 exc VAT
JGDRV1212WTOP6
12v 12w LED PSU - supplies 1 - 6 fittings
£15.00
£12.50 exc VAT
Accessories
JGPIRRFSEN
Wireless PIR Sensor & Receiver Kit With Touch Dimmer
RRP £33.99
You save £5.00
£28.99
£24.16 exc VAT
