Low Profile LED Fire Rated Downlight IP65 & IC Rated

Warm or Cool White LEDs - Choice of Bezel Colour

Suitable for Zone 1 - protected from water jetsClass 2 – This fitting is double insulated and does not require an earth.Yes, this product is dimmable - See the specifications tab for more detailsSuitable for Bathroom Zones 1,2 and 3Bulbs IncludedIncludes integral driver/transformer suitable for 230 - 240v supply

Kelvin Chart

Product Ref: 40955

From £22.70 inc VAT

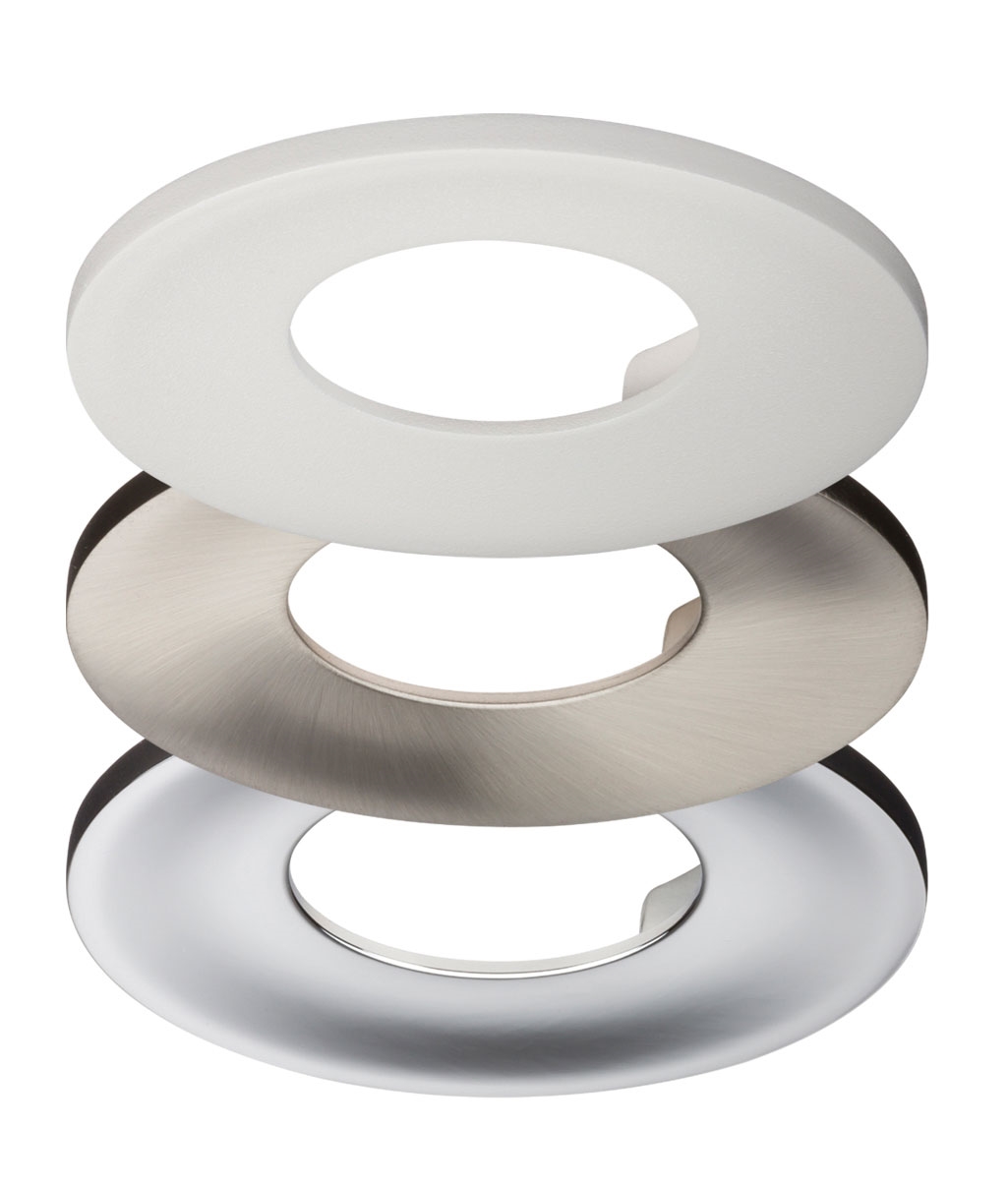

This is a lightweight, low profile, advanced LED fire rated downlight.  Choose from three coloured bezels to customise your fitting. The fitting is available in brushed chrome, polished chrome or white.

Supplied with 8w 40º COB LED lamp available in two colour temperatures.  Choose warm white 3000k, 580 lumens or cool white 4000k 640 lumens. These have a very long lamp life of over 30,000 hours.

Fully dimmable even on standard dimmers.

Built in driver and loop in loop out screwless terminal block.

IP65 rated providing protection from water projected from a nozzle and completely dust tight, Meaning it can be installed in zones 1,2 and 3 in the bathroom, and external areas, such as under porches.

Part B BS476 Part 23 tested to offer fire protection for 30, 60 and 90 minutes.

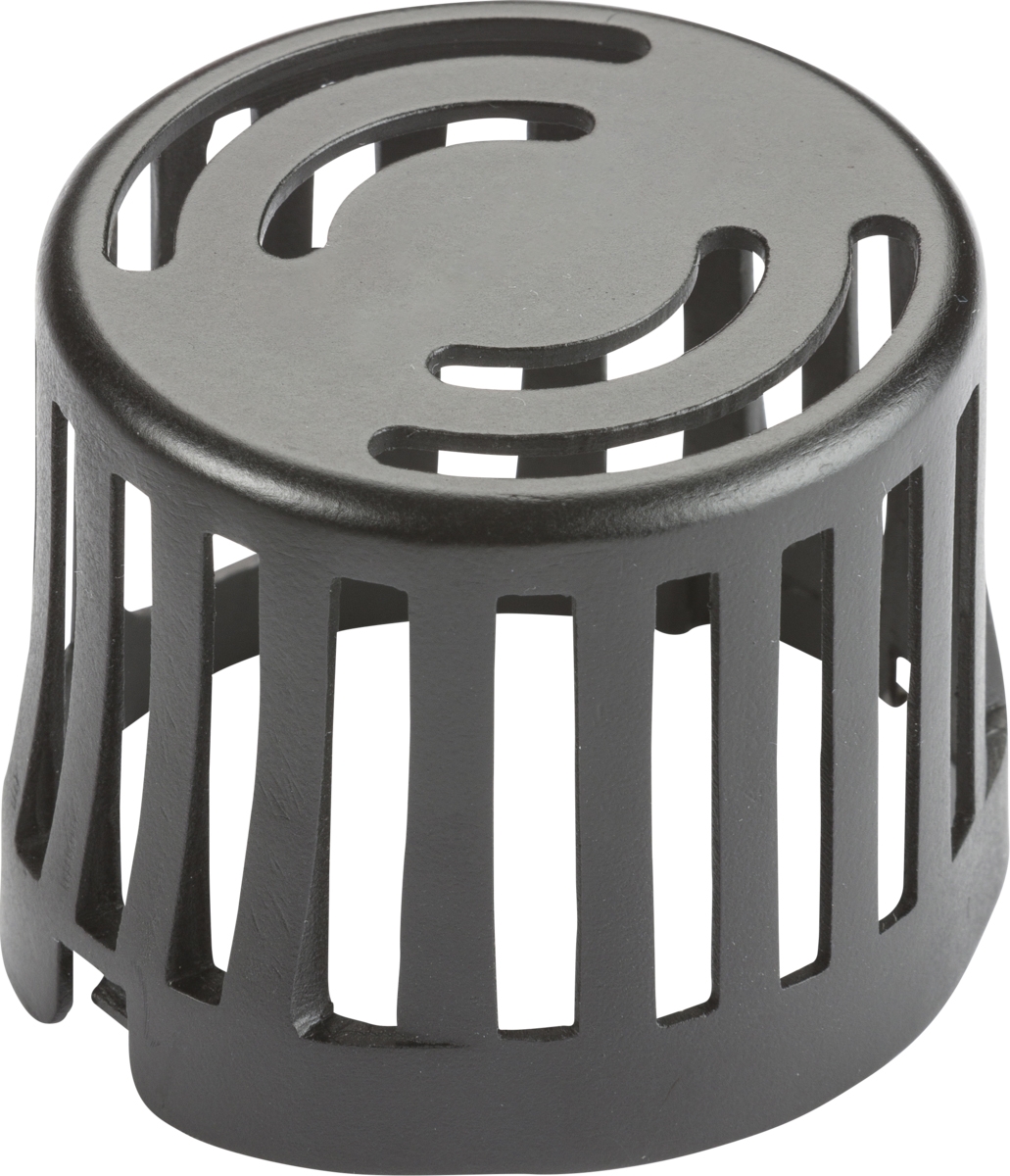

IC rated for use under standard, mineral wool style, insulation when installed in conjunction with IC Cage.

The minimum void needed when using the IC cage is 100mm. Without the cage the minimum void is 50mm.

The steel housing and bezels are sold independently. Make sure you add one housing and one bezel to your basket to have a complete downlight. You can choose from the items below.

Complete with a 5 year manufactures warranty.

Cut-out Diameter:
65mm
Overall Diameter:
80mm
Number Of Lamps1
Lamp TypeLong Life LED light source
Lamp Lumens65
Lamps IncludedYes
Dimmable?Yes - on standard dimmer
(TRIAC or leading edge)
Max Wattage8w
Diameter80mm
Cut-Out Diameter65mm
ConstructionSteel
Wiring DetailsClass 2 - Double Insulated - Requires no Earth Connection
IP RatingIP65
DriverIncludes integral driver/transformer suitable for 230 - 240v supply
Availability: IN STOCK 2-3 working day dispatch
We offer free delivery on orders over £50 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
MLVFRIC8WW
Warm White Low Profile LED Fire, IP65 & IC Downlight
£22.70
£18.92 exc VAT
MLVFRIC8CW
Cool White Low Profile LED Fire, IP65 & IC Downlight
£22.70
£18.92 exc VAT
MLVFRICBEZW
White Bezel for Low Profile LED Downlight
£2.16
£1.80 exc VAT
MLVFRICBEZCBR
Brushed Chrome Bezel for Low Profile LED Downlight
£3.70
£3.08 exc VAT
MLVFRICBEZC
Polished Chrome Bezel for Low Profile LED Downlight
£3.70
£3.08 exc VAT
MLVFRICC
IC Cage for use with MLVFRIC8
£2.08
£1.73 exc VAT

Related Products

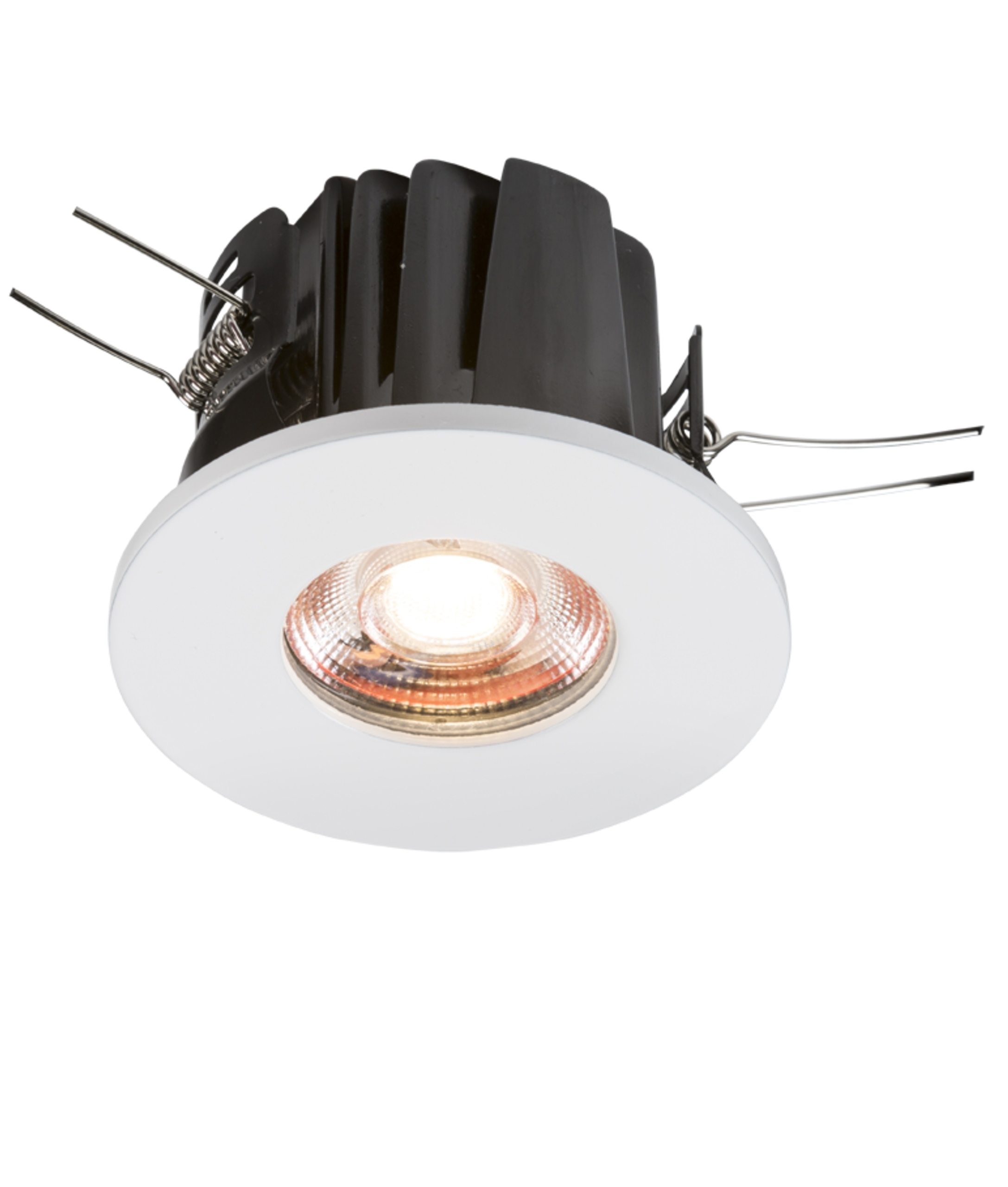

Fixed Low Profile IP65 Advanced LED Fire Rated DownlightFixed Low Profile IP65 Advanced LED Fire Rated Downlight
