Fixed Low Profile IP65 Advanced LED Fire Rated Downlight

Name: Fixed Low Profile IP65 Advanced LED Fire Rated Downlight
Brand: Lighting Styles
SKU: 20290
Price: 31.98 GBP
Availability: InStock
Rating: 8 (4 reviews)

Dimmable COB LED downlight with a choice of bezel designs

Suitable for Zone 1 - protected from water jets

Class 2 – This fitting is double insulated and does not require an earth.

Yes, this product is dimmable - See the specifications tab for more details

Includes remote driver/transformer suitable for 230 - 240v supply

Kelvin Chart

Product Ref: 20290

From £31.98 inc VAT

Description

This is a lightweight, low profile, advanced LED fire rated downlight using an 8w COB LED chip operating at two colour temperatures:

Warm white 2700°k, 460 lumens, 38° beam angle

Neutral white 4000°K, 530 lumens, 38° beam angle

These have a very long lamp life of over 30,000 hours and are dimmable even on standard dimmers.

Supplied complete with driver/power supply which features loop in, loop out screwless terminal block.

IP65 rated providing protection from water projected from a nozzle and completely dust tight, Meaning it can be installed in zones 1,2 and 3 in the bathroom, and external areas, such as under porches.

Part B BS476 Part 23 tested to offer fire protection for 30, 60 and 90 minutes.

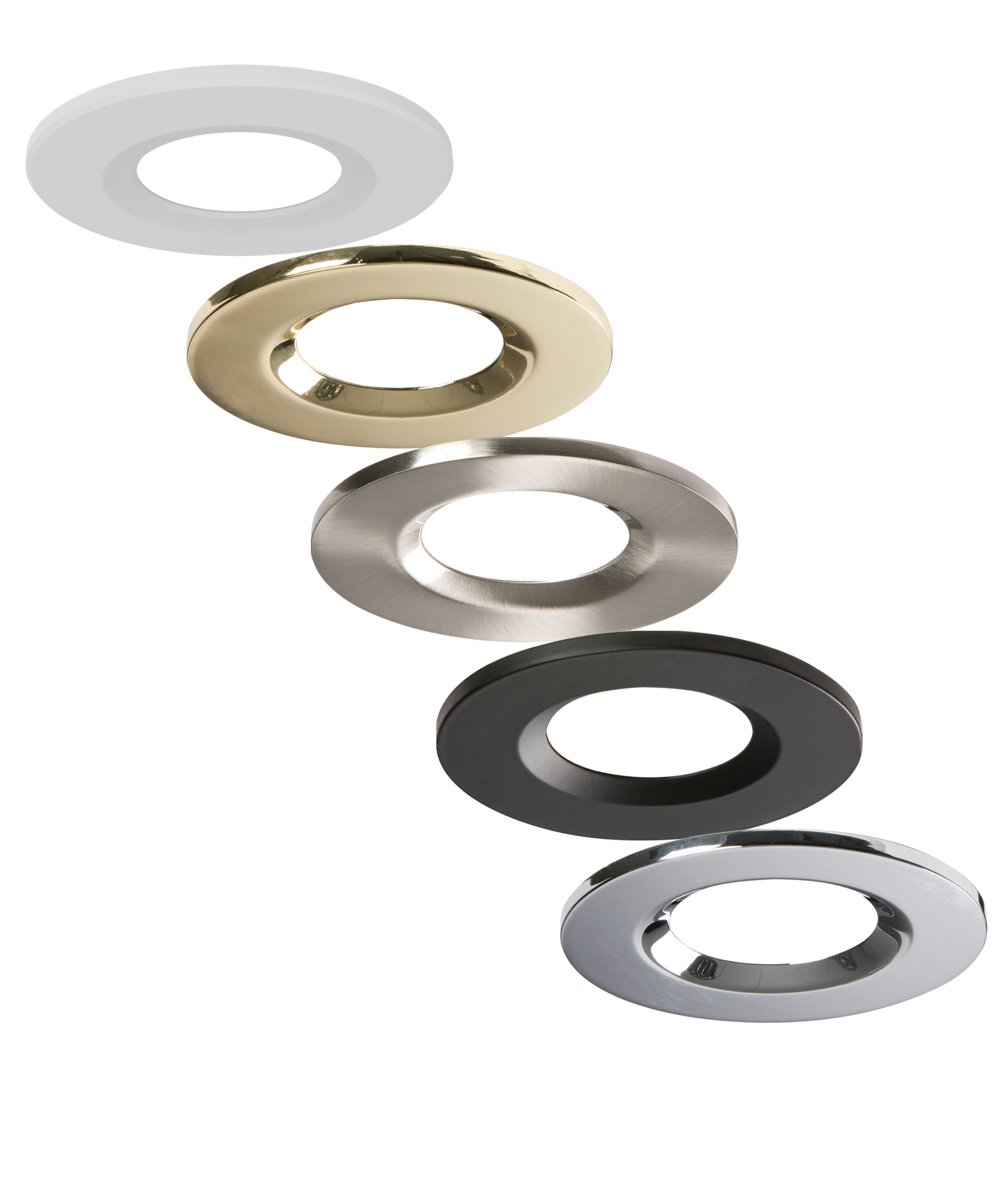

The steel housing and bezels are sold independently. Make sure you add one housing and one bezel to your basket to have a complete downlight. You can choose from the items below.

4 year manufactures warranty.

Adjustable downlight also available in the same range and finishes, please see below for separate listing.

Cut-out Diameter:
63mm

Overall Diameter:
80mm

Specification

Lamp Type	Long Life LED light source
Lamps Included	Yes
Dimmable?	Yes - on standard dimmer (TRIAC or leading edge)
Total Wattage	8w
Height	47mm
Diameter	80mm
Suggested Void Depth	91mm
Cut-Out Diameter	63mm
Construction	Steel
Wiring Details	Class 2 - Double Insulated - Requires no Earth Connection
IP Rating	IP65
Driver	Includes remote driver/transformer suitable for 230 - 240v supply

Frequently Asked Questions

Could you tell me if the driver fits through the 63mm hole?
The length of the driver is 125mm, a width of 40mm, and a height of 25mm. So it should fit just fine!

Are these lights compatible with smart bulbs?
These downlight have an integrated LED chip. If you want to use a smart LED bulb you might want to consider a fixture that uses GU10 bulbs.

What's the actual type of the lamp - is it a constant voltage drive or a constant current?
This is a COB LED lamp. The driver supplied is a constant current.

Are these lamps rats to be covered by insulation etc or is a lamp hood required? Installing these lamps directly above a shower cubicle - must I use low voltage lamps in that situation?
This fitting is a fixed mains COB LED, low voltage lamps are not needed. This is IP65 so fine to be used in a shower cubicle. The fitting itself is fire rated, and therefore no hood is needed.

What is the beam angle? And the number of lumens?
Warm white 2700°k, 460 lumens, 38° beam angle Neutral white 4000°K, 530 lumens, 38° beam angle

Will this fit a 73mm cut out?
This fitting has a 63mm cut out and rim of 76mm it’s only going to work in you larger hole if you use some builders adhesive to ensure it stays in place.

What clearance is required above and around this light for ventilation or fire protection?
No clearance is required above or around the light. The fitting itself is fire rated. It just needs a void depth of 91mm.

What voltage is on this product am I required to have a 240-12v power supply per lamp
These are a mains fitting (240) that come supplied with a LED driver.

Availability: IN STOCK - Typically dispatched within 24 hours
