Ceiling Fixed Illuminated Emergency Exit Sign - LED Double Sided
Easy Access to Test Button for Monthly Functional Testing
Product Ref: 2368
From £66.30 inc VATOverview

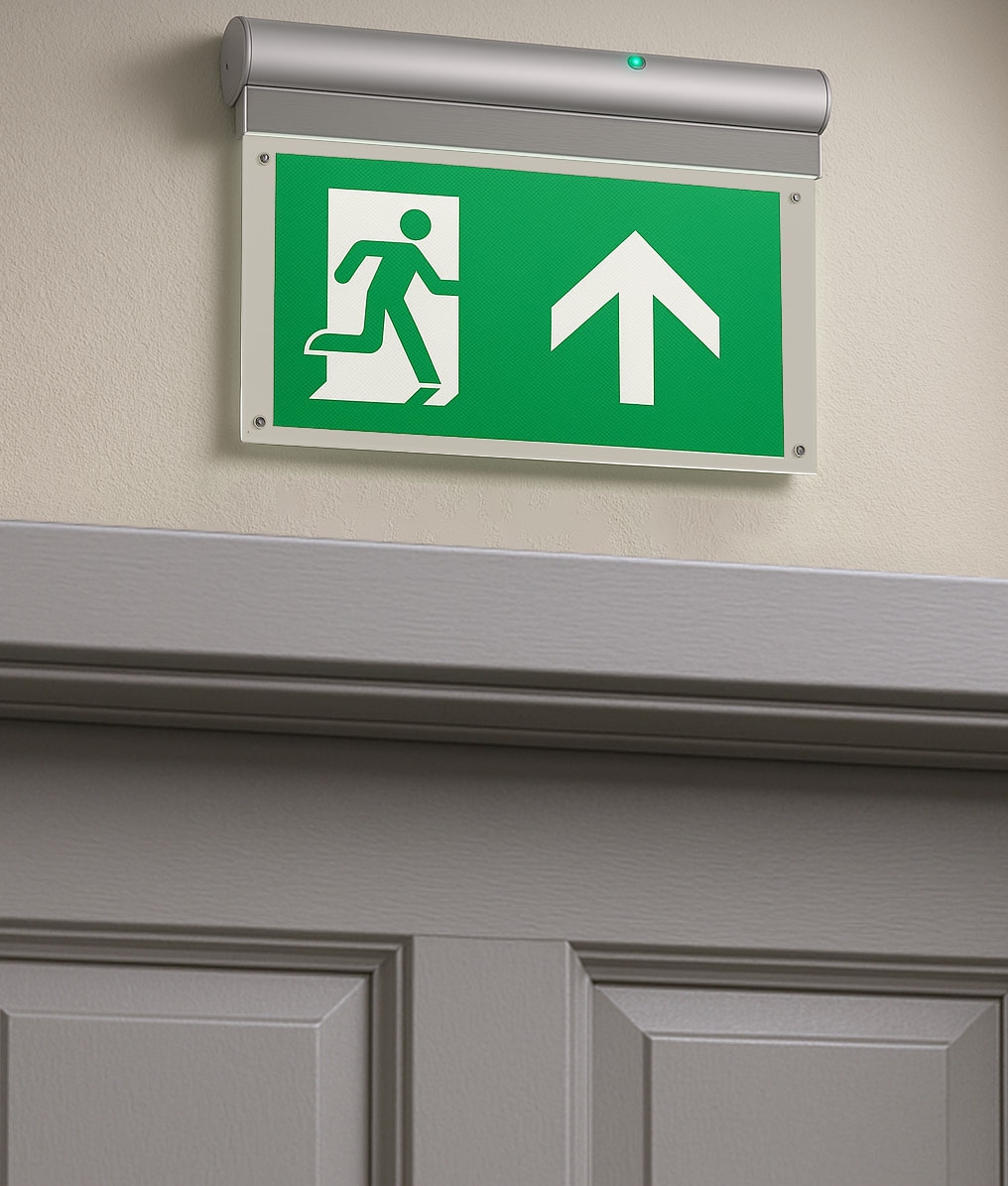

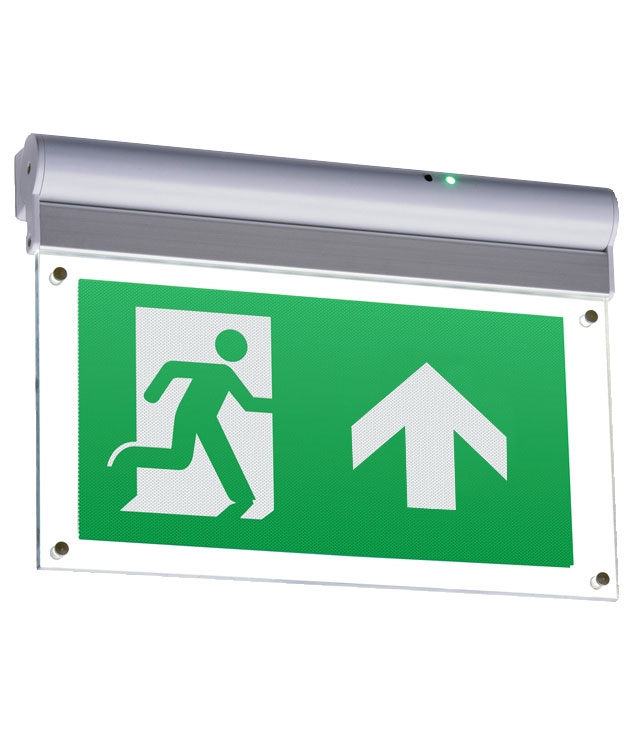

A cleanly designed LED emergency exit sign suitable for both commercial and prestige interiors. Supplied with a bracket for wall or ceiling mounting, this fitting is suitable for maintained or non-maintained operation and includes a built-in 3-hour emergency battery pack.
Arrow Legend and Regulatory Compliance
This version is supplied with an up arrow legend, which complies with current safety sign standards (BS ISO 7010).
Under the latest regulations:
The up arrow indicates to proceed straight ahead or forward through the door — suitable for corridor routes or above doors where the escape continues
A down arrow is now only permitted above a final exit or when directing downward movement (e.g. toward a stairwell or basement level)
Left and right arrows should be used where a turn is required
Alternate legends (down, left, right) are available separately for compliance across various escape route layouts.
Testing and Maintenance
A discreet side-mounted test button allows simulation of a power failure to check lamp and battery operation. This supports required monthly functional tests under emergency lighting regulations.
Operation Modes
Maintained – The light can be switched on as needed. In a power cut, it will automatically illuminate. Requires a switched and unswitched live feed.
Non-Maintained – The sign remains off during normal use, illuminating only in a power cut. Requires an unswitched live feed only.
Key Features
Supplied with up arrow legend
Wall or ceiling mounting with included bracket
Integrated 4W LED at 6000K colour temperature
30,000 hour lamp life
Suitable for maintained or non-maintained use
3-hour emergency duration
Test button for routine checks
Optional legends: down, left, right
Energy efficient and low-maintenance
Lamp Type | Long Life LED Light Source |
Part L Compliant Luminaire | No |
Lamps Included | Yes |
Dimmable? | No |
Max Wattage | 4w |
Total Wattage | 2w |
Width | 35mm |
Length | 310mm |
Height | 230mm |
Construction | Polycarbonate |
Wiring Details | Class 2 - Double Insulated - Requires no Earth Connection |
IP Rating | IP20 |
Kelvin | 6000°K - Very Cool White |
Driver | Includes integral driver/transformer suitable for 230 - 240v supply |
