Button LED Wall or Ground Indicator Light

Name: Button LED Wall or Ground Indicator Light
Brand: Lighting Styles
SKU: 4959
Price: 42.5148 GBP
Availability: InStock
Rating: 8.6 (11 reviews)

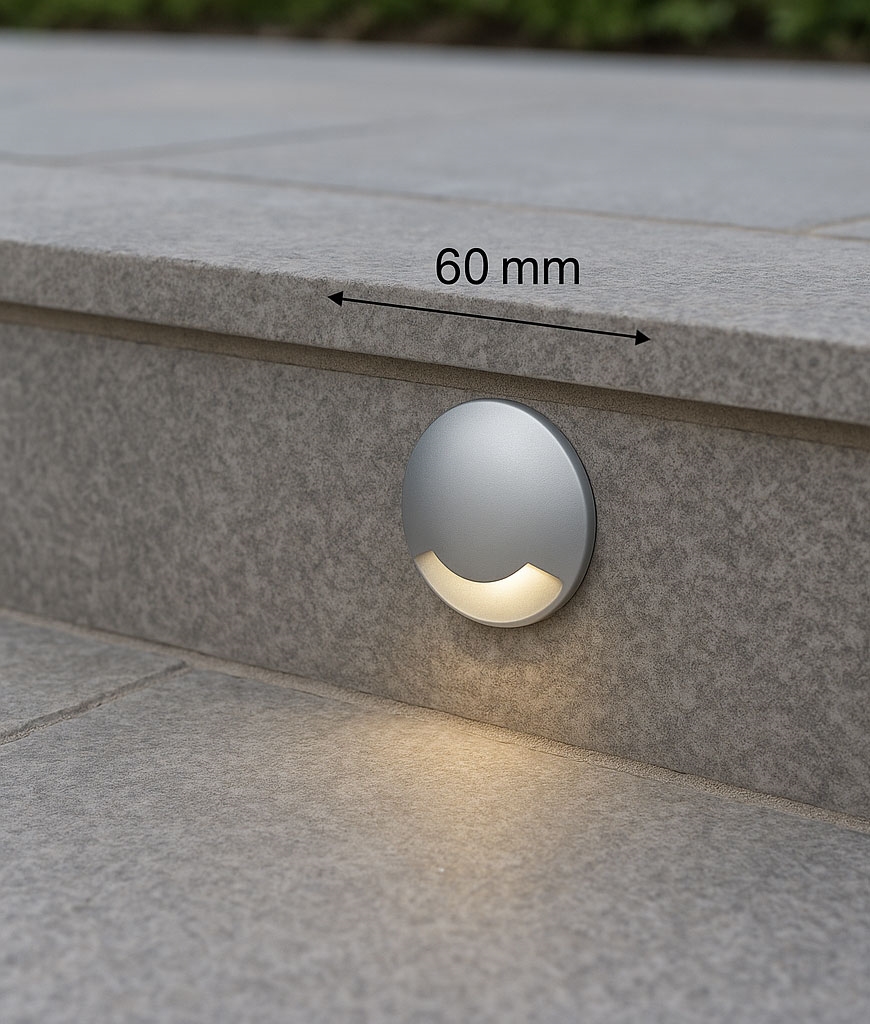

Only 60mm in Diameter!

Dustproof and protected from powerful water jets from all directions

Class 3 - This fitting is low voltage and will require a transformer or driver.

Yes, this product is dimmable - See the specifications tab for more details

No driver or transformer is supplied with this fixture (sold separately)

3000°K - Warm White

Product Ref: 4959

£42.51 inc VAT

Description

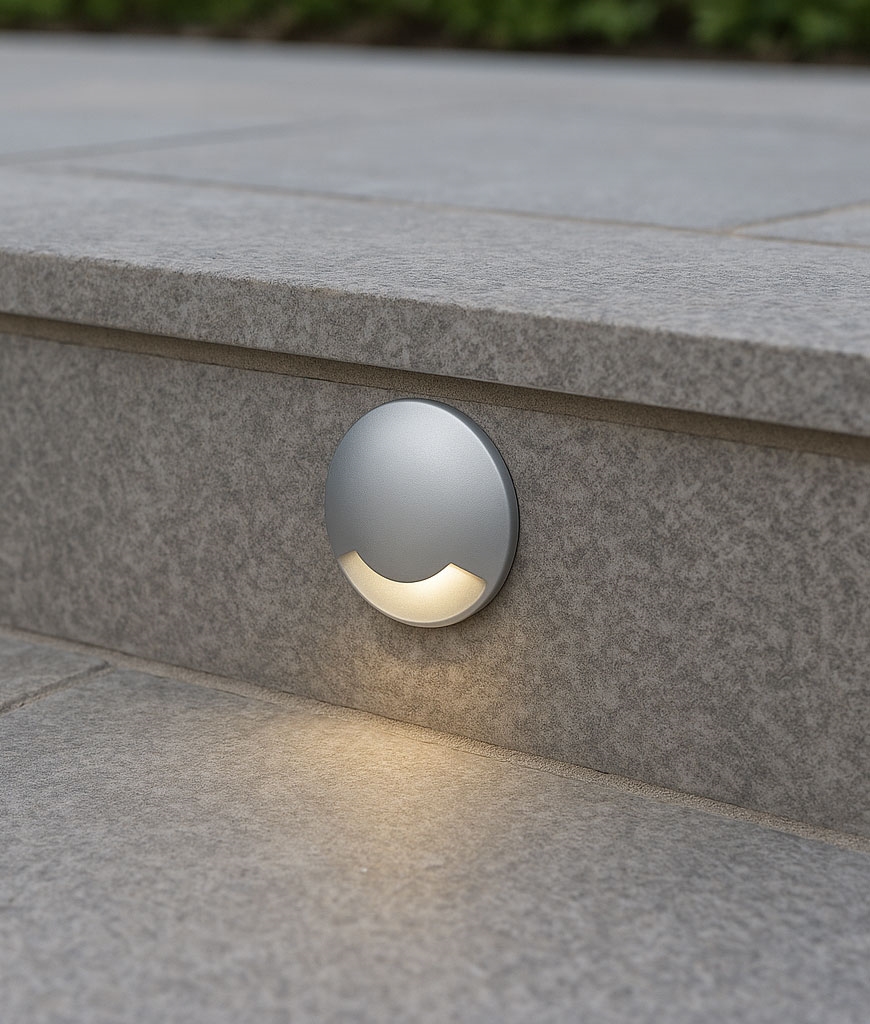

A painted silver wall light with LEDs for energy efficiency. Perfect for making a feature of paving and pathways but also great for casting light across driveways. The intensity of the LED chip means a sharp cut off of light creating a dramatic effect.

Offered in three variations all with a 3w LED chip. You either have one, two or four slots from which the light omits - see images.

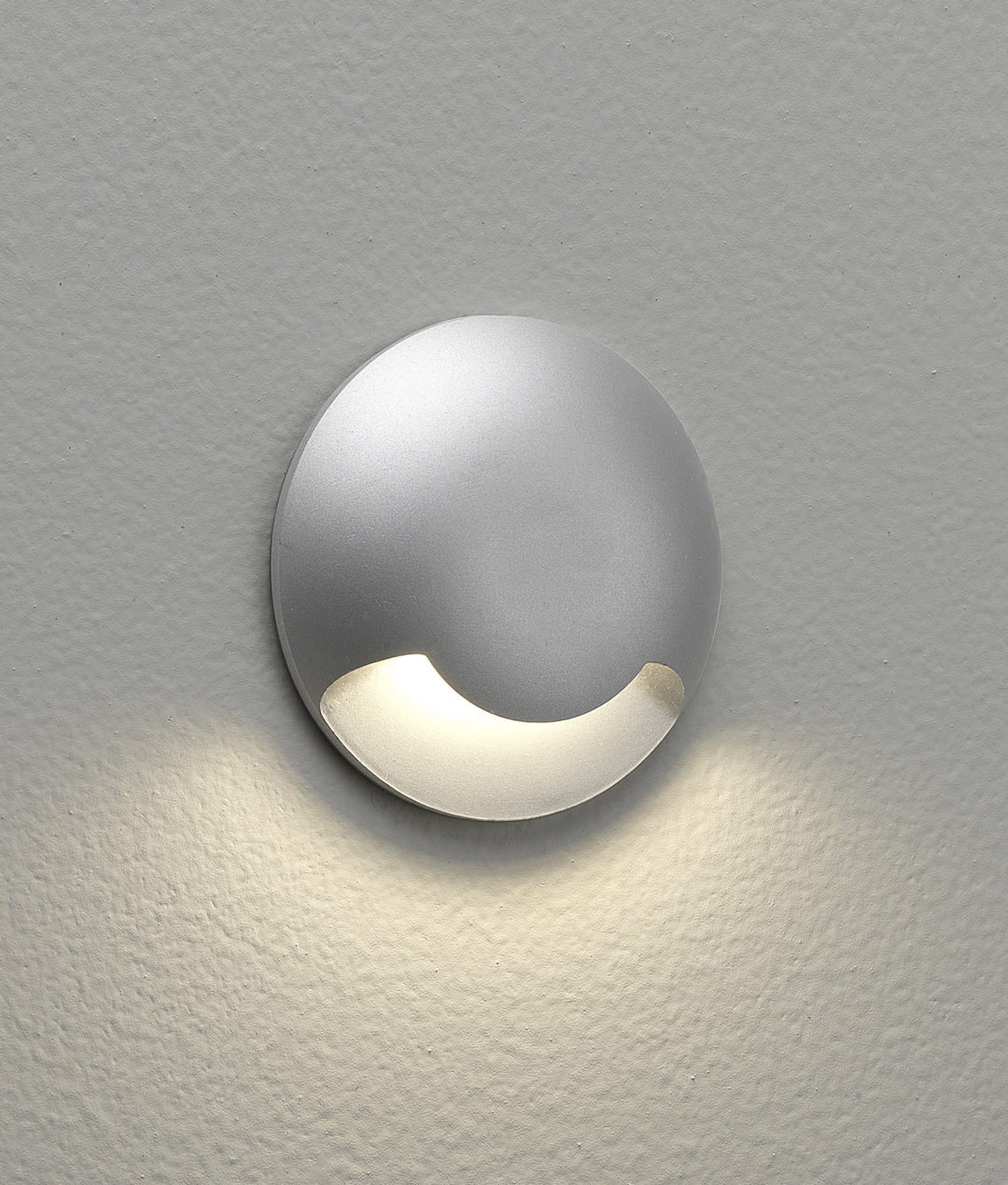

Single aperture
Great for casting light down when wall mounted or in the ground for navigation.

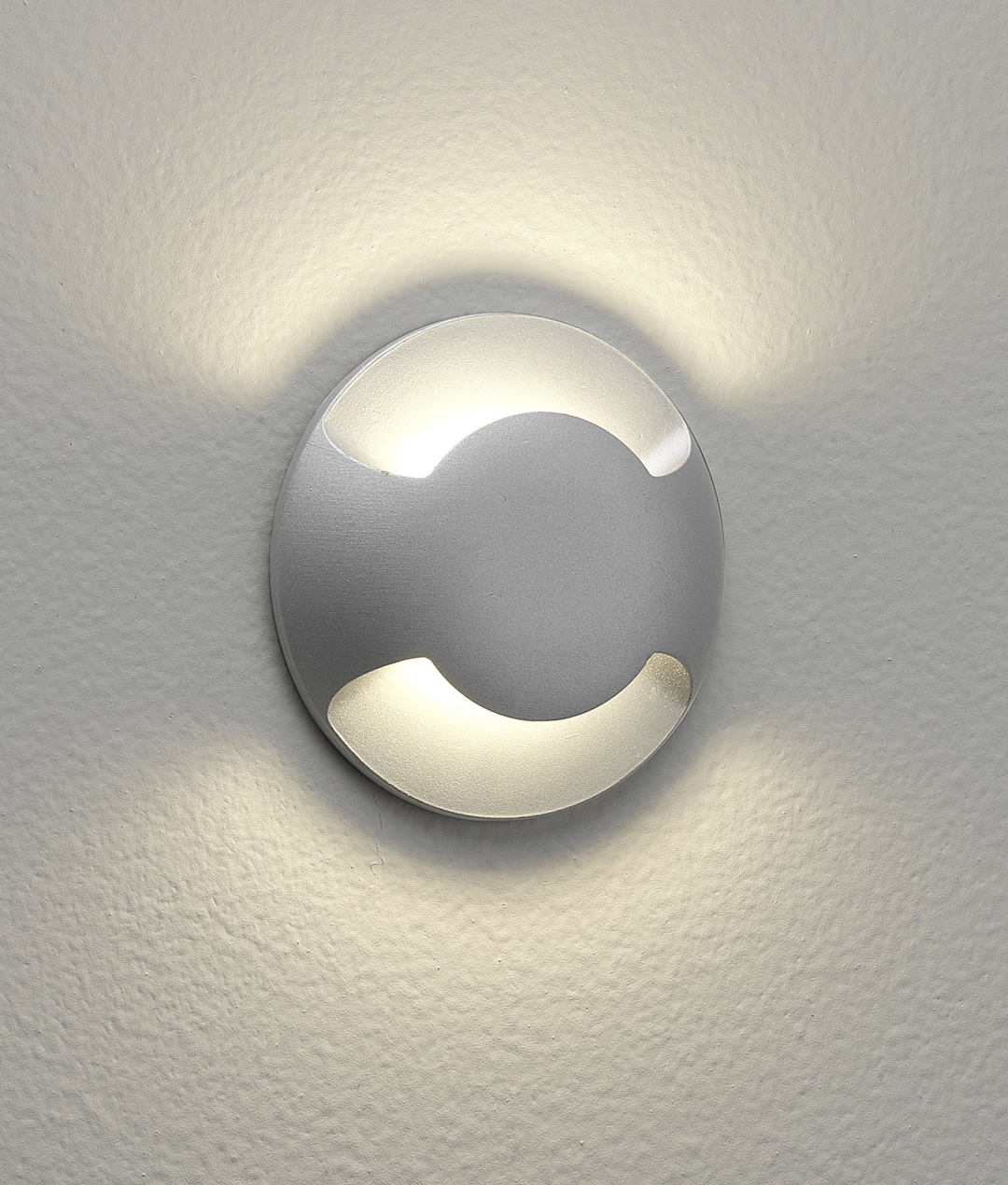

Twin aperture
Good for wide steps or for the centre of a driveway

Four apertures
Great for use in planting areas or for decoration on walls

IP67 rated dust tight, and protection from water immersion.

Due to their size these luminaires they do not have space for an integral power supply. They must be used with a 700mA constant current driver (power supply).

When using a larger power supply the luminaires must be wired in series. If unsure please contact us for advice and assistance.

Specification

Number Of Lamps	1
Lamp Type	Long Life LED light source
Lamp Lumens	70
Lamps Included	Yes
Dimmable?	Yes - when using the specified equipment
Max Wattage	3w
Total Wattage	3w
Diameter	60mm
Cut-Out Diameter	40mm
Construction	Aluminium - Powder Coated
Wiring Details	Class 3 - Requires a low voltage supply
IP Rating	IP67
Kelvin	3000°K - Warm White
Driver	No driver or transformer is supplied with this fixture (sold separately)
PDF Document(s)	View PDF

Frequently Asked Questions

Are these suitable to illuminate a patio or demarcation only?
This is suitable for demarcation only.

I would like something like these to affix to the 4 sides of a concrete block planter in my garden. Would these be suitable, and give off enough light to light to the surrounding area? Are these to be mains connected
These are designed to be a guide light, So they would give off enough light for your application. These require a driver which is then connected to the mains.

Can these lights be surfaced mounted? Do the lights have terminals to connect into or do you need to buy specific leads?
These fittings require a constant current driver for use, which one end will connect the fittings, and the other end to the mains supply. These are fine to be used in walls or grounds.

Does this light come in any other colour or could it be painted?
This is only available in the finished stated, and it cant be painted.

Are these suitable for outside and fully sealed and are the bulbs supplied and easy to replace?
These are designed to be used outside, The LED long life lamp inside can not be replaced.

Is the driver waterproof?
The driver is not waterproof so would need to be housed in a water proof box.

Does the LED driver recommended for this fit inside the wall light fitting, including the one with 4 cutouts?
The LED driver is tiny (Width/Diameter 26mm x Length 37mm) so its easily hidden. Its not in the fitting itself. It would sit near it.

Availability: IN STOCK 2-3 working day dispatch
