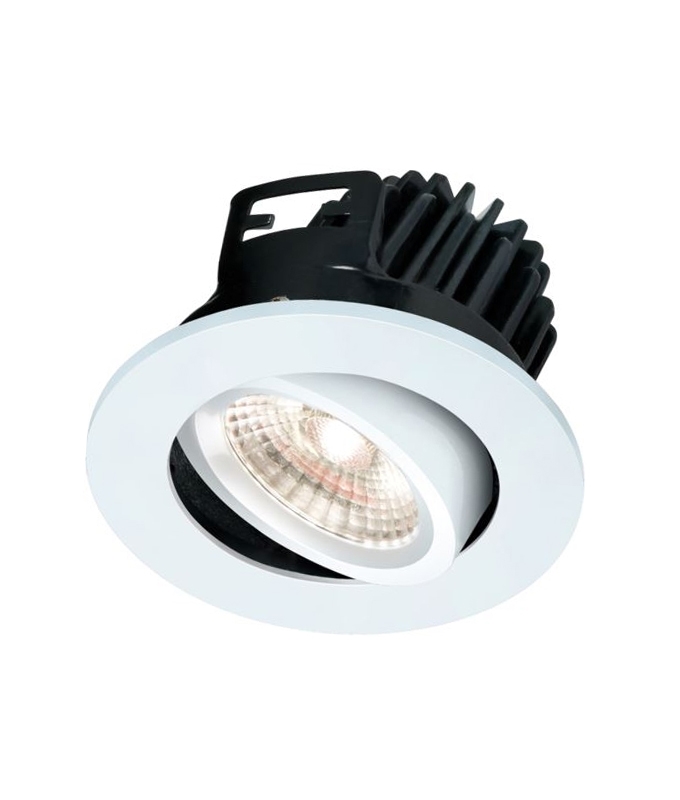

Elite HD 7w COB LED Fire Rated Tilt Downlight

Includes Dimmable LED Power Supply!

Offers no protection from splashed or sprayed waterClass 2 – This fitting is double insulated and does not require an earth.Yes, this product is dimmable - See the specifications tab for more detailsBulbs IncludedIncludes remote driver/transformer suitable for 230 - 240v supply

Kelvin Chart

Product Ref: 6200

From £30.00 inc VAT

Finally the poor quality LED lights are disappearing from the wholesale market as end users and electrical contractors become more aware of the long term benefits of COB (chip on board) LED technology.

So put aside your preconceptions of LED downlights and look at this range of fantastic lights.

This fixture is brighter than a GU10 halogen

Soft warm white 2700°k - 460 lumens

Neutral white 4000°k 490 lumens

This fixture is fire rated - it gives 90 minutes fire protection and was tested to BS 476 Part 23.

This fixture is dimmable - it come complete with a dimmable DC power supply. You just wire in the mains supply. We offer a dimmer module that will replace the dimmer inside your switch plate if your existing dimmer is incompatible. This will operate a single downlight or a larger quantity (max 20 units). This can be found at the bottom of this listing.

This fixture has a 7 year guarantee - register your installation on the website for a free extended warranty.

This fixture is available with a 3hr emergency pack - a plug in emergency pack, inverter with charge indicator.

Plus... 25º tilt, 38º beam angle, push in loop in/loop out wiring connector, pre-wired dimmable LED driver with push-fit connection, clips accommodate ceiling up to 30mm thick, comes in the three popular colours; white, polished chrome and brushed chrome (satin nickel).

Cut-out Diameter:
74mm
Overall Diameter:
88mm
Lamp TypeLong Life LED light source
Lumens Per Watt70
Part L Compliant LuminaireYes
Lamps IncludedYes
Dimmable?Yes - on standard dimmer
(TRIAC or leading edge)
Diameter88mm
Depth/Projection60mm
Suggested Void Depth70mm
Cut-Out Diameter74mm
ConstructionAluminium - Powder Coated
Wiring DetailsClass 2 - Double Insulated - Requires no Earth Connection
IP RatingIP20
DriverIncludes remote driver/transformer suitable for 230 - 240v supply
PDF Document(s)View PDF
Availability: IN STOCK 2-3 working day dispatch
We offer free delivery on orders over £50 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
MLVFRCOBWW1
White 7w Elite HD COB LED Tilt Downlight - 2700°k
£51.68
£43.07 exc VAT
MLVFRCOBWW2
Polished Chrome 7w Elite HD COB LED Tilt Downlight - 2700°k
£54.06
£45.05 exc VAT
MLVFRCOBWW3
Brushed Chrome 7w Elite HD COB LED Tilt Downlight - 2700°k
£54.06
£45.05 exc VAT
MLVFRCOBCW1
White 7w Elite HD COB LED Tilt Downlight - 4000°k
RRP £51.68
You save £21.68
£30.00
£25.00 exc VAT
MLVFRCOBCW2
Polished Chrome 7w Elite HD COB LED Tilt Downlight - 4000°k
£54.06
£45.05 exc VAT
MLVFRCOBCW3
Brushed Chrome 7w Elite HD COB LED Tilt Downlight - 4000°k
£54.06
£45.05 exc VAT
MLVFR7EM
Plug-in 3hr Emergency Pack for 7w COB LED Tilt Downlight
£70.56
£58.80 exc VAT
