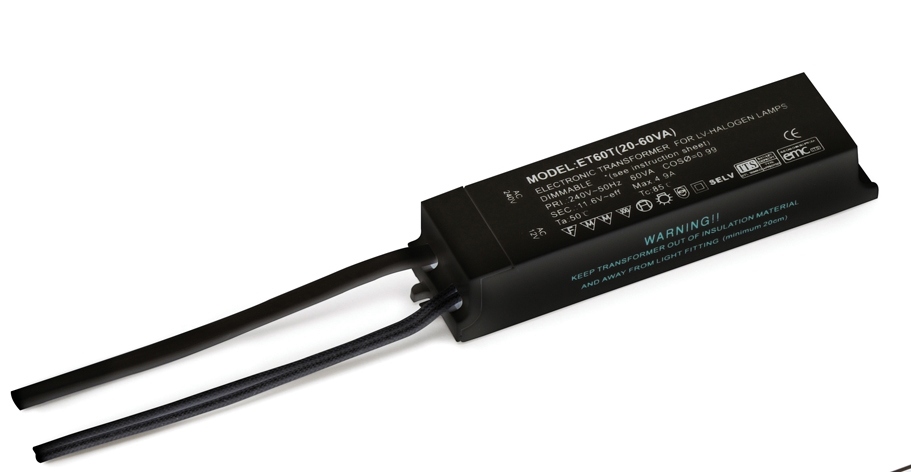

Transformer for low voltage lighting (12v). So, what do we mean by resettable? Well, if this transformer trips out through overheating it will automatically reset it self after a 45 second period.

If the transformer did not have a auto reset you would have to switch off the power to get it working again.

Is this a major feature? Well, no not really if the transformer does trip out through overheating you should endeavour to move it or ensure it is not covered with insulation.

So ignoring the resettable aspect, is this transformer any good? Yes it is! Plus it has a 2 year guarantee.

Runs lamps at 11.6v to ensure long lamp life.

Easily fits through hole made for any recessed downlight.

Electronic dimmable 12v transformer
Short circuit and overload protection
Thermal cut-out
250mm trailing leads

Lamp Type
Part L Compliant Luminaire	No
Dimmable?	Yes - on trailing edge (reverse phase dimmers)
Width	30mm
Height	120mm
Depth/Projection	22mm
Construction	Mixed
Wiring Details	Class 2 - Double Insulated - Requires no Earth Connection
IP Rating	IP20

Can this run a 7w LED MR16 bulb? if so how many would I need to run 12 x 7w?
There is no reason why this transformer can not power 12v LED lamps. But you have to match the load to the transformer i.e. ensure the minimum load is over 20 watts. Technically to power twelve 7w LED lamps you would only require two transformers but the length of the wiring may affect the performance so if the lamps are widely spaced we would suggest perhaps four transformers might be the way to go.

I'd like 10 12Vac bulbs, how many of these units would you recommend? I plan to use 35W bulbs... Also is this setup more efficient that having a 230Vac 50W unit once you take into account the bulb and the transformer?
A 60va transformer can run 1x 35w or 1x 50w lamp. This is more efficient than a mains system as it takes your 230v and takes it down to 12v. If you plan to have 10 fittings you would need 10 transformers.

I wish to run 6 off 5 watt led downlighters from this transformer, will it be satisfactory?
This transformer provides 12v AC power. As we don`t know what LED lamps you are using we can`t be sure (some require a 12v DC supply). Another factor is the length of your cable runs; anything over a metre and this unit will struggle. So try it. If it doesn`t work buy a dedicated 12v DC LED power supply (also called a driver)

I wish to power a small circuit of 3 - 35 watt x 12volt low voltage bulbs. Is it best to buy just a 105 watt transformer or a slightly larger capacity 150watt transformer?
No there is no need to have extra capacity unless you feel you may add another 35w lamp in the future.
