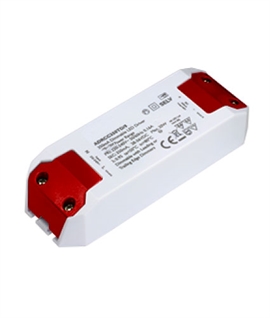

Dimmable 350mA 4w Compact Dimmable LED Driver

Perfect for Dimming Low Loads

  • Best Seller
Offers no protection from splashed or sprayed waterClass 2 – This fitting is double insulated and does not require an earth.Yes, this product is dimmable - See the specifications tab for more details

Product Ref: 51865

£24.99 inc VAT

This compact 350mA dimmable LED driver is engineered for discreet integration into modern lighting fixtures. With dimensions of just 38mm in length, 28mm in depth, and 21mm in height, it is designed to be easily concealed, making it ideal for installations where space is limited. Its minimal size allows it to be incorporated directly into light fittings, providing a seamless and tidy finish. The unit’s small form factor ensures versatility, whether in homes or commercial settings.

Usage
The driver is suitable for powering high-output LEDs in various environments, including domestic spaces, offices, or retail settings. It is especially practical in installations where multiple LED fittings are required, such as under-cabinet lighting, accent lighting, or bespoke fixture designs. The driver supports multiple LEDs connected in series, ensuring even power distribution and smooth dimming for projects that demand precision lighting control.

Key Features
The driver operates with an input voltage of 220-240V and is rated for a maximum load of 4W and a minimum load of 2W. Bare-wire primary and secondary cables allow for a more compact design, making external connections straightforward and reducing the overall space required for installation. It is Class 2 double insulated, eliminating the need for an earth connection, which simplifies the setup process. Additionally, the IP20 rating ensures adequate protection in dry indoor environments.

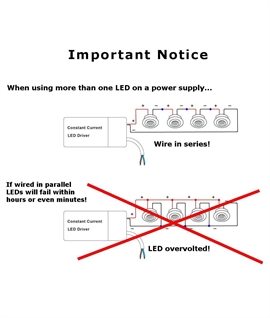

This LED driver is also compatible with dimmable systems, allowing users to control the brightness of connected LEDs, enhancing the versatility of lighting schemes. To ensure the correct operation, all connected LEDs should be wired in series, as outlined in the provided installation diagram.

Availability: Typically dispatched in 2-4 days
We offer free delivery on orders over £80 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
CY89004T
Dimmable 350ma 1 - 4w Constant Current LED Driver
RRP £35.99
You save £11.00
£24.99
£20.83 exc VAT
