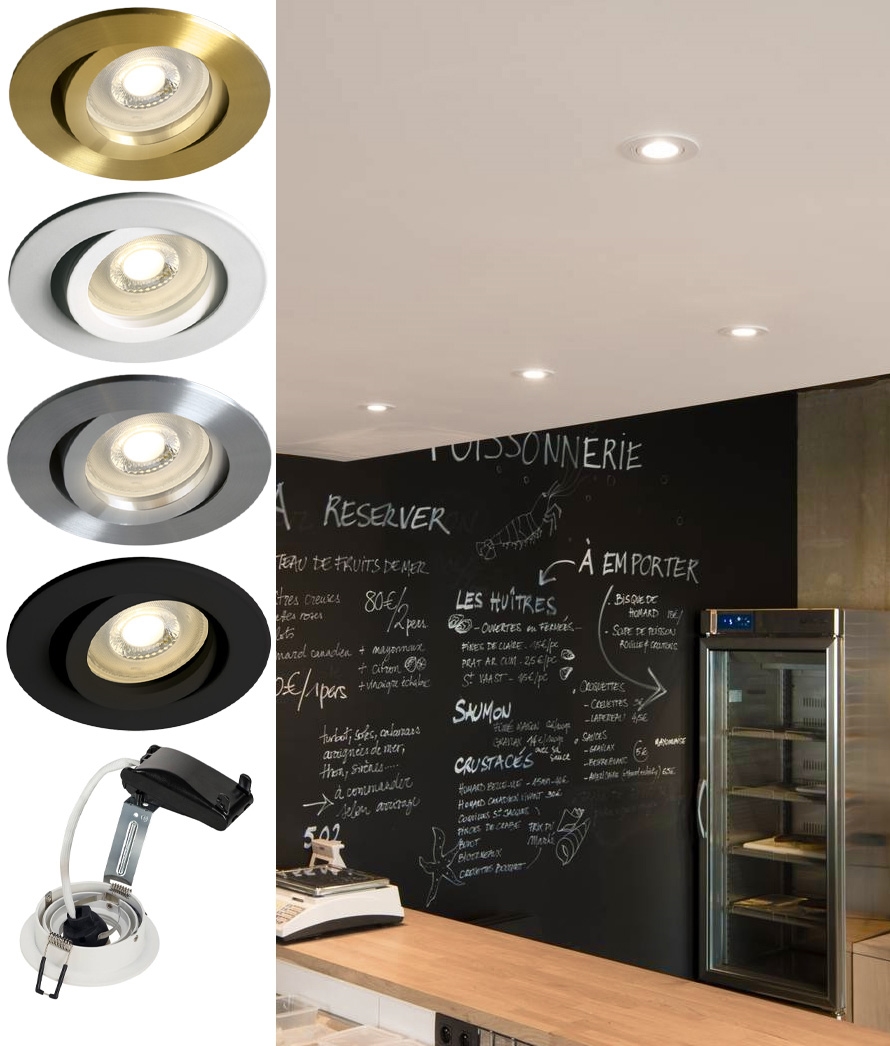

Being easy to install and easy to relamp, this downlight features a pull-down centre piece for swift LED lamp changes without the need for tools. The outer bezel remains intact, ensuring a clean look. With a 30º tilt and 360º rotation, adjust the light focus to your preference. Designed exclusively for LED lamps up to 10 watts, it combines energy efficiency with a choice of four finishes to suit any room's aesthetic.

Simple installation and lamp changes
Tilt and rotate for perfect light placement
LED-only compatibility, up to 10 watts
Select from four stylish finishes

Suitable for a modern, efficient spaces and rooms in any homes.

The fixture is supplied with a double insulated lamp holder and terminal block and is thus Class 2. If you wish to earth the fixture you may do so.

Cut-out Diameter:
72mm

Overall Diameter:
84mm

Number Of Lamps	1
Lamp Type	GU10 Base Mains Lamps
Lamps Included	No
Dimmable?	Yes - on standard dimmer (TRIAC or leading edge)
Max Wattage	10w
Height	28mm
Diameter	84mm
Suggested Void Depth	120mm
Cut-Out Diameter	72mm
Construction	Aluminium
Wiring Details	Class 2 - Double Insulated - Requires no Earth Connection
IP Rating	IP21

can I fit this in a ceiling with double thick plasterboard
It is designed up to 18mm thickness, the clips will not be flat in the ceiling but it would be more than ok when used with double-thick plasterboard.

please clarify how the lamp is replaced - does the whole fitting have to be removed from the ceiling ? Or only the inner bezel? And how is this held in place?
The inner bezel detaches from the fitting allowing easy access to the lamp, there is no need to remove the whole fitting from the ceiling. It is held in place by metal spring clips.

What is max thickness of ceiling through which this can fix?
20mm max.

	6w Pro HD GU10 LED Lamp Neutral white 520 Lumens - FOX05961
	6w Pro HD GU10 LED Lamp Daylight White 520 Lumens - FOX05962
	6w Pro HD Dimmable GU10 LED Lamp Neutral White 520 Lumens - FOX05964
	6w Pro HD Dimmable GU10 LED Lamp Daylight White 520 Lumens - FOX05965
	6w Pro HD GU10 LED Lamp Warm White 520 Lumens - FOX05960
	6w Pro HD Dimmable GU10 LED Lamp Warm White 520 Lumens - FOX05963
	GU10 50w PAR Lamps 40º Beam LUM215001
Click here to choose your bulbs

Easy-Install LED Downlight – Tool-Free Relamping for GU10 Mains LED Lamps

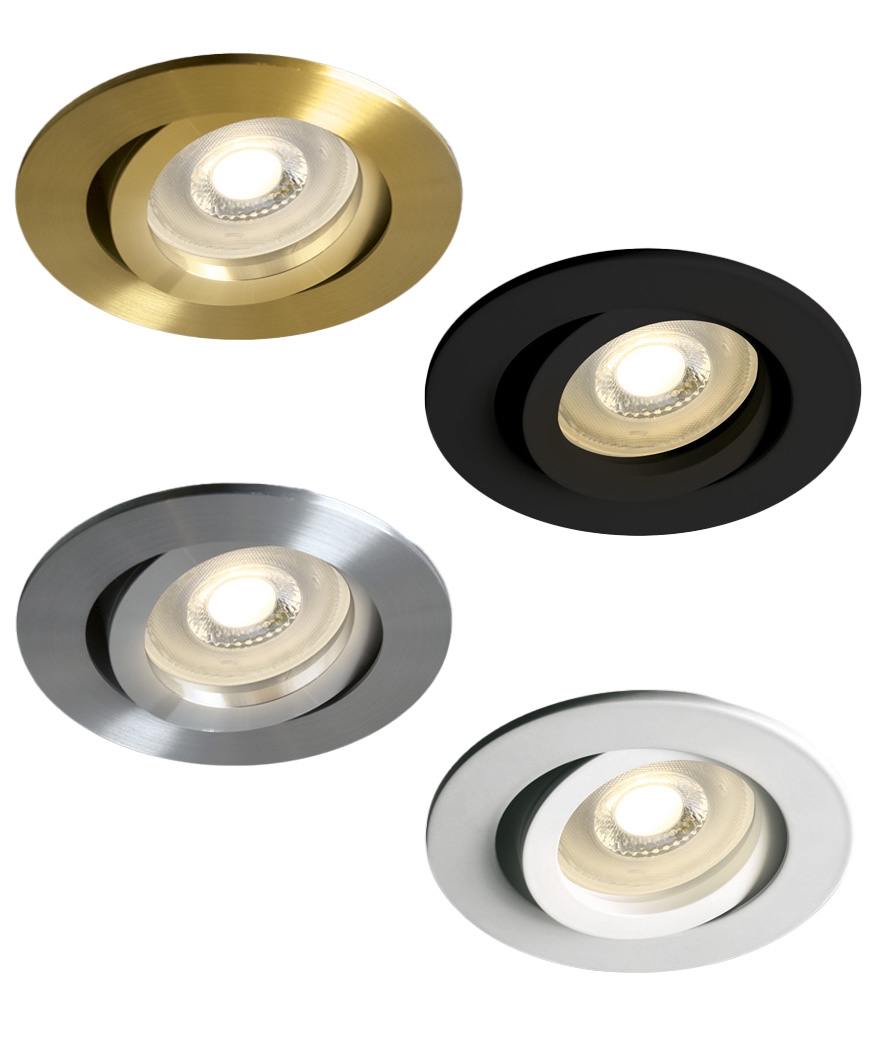

Brushed Aluminium, Brass, Matte White, or Black Paint finishes
