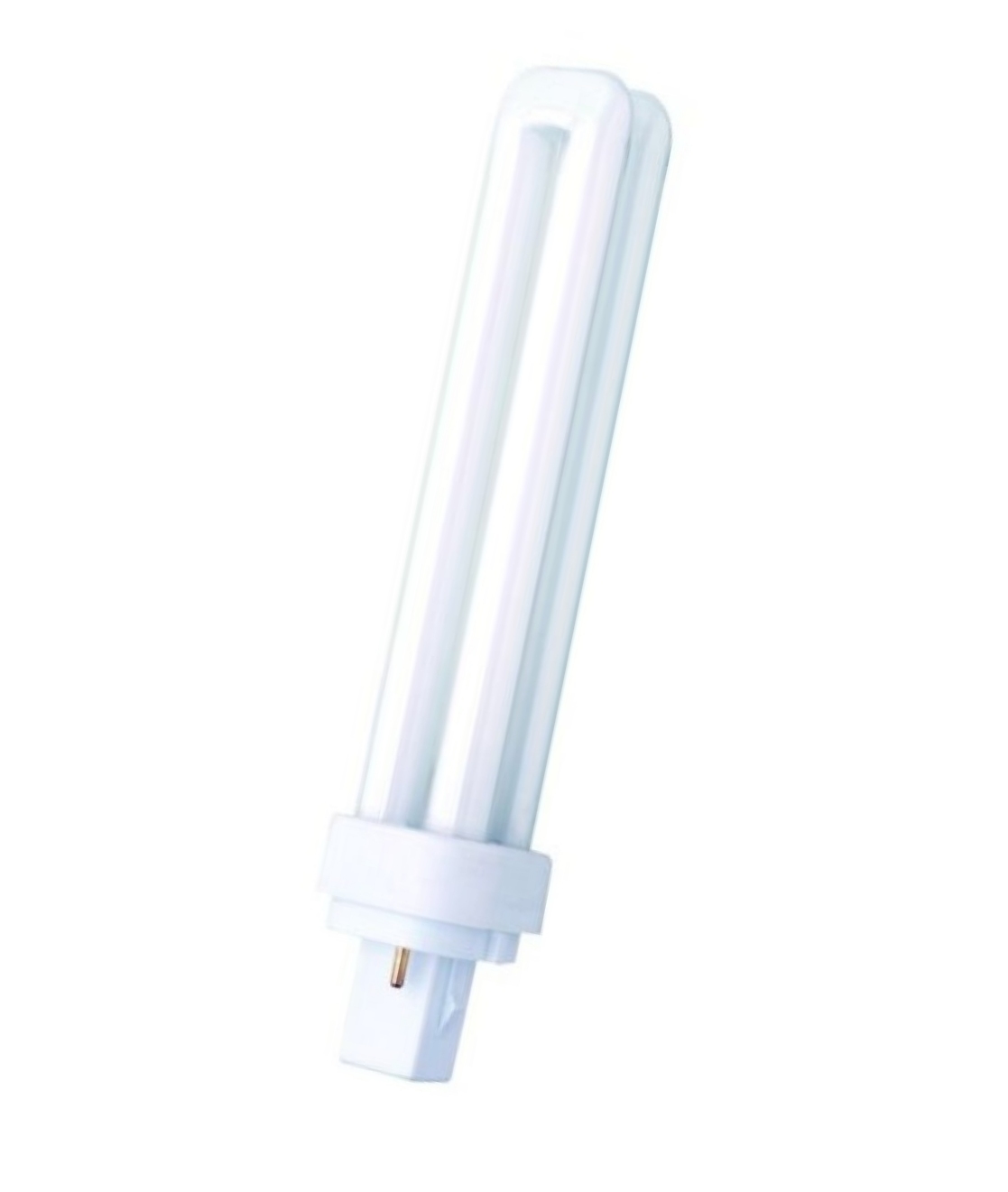

2 pin TC-D compact fluorescent lamp on a G24d lamp base. Consists of 4 parallel narrow fluorescent tubes.

2 pin base with housing incorporating instant starter and capacitor for use on conventional copper iron ballasts.

2700º kelvin very warm white or 4000º kelvin neutral white

10w - 109mm long, 27mm diameter
13w - 116mm long, 27mm diameter
26w - 149mm long, 27mm diameter

Lamp Type
Part L Compliant Luminaire	No
Wiring Details	Not applicable

I have installed light fittings (ref) motto tc-d 10w when I powered up the lights none of them worked. Would there be an issue with the dimming control not been connected or is it something within the fitting?
TC-D two pin lamps are not dimmable. TC-DE four pin lamps are dimmable but only when used with appropriate dimmable ballasts. What fixture do you have? Have you connected these lamps straight to a mains supply?

G24d TC-D Two Pin Compact Fluorescent

aka PL-C, TCD, double turn etc
