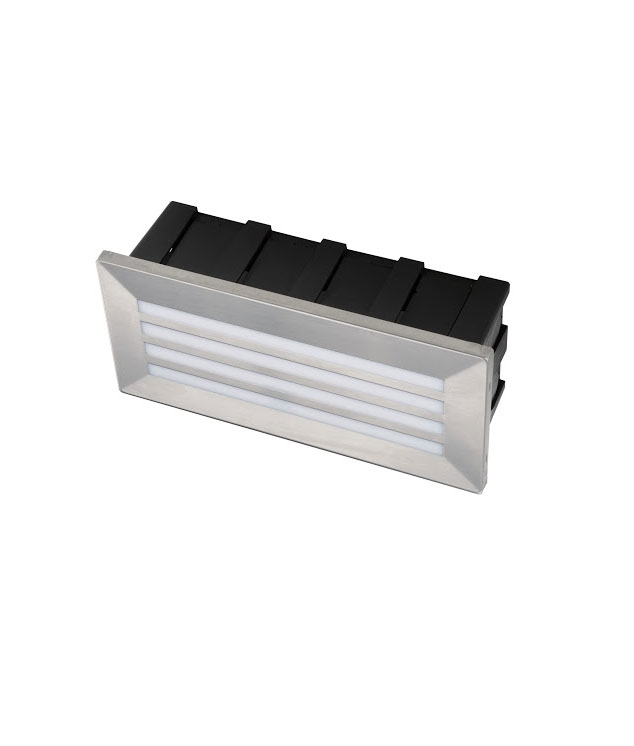

This is an exterior recessed brick light ideal for placing along walkways and stairs for adding illumination for security and guidance. Finished in stainless steel frosted acrylic to diffuse the light and create a reduced glare light, perfect at a low level.

IP65 rated, providing protection from projected water and complete protection from any dust.

THE Internal LED driver powers a 3.5 watt 4000°k (neutral white) LED lamp. The fitting has a total of 125 lumens.

The backbox is 187mm wide and 79mm high, and need a rebate with a depth of 57mm, so as most bricks in the UK are made to a standard brick size of 215mm long, and 65mm high with a 10mm mortar joint, leave a brick out.
When installing, your incoming power supply can enter through a variety of holes and there is room inside the housing to make an electrical connection. When wired up, push in the hole with some mortar and make good. When dry simply wipe of any excess and push on the snap-fit stainless steel housing.

Bezel size 205mm x 95mm with a depth of 9mm.

Number Of Lamps	1
Lamp Type	Long Life LED Light Source
Lamps Included	Yes
Dimmable?	No
Max Wattage	3.5w
Total Wattage	3.5w
Width	205mm
Height	95mm
Depth/Projection	65mm
Construction	Stainless Steel and Polycarbonate
Wiring Details	Class 1 - Requires an Earth Connection
IP Rating	IP65
Kelvin	4000°K - Neutral White
Driver	Includes integral driver/transformer suitable for 230 - 240v supply

Are these lights totally waterproof if placing in a wall holding back a garden area, ie no cavity just soil
If installed correctly (waterproofing cable entry etc) yes, but beware of over wet soil behind the retaining wall that might try to force its way through any opening in the wall. They should not be used where always wet.
