Installing low level recessed lights in brick and plaster walls can be troublesome as a number of trades needs to work together to finish the job to a good standard. This LED light makes installation easier; simply run mains supply out to standard 1-gang boxes (25mm or deeper) then allow all the other trades to make good, plaster and paint, then connect up the LED, screw it onto the box, pop on the screwless fascia and switch on.

This is an easy to install low level light or guide light that uses low heat and low energy LED chips. Cool operating temperature so safe around children.

Great for energy efficiency and will provide a strong light so ideal for hallways and brick walls.

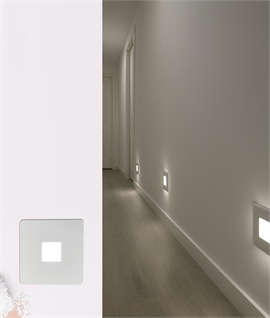

Low level guide lighting is ideal for areas that require transit such as stairways or hallways where you require a light to guide rather than glare.

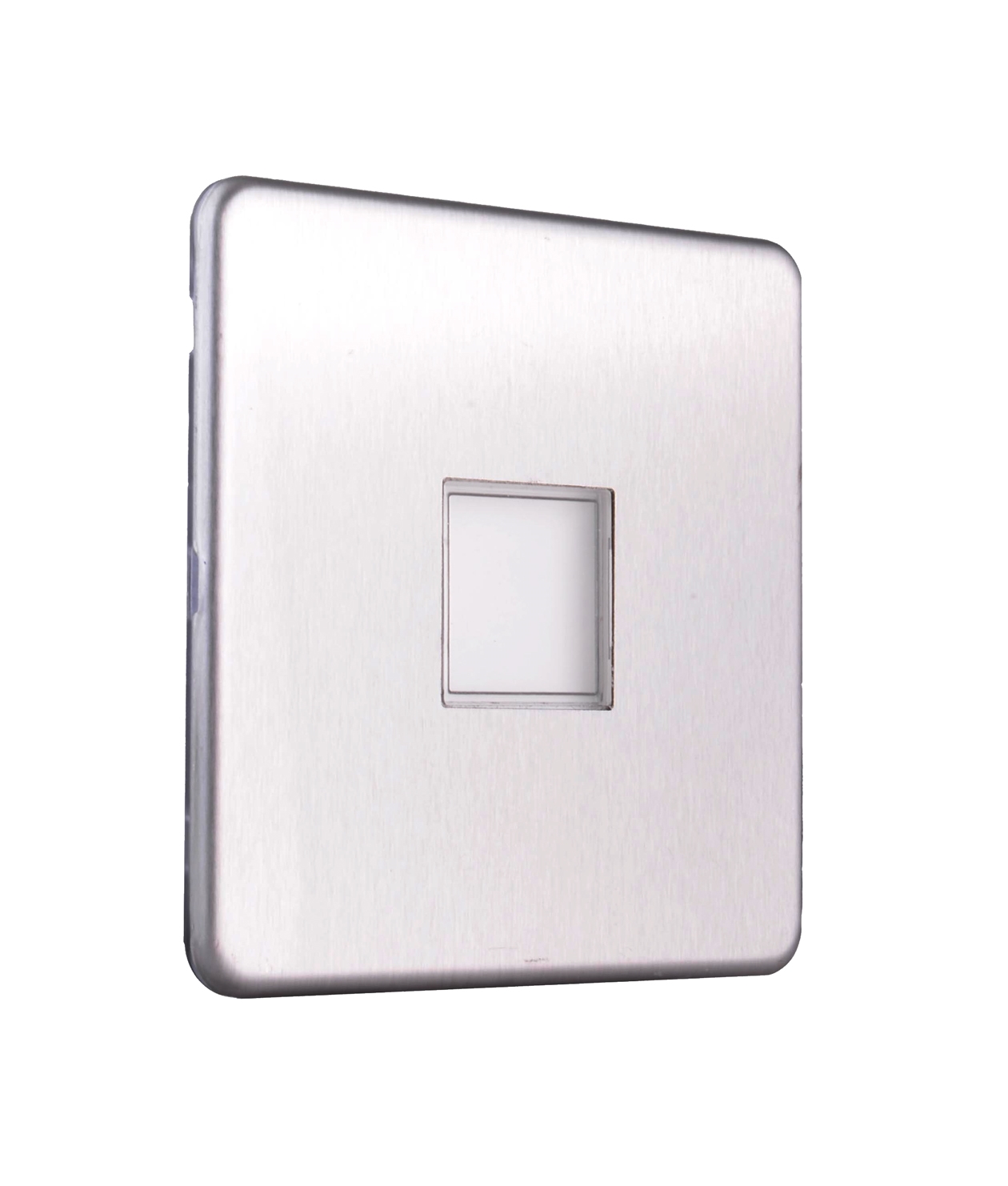

Made from PMMA and brushed stainless steel. Suitable for indoor use only, these would look great up the side of stairs for illumination.

LED colour is 4000°k - a neutral white light. This gives 60 lux at 30cm, great for navigation, picking out stair treads, and as useful as a night light in bedrooms and landings.

Inside is a 0.8 watt LED powered by a Kengo power converter - no separate controller required, just a mains supply.

A neat, fast solution for solid walls which can also be used in dry lining boxes too!

Number Of Lamps	1
Lamp Type	Long Life LED Light Source
Part L Compliant Luminaire	No
Lamps Included	Yes
Dimmable?	No
Width	80mm
Length	80mm
Depth/Projection	37mm
Construction	Stainless Steel
Wiring Details	Class 1 - Requires an Earth Connection
IP Rating	IP20
Kelvin	4000°K - Neutral White
Driver	Includes integral driver/transformer suitable for 230 - 240v supply
PDF Document(s)	Installation Sheet

can these be mounted on wooden stair case stringer. There are currently an approximately 44mm round hole. would these fit ?
These lights fit in a electrical back box which require a 74mm square cut out so would not be suitable.

Hi, these are described as long life but can you advise how long they are expected to last please?
These fittings have an avergae life of 30,000 hours, which equates to 20 years if they are on for 4 hours per day.

I am interested in these stair lights, want to find out if the price is just for 1 or it’s a pack?
The price is for a singular fitting.

What is the expected life of the bulb in hours?
LED's have a general life expectancy of 50,000 hours.

Are these a soft warm light or the warm light?
The LED are 4000°k that’s a neutral white light.

Would this fitting fit into a recessed single metal box? The current fittings I have are mounted into single boxes (like those of a light switch) and I would like to re-use that mounting if possible.
This is specifically designed to fit your single gang wall box. Even the screw match.

Can these go directly into the wall?
Yes, these can be installed into the wall - and wired from mains.

Do you have in black nickel?
These are only available in brushed stainless steel.

Do you deliver these low level stair lights to Gibraltar or Spain?
We can ship yes, Spain will be the cheaper option. Please contact our sales department for details.

Can you tell me what is the warranty length please and do these come in 3-3500K ?
These will come with a 12-month warranty. These are only offered in neutral white. (4000k)

This will be replacing an existing similar light that already has recessed wiring to an existing 12v driver, does this unit work on 12v DC?
This fitting is mains and has an integral driver. This will not work with 12v DC. You could remove your existing driver and wire straight to the mains if accessible.

Does this low level recessed wall light fit a standard single electrical back box.
Designed for use in One Gang 47mm Box.

Do you supply replacements bulbs for these fittings?
The LED capsule inside this fitting can not be replaced, however it does have a very long lamp life.

I wish to mount this into a plasterboard situation over stair as part of the staircase is this possible?
This fitting is perfect for use in plasterboard - When installing indoors the green housing part is not needed.

Are these main voltage?
Yes. These fittings are main voltage.

Can a dimmer switch be used with this product?
With the total wattage of this fitting being 0.63 watts it will not reach the minimum load required for a dimmer switch.

Do these lights fit onto a standard 1 gang electrical box or do they have there own box?
It is designed to fit a standard 45mm recessed galvanised box (not supplied).

can i fit this inside a walk-in shower?
This fitting is only ip54, if your looking for walk in shower lights you really need the IP to be 68.

Mains Square Low Level Recessed LED Light - Brushed Chrome

Screwless Design - Fits UK Wall Boxes 25mm Deep
