Lozenge Brass Bulkhead Light with Screw Cage Cover – IP64 Rated
Perfect for Coastal Areas - Raw, Antique Brass or Nickel
Product Ref: 52258
From £117.00 inc VATDesign and Style

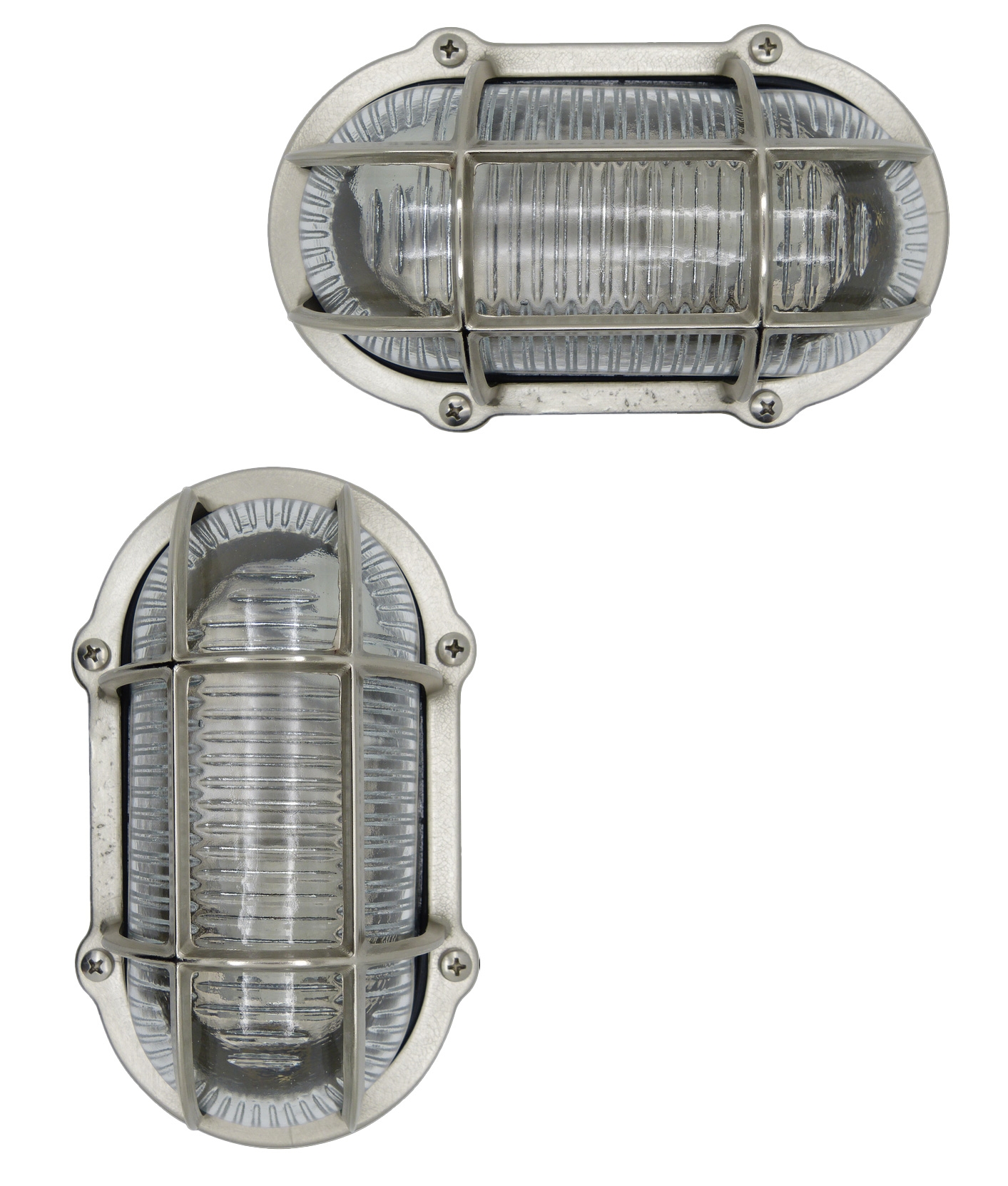

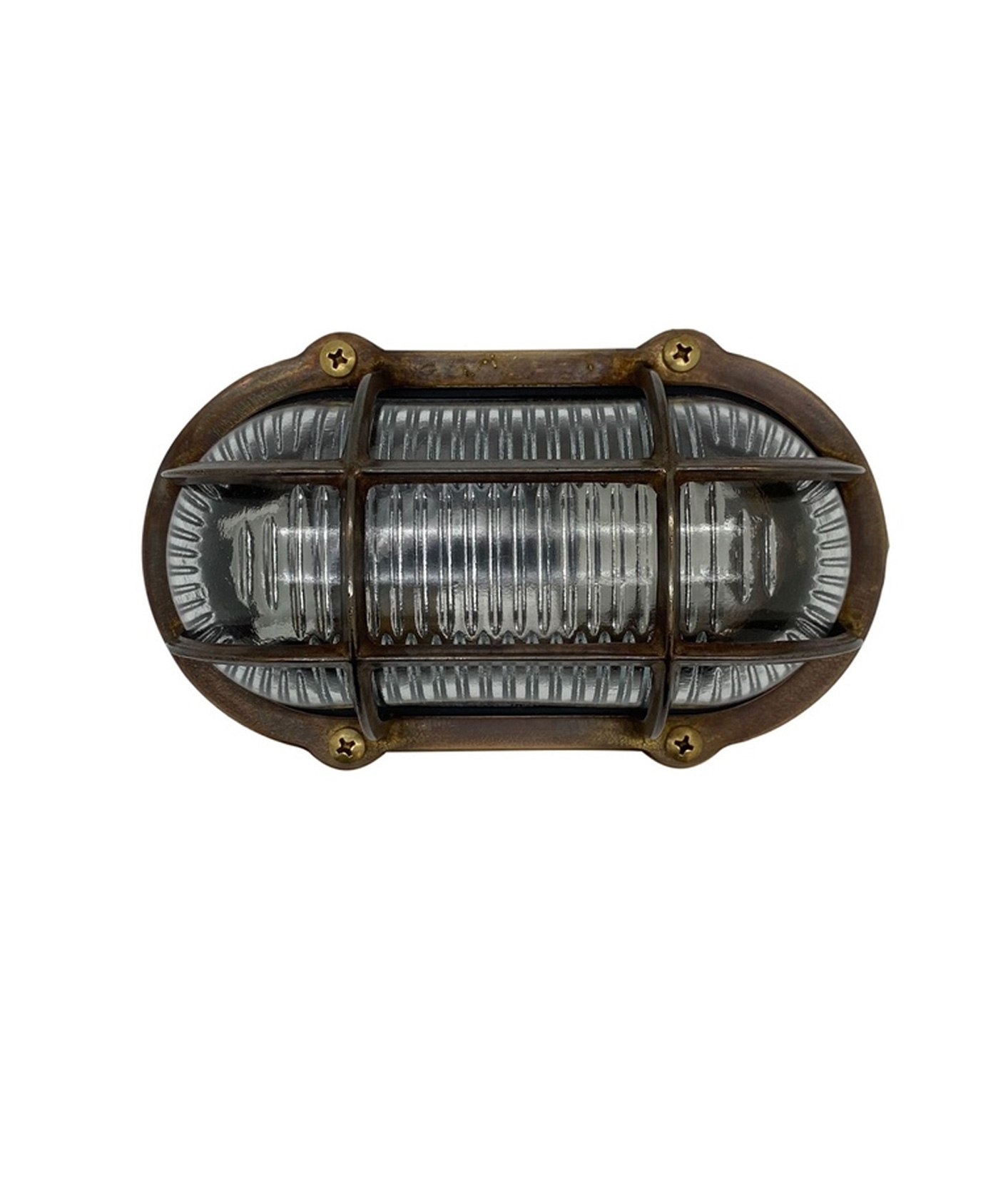

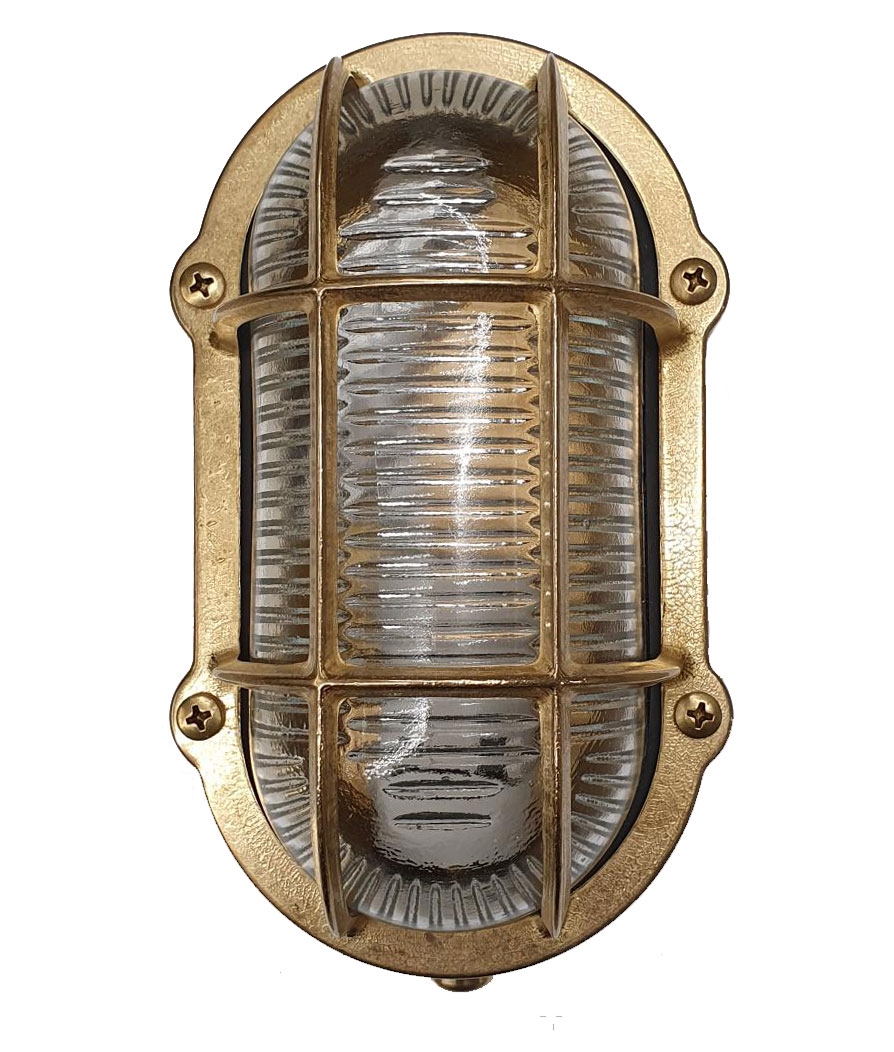

This lozenge-shaped bulkhead light is constructed from solid brass and fitted with a thick prismatic glass diffuser, ribbed internally to spread light and smooth on the outside for a clean finish. Unlike other versions in the range, the front cover on this fitting is secured using four brass screws, offering a neater appearance while maintaining the robust character of a traditional marine bulkhead. Available in polished brass, aged brass, satin nickel, and verdigris, all finishes are applied to a solid brass base for durability and visual weight.
Usage

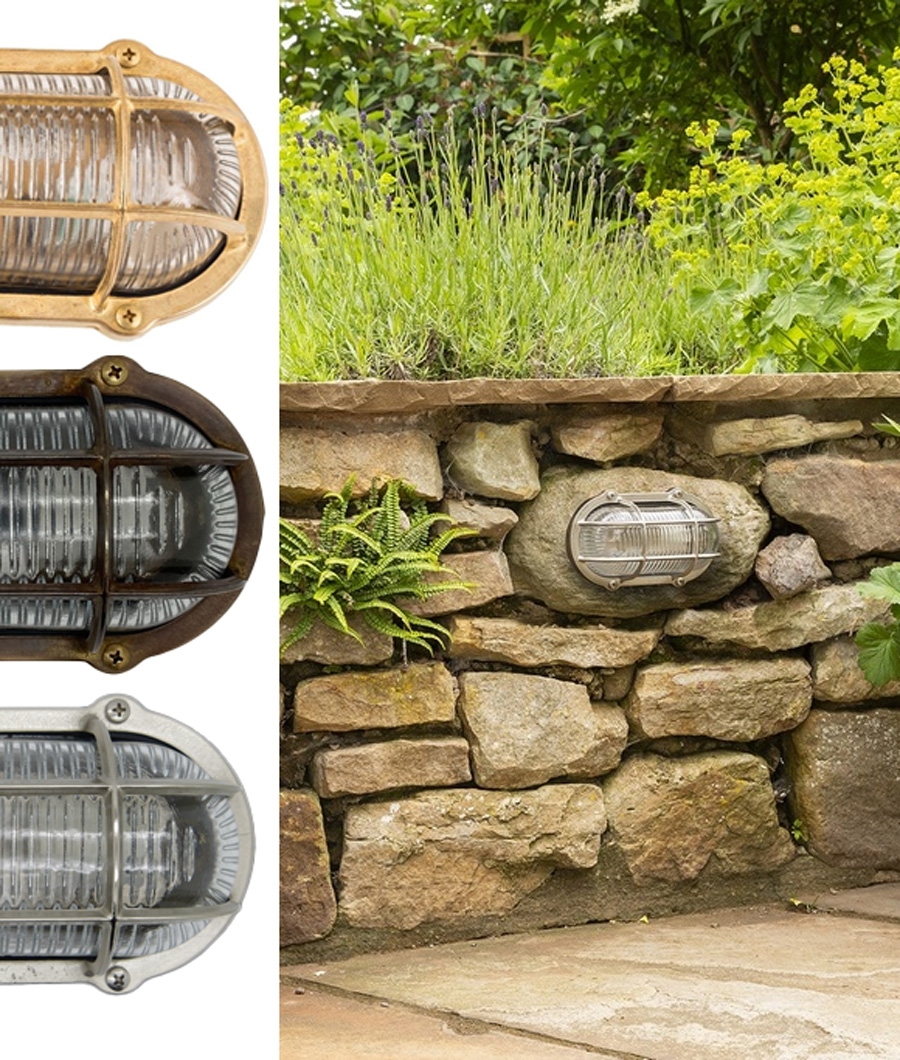

Suited for both outdoor and indoor settings, this fitting is rated IP64, providing reliable protection against dust and splashing or rainwater. It is often installed on garden structures, entranceways, or utility walls, and is equally effective indoors in bathrooms, boot rooms, and hospitality settings. The screw-fastened front cover gives a cleaner profile and is useful in locations where a more refined or tamper-resistant design is preferred.
Key Features

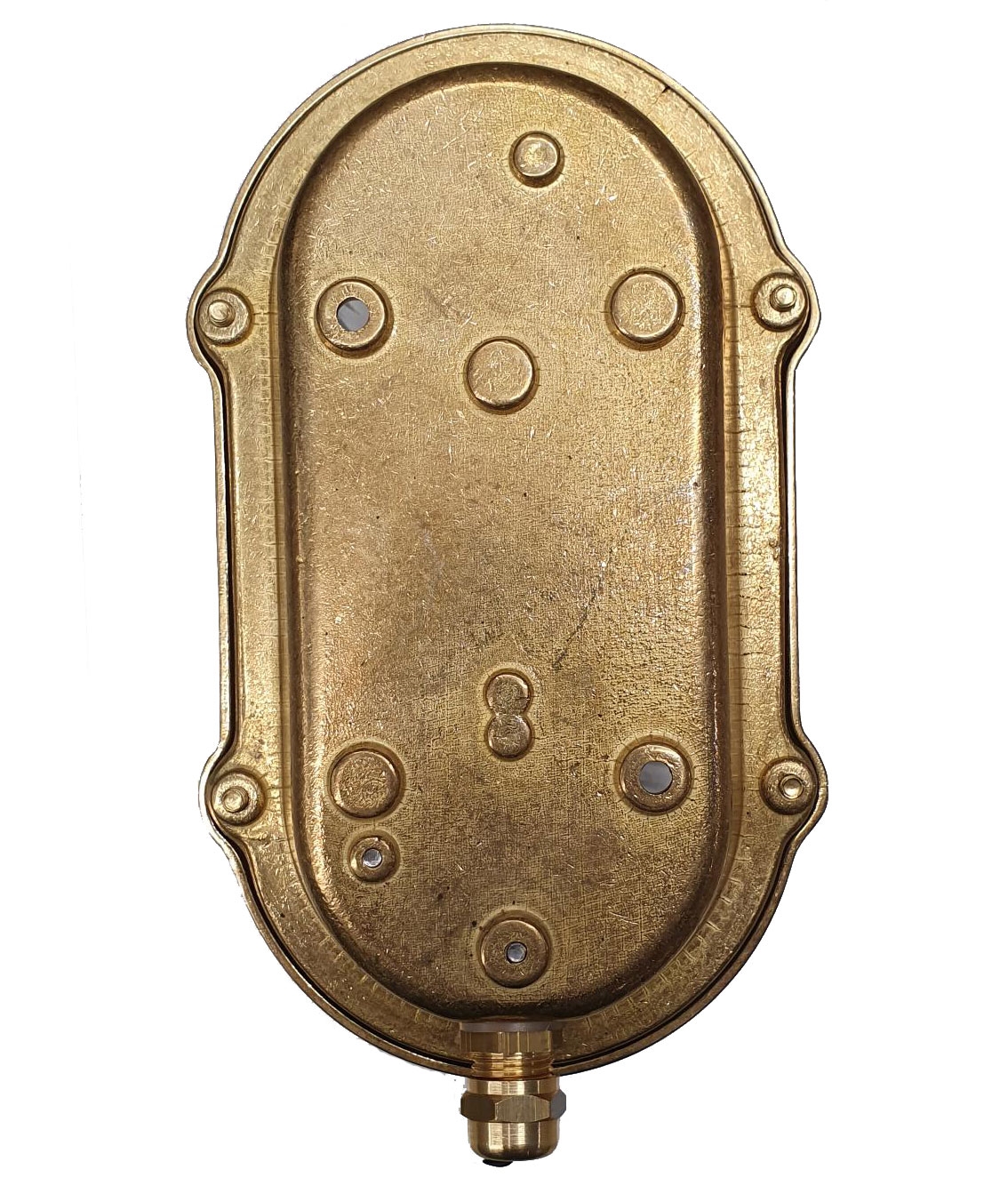

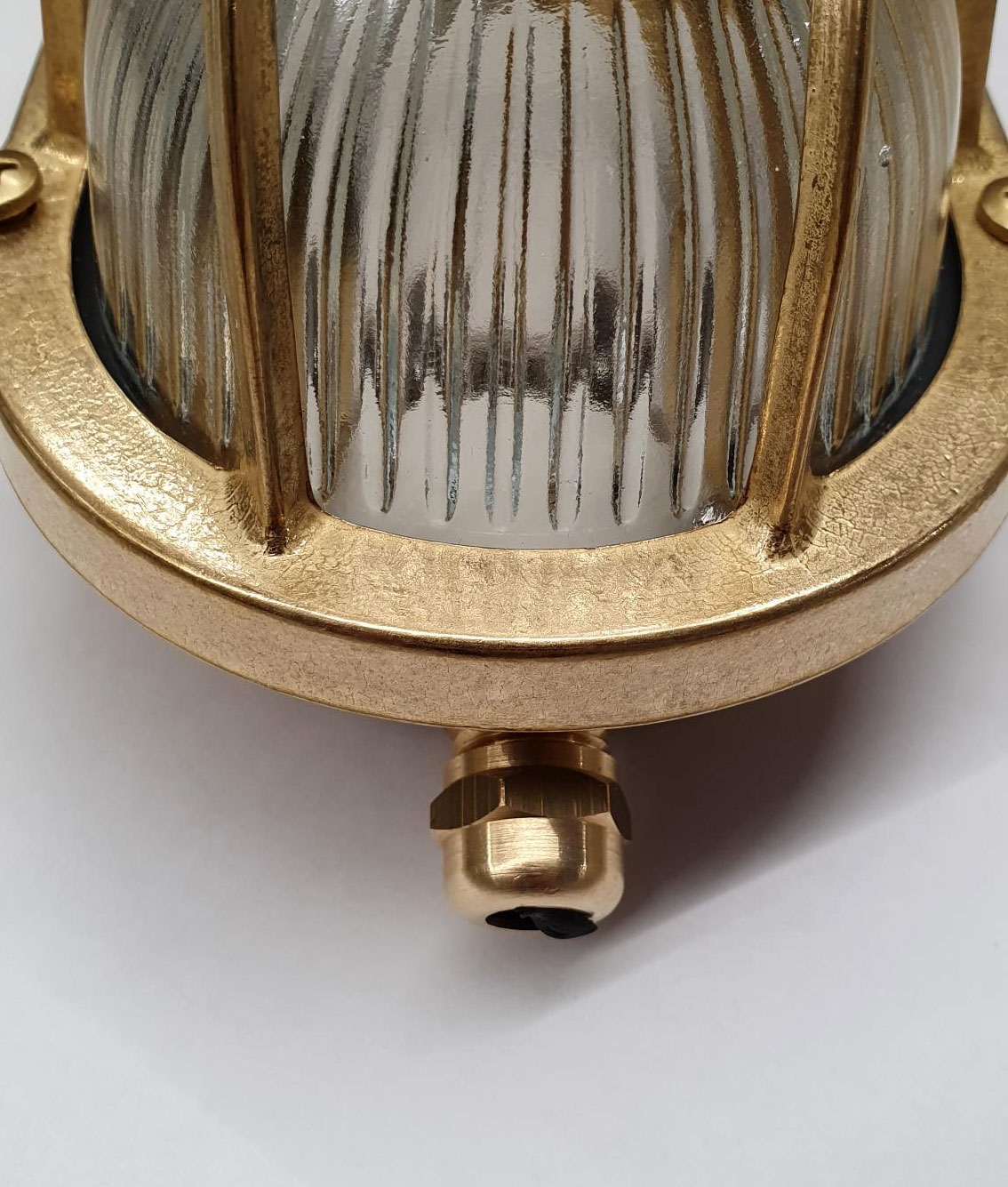

Made from solid brass with a prismatic glass shade, the fitting offers long-term durability and low maintenance. The front cover is held in place with four slotted brass screws, offering a slimmer appearance than butterfly-bolt versions. A compression gland is located on one end for side cable entry, which can be positioned left or right. If rear cable entry is preferred, the rear body can be drilled and the gland removed, with a blanking plate supplied to maintain the IP rating. A brass adaptor is available to allow 20mm conduit to terminate directly at the fitting. Sealed gaskets and robust construction ensure IP64 protection for dependable use outdoors.
Designed for use with an E27 base mains lamp up to 40 watts. Use LED lamps for energy efficiency and longer lamp life.
Lamp Type | E27 (ES) Base Mains Lamps |
Lamps Included | No |
Dimmable? | Yes - when used with a dimmable lamp (bulb) |
Max Wattage | 40w |

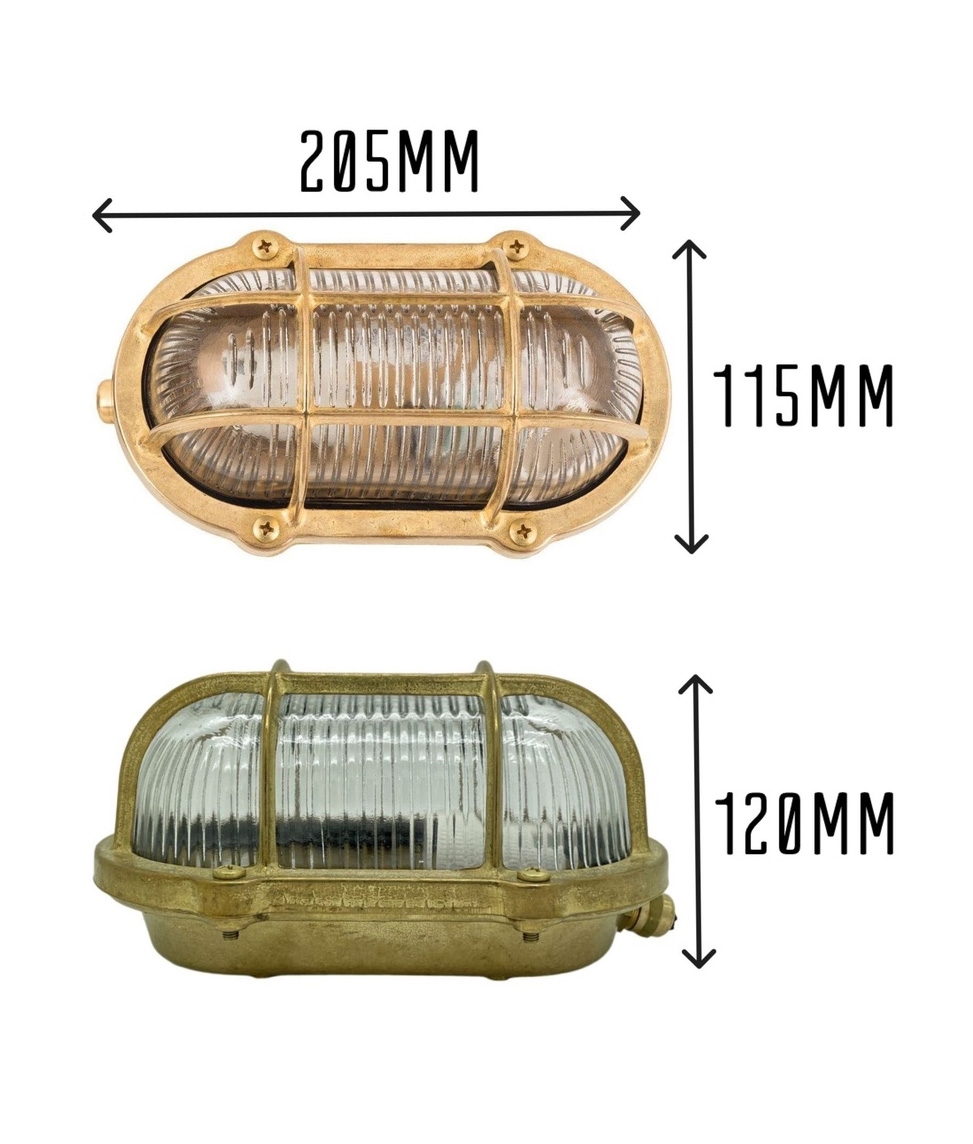

Width | 210mm |
Height | 120mm |
Depth/Projection | 100mm |
Construction | Brass - Satin |
Wiring Details | Class 1 - Requires an Earth Connection |
IP Rating | IP64 |
Can the lozenge bulk head lamp be wired from the back for wall mounting in a bathroom? |
Can you confirm the depth measurement of this light, please? |
