Product Ref: 62734
From £10.80 inc VATWhat they are and how they work

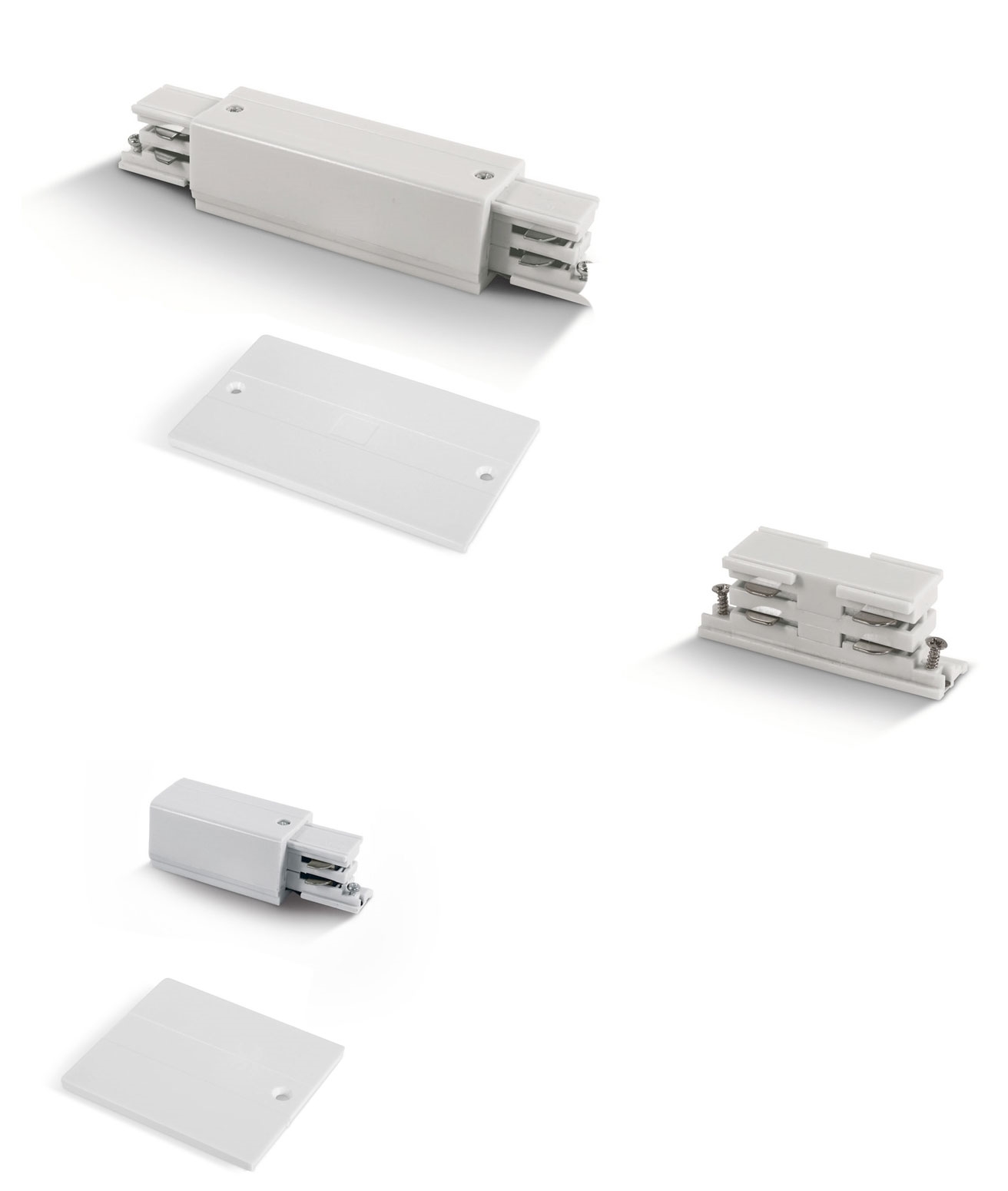

These components support the layout, continuity, and power delivery of your recessed 3-circuit track lighting system. Each item is designed specifically for use with recessed installations, maintaining electrical function while preserving the clean, flush aesthetic that this system is known for.
End Cap (A)
Used to finish the end of a track run where no further connections or feed-ins are required. The cap slots neatly into place to close off the profile. No cover plate is required.
End Feed Connector (B)
Designed to bring power into the system at the end of a track run. This component is fitted externally to the end of the track and also requires a matching white cover plate to maintain the finished appearance of the recessed profile.
Feed-In Straight Connector (C)
This longer connector provides a central power entry point for the system while also joining two sections of track. It increases the track length slightly and does require a white cover plate (available separately) to conceal the wider body and maintain a tidy ceiling line.
Inline Straight Connector (D)
Used to connect two sections of track in a continuous straight line. This internal joiner maintains electrical continuity across all three circuits and is fully concealed within the track. No cover plate is required, as the joint leaves zero gap between track sections.
Finish and compatibility
All components are supplied in white to match recessed 3-circuit track. Designed for use with systems based on the EUTRAC profile. Cover plates are sold separately and should be added where indicated to maintain the clean ceiling line.
View more items from this supplier
Lamp Type | |
PDF Document(s) | Instruction Manual |
Be the first to ask a question about this product! |
