Recessed LED Mini Profile - 1 Metre Lengths

White and Coloured Light Options

Suitable for Zone 3 - areas outside of Zone 0, 1 & 2Class 3 - This fitting is low voltage and will require a transformer or driver.Yes, this product is dimmable - See the specifications tab for more detailsSuitable for Bathroom Zone 3Bulbs IncludedNo driver or transformer is supplied with this fixture (sold separately)

Product Ref: 6844

From £44.90 inc VAT

This mini profile has an incredibly small footprint giving it a great range of applications; whether used as low level guide lighting, floor recessed wallwasher or to frame doorways, it is unassuming and discreet while providing a great lighting effect. It is incredibly neat and comes complete with a frosted polycarbonate clip-in diffuser. This is supplied as a one metre fitting but you can easily cut this to your required length or angles. Available with trim or without.

We have teamed this with our wide range of LED tape to offer you a stylish solution to any space. You have the option of warm white, cool white, blue and RGB colour changing. IP65 LED tape is also available on special request, please contact us for more details.

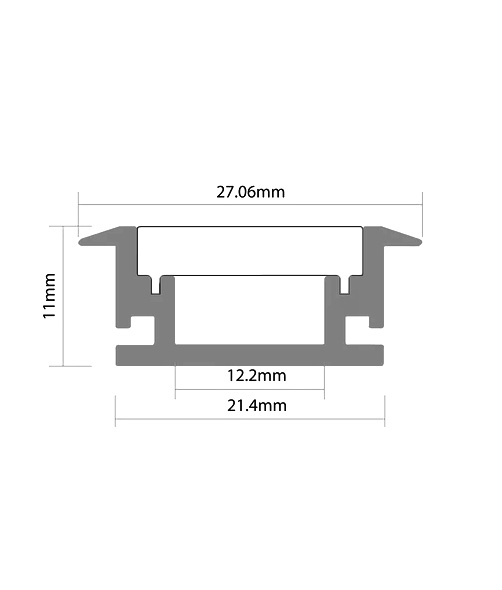

Profile with trim
Width: 22mm x depth: 12mm
Required recess depth: 11mm
Required recess width: 16mm

Trimless profile
Product width: 16mm
Product depth: 12mm
Required recess depth: 11mm
Required recess width: 16mm

12W LED Tape
Can be cut every 10cm.

Warm white emits 1320 lumens (110LM/W)
Natural white emits 1380 lumens (115LM/W)
Cool white emits 1440 lumens (120LM/W)

Colour controllers for RGB colour changing lighting can be found here.

This product requires a 24V DC LED Driver, available in both dimmable and non-dimmable. To Work out your power requirements simply times the LED tape power (12 watts) by the metres you require.

35,000 hour lamp life.

Lamp TypeLED Long Life Tape
Part L Compliant LuminaireYes
Lamps IncludedYes
Dimmable?Yes - when using the specified equipment
Total Wattage15w
Length1000mm
ConstructionAluminium
Wiring DetailsClass 3 - Requires a low voltage supply
IP RatingIP20
DriverNo driver or transformer is supplied with this fixture (sold separately)

Be the first to ask a question about this product!

Availability: IN STOCK 4-6 working day dispatch
We offer free delivery on orders over £50 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
WIM213332+LS4DL
Cool White 12W Recessed Mini LED Profile - 1 Metre
£44.90
£37.42 exc VAT
WIM213332+LS4WW30K
Warm White 12W Recessed Mini LED Profile - 1 Metre
£44.90
£37.42 exc VAT
WIM213342+LS4CW
Trimless Natural White 12W Recessed Mini LED Profile - 1 Metre
£44.90
£37.42 exc VAT
WIM213332+LS4B
Blue 12W Recessed Mini LED Profile - 1 Metre
£44.90
£37.42 exc VAT
WIM213342+LS4DL
Trimless Cool White 12W Recessed Mini LED Profile - 1 Metre
£44.90
£37.42 exc VAT
WIM213342+LS4B
Trimless Blue 12W Recessed Mini LED Profile - 1 Metre
£44.90
£37.42 exc VAT
WIM213342+LS4RGB
Trimless RGB Colour Changing 12W Recessed Mini LED Profile - 1 Metre
£44.90
£37.42 exc VAT
WIM213332+LS4CW
Natural White 12W Recessed Mini LED Profile - 1 Metre
£44.90
£37.42 exc VAT
WIM213342+LS4WW30K
Trimless Warm White 12W Recessed Mini LED Profile - 1 Metre
£44.90
£37.42 exc VAT
WIM213332+LS4RGB
RGB Colour Changing 12W Recessed Mini LED Profile - 1 Metre
£44.90
£37.42 exc VAT
This product requires a driver or transformer - Suitable items can be found below
WIMLDIP10024
Non-Dimmable 100W 24V LED Driver IP67
£60.39
£50.33 exc VAT
WIMLDIP3024
Non-Dimmable 30W 24V LED Driver IP67
£23.76
£19.80 exc VAT
WIMLDIP6024
Non-Dimmable 60W 24V LED Driver IP67
£34.60
£28.83 exc VAT
WIMLDIP2024
Non-Dimmable 20W 24V LED Driver IP67
£11.54
£9.62 exc VAT
WIMLDD2024
Dimmable 20W 24V LED Driver IP20
£28.23
£23.53 exc VAT
WIMLDD4524
Dimmable 45W 24V LED Driver IP20
£44.68
£37.23 exc VAT
WIMLDDIP6024
Dimmable 60W 24V LED Driver IP67
£72.17
£60.14 exc VAT
WIMLDDIP8024
Dimmable 80W 24V LED Driver IP67
£85.66
£71.38 exc VAT
WIMLDDIP10024
Dimmable 100W 24V LED Driver IP67
£108.74
£90.62 exc VAT
