Product Ref: 6815
From £19.00 inc VATA range of non-dimmable 24V DC drivers, especially useful for the Flexible LED Lighting Tape.
If you wish to dim your system you can find the dimmable drivers by following the link and clicking here.
It is important to use between 70 and 100 percent of a drivers capability, to work out your power requirements just multiple your LED tape power rating by the metres required.
25W LED Driver Length 120 x with 44 x height 28mm
36W LED Driver Length 142 x width 49 x height 30mm

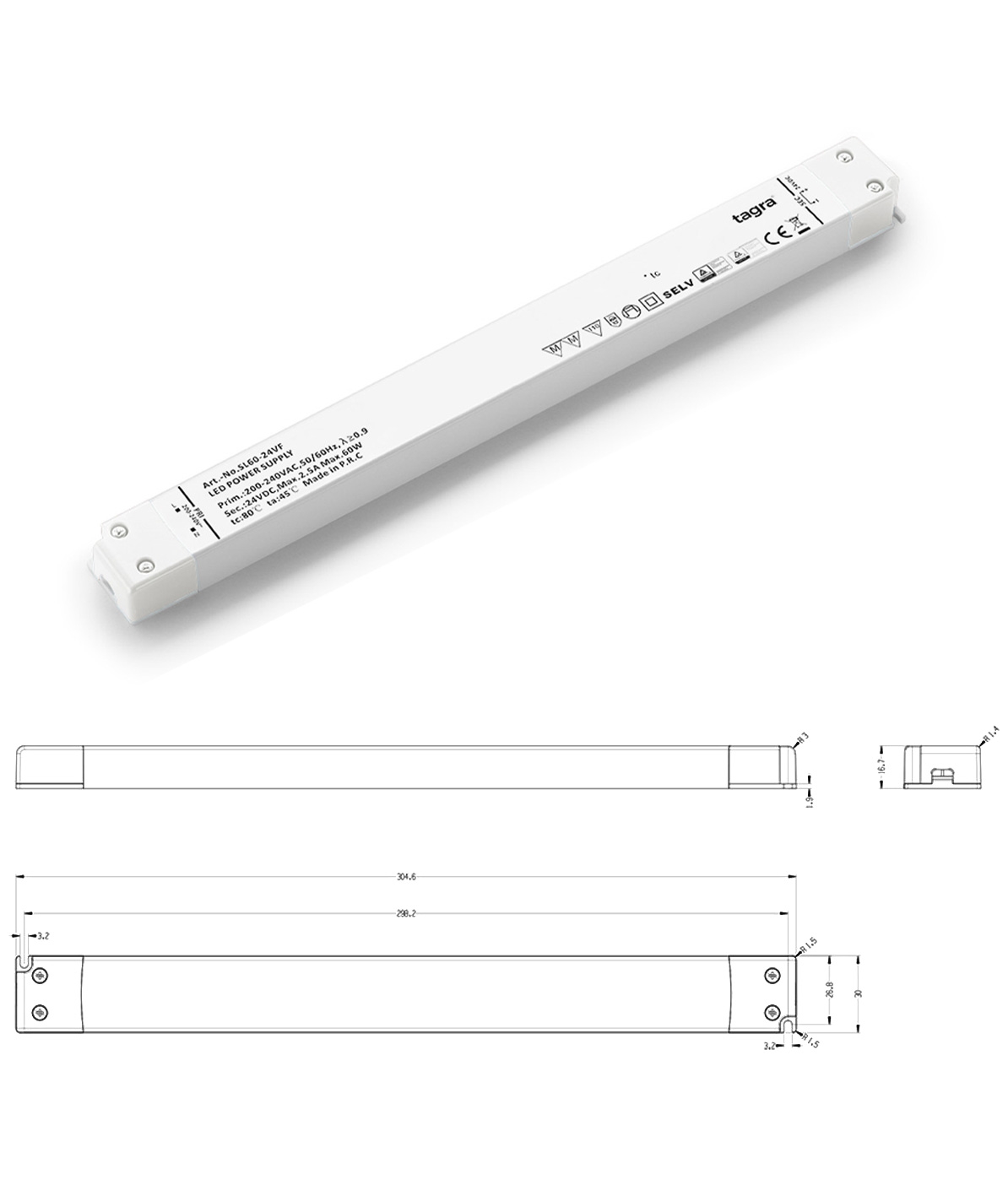

60W LED Driver length 170 x width 50 x height 31mm
80W LED Driver Length 187 x width 58 x height 31mm

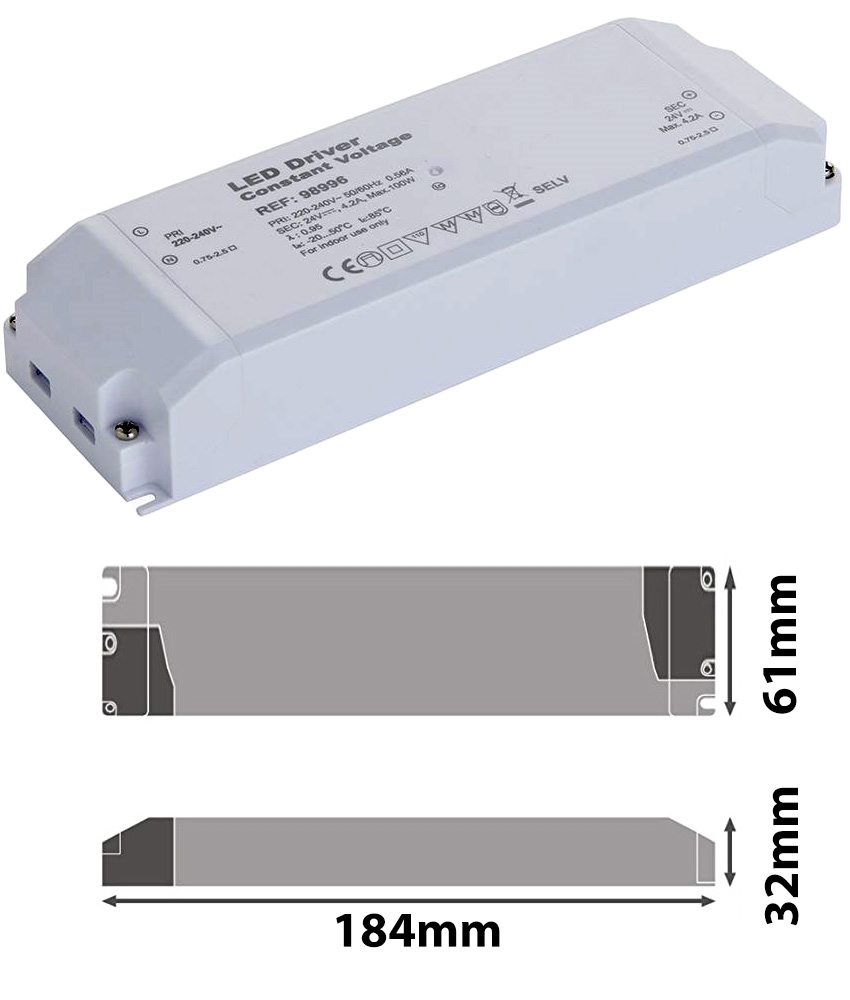

100W LED Driver Length 190 x width 70 x height 40mm

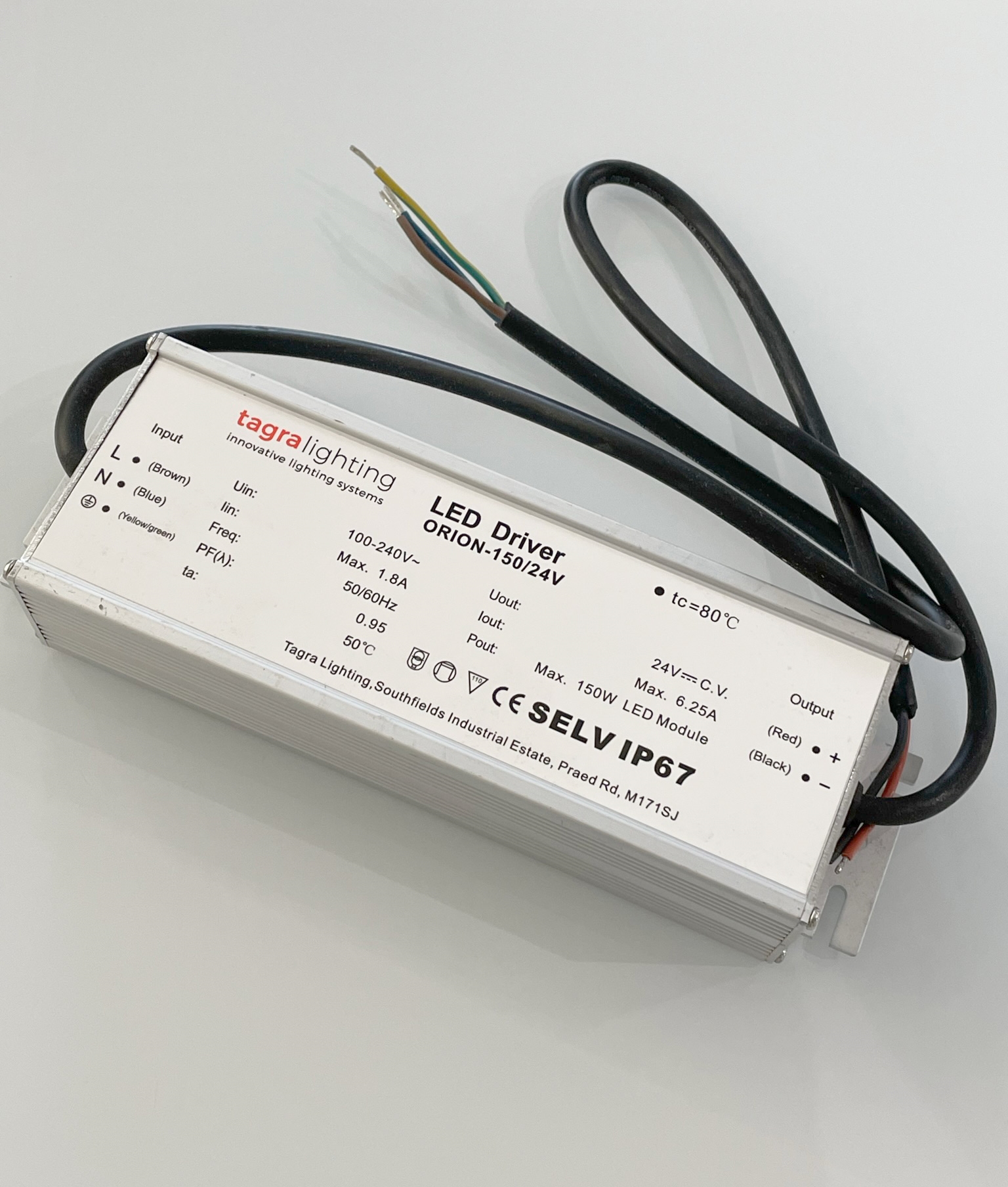

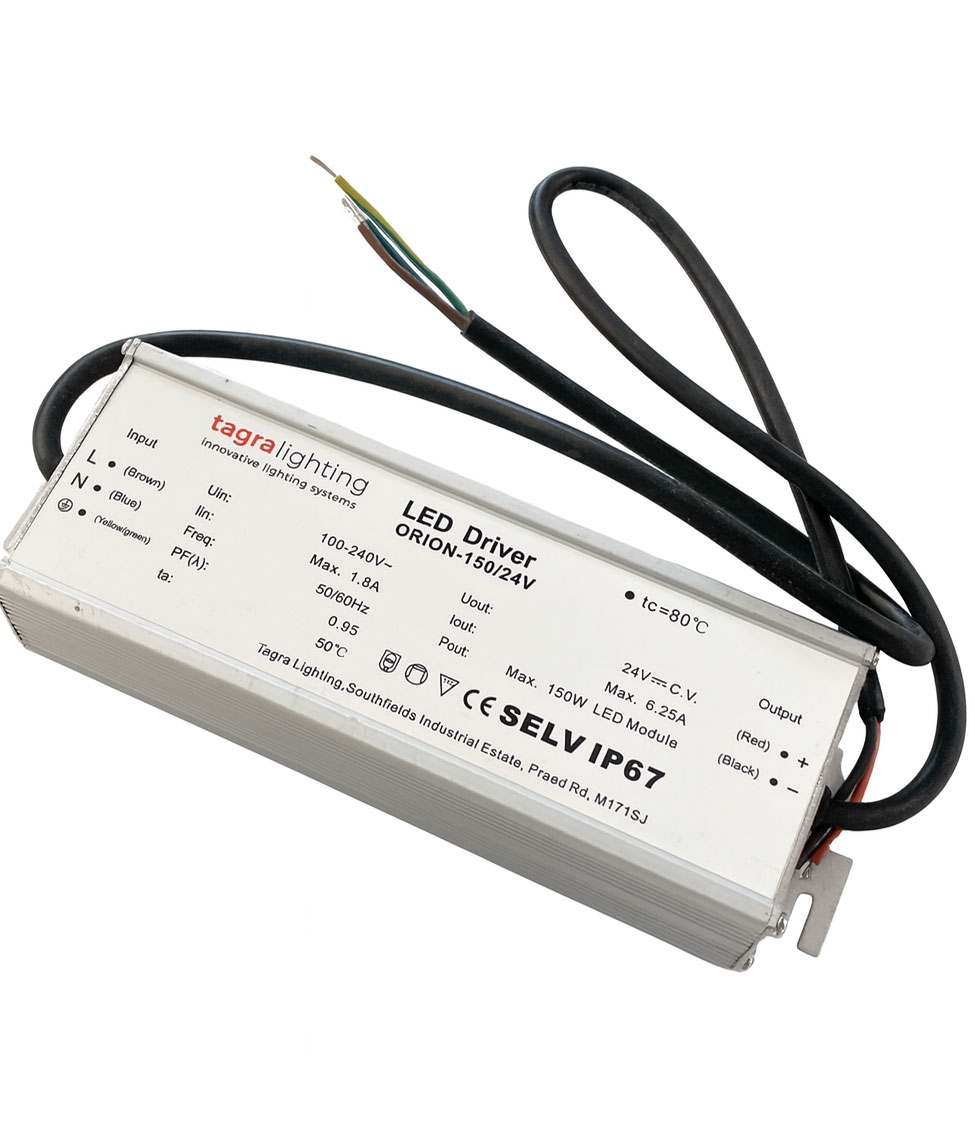

150W LED Driver Length 233 x width 74 x height 43mm

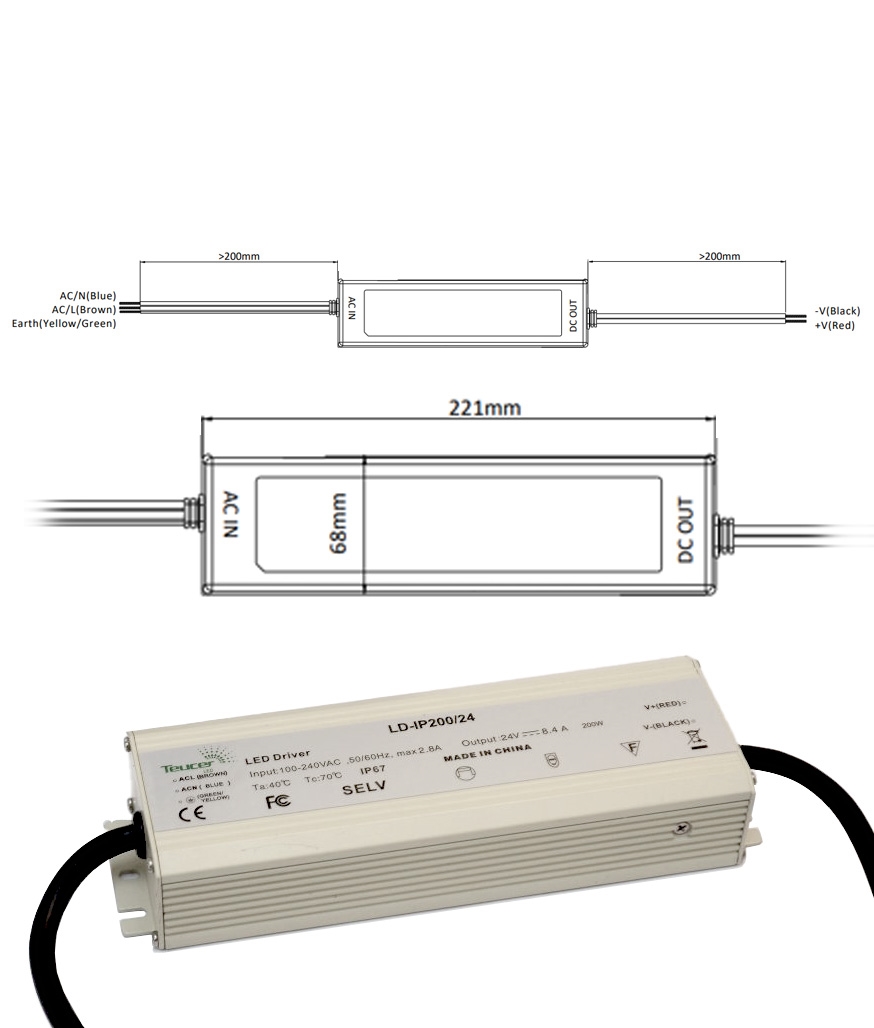

200W LED Driver Length 233 x width 74 x height 43mm
300W LED Driver Length 283 x width 100 x height 50mm
It is possible to multiply the wattage of the 100 watt driver by adding in parallel up to 4 matching drivers (max wattage of 400 watts).
All drivers include safety features such as short circuit, overload, thermal protection and a robust aluminium housing ensuring a safe installation and a durable product range.
| Lamp Type | Not Applicable |
| Dimmable? | No |
| Construction | Steel |
| Wiring Details | Class 2 - Double Insulated - Requires no Earth Connection |
| IP Rating | IP67 |
