Dimmable 24V DC LED Driver

For Use with Flexible LED Lighting Tape

Class 1 – This fitting will require an earth connection.Yes, this product is dimmable - See the specifications tab for more details

Product Ref: 7143

From £21.84 inc VAT

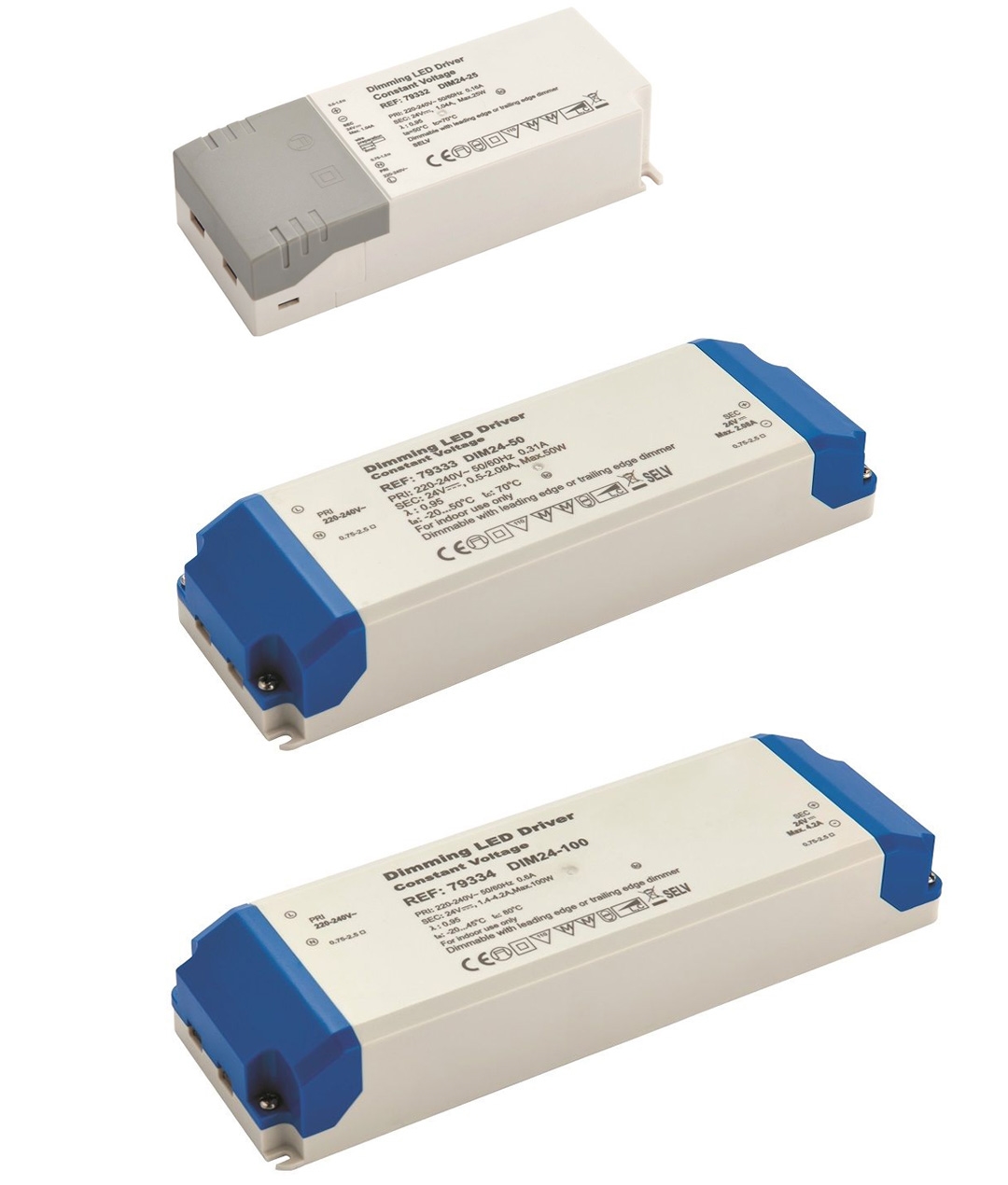

A range of dimmable 24V DC drivers, especially useful for the Flexible LED Lighting Tape. If you do not require dimming your system you can find our non-dimmable drivers here.

We suggest loading the power supply as close to its maximum capacity for the most effective dimming., to work out your power requirements just times your LED tapes power rating by the metres required.

Dimmable drivers are compatible with good quality Leading and Trailing edge dimmers along with most advanced dimming systems, please contact us to check compatibility.

12 watt
Length 120 x width 40 x height 27mm min load 10 watt

30 watt
Length 158 x with 45 x height 19mm min load 15 watt

36 watt
Length 140 x width 47 x 29mm min load 25 watt

48 watt
Length 155 x width 53 x height 30mm min load 33 watt

75 watt
Length 120 x width 40 x height 27mm min load 50 watt

150 watt
Length 310 x width 60 x height 45mm min load 20 watt

200 watt
Length 305 x width 55 x height 45mm min load 130 watt

It is possible to multiply the wattage of any of these drivers by adding in parallel up to 4 matching drivers.

All drivers include safety features such as short circuit, overload, thermal protection and a robust aluminium housing ensuring a safe installation and a durable product range.

Lamp Type
Dimmable?Yes - on trailing edge (reverse phase dimmers)
ConstructionSteel
Wiring DetailsClass 1 - Requires an Earth Connection
Availability: IN STOCK 4-6 working day dispatch
We offer free delivery on orders over £50 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
ANGORIOND1224V
Dimmable 12W 24V LED Driver IP44
£21.84
£18.20 exc VAT
ANGORIOND3024V
Dimmable 30W 24V LED Driver IP44
£32.71
£27.26 exc VAT
ANGORIOND3624V
Dimmable 36W 24V LED Driver IP44
£38.23
£31.86 exc VAT
ANGORIOND4824V
Dimmable 48W 24V LED Driver IP44
£47.46
£39.55 exc VAT
ANGORIOND7524V
Dimmable 75W 24V LED Driver IP44
£76.58
£63.82 exc VAT
ANGORIOND15024V
Dimmable 150W 24V LED Driver IP67
£96.98
£80.82 exc VAT
ANGORIOND20024V
Dimmable 200W 24V LED Driver IP67
£101.93
£84.94 exc VAT
