Signal Amplifier - 4 Channel Booster. 5 Amp per channel for RGB, RGB-W, CCT etc

12-36V 4 Channel Signal Repeater - 120 watts per channel max on 24v tape installation

Product Ref: 57730

£45.50 inc VAT

Design and Function

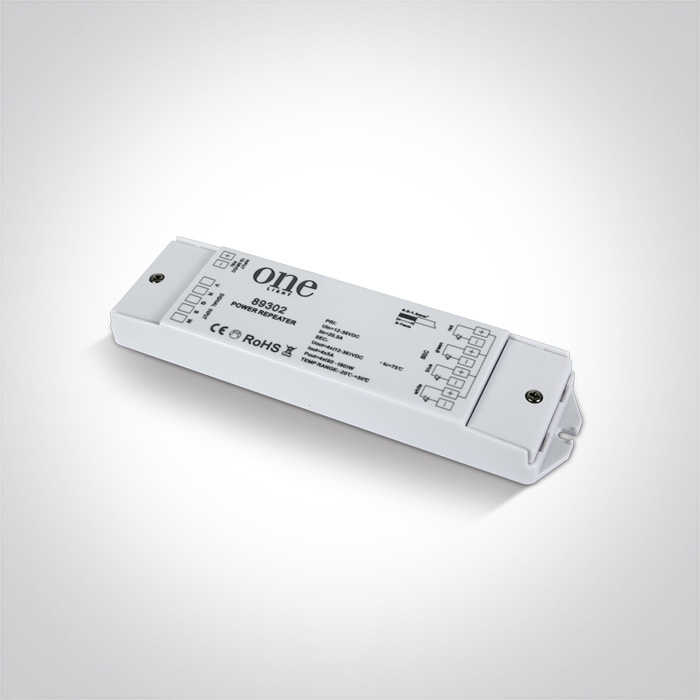

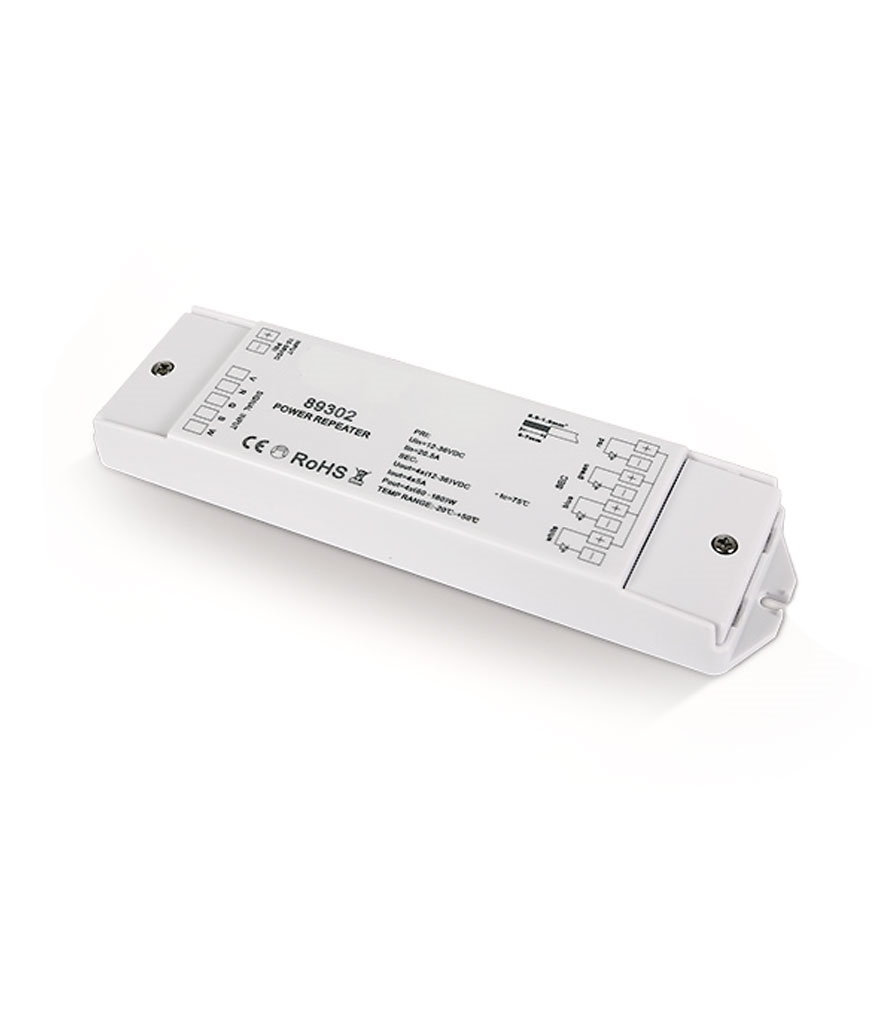

The CY89302 data repeater is designed to extend the signal from an RGBW controller, ensuring colour and brightness remain consistent over longer runs. It receives the control signal from the end of the first group and regenerates it for additional lights, allowing larger installations to operate as one unified system.

In a nutshell
This device allows you to add more colour-changing LED lights to a system without losing synchronisation. When too many lights are connected in one run, the control signal can weaken and the colours may not all change together. The data repeater refreshes that signal so the next group of lights stays perfectly in step with the first. It is typically used with 24-volt RGB or RGBW lighting systems, such as LED strips or light bars, to extend installations neatly and reliably.

Usage
Used in conjunction with an RGBW LED controller and a suitable 12–36V DC power supply, this unit enables further groups of lights to be added beyond the controller’s direct output limit. Commonly installed in architectural, retail, and hospitality lighting projects, it ensures smooth colour transitions and reliable operation where multiple LED bars or strips are used.

Key Features

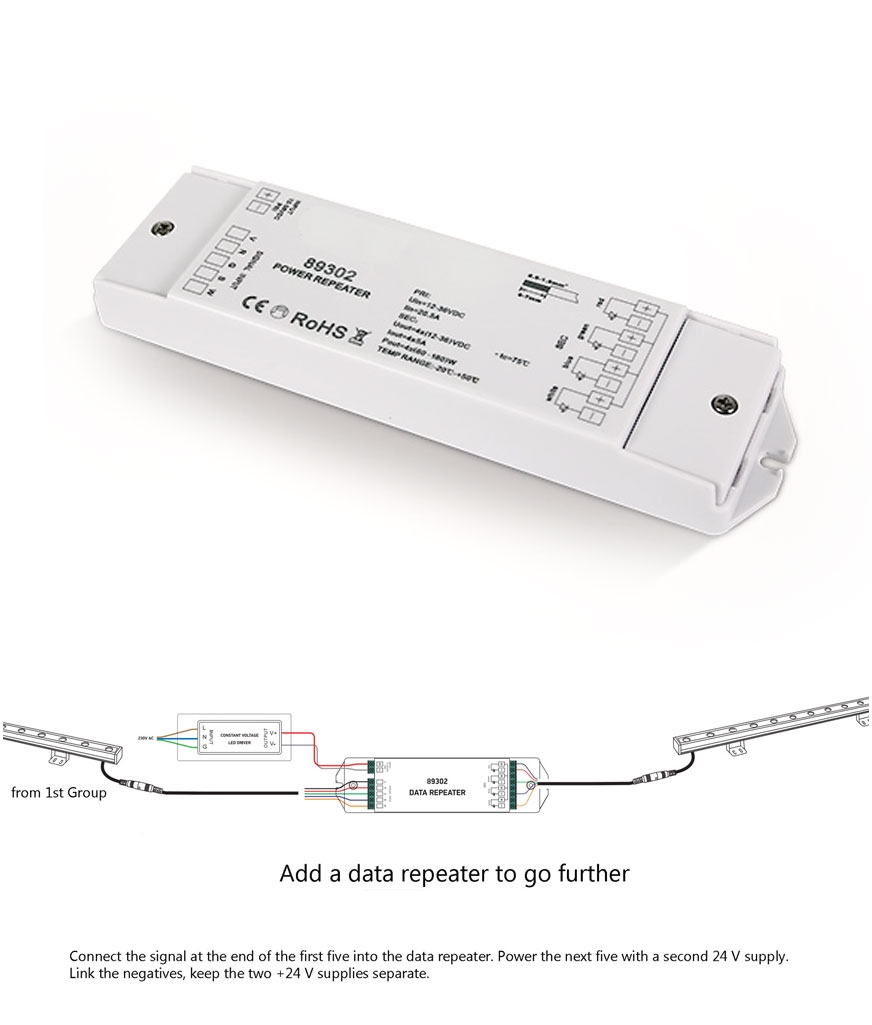

The repeater provides four output channels, each rated at 5 amps, and supports input voltages from 12 to 36 volts DC. It allows signal extension for RGB or RGBW LED systems and is compatible with most standard 24V DC LED controllers. When installed, the negatives of both power supplies are linked, while the +24V supplies remain independent, ensuring stable performance across extended lighting runs.

View more items from this supplier

Availability: Typically dispatched in 4-7 days
We offer free delivery on orders over £80 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
CY89302
RGBW LED Data Repeater 12–36V 4x5A
£45.50
£37.92 exc VAT
