Product Ref: 57729
£81.42 inc VATDesign and Construction

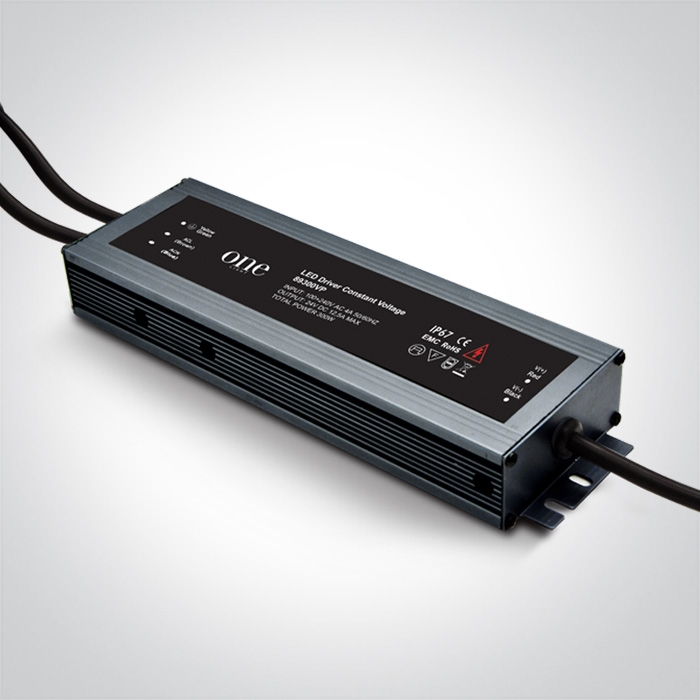

A robust, metal-bodied 300W LED driver designed for demanding lighting applications. The enclosure combines extruded aluminium and steel for durability, measuring 240mm long, 72mm wide, and 33mm high. Both the input and output terminals are pre-wired with 1-metre cables to simplify installation. The IP67 rating protects the unit against dust and water ingress, making it suitable for exposed environments.
Usage
Engineered for use with constant voltage 24V LED lighting systems, this driver is suitable for a wide range of domestic and commercial settings. It is commonly installed with exterior lighting, architectural features, signage, and large-scale indoor LED projects where a reliable 24V power supply is required. Its IP67 protection ensures safe operation outdoors, while the compact size allows for easy integration inside control boxes and enclosures.
Key Features
This 300 watt LED driver accepts an input voltage of 100-240V AC at 50/60Hz, delivering a constant 24V DC output. The high power factor of 0.9 helps ensure energy efficiency and compliance with modern standards. Built-in safety features include protection against short circuits, overload, and overheating. The metal housing helps with heat dissipation, supporting an ambient temperature up to 60°C and operating conditions up to 70°C. A three-year warranty provides further assurance of reliability.
Like all IP67 drivers this should not be just buried in the soil! Affix this to a structure with shelter or put it in a large watertight box.
Lamp Type | |
Dimmable? | No |
Width | 72mm |
Length | 240mm |
Height | 33mm |
Wiring Details | Class 1 - Requires an Earth Connection |
IP Rating | IP67 |
