Open Frame 24V DC constant voltage drivers - for commercial and professional applications

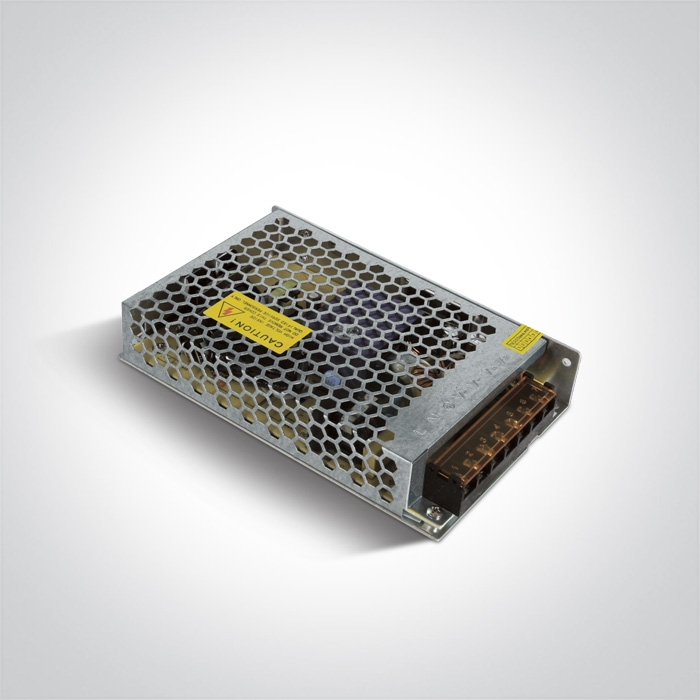

24V DC constant voltage driver, Open Range IP20.

Product Ref: 57719

From £24.00 inc VAT

These 24V open frame LED drivers are designed for commercial and professional applications where long operating hours and reliable performance are essential. Built with a perforated metal casing for cooling, they are well suited for retail, hospitality, and large-scale installations.

The drivers feature exposed terminals protected only by a plastic strip. They must be installed by qualified personnel inside a controlled enclosure or restricted-access area. They are not suitable for domestic use or places where children or the public could come into contact with them.

Available in outputs from 100W to 350W, they deliver stable 24V DC power for LED tape across a range of continuous-use projects. All models include overload, short circuit, and thermal protection.

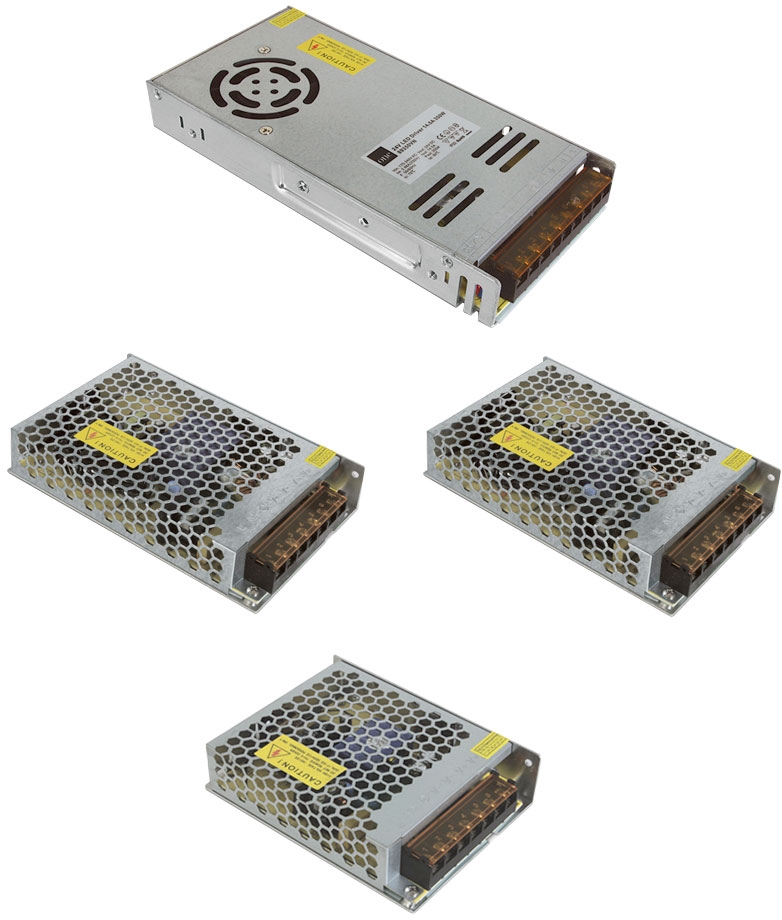

Available Models

  • 100W: 129 × 98 × 30mm

  • 150W: 160 × 98 × 30mm

  • 200W: 160 × 98 × 30mm

  • 350W: 215 × 105 × 30mm (includes cooling fan – audible during operation)

Dimming?
These LED drivers are not dimmable with standard rotary wall dimmers on the mains side. However, the 24-volt DC output to your LED tape can be routed via an LED controller, which facilitates dimming as well as advanced functions such as CCT (Tunable White) and RGB/RGBW colour control on the low-voltage side. Using a controller with these drivers ensures reliable performance, prevents flicker, and unlocks far greater flexibility than a traditional wall dimmer can provide.

Key Features

  • Constant voltage 24V DC output

  • Perforated metal casing for cooling

  • Larger 350W version includes an integral fan (operates when on, audible noise)

  • Designed for commercial and continuous-use applications

  • Professional installation required – not for domestic use

  • Built-in protection: overload, short circuit, and overheating

View more items from this supplier

Availability: Typically dispatched in 4-7 days
We offer free delivery on orders over £80 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
89100VN
100w Open Frame 24V DC constant voltage driver
£24.00
£20.00 exc VAT
89150VN
150w Open Frame 24V DC constant voltage driver
£29.70
£24.75 exc VAT
89200VN
200w Open Frame 24V DC constant voltage driver
£36.40
£30.33 exc VAT
89350VN
350w Open Frame 24V DC constant voltage driver
£47.10
£39.25 exc VAT
