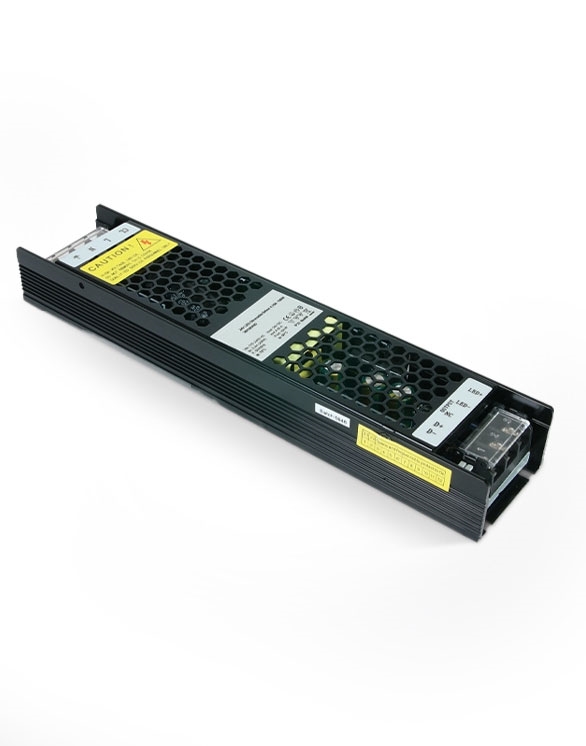

Open Frame 24V DC constant voltage drivers - Dimmable with Standard Wall Dimmers & 1-10v

Reliable Indoor LED Power Supply with Safety Protection

Offers no protection from splashed or sprayed waterClass 1 – This fitting will require an earth connection.Yes, this product is dimmable - See the specifications tab for more details

Product Ref: 57711

From £64.50 inc VAT

These 24V constant voltage dimmable LED drivers are designed for professional and commercial lighting projects that demand reliable power and flexible dimming options. Available in 100W and 200W outputs, they support both TRIAC phase-cut dimming and 1-10V dimming, making them compatible with a wide range of commercial control systems.

Built in a durable open-frame metal housing with perforated surfaces for cooling, these drivers are engineered for continuous operation and long service life. They are strictly for indoor use in controlled environments such as offices, retail spaces, hospitality venues, and display lighting. Installation should only be carried out by a qualified professional.

Safety features include short circuit, overload, and over-temperature protection, while the constant 24V output ensures stable, flicker-free performance. Each model is backed by a 3-year warranty.

Key Features and Benefits

  • Constant voltage 24V DC output

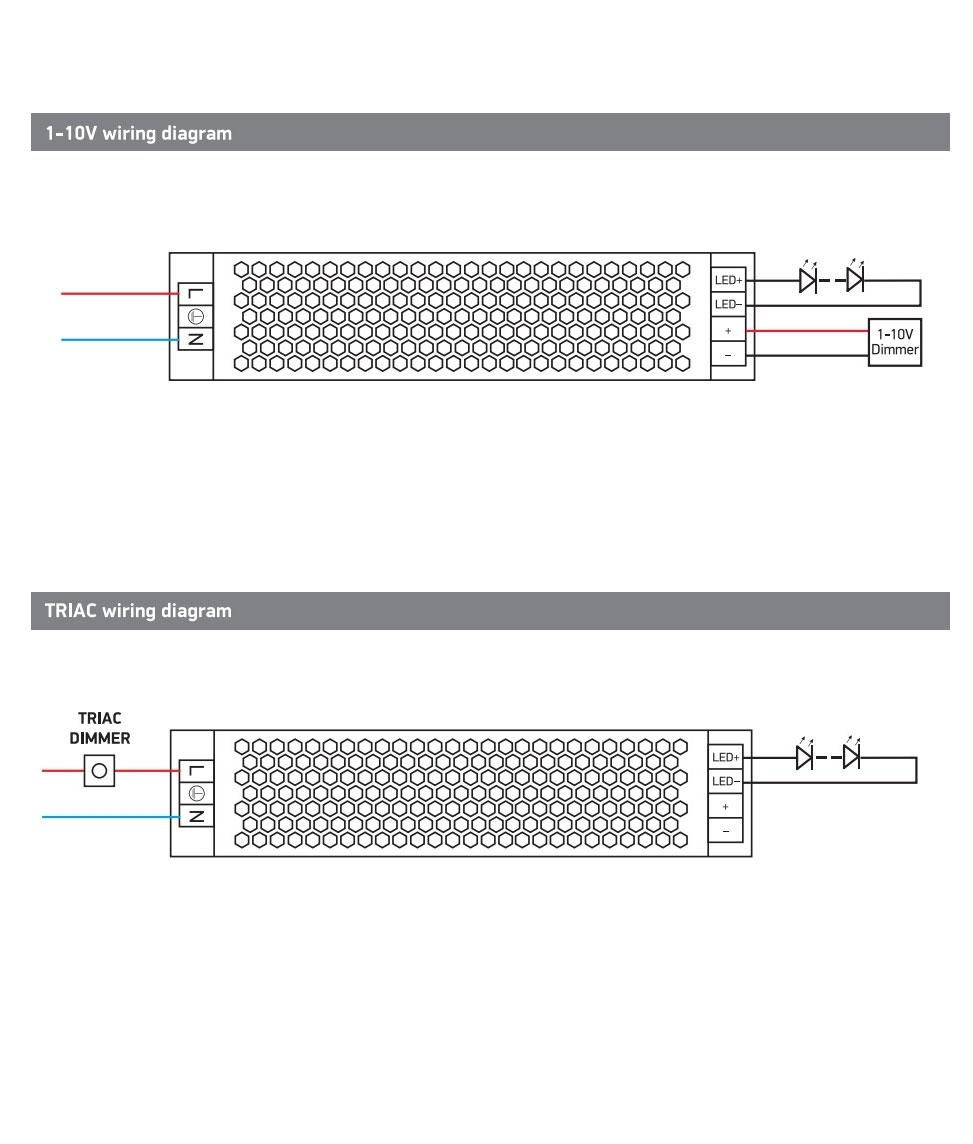

  • Dual dimming compatibility: TRIAC phase dimming or 1-10V control

  • Available in 100W and 200W versions

  • Open-frame perforated metal housing for heat dissipation

  • Indoor, commercial use only (IP20 rating)

  • Protection against overload, short circuit, and overheating

  • Input: 230V AC

  • Warranty: 3 Years

Dimensions

  • 100W model: 230 × 50 × 30mm

  • 200W model: 287 × 50 × 30mm

Where to Use

  • Offices, retail, and hospitality lighting

  • Shopfitting and display projects

  • Commercial environments requiring either rotary dimming (TRIAC) or precise 1-10V control

View more items from this supplier

Availability: Typically dispatched in 4-7 days
We offer free delivery on orders over £80 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
CY89100VND
Traic & 1-10v Dimmable 100w 24v Constant Voltage LED Driver
£64.50
£53.75 exc VAT
CY89200VND
Traic & 1-10v Dimmable 200w 24v Constant Voltage LED Driver
£82.90
£69.08 exc VAT
