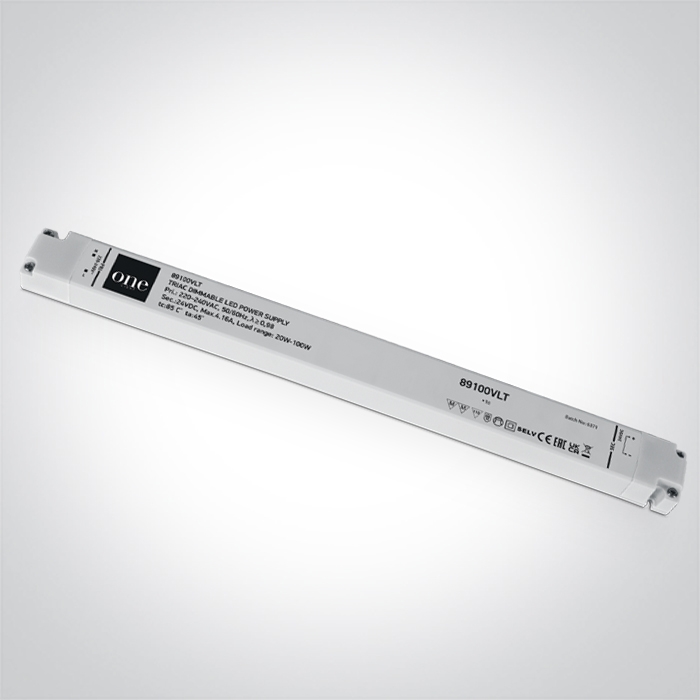

24V 100w Slimline LED Driver - Dimmable with Standard Wall Dimmers
Compact constant voltage driver, 20–100W load range, 5-year warranty
Product Ref: 57709
£59.50 inc VATThese 24 volt LED drivers are designed to be dimmed with standard rotary wall dimmers on the mains side. Because dimming occurs before the 24-volt DC output, they are not compatible with secondary DC controllers used for colour-changing or CCT functions. If your requirement is simply to dim single-colour LED tape with a familiar rotary knob, these drivers are the right choice.
Design and Style

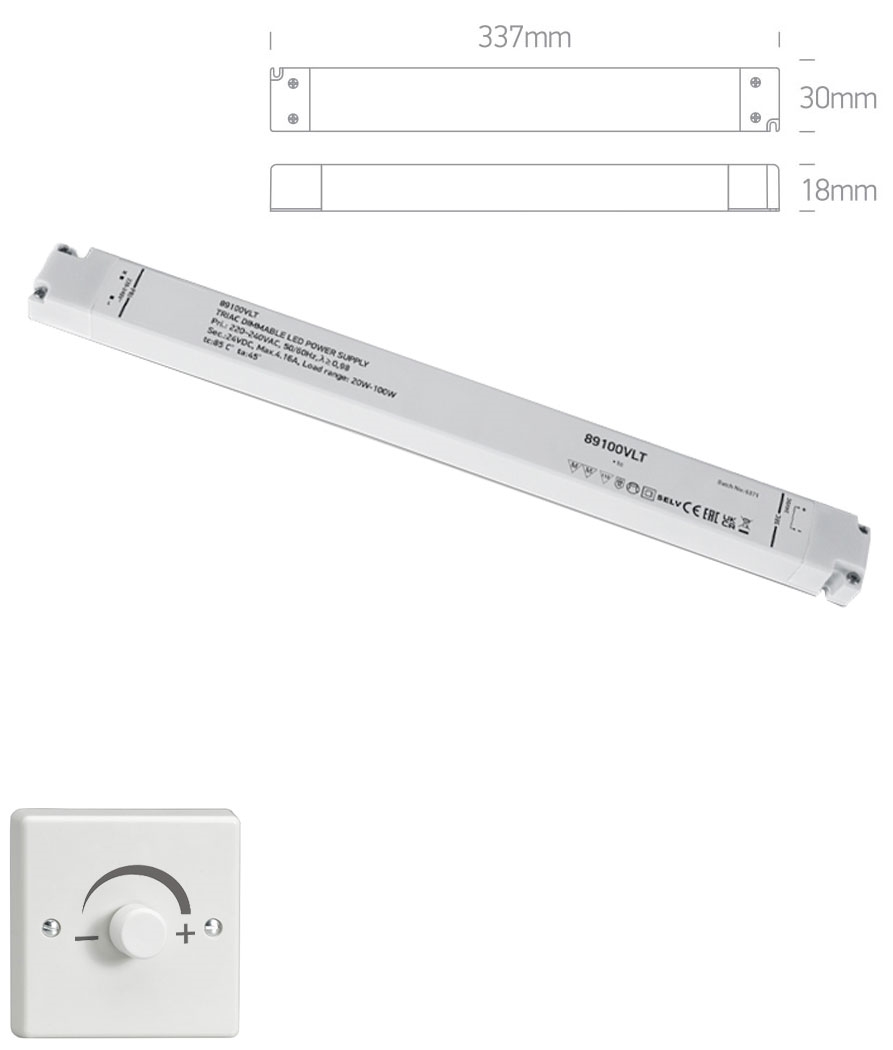

This 24V DC LED driver is housed in a slim linear casing measuring 337mm in length, 30mm in width, and 18mm in height. The compact profile makes it easy to install discreetly behind cabinetry, within coves, or above ceiling voids, allowing it to blend into a wide range of domestic and commercial settings.
Usage
The driver is designed for powering 24V DC constant voltage LED products such as flexible LED tape, profiles, and low-voltage fittings. Suitable for kitchens, offices, display areas, and other dry indoor environments, it provides reliable and stable performance for both residential and commercial use.
Works with standard TRIAC rotary wall dimmers
In the trade, these are called TRIAC (or phase dimming) drivers because they work with the most common type of household dimmer. If you buy a standard rotary dimmer switch and it doesn’t specifically say “trailing edge” or “leading edge,” you can assume it uses TRIAC technology.
Key Features
The unit supports loads from 20W to 100W and operates from a 220–240V AC mains input. It delivers a constant voltage 24V DC output with high efficiency and stable operation. Built-in protection safeguards against open circuit, short circuit, overload, and overheating, ensuring safe long-term use. A five-year warranty adds further peace of mind, underlining its reliability and durability.
Lamp Type | |
Width | 30mm |
Length | 337mm |
Height | 18mm |
