Product Ref: 57690

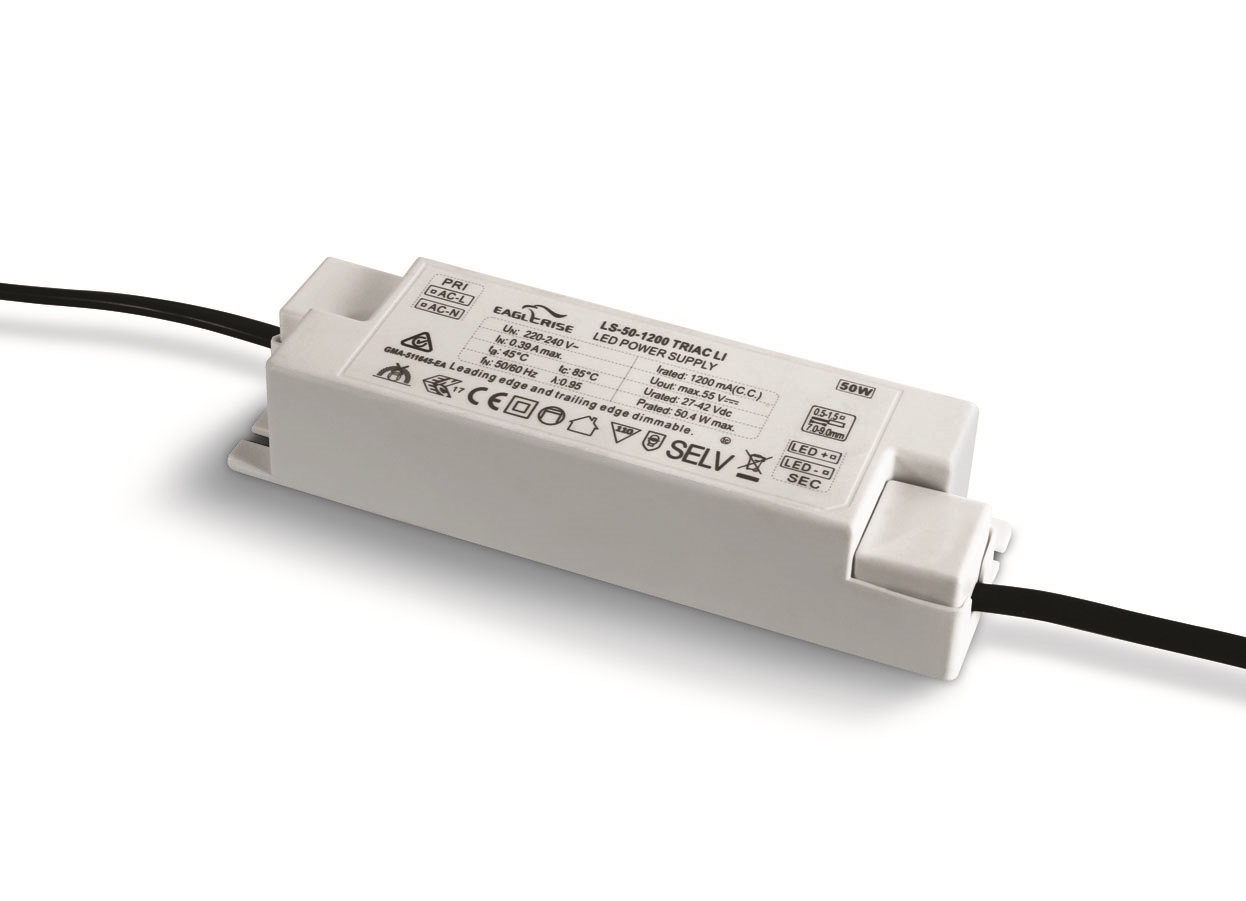

£39.70 inc VATThe TRIAC dimmable driver is an efficient solution designed for larger LED installations, such as lay-in or surface-mounted LED panels up to 50 watts. This driver supports dimming via standard phase-cut (rotary) dimmer units, eliminating the need for more complex systems like DALI or 1-10V dimming. This makes it a practical option for smaller spaces like individual offices, providing a flexible and adaptable lighting solution for both new and existing LED setups.
Design and Features
The driver has a compact form factor with dimensions of 150mm in length, 45mm in width, and 30mm in height, making it suitable for tight installation spaces. Its plastic housing ensures durability while maintaining a lightweight profile. The built-in constant current function delivers reliable performance, supplying 1200mA across a voltage range of 27-42V. Additionally, it features a power factor of 0.9, contributing to energy-efficient operation.
With an IP20 rating, the driver is protected against small objects and dust, though it is intended for indoor use. The unit is rated for ambient temperatures up to 45ºC and can handle operating temperatures as high as 85ºC, making it ideal for installations where heat management is a concern.
Usage
This dimmable driver is an ideal choice for office environments or similar spaces where lighting control is needed without the complexity of advanced dimming systems. The driver allows easy integration into existing lighting setups, ensuring smooth dimming through widely available phase-cut dimmers. It is suitable for both lay-in and surface-mounted LED panels, providing flexibility in lighting designs for commercial or domestic projects.
Key Features
The TRIAC dimmable driver is designed to simplify the installation of dimmable LED systems, without the need for complicated DALI or 1-10V dimming infrastructures. Its constant current ensures consistent performance, while its phase-cut dimming capability enhances energy efficiency and control. The device supports up to 50W of LED lighting, offering a reliable and durable solution with a maximum ambient temperature of 45ºC and robust thermal performance.
Warranty: 5 Years
Lamp Type | |
Dimmable? | Yes - on standard dimmer (TRIAC or leading edge) |
Width | 77mm |
Length | 122mm |
Height | 29mm |
Construction | ABS Polycarbonate |
Wiring Details | Class 2 - Double Insulated - Requires no Earth Connection |
IP Rating | IP20 |
Be the first to ask a question about this product! |
