500mA Constant Current LED Drivers - Reliable Power Solutions for LED Lighting Systems

500ma 7.5w - 30w Constant current LED driver

Offers no protection from splashed or sprayed waterClass 2 – This fitting is double insulated and does not require an earth.

Product Ref: 57679

From £11.50 inc VAT

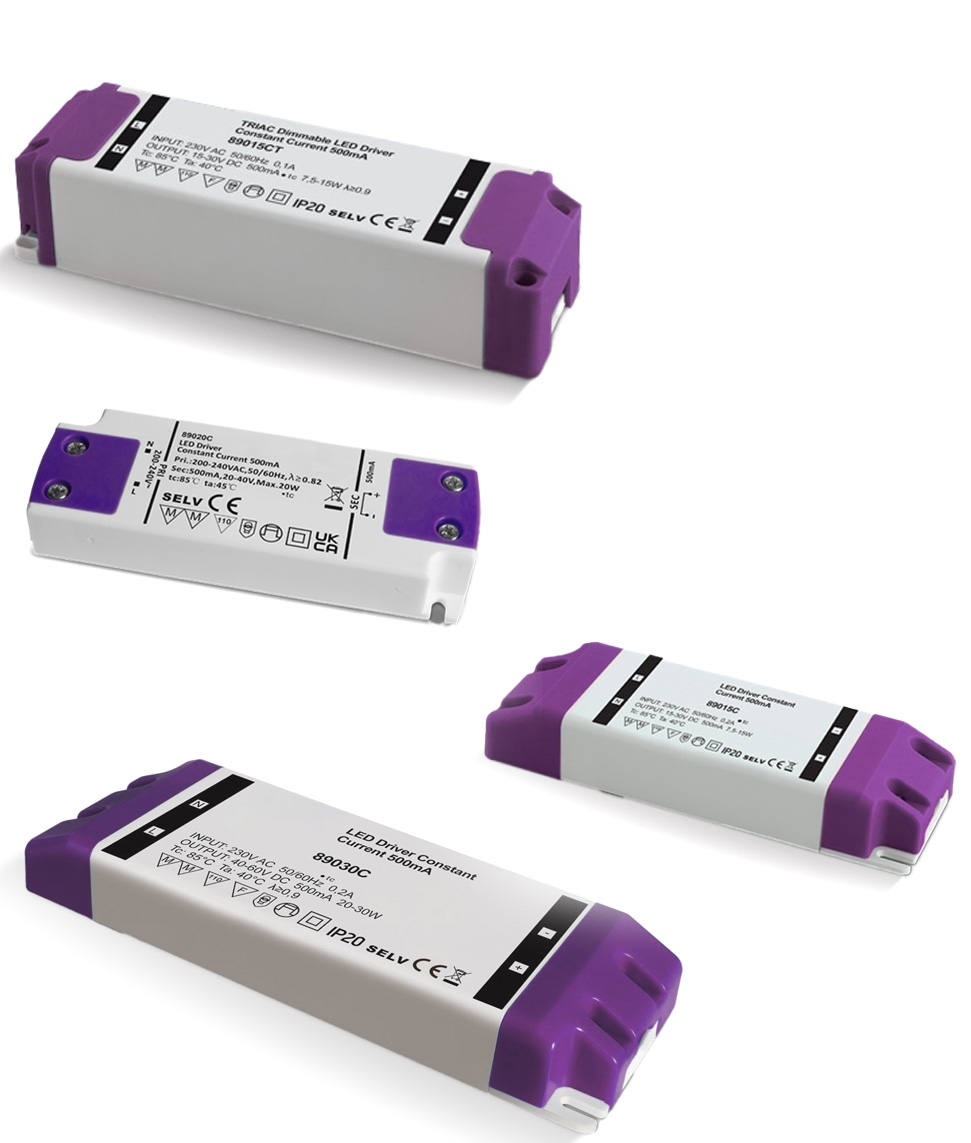

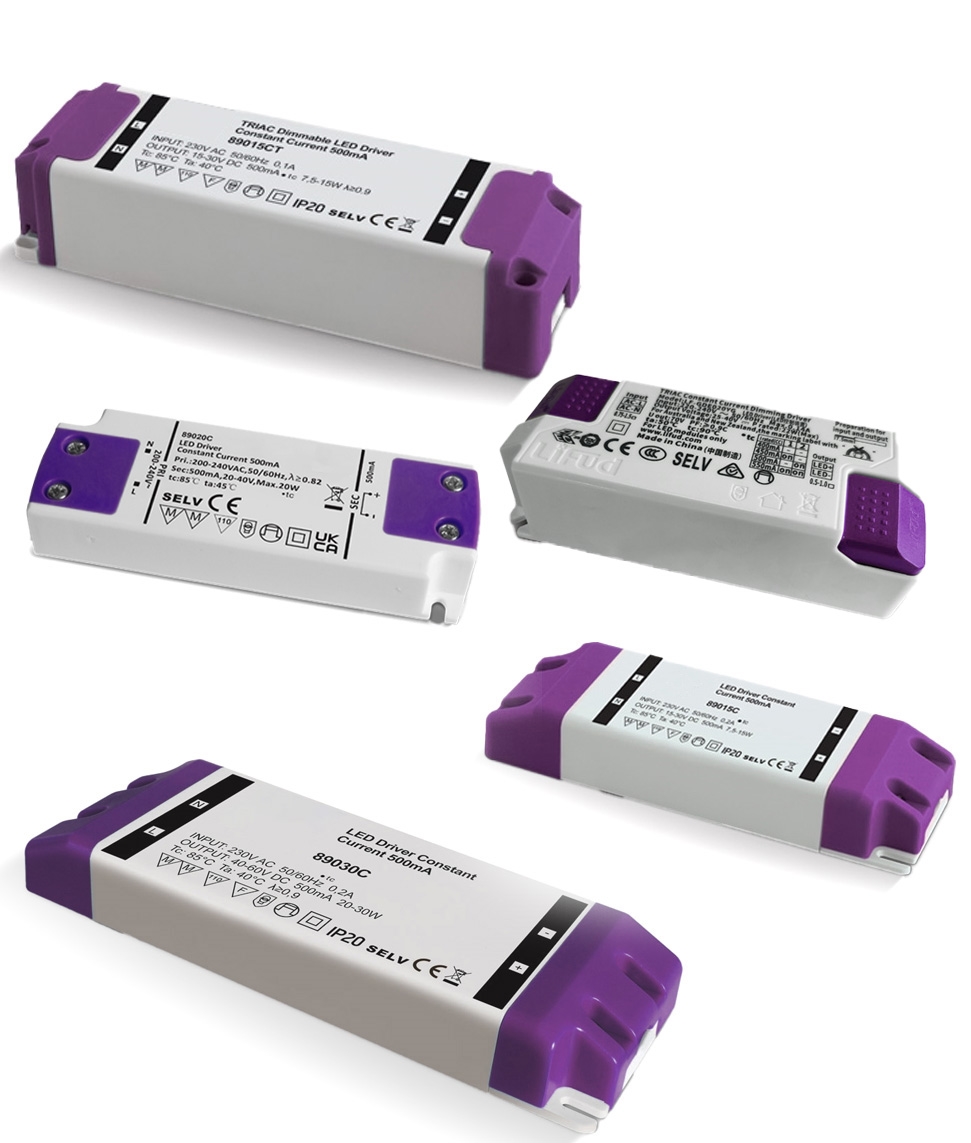

These 500mA constant current LED drivers offer reliable and consistent power to a wide range of LED lighting installations. Available in both dimmable and non-dimmable options, these drivers are designed for smooth integration into domestic and commercial lighting applications where stable, flicker-free illumination is crucial. Each model supports different power outputs and voltages, providing flexibility for varying project requirements.

Non-Dimmable Models: Versatile Performance for a Range of LED Systems

The non-dimmable range includes three models, each tailored to handle specific wattage capacities, making them ideal for static LED lighting installations that do not require dimming control.

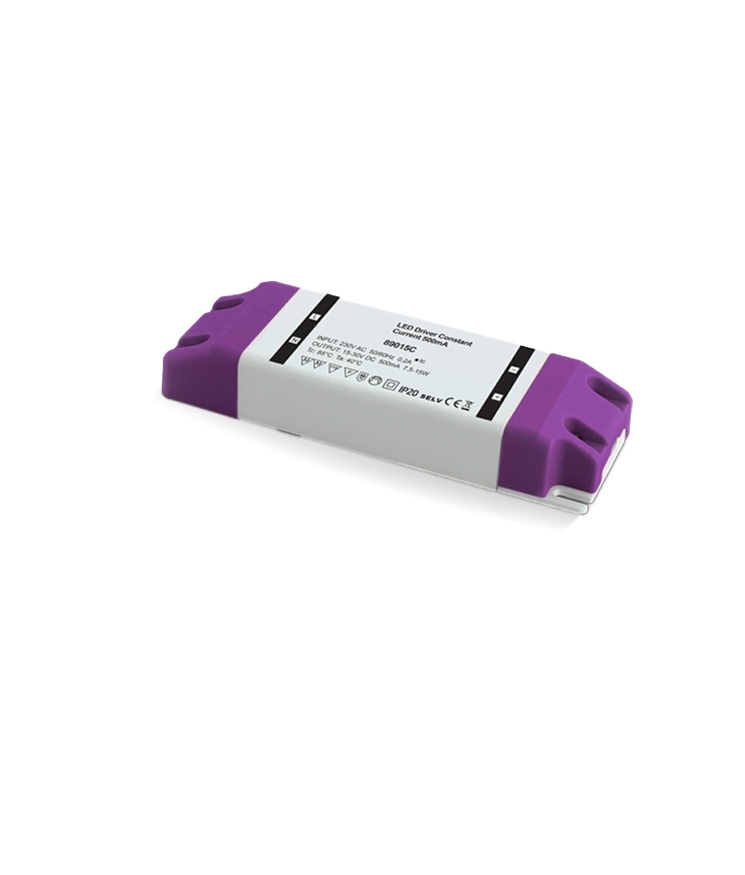

The CY89015C, designed to handle between 7.5 to 15 watts, delivers an output voltage between 15 and 20 volts. It is compact, measuring 120mm in length, 42mm in width, and 20mm in height, making it suitable for tight spaces.

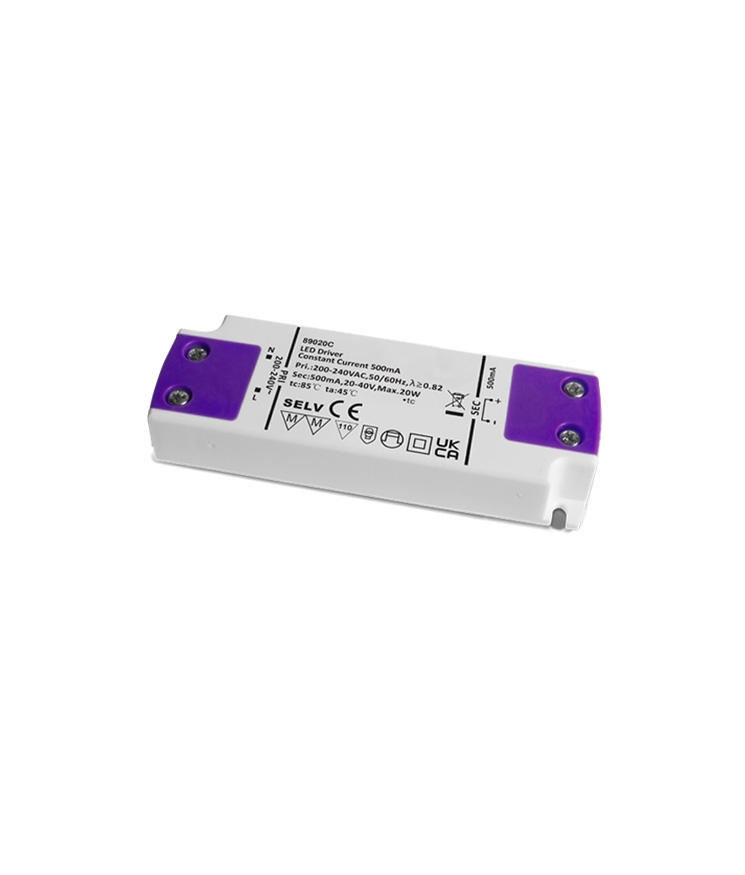

For installations requiring a higher wattage range, the CY89020C supports outputs between 12.5 and 20 watts, with an output voltage range of 25 to 40 volts. The dimensions remain consistent with the CY89015C, ensuring ease of use across different installations.

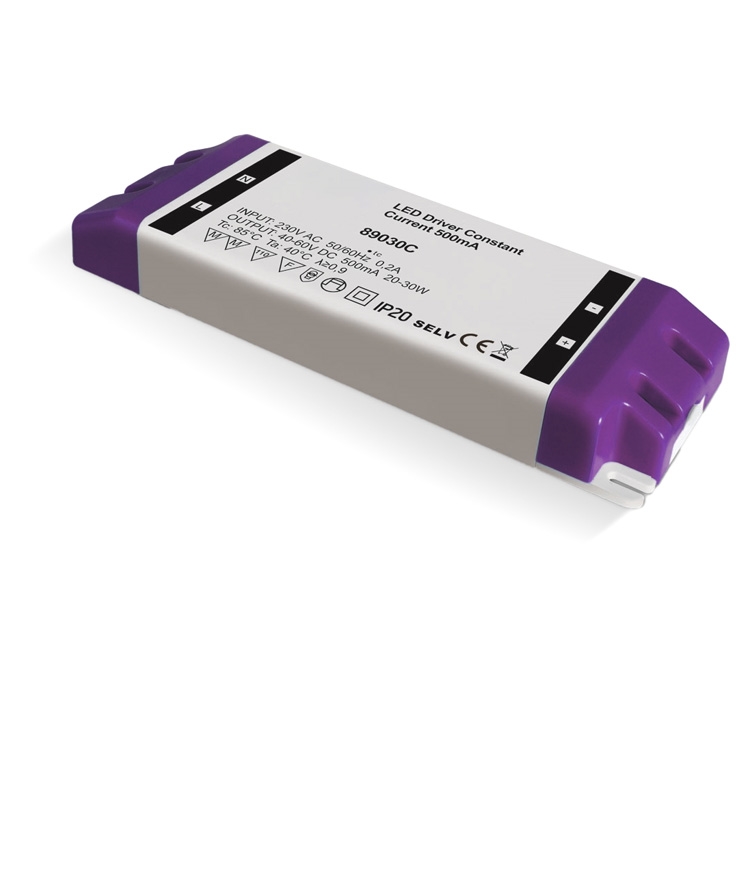

At the top end of the non-dimmable range, the CY89030C powers between 20 to 30 watts, providing an output voltage of 28 to 56 volts. With larger dimensions of 165mm by 51mm by 24mm, it is ideal for more powerful LED installations, offering greater durability and stability in high-output lighting applications.

Dimmable Model: Enhanced Flexibility for Customised Lighting

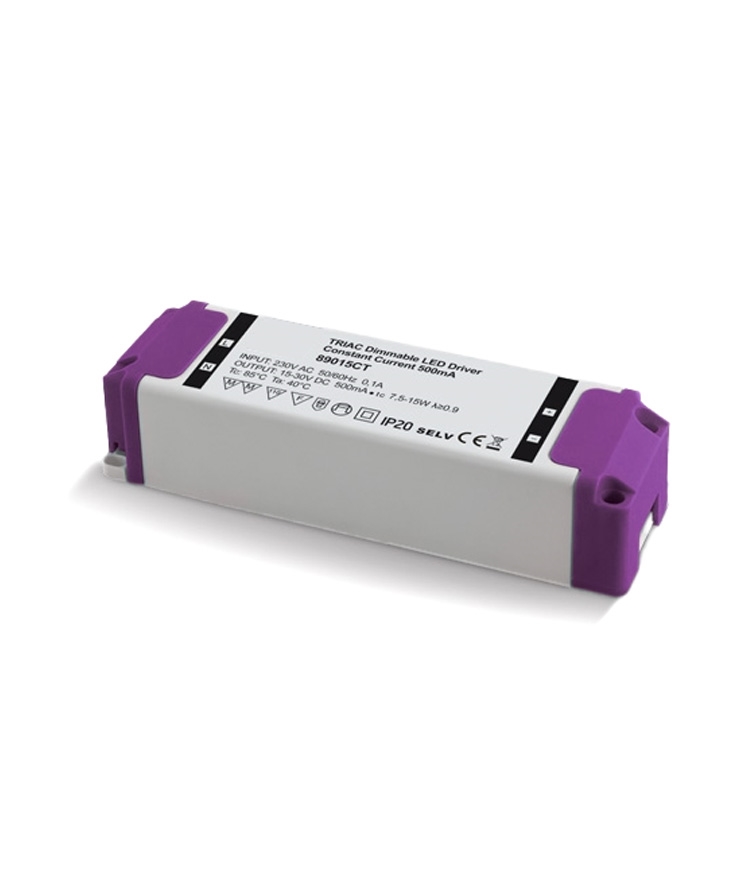

The CY89015CT is a dimmable 500mA LED driver, designed to power LEDs within a 7.5 to 15-watt range and an output voltage of 15 to 30 volts. Its dimming capabilities provide added versatility, enabling precise lighting control for spaces where ambience and custom lighting settings are needed. Slightly larger than the non-dimmable options, this model measures 143mm by 42mm by 30mm, offering a robust and flexible solution for dimmable lighting projects.

Durable and Efficient Design

All models are built with durability in mind, ensuring long-term reliability in various environments. With their compact sizes and different power capacities, these LED drivers are well-suited for use in residential, commercial, and retail spaces, from office lighting to accent lighting in homes and hotels.

Specifications:

CY89015C - Non Dimmable
500mA 7.5 - 15 watts
120mm long, 42mm wide, 20mm high
Output Voltage 15- 20 volts

CY89020C - Non Dimmable
500mA 12.5 - 20 watts
120mm long, 42mm wide, 20mm high
Output Voltage 25 - 40 volts

CY89030C - Non Dimmable
500mA 20 - 30 watts
165mm long, 51mm wide, 24mm high
Output Voltage 28 - 56 volts



CY89015CT - Dimmable
500mA 7.5 - 15 watts
143mm long, 42mm wide, 30mm high
Output Voltage 15 - 30 volts



View more items from this supplier

Availability: Typically dispatched in 4-7 days
We offer free delivery on orders over £80 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
Non Dimmable 500mA Drivers
CY89015C
Non Dimmable 500mA 7.5 - 15w Constant Current LED Driver
£11.50
£9.58 exc VAT
CY89020C
Non Dimmable 500mA 12.5 - 20w Constant Current LED Driver
£12.40
£10.33 exc VAT
CY89030C
Non Dimmable 500ma 20 - 30w Constant current LED driver
£17.30
£14.42 exc VAT
Dimmable 500mA Drivers
CY89015CT
Dimmable 500ma 7.5 - 15w Constant current LED driver
£23.10
£19.25 exc VAT
