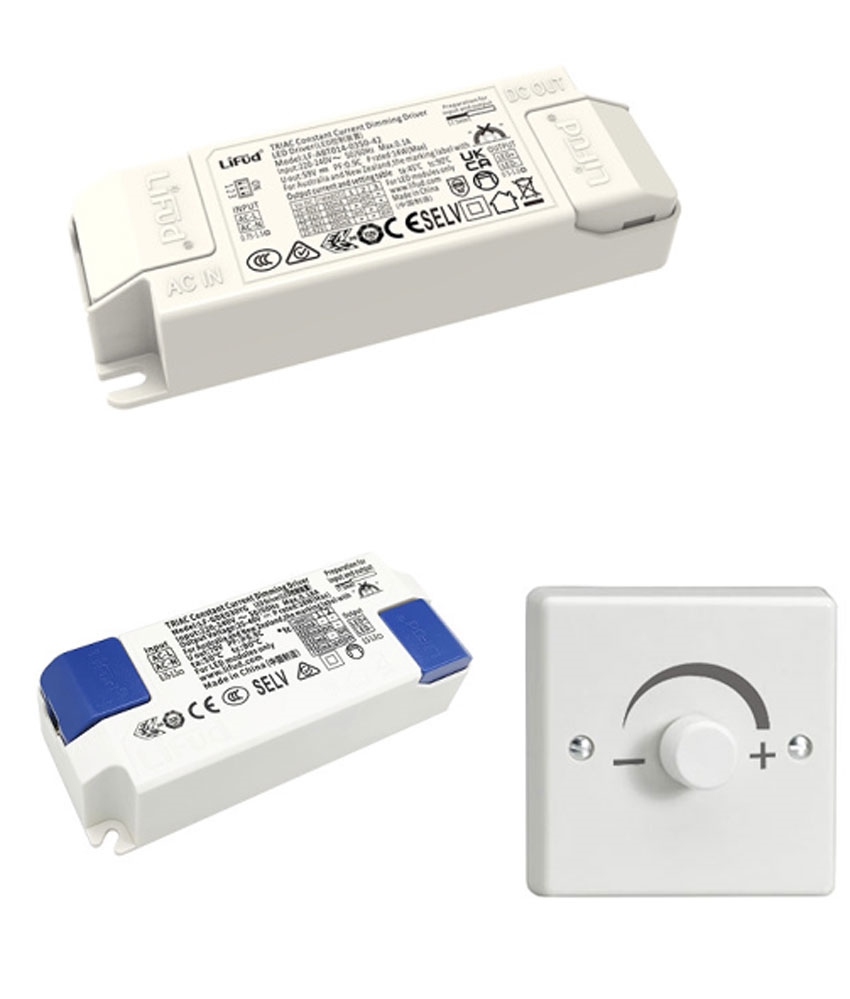

Dimmable Constant Current Universal LED Drivers with DIP Switch Control

Universal drivers simplify LED projects by removing the need to match a specific driver to each fitting. Both the CY89008UT and CY89016UT feature DIP switches beneath the screw-down output cover. By adjusting these switches, installers can set the desired output current as shown on the driver diagram, matching the power needs of the connected LEDs.

This flexibility is particularly valuable for lighting designers, electricians, and maintenance teams who handle a range of fittings. Being able to set or fine-tune the output current ensures consistent brightness across different luminaires or allows brightness to be reduced where a softer effect is preferred.

Usage and Application
These universal drivers are suitable for domestic and commercial environments such as homes, offices, hotels, and retail interiors. They are ideal where adjustable light levels are needed or when the exact LED specification is not yet confirmed. During installation, the DIP switches are set to match the chosen current, allowing easy on-site adjustment without replacing the driver.

Design and Specification

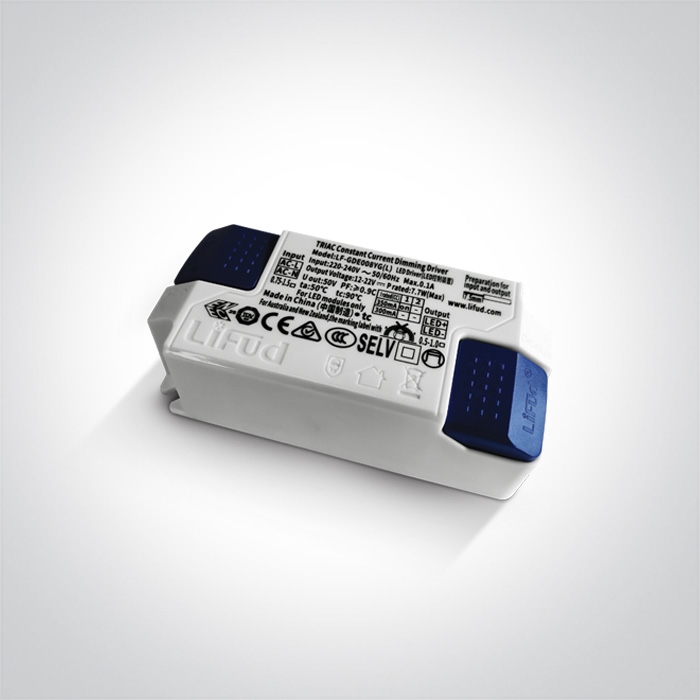

The CY89008UT supports 4–8W LED loads with selectable constant currents of 300mA or 350mA and an output voltage of 12–22V. Its compact housing (97mm x 46mm x 31mm) makes it suitable for restricted spaces.

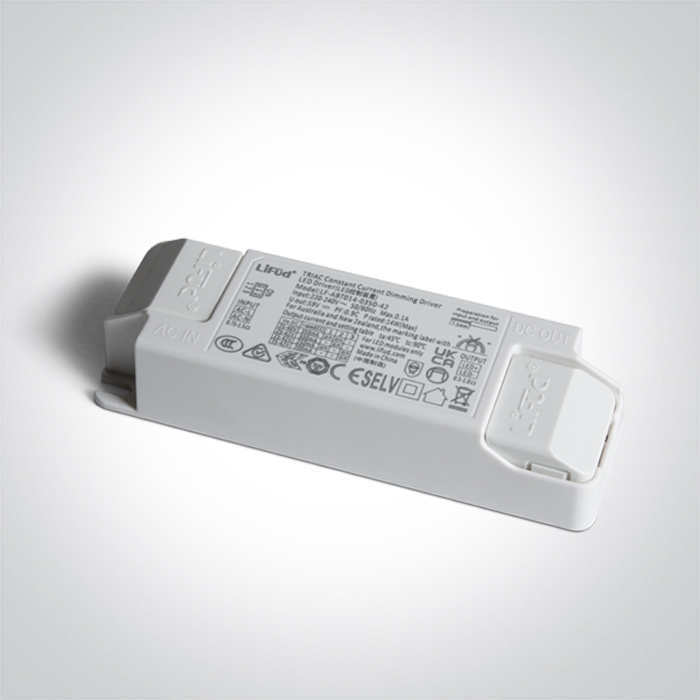

The CY89016UT handles 9–14W loads and provides outputs from 200mA to 350mA with a voltage range of 25–40V. Measuring 122mm x 40mm x 25mm, it offers flexibility for larger installations.

Performance and Reliability
Both models are TRIAC dimmable and provide stable, consistent performance. Each unit includes a 2-year warranty, offering reassurance for both commercial and residential use.
