Non Dimmble 350ma Constant current LED Drivers
350ma non dimmble Constant current LED driver LED fittings
Product Ref: 57662

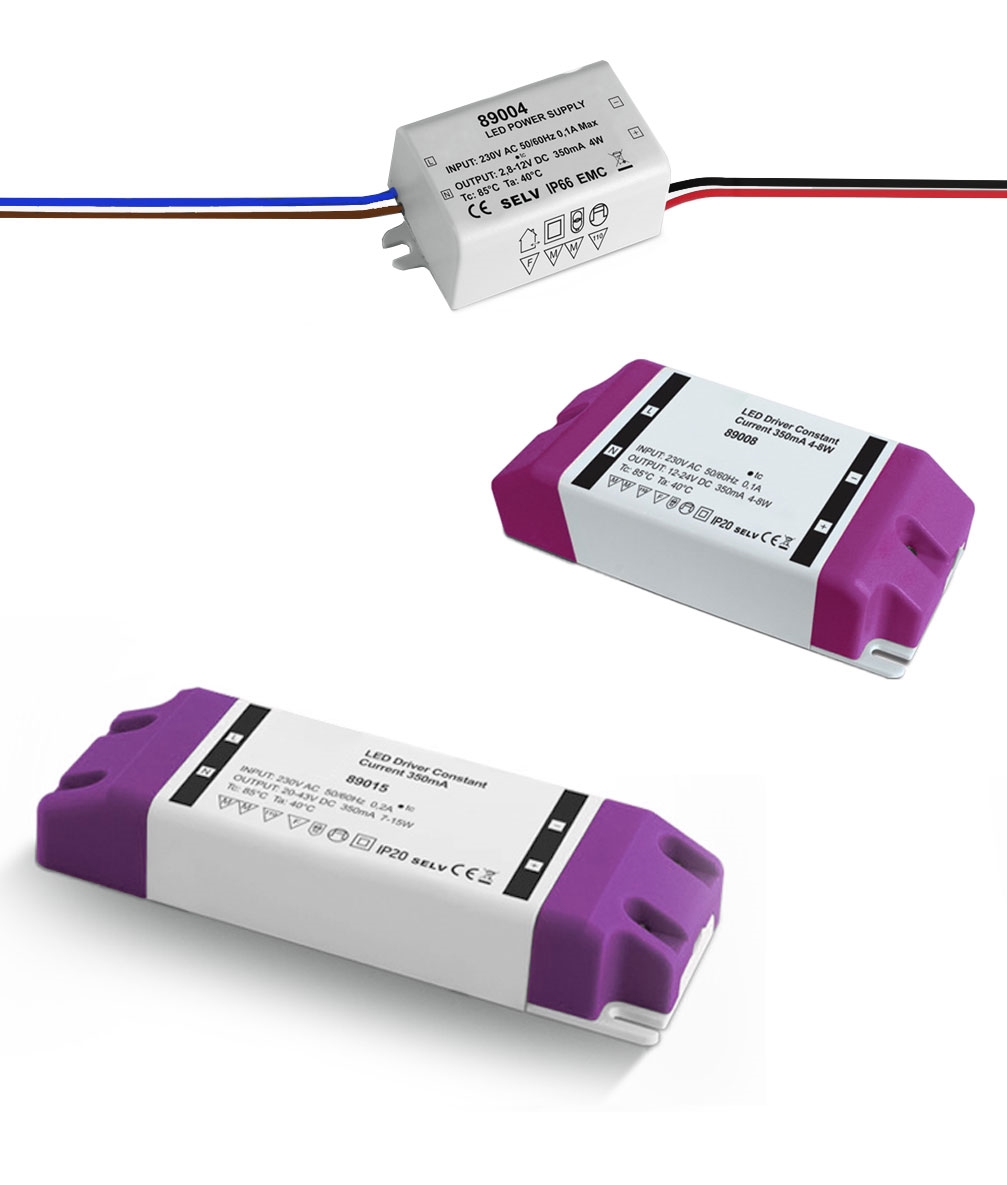

From £8.20 inc VATThis collection of 350mA LED drivers offers five power ratings, ensuring reliable and efficient energy management for low-voltage LED installations. Ideal for both residential and commercial settings, these drivers provide consistent current to LEDs, accommodating a range of voltage requirements based on the project.
Wide Selection of Wattage Options
The collection ranges from 1-4W to 13-20W, making it straightforward to select the appropriate driver for your specific lighting setup. Each driver offers a distinct secondary voltage range, allowing for flexibility across various LED configurations:

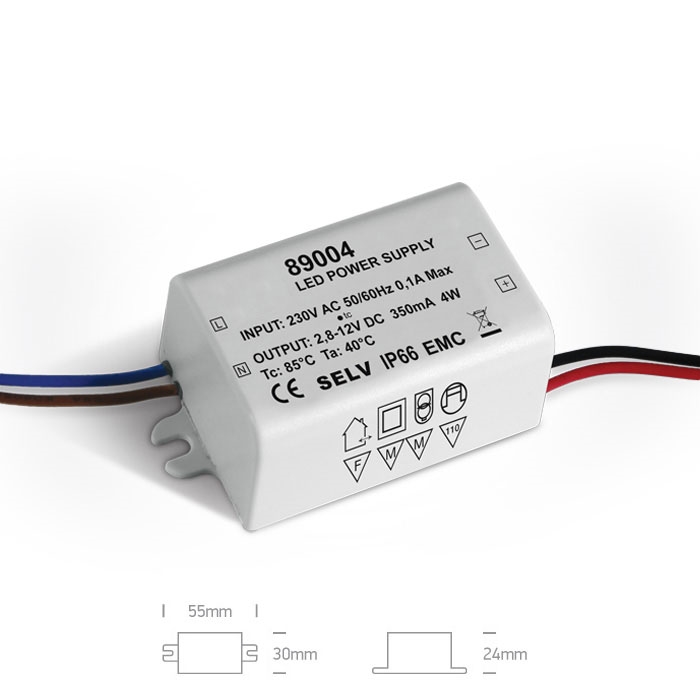

- 350mA 1-4W: Secondary Voltage Range: 3-12V

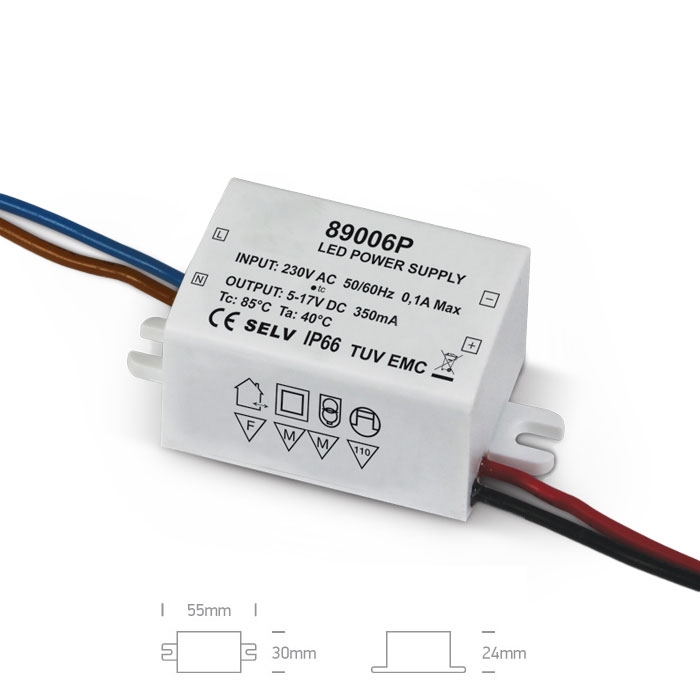

- 350mA 2-6W: Secondary Voltage Range: 5-17V

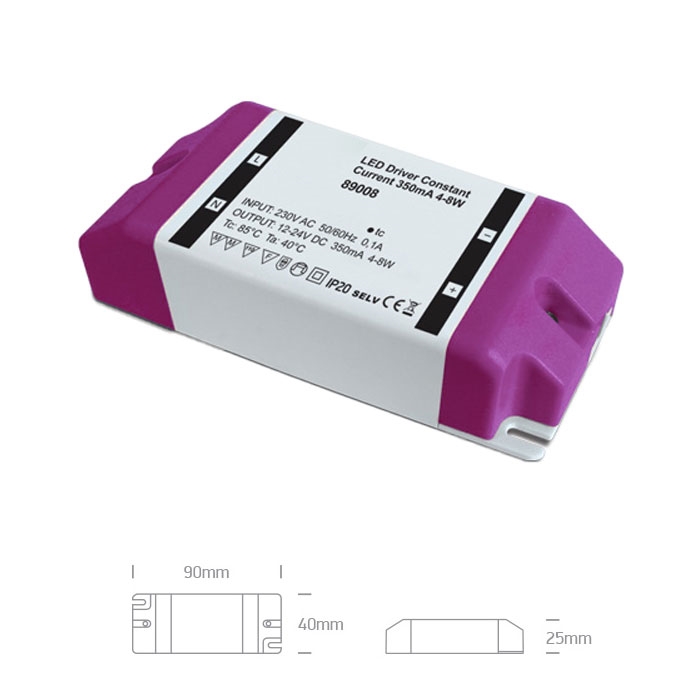

- 350mA 4-8W: Secondary Voltage Range: 12-24V

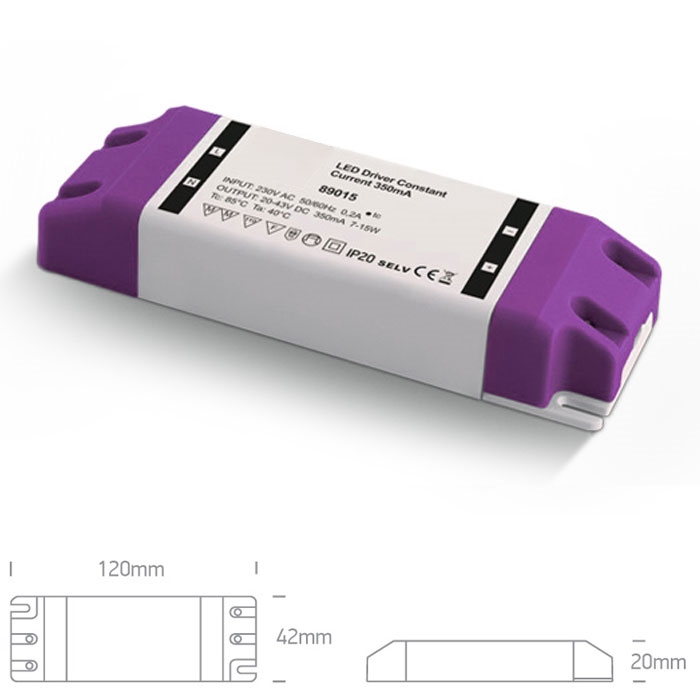

- 350mA 7-15W: Secondary Voltage Range: 21.5-42.5V
- 350mA 13-20W: Secondary Voltage Range: 37-57V
Design and Installation
The smaller drivers (1-4W and 2-6W) feature flying leads for quick and easy installation, making them ideal for compact lighting setups. Each comes equipped with a 350mA fast-fit connector, which can be easily snipped if not required, ensuring compatibility with a range of fixtures.
For the larger drivers (4-8W, 7-15W, and 13-20W), screw terminals provide a secure, robust connection. Additionally, these models include a short factory-fitted flying lead with a fast-fit connector, simplifying the installation process.
Performance and Durability
All drivers in this range are non-dimmable, offering a steady current without fluctuation, which ensures reliable performance and protects the longevity of your LED lighting. For dimmable alternatives, explore our range of dimmable drivers available elsewhere on the website.
Applications
These drivers are suitable for LED lighting in a variety of environments, including homes, offices, hotels, and retail spaces. They are designed to deliver precise current control, ensuring optimal light quality and extending the life of the LEDs.
Warranty: 5 Years
Lamp Type | |
Width | 45mm |
Length | 123mm |
Height | 19mm |
Be the first to ask a question about this product! |
