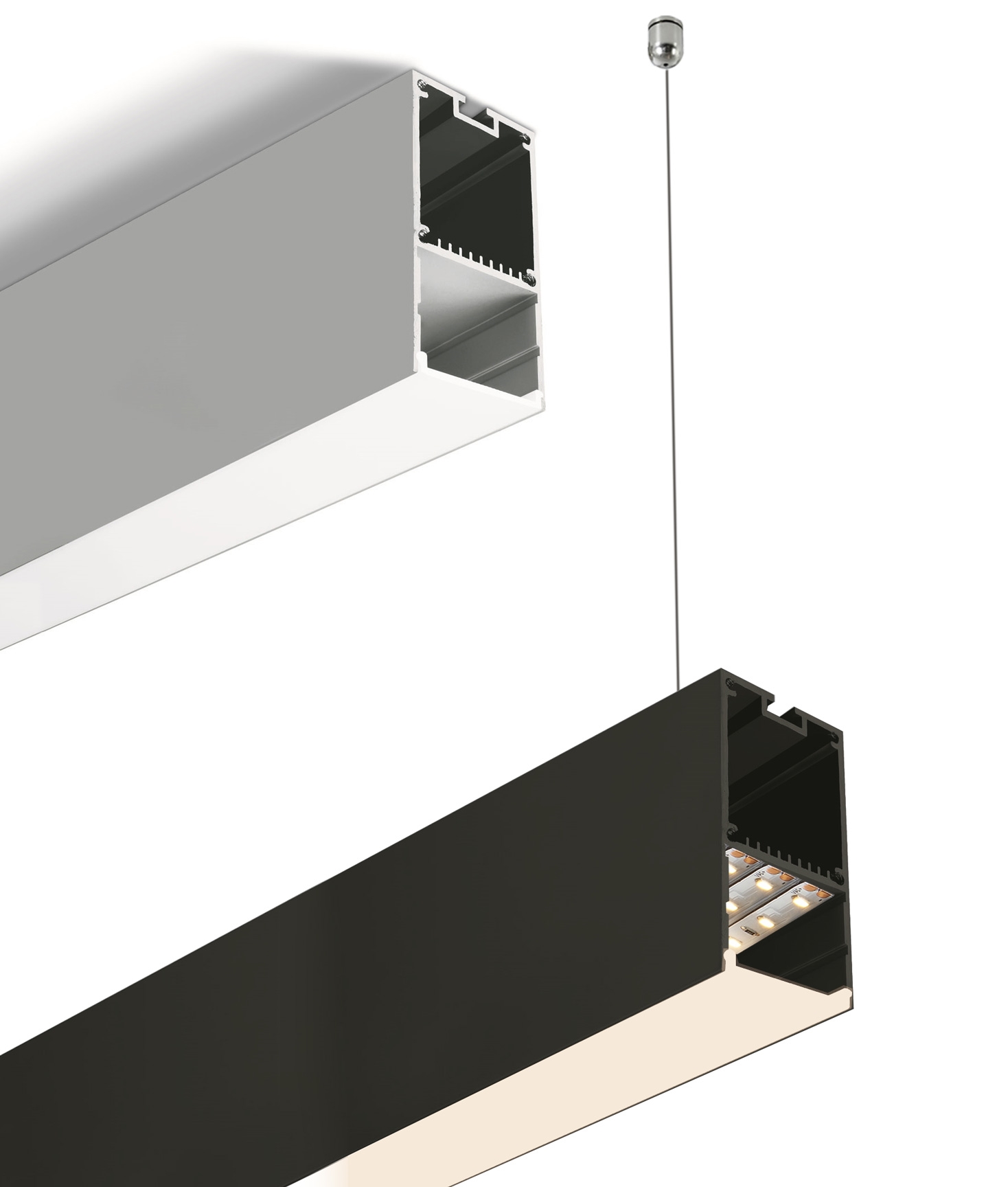

Deep aluminium LED profile with internal driver housing. Surface or suspended mounting

Design & Style

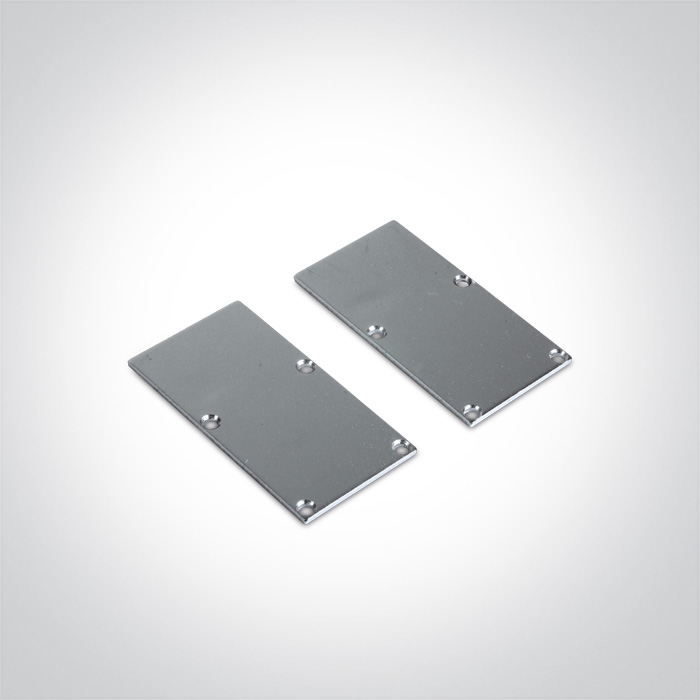

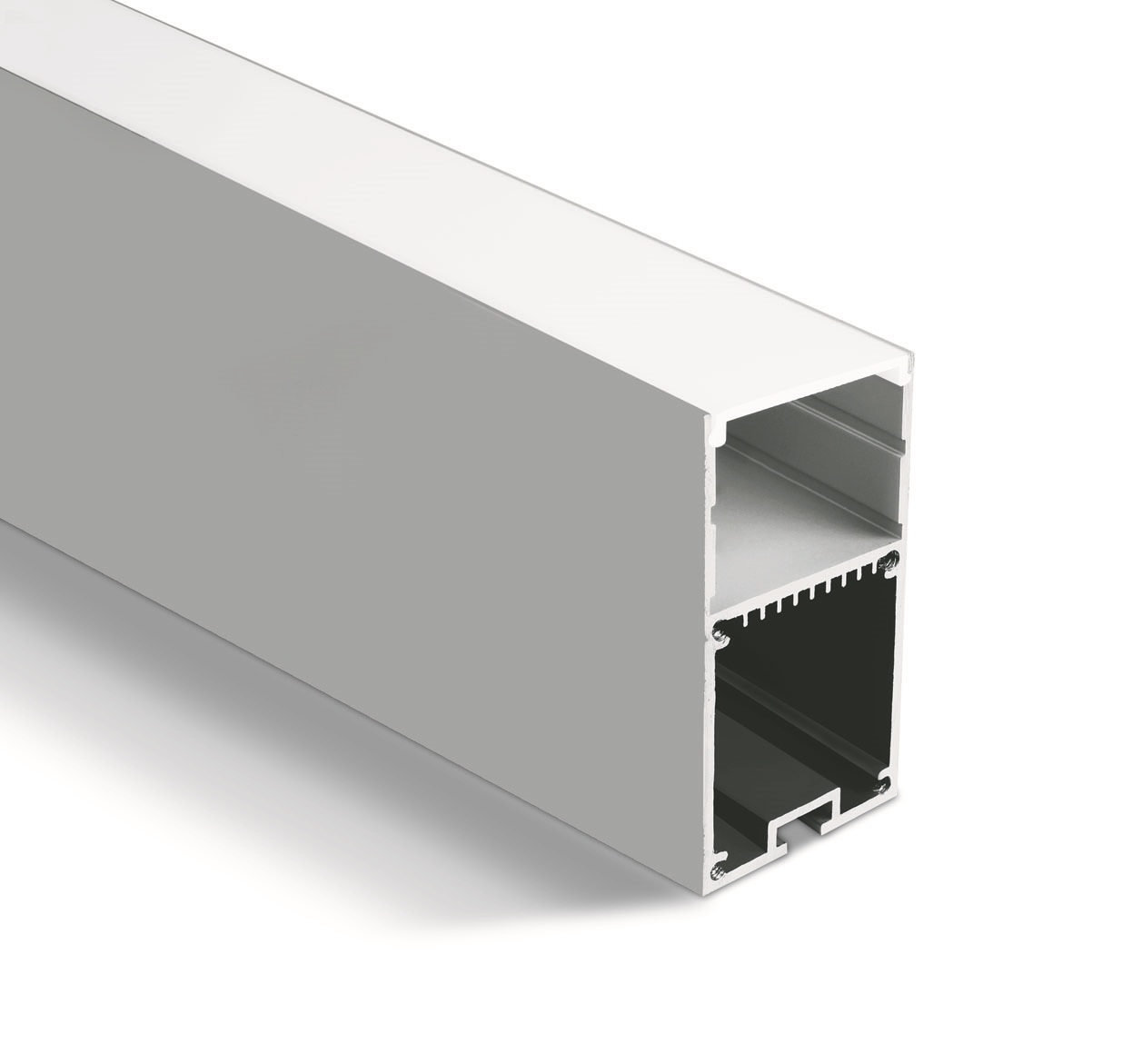

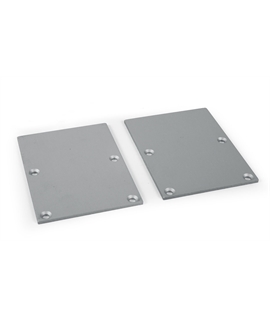

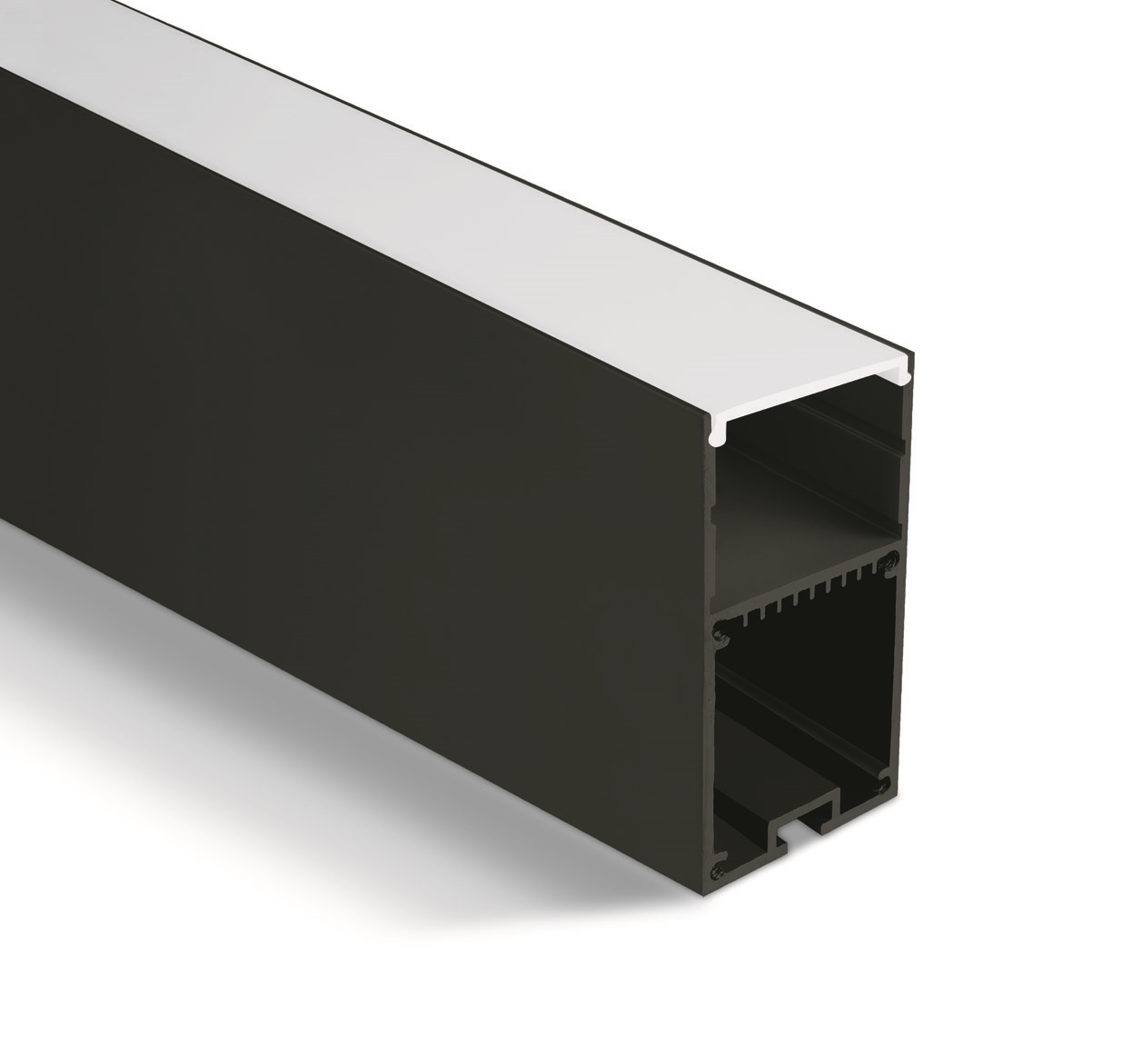

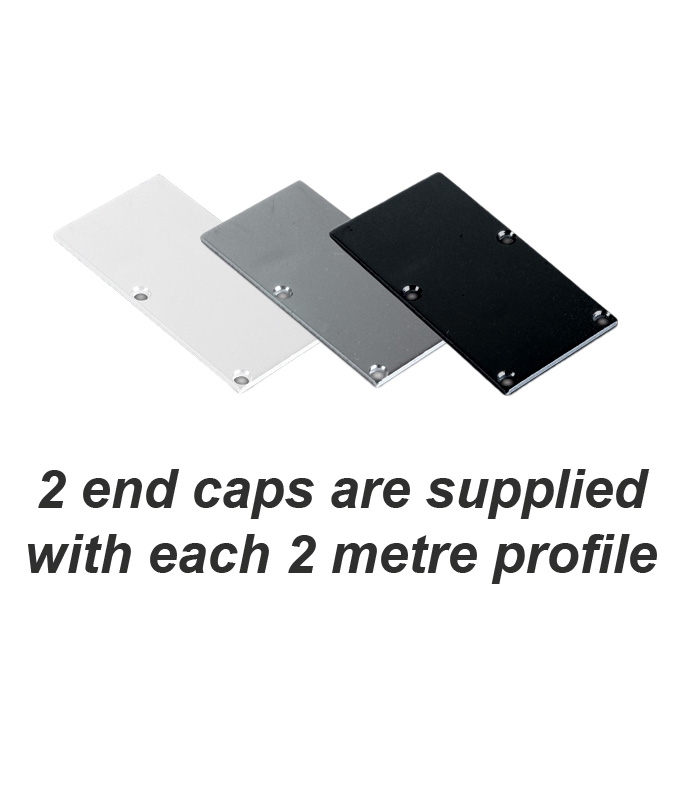

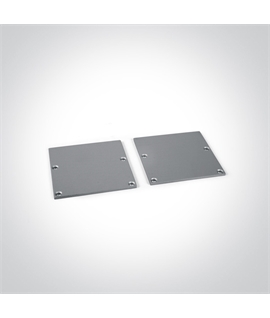

Manufactured from extruded aluminium, this deep 2 metre profile is available in anodised aluminium or a painted white or black finish. The robust rectangular design measures 36 mm wide × 67 mm high, providing both strength and a professional architectural appearance. Each length includes a PC opal diffuser and end caps, producing a uniform linear glow and concealing the LED tape from view.

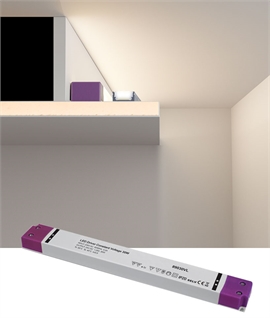

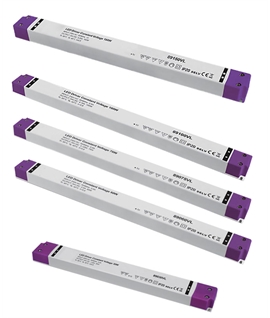

The body has sufficient internal space to house a slimline driver or controller, keeping wiring and components contained within the extrusion. This creates a clean, self-contained lighting unit suitable for installation in visible locations.

Usage

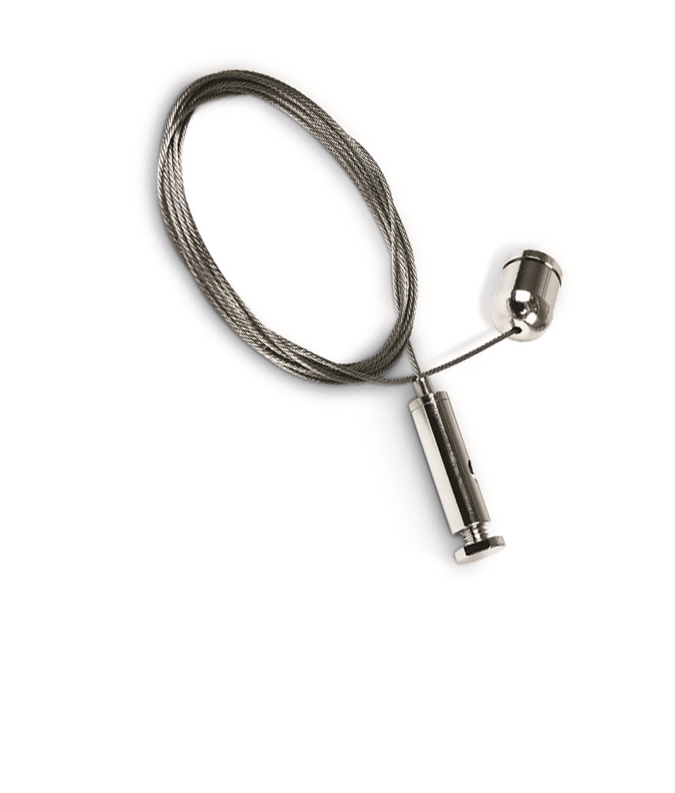

Designed for installers and specifiers, this profile provides a versatile solution for creating bespoke linear lighting. It can be mounted directly onto a ceiling or wall for surface applications, or suspended using the optional suspension kits. When used with a ceiling canopy and drop flex, the profile becomes a suspended linear light suited to offices, reception areas, or retail environments.

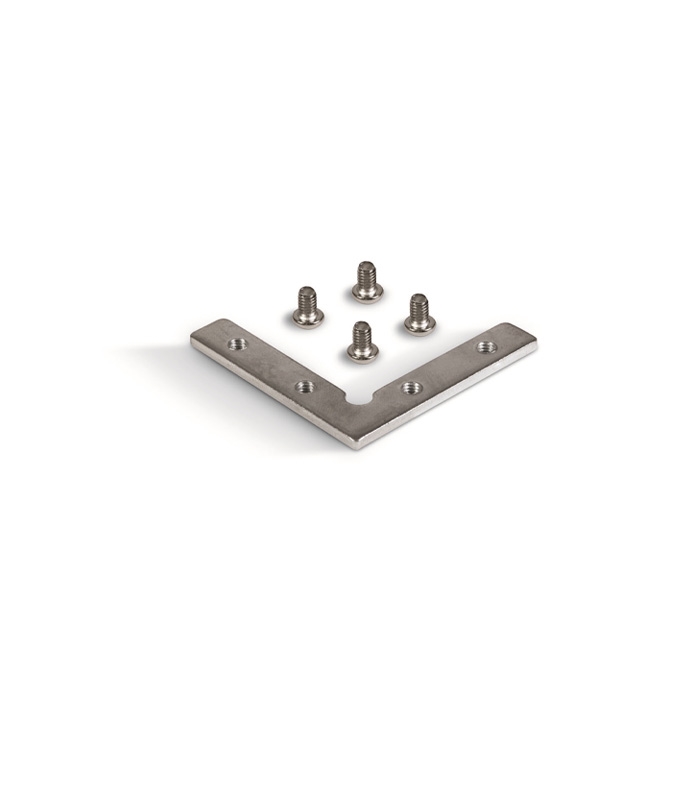

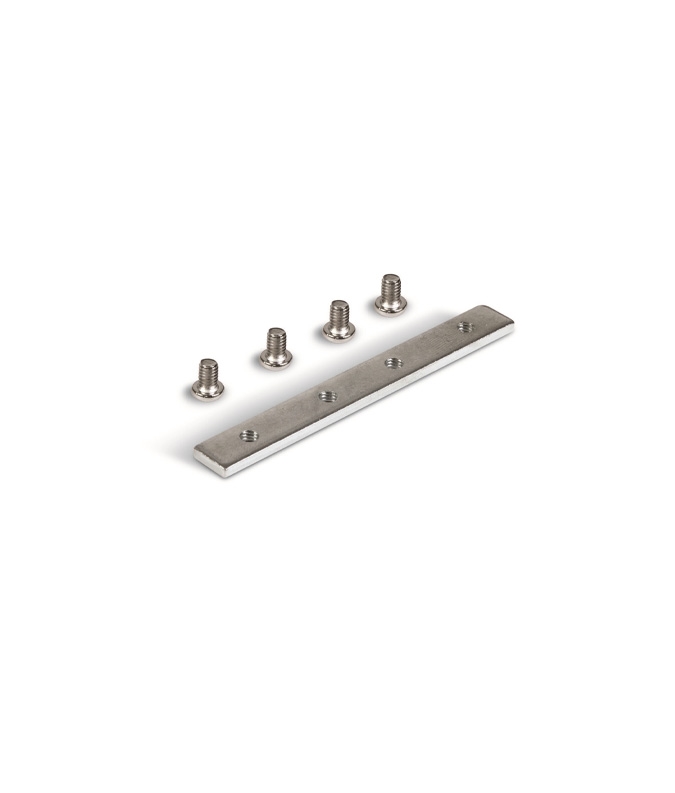

Each 2 metre section can be joined end-to-end using straight stiffening brackets to create longer continuous runs. For those requiring corners, the aluminium can be mitre-cut using a precision saw to achieve 90-degree joins (see footnote).

Suitable for LED tape up to 30 mm wide, or up to three parallel 10 mm tapes for higher output or multi-channel control.

Key Features
The deep aluminium housing offers effective thermal management for the LED tape while concealing power components within the same profile. The opal diffuser provides a continuous, even light output with no visible LED points. Suspension kits, ceiling canopies with drop flex, and connecting plates are available separately.

This profile is ideal for projects requiring a professional finish without the cost of a factory-assembled linear system, giving installers full flexibility over light source, output, and control gear selection.

Footnotes
1. To fix directly to the ceiling, drill through the middle rib and rear of the profile and use a screw suitable for the application.
2. Creating 90° corners requires careful cutting with a mitre saw - best suited to those who enjoy a precise challenge.

Delivery Information
Note on Shipping for Oversized Items
These profiles are classed as outsize by our couriers due to their length (over 1 metre). A flat surcharge of £19.50 inc VAT applies per order, regardless of quantity.
If your order total is below the free delivery threshold, the total delivery cost will be £26.40.
If your order qualifies for free delivery, the £19.50 surcharge still applies.
We regret that we are unable to absorb this courier charge and appreciate your understanding.
