28.8W per Metre White LED Tape Light, 120 LEDs per Metre, 20mm Wide, 5m Reel
High-output 20mm LED strip with SMD2835 chips in a parallel layout, delivering up to 2304 lumens per metre.
Product Ref: 57556
£57.90 inc VATOverview

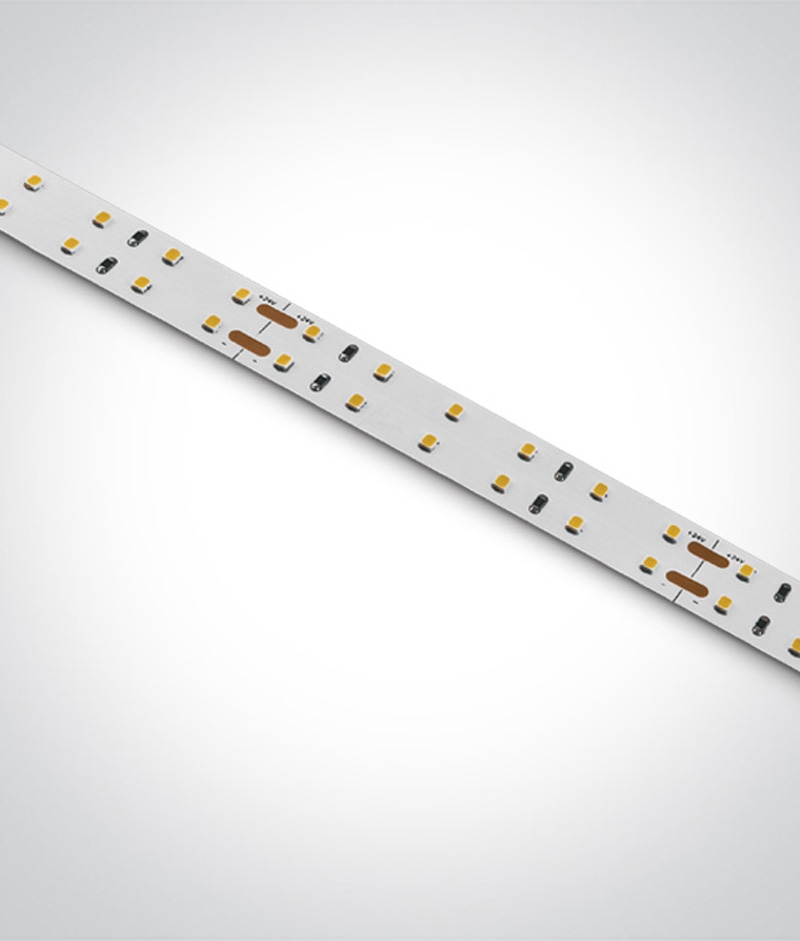

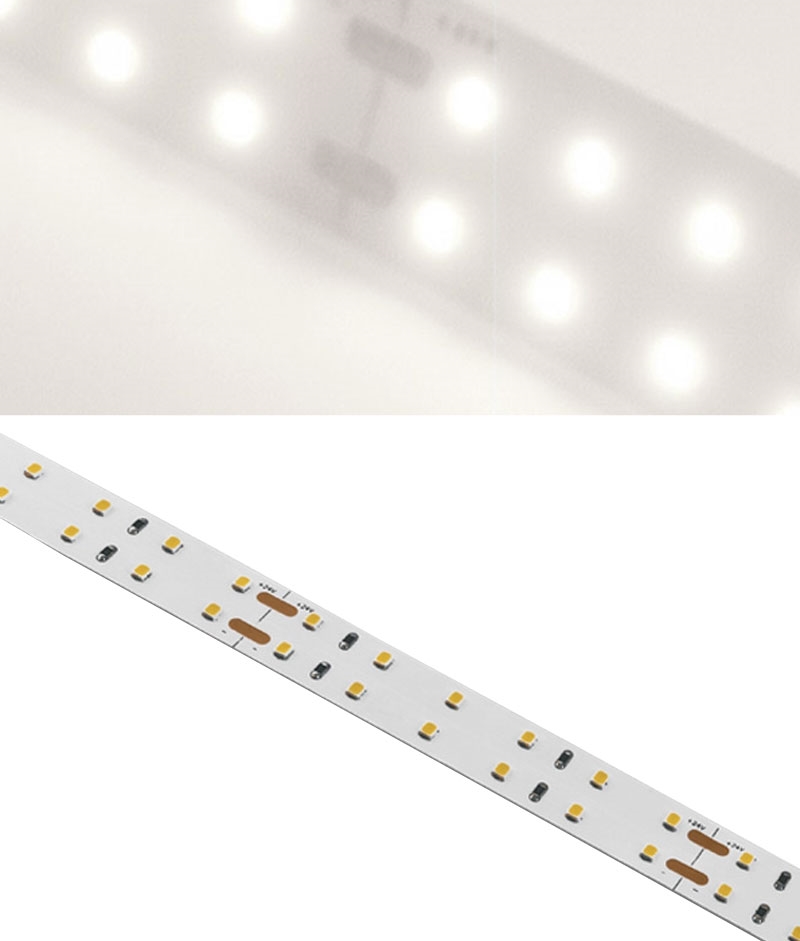

This flexible LED strip consumes 28.8 watts per metre and produces up to 2304 lumens per metre. Built on a 20mm wide PCB with SMD2835 chips, it is effectively two 10mm strips placed side by side, offering convenience and very high brightness for large-scale projects. Supplied on 5m reels with adhesive backing and tails at both ends.
Design and Features
Constructed with 120 LEDs per metre in a parallel layout, this tape is designed to provide maximum output where high light levels are required. The 20mm width improves stability and heat distribution, supporting reliable performance at higher wattage. Light efficiency is rated at 78 lm/W with CRI 90+ rendering.
Colour Temperatures
3000K Warm White – 2260 lumens per metre
4000K Neutral White – 2304 lumens per metre
Usage
Ideal for applications where extremely bright, consistent illumination is required. Commonly used in commercial fit-outs, large coves, display areas, and joinery projects. Due to the high wattage, this tape must be installed into an aluminium profile or mounted onto a heat sink to prevent overheating and ensure long-term reliability.
Key Features
24V DC operation, 28.8W per metre (144W per 5m reel)
SMD2835 chips with CRI 90+
Parallel dual-row design, 120 LEDs per metre total
20mm wide flexible tape
Up to 2304 lumens per metre
Light efficiency 78 lm/W

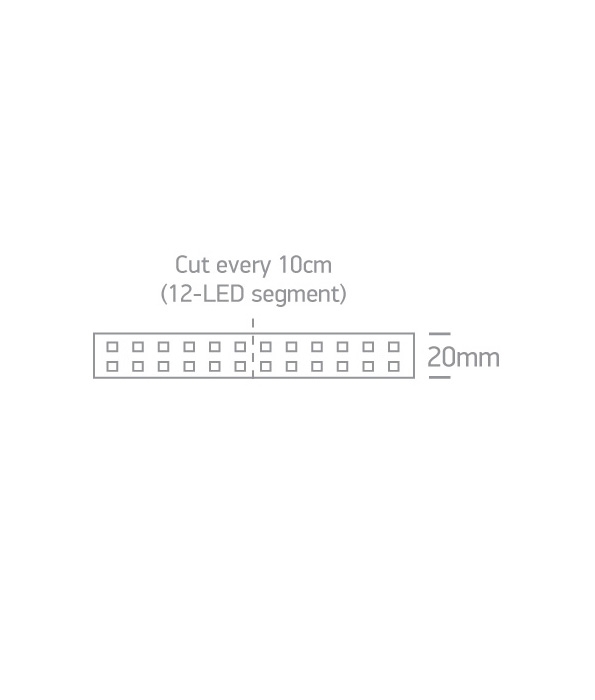

Cut every 100mm (12 LEDs)
Tails at both ends
Supplied without driver, requires 24V DC supply
Must be installed in an aluminium profile or onto a heat sink
5-year warranty
Complies with EN60598-1
Performance
3000K – 2260 lumens per metre
4000K – 2304 lumens per metre
Lamp Type | |
Width | 20mm |
Length | 5000mm |
Be the first to ask a question about this product! |

We offer free delivery on orders over £80 to most UK Mainland Addresses
Related Products

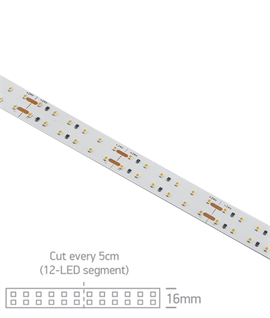

19.2W per Metre White LED Tape Light, 240 LEDs per Metre, 16mm Wide, 5m Reel
