19.2W Close Spaced White LED Tape 238 LEDs per Metre 10mm wide 5m roll

24V flexible white LED strip with Refond 2216 chips in 3000K or 4000K cut every 2.95cm

Product Ref: 57546

£72.80 inc VAT

Overview
19.2W flexible 24V white LED tape with Refond 2216 chips, available in 3000K warm white or 4000K neutral white. With 238 LEDs per metre and a chip spacing of just over 4mm, this tape produces a smooth continuous line of light with minimal spotting. Supplied in 5 metre reels wired at both ends so it can be cut into two powered lengths.

Design and Style
This close spaced LED strip uses compact SMD 2216 Refond chips, arranged at 238 per metre on a 10mm wide PCB. Each chip measures only 2.2 × 1.6mm, enabling a higher LED density than older 3528 or 5050 formats. The closer arrangement reduces visible points and creates a smoother effect. Known for efficiency, stability and colour accuracy, the 2216 chip is a dependable choice for interiors where lighting quality matters. Supplied in 5m reels, the tape integrates neatly into profiles, coves and furniture for a modern clean finish.

Usage
Ideal for dry indoor environments where accurate colour quality and a seamless appearance are required. Offered in 3000K warm white or 4000K neutral white, it works well in kitchens, living areas, offices or retail displays. With no IP rating, it should be installed only in protected environments away from moisture.

Key Features

  • 19.2W per metre operating at 24V DC

  • Supplied in 5 metre reels wired at both ends for splitting into two powered lengths

  • High density 238 LEDs per metre

  • Chip spacing approximately 4.2mm

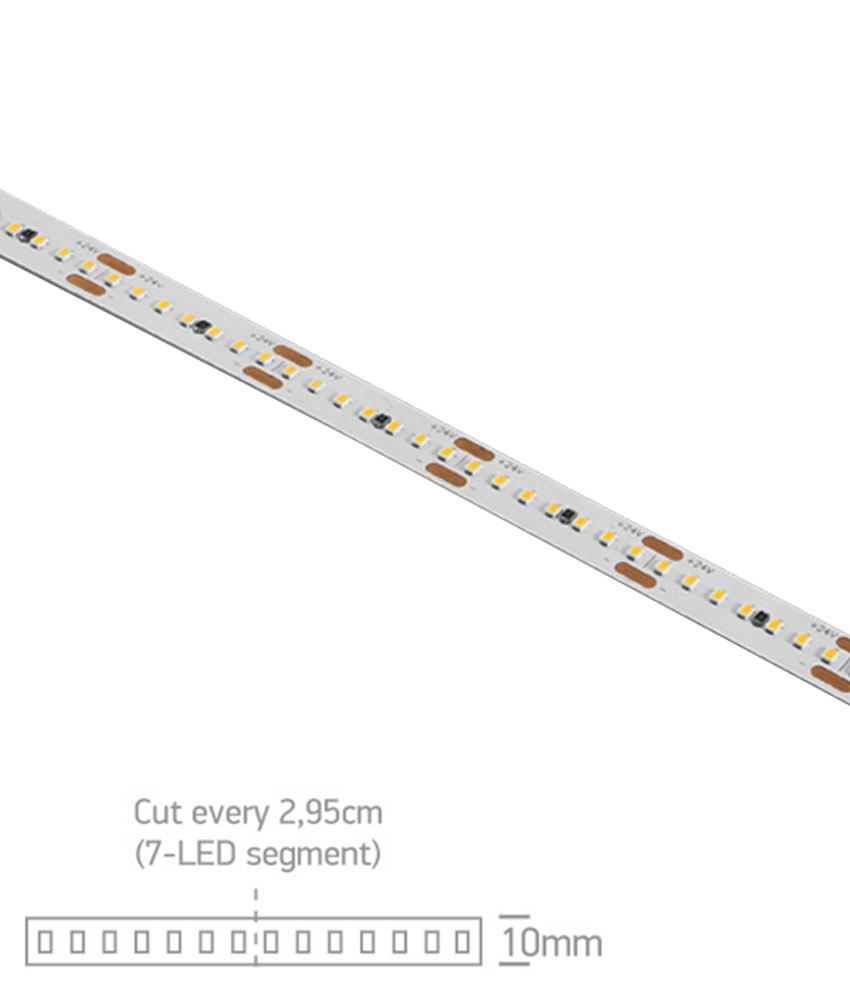

  • Cuttable every 2.95cm (7 LEDs per segment)

  • CRI 90+ for natural colour rendering

  • Refond 2216 chips for stable reliable output

  • Requires a 24V DC driver (not included)

Light Output

  • 4000K Neutral White – 1940 lumens per metre

  • 3000K Warm White – 1728 lumens per metre

View more items from this supplier

Availability: Typically dispatched in 4-7 days
We offer free delivery on orders over £80 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
CY7870/W
3000k 19W Close Spaced White LED Tape 238 LEDs per m
£72.80
£60.67 exc VAT
CY7870/C
4000k 19W Close Spaced White LED Tape 238 LEDs per m
£72.80
£60.67 exc VAT
This product requires a driver or transformer - Suitable items can be found below
CY89075V
24v 75w Constant Voltage LED Driver
£31.60
£26.33 exc VAT
CY89100V
24v 100w Constant Voltage LED Driver
£44.60
£37.17 exc VAT
CY89150V
24v 150w Constant Voltage LED Driver
£61.20
£51.00 exc VAT
CY89075VT
Dimmable 24v 75w Constant Voltage LED Driver
£60.40
£50.33 exc VAT
CY89100VT
Dimmable 24v 100w Constant Voltage LED Driver
£72.70
£60.58 exc VAT
CY89150VT
Dimmable 24v 150w Constant Voltage LED Driver
£95.00
£79.17 exc VAT
