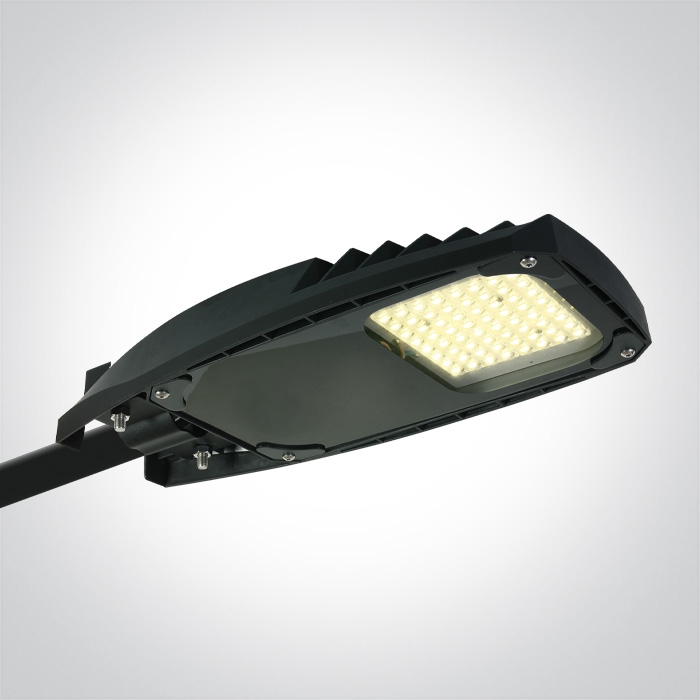

50w Black LED street light with 3000k SMD LED, asymmetric distribution 140 x 80deg

Product Overview
This single-light LED street luminaire is designed for use on a 60 mm pole. It features a warm white (3000 K) SMD LED assembly with an asymmetric 140° × 80° beam pattern. The fixture is rated IP66 and IK08 for environmental and mechanical protection.

Design and Construction
The housing is moulded from durable plastic and finished in black to blend into urban environments. Dimensions measure 190 mm in width, 400 mm in length and 74 mm in height. A 2 m cable is supplied for power connection. The unit is non-dimmable and integrates its LED and driver components within the body.

Performance and Optics
The LED source is rated at approximately 6 800 lumens, translating to an efficacy of about 136 lm/W, with a Colour Rendering Index (CRI) of 80. The asymmetric 140° horizontal by 80° vertical beam is engineered to deliver uniform roadway illumination, minimising light spill beyond the target zone.

Electrical & Protection Details
Operating on a universal input voltage of 100–240 V, the luminaire is fully sealed to the IP66 standard. Mechanical robustness is assured via an IK08 impact rating. The unit carries a 5-year warranty, underlining its reliability for long-term street lighting applications.

Usage Context
This LED street light is intended for use in public roads, walkways, car parks, or estate lighting schemes. It is well suited to urban and suburban installations where reliable, efficient, low-maintenance illumination is required.
