Micro marker lights 37mm diameter IP67, anodised Aluminium

Design and Style
These compact aluminium IP67 marker lights provide clear guidance along steps, paths and deck edges. Each fitting is machined from a solid billet of aluminium with a glass and aluminium body, creating a small and discreet unit that sits neatly within porcelain tiles, paving or timber. The 37 mm diameter makes the fitting suitable for locations where subtle orientation lighting is preferred.

Usage

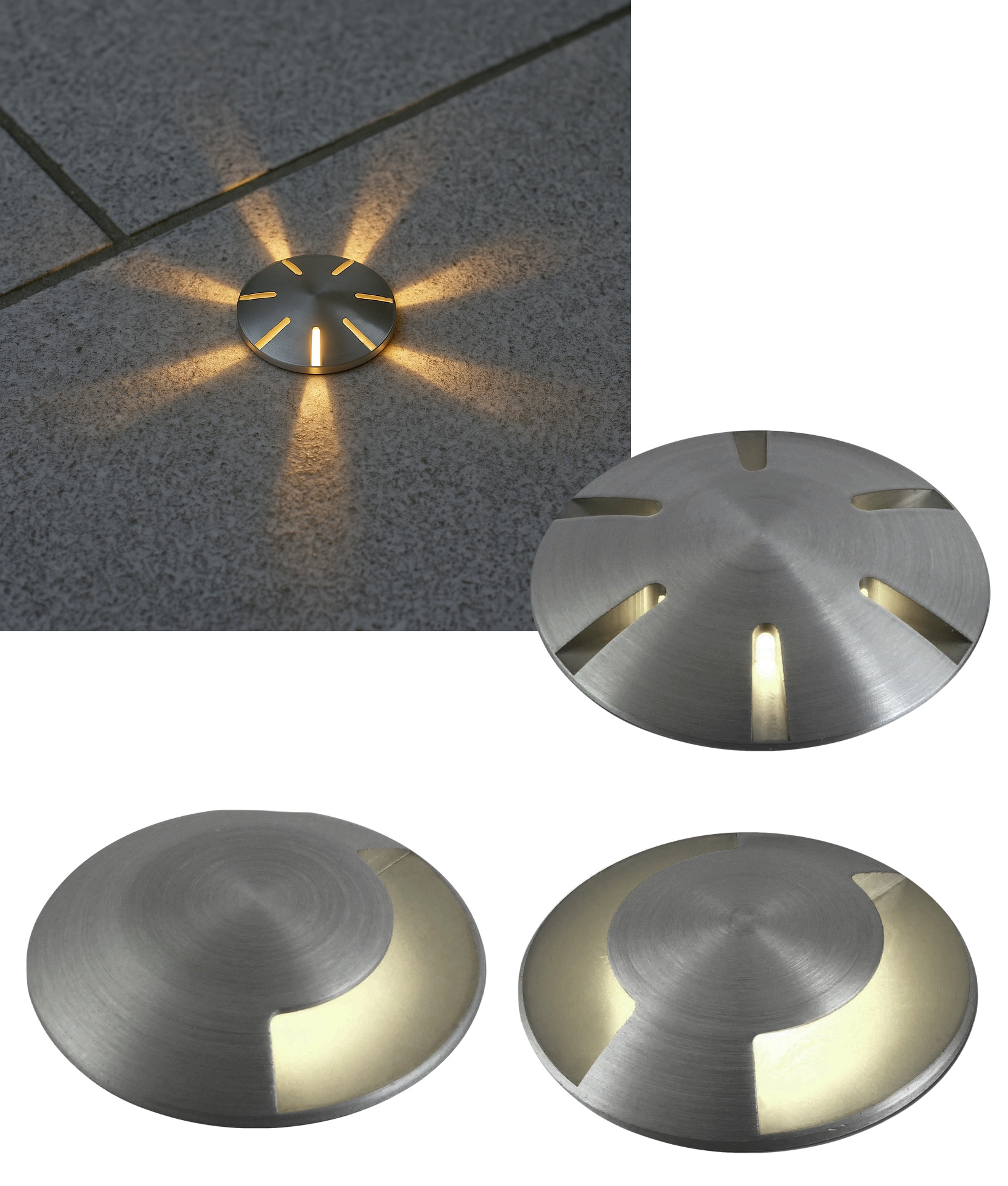

The range is designed to mark the edges of steps, highlight raised deck perimeters or provide wayfinding along paths. The light escapes through precision machined slots which define the distribution pattern. The single slot version produces a directional marker, the twin slot version offers two sided guidance and the six way model provides an all round marker for visibility from any direction. The fittings cast a soft pool of low level light that improves awareness without causing glare.

Key Features
The LED produces a warm white 3000 K light with a colour rendering index of 90. The single slot version outputs 30 lumens and the twin and six way versions provide 80 lumens. The one watt LED chip is positioned behind the machined slots to create a clear and defined marker effect. The IP67 rating protects the fitting from dust and water ingress. The IK08 impact rating makes the fitting suitable for regular foot traffic.

Installation Notes

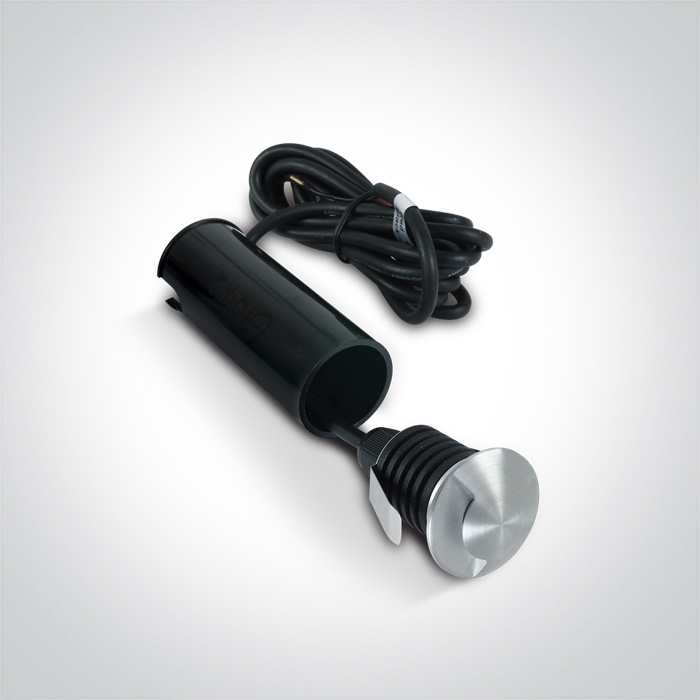

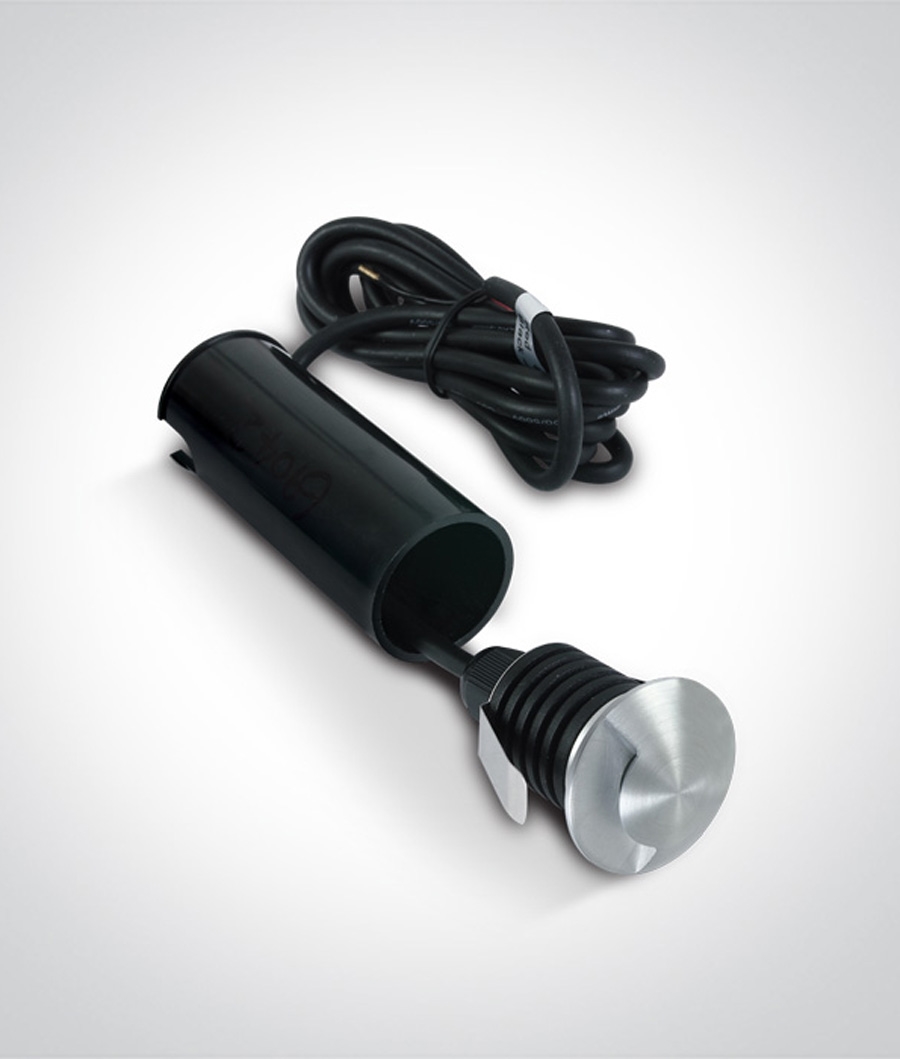

A burial sleeve is supplied and is useful when setting the fitting into concrete. For porcelain tiles, decking and stair treads the sleeve is optional. A free draining base is recommended, with permeable material beneath the fitting to prevent standing water. A minimum clearance of 80 mm is required below the body for the cable exit. The fitting operates from a 350 mA constant current driver. Each unit is one watt and must be wired in series when multiple fittings share the same driver. The fitting is not intended for drive over installations.

Warranty
Two years.
