Architectural LED Wall Lights – 222mm Dual Up/Down Beams, IP65 Rated, Anthracite or White Finishes

Slim linear wall lights with integrated LEDs producing 3000K neutral illumination, 720 lumens, designed for façades, offices, hotels, and public buildings.

Dustproof and protected from water jets from all directionsClass 1 – This fitting will require an earth connection.No, this product is NOT dimmableBulbs Included

3000°K - Warm White

3000°K - Warm White

Product Ref: 56438

£105.00 inc VAT

Design and Style

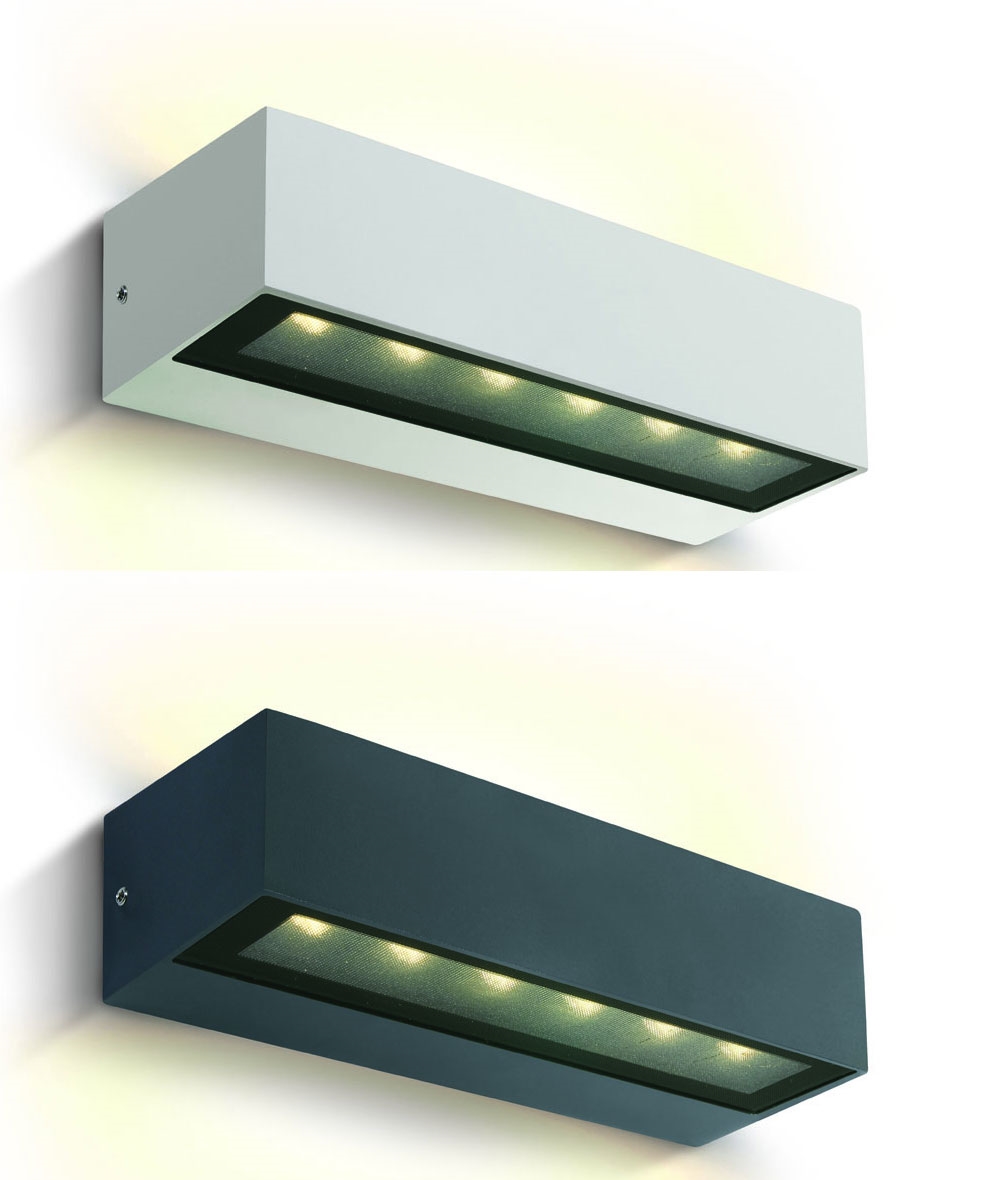

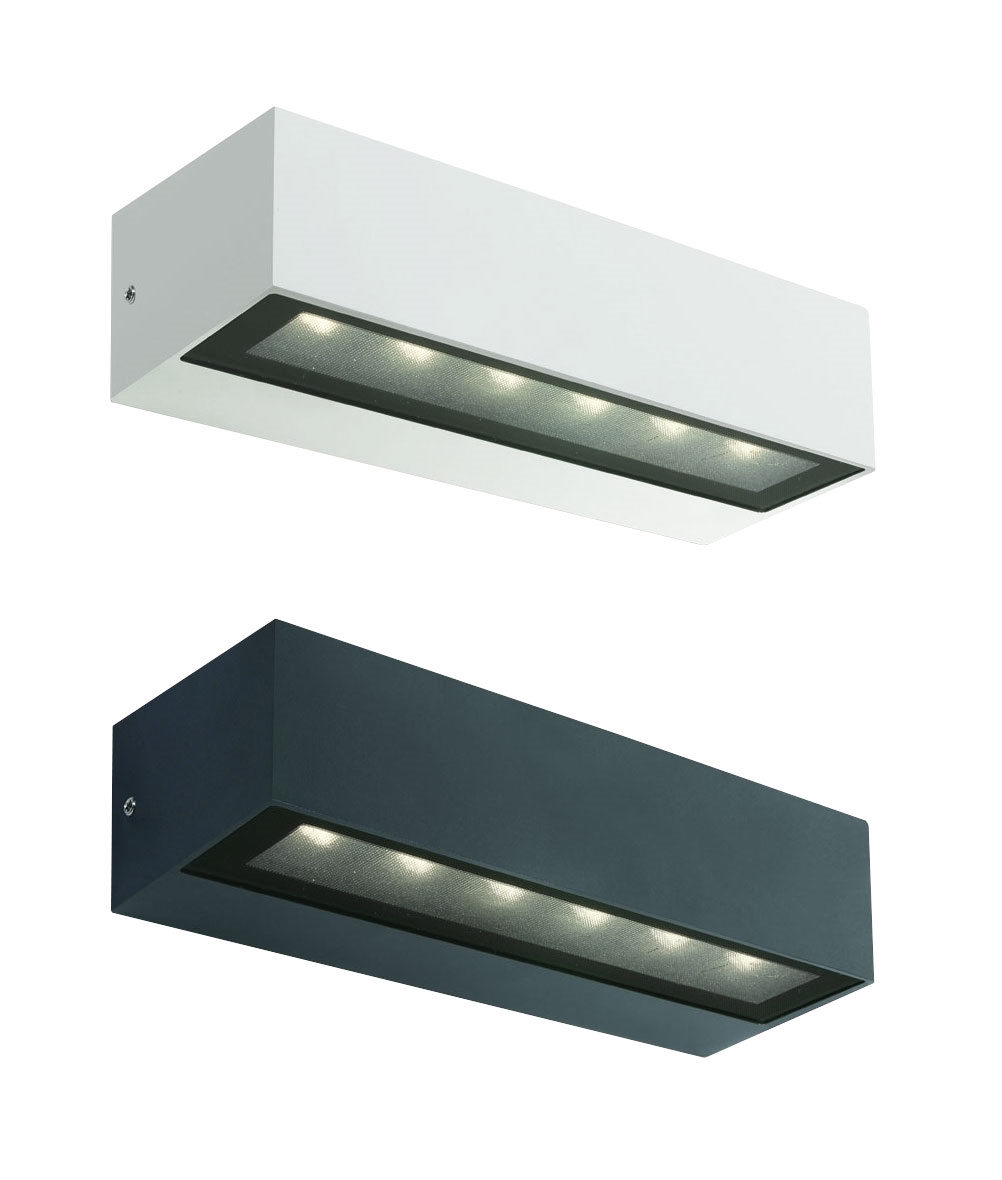

This compact rectangular wall light is the smallest in a family of architectural up and down lights, all using the same high-quality LED chips. Each model produces the same visual brightness on the wall, with the difference being the length of the light beam.

The small version uses six 1W LEDs top and bottom (12 in total), giving the same crisp lighting effect as the medium and extra-long models but over a shorter distance. The 300mm body, finished in white or black powder-coated aluminium, is well proportioned for residential projects or smaller façades.

Usage

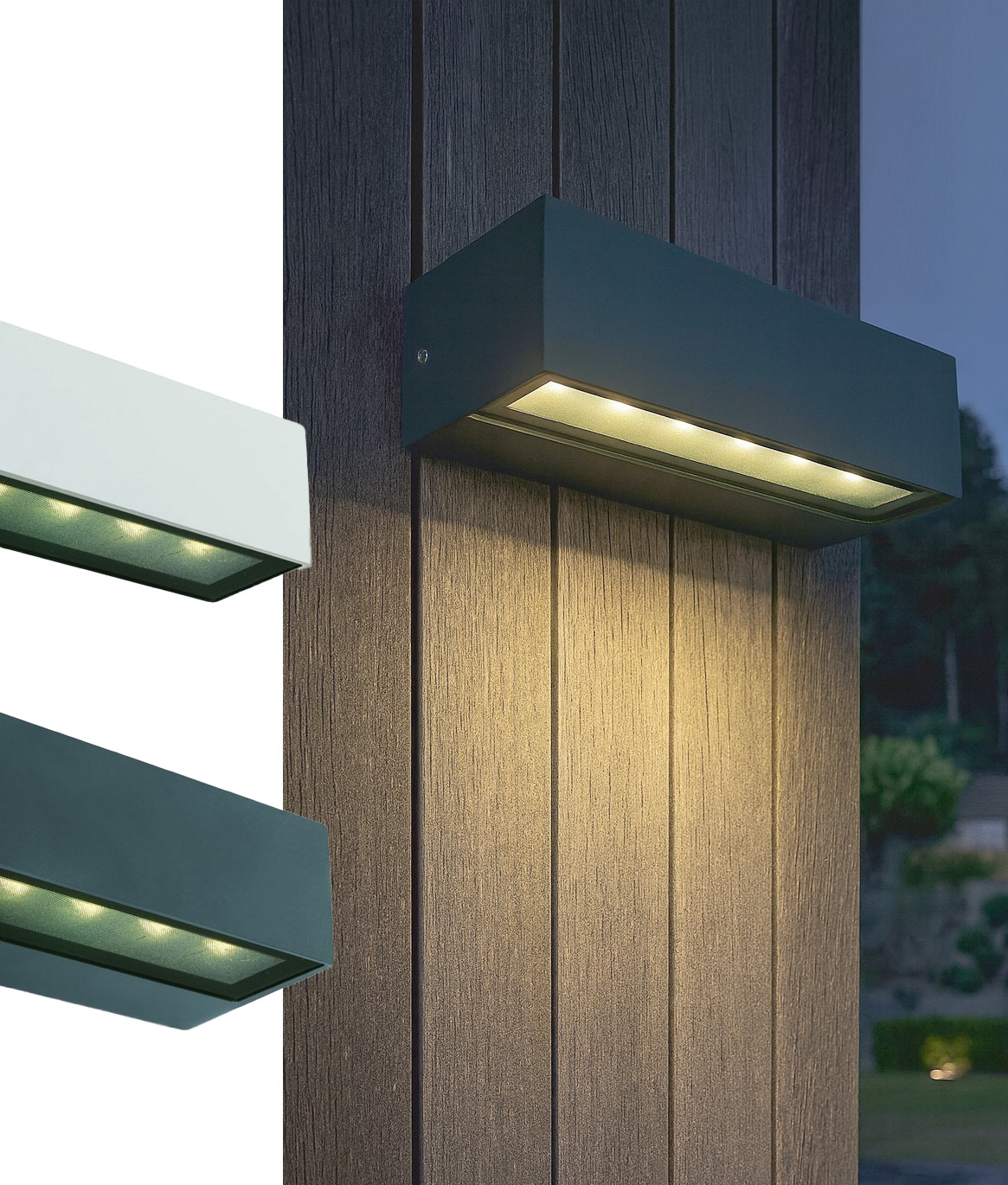

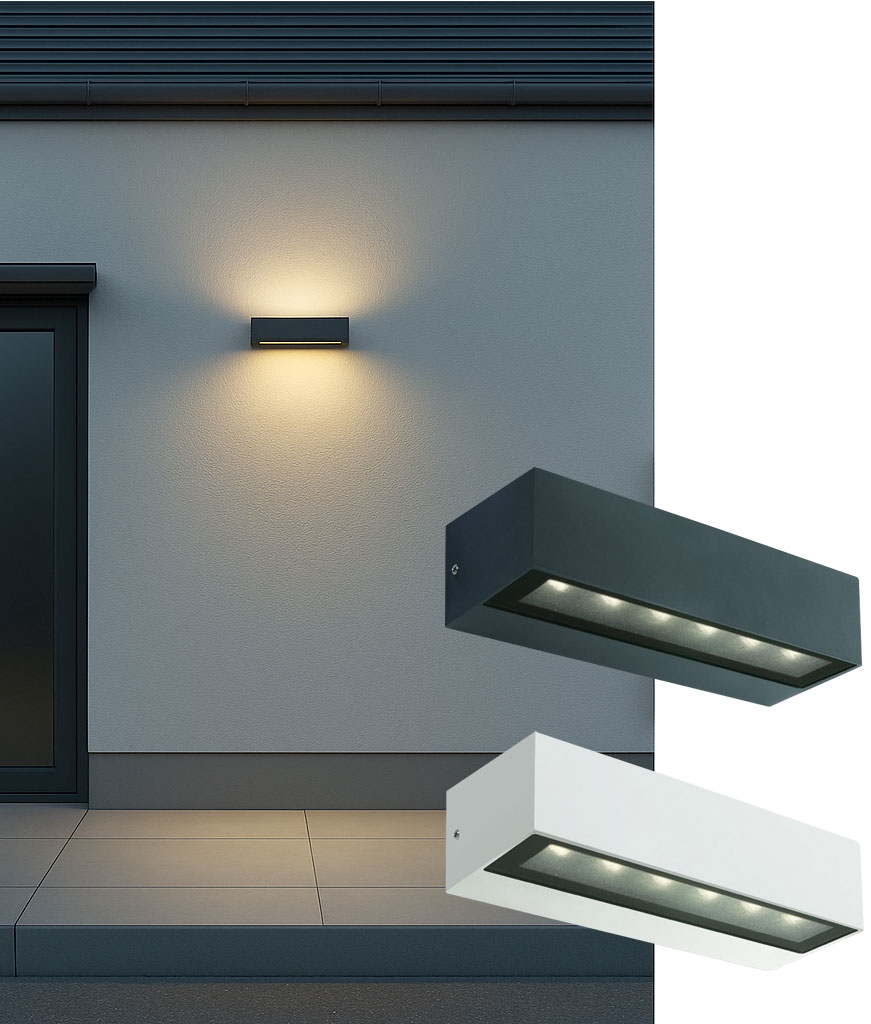

Ideal for domestic entrances, patios, and terraces, this fitting creates the same striking up and down lighting effect as the larger models but in a compact size. It can be installed singly beside a doorway or used in multiples along a wall for a rhythmic and balanced appearance. Warm 3000K light ensures a welcoming glow.

Key Features

  • Smallest in a family of architectural up and down lights

  • Uses the same LED chips as the medium and extra-long versions for consistent brightness

  • Six 1W LEDs top and bottom (12 total), integrated into the fitting

  • 3000K warm white, 720 lumens

  • IP65 rating for outdoor reliability

  • Powder-coated aluminium in white or black

  • 230V mains connection, no driver required

Specification Highlights
Length: 300mm
Depth: 120mm
Height: 70mm
Light source: 2 × 6W LED (6 × 1W top and bottom)
Colour temperature: 3000K warm white
Lumen output: 720lm
IP rating: IP65
Finishes: White or black

Related Products
The medium and extra-long versions, offering the same visual brightness with extended beam lengths, can be found at the bottom of this page.

View more items from this supplier

Availability: Typically dispatched in 4-7 days
We offer free delivery on orders over £80 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
CY67526B1WW
White LED 222mm Wide Up & Down Wall Light
£105.00
£87.50 exc VAT
CY67526B1ANW
Anthracite LED 222mm Wide Up & Down Wall Light
£105.00
£87.50 exc VAT
