Recessed Linear LED Low Glare UGR19 Lighting Profile with Trim - 1210mm long

Recessed Linear LED Lighting with UGR 19 Control
Create comfortable, well-lit interiors with these recessed linear LED lights, designed for environments where visual comfort and concentration are important. A UGR 19 rating limits glare that can contribute to eye strain and fatigue, supporting clear vision during prolonged use. This makes the range suitable for offices, education spaces, healthcare environments, and other professional settings where consistent lighting quality matters.

Design and Construction
A precision-engineered aluminium housing is paired with a polycarbonate diffuser to deliver even, low-glare illumination without visible hotspots. The recessed format allows the fitting to sit neatly within the ceiling plane, while the visible trim provides a clean, finished appearance and simplifies installation compared with trimless systems.

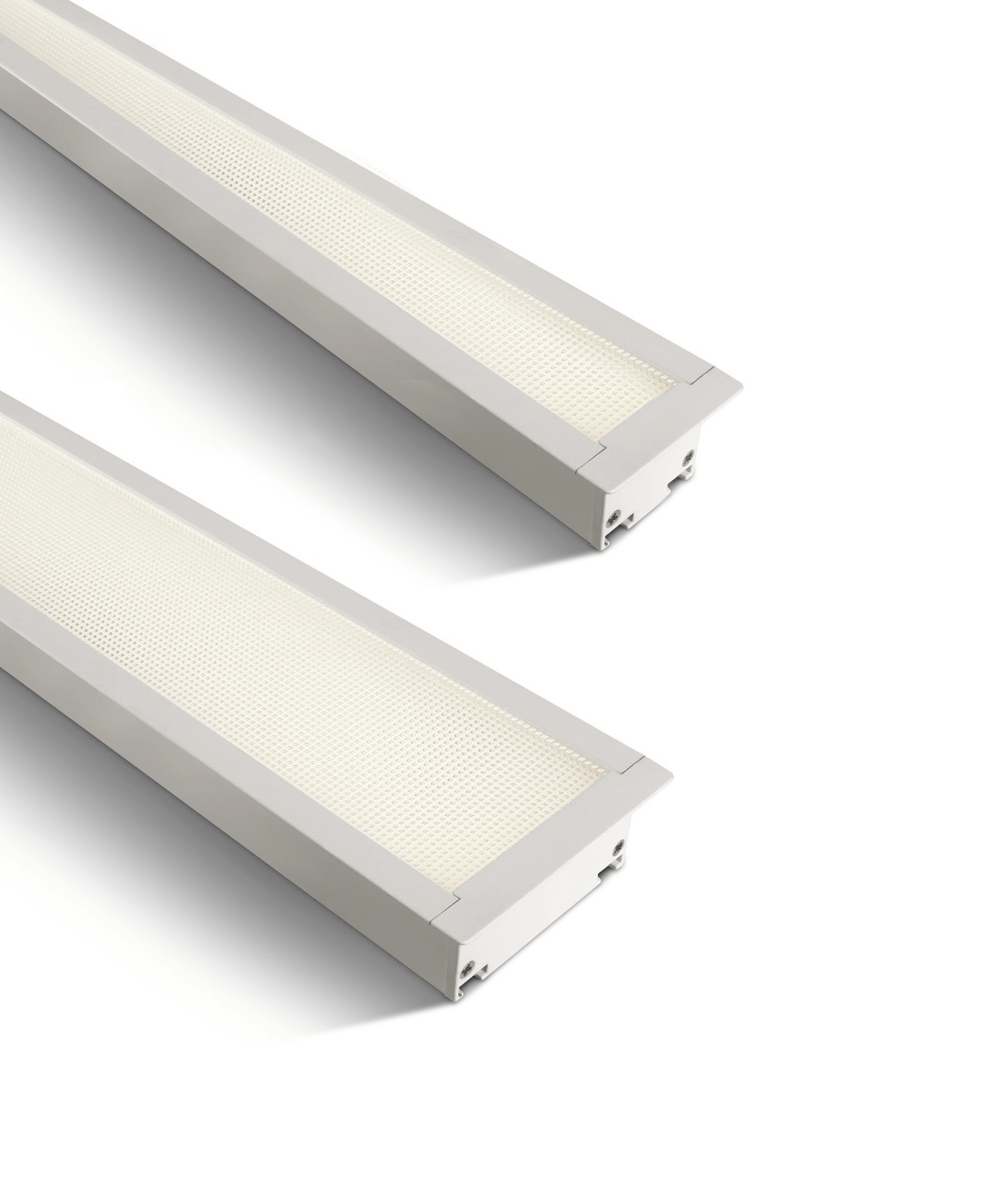

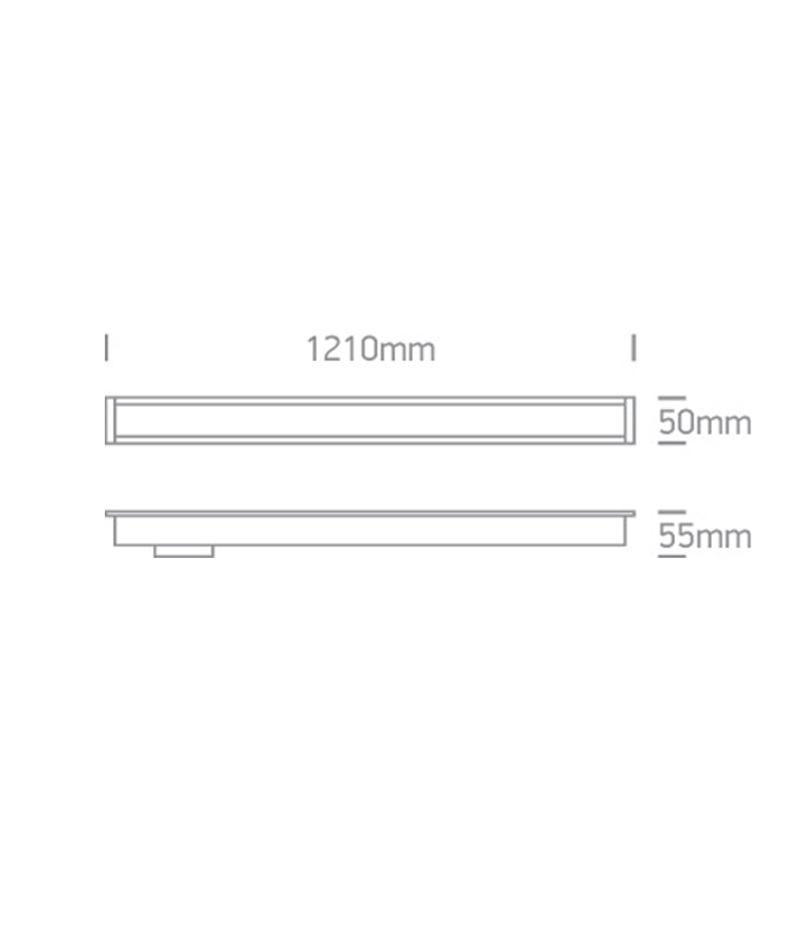

Two trim widths are available. The 50 mm trim version requires a 37 mm wide ceiling cut-out, while the 70 mm trim version uses a 60 mm wide cut-out. This allows the visual presence of the fitting to be matched to the ceiling layout without changing the overall design intent.

Output and Colour Flexibility
Light output can be set at installation using switchable power options of 20 W, 30 W, or 40 W. At 90 lumens per watt, this delivers approximately 1800 lumens, 2700 lumens, or 3600 lumens respectively, allowing the same fitting to be specified across different areas of a project.

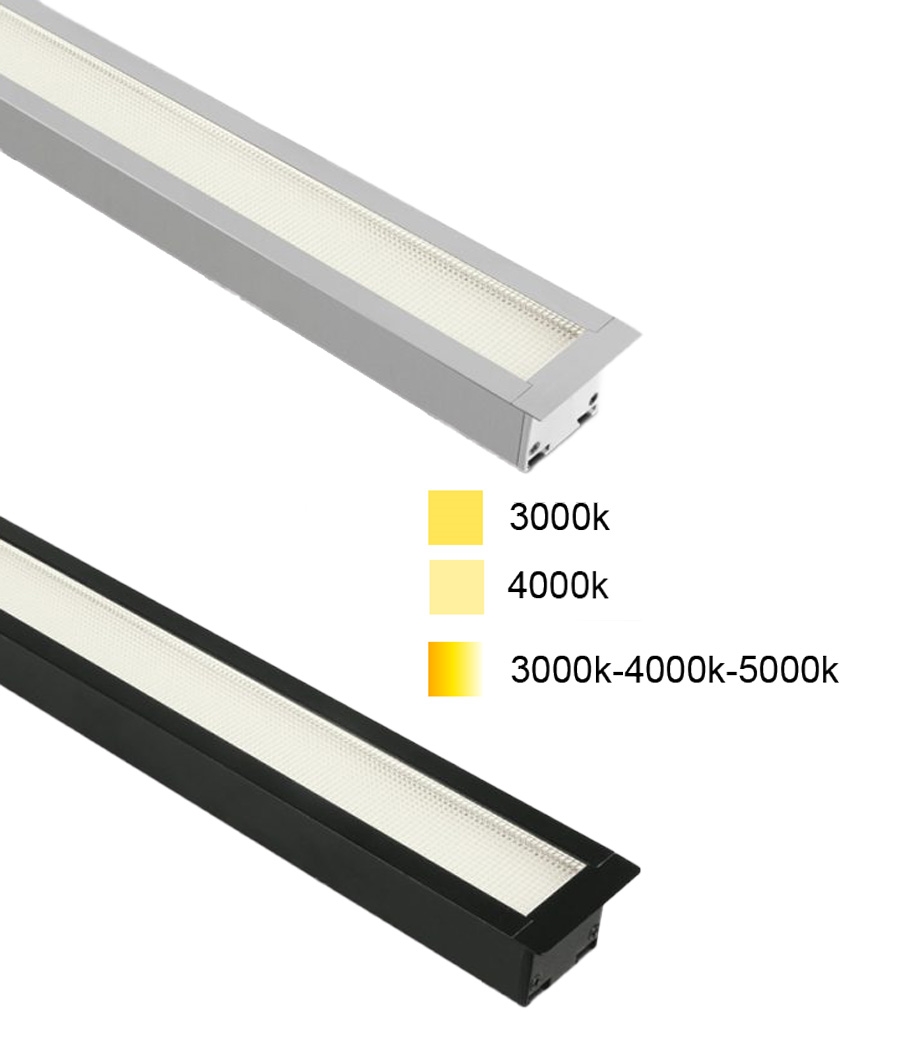

Switchable colour temperature allows selection between 3000 K, 4000 K, or 5000 K, supporting warm, neutral, or cooler lighting schemes to suit the application.

An integral driver is housed within the luminaire, reducing the need for additional remote components.

Continuous Runs and Installation
The end caps can be removed, allowing luminaires to be butted together to create longer continuous runs. Through-wiring looms with plug-and-socket connections make extending runs straightforward and reduce installation time on site. Strengthening bars are supplied to provide a more rigid and stable connection between joined units, ensuring good alignment along the ceiling line.

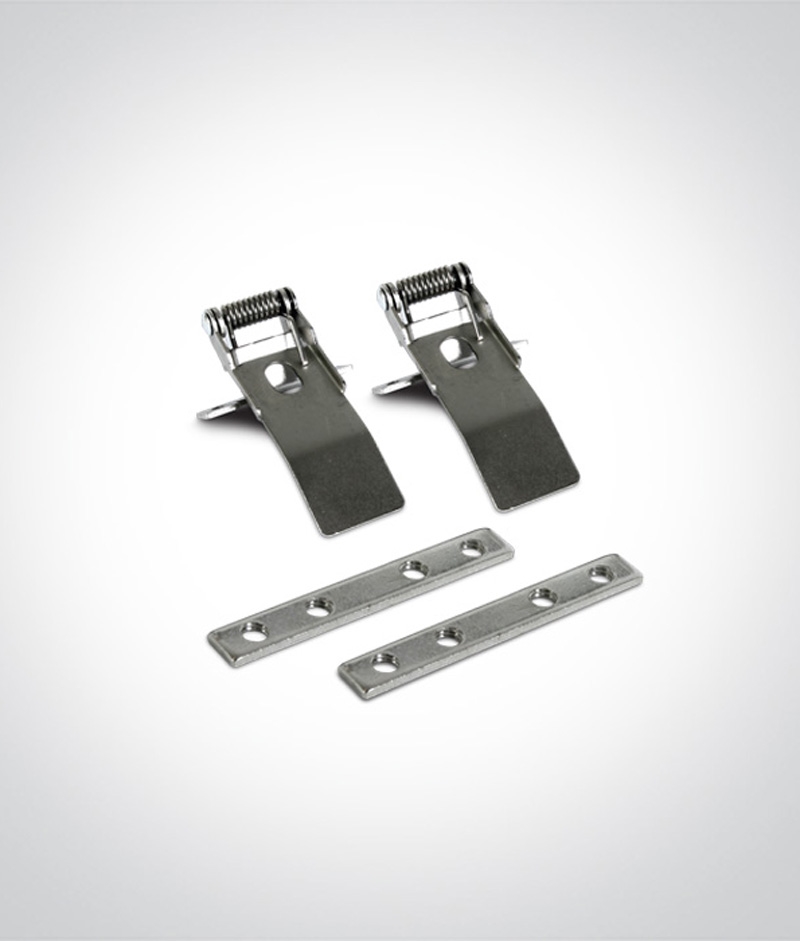

Fixing clips are mounted on the sides of the luminaire housing, allowing secure installation while keeping the visible trim clean and uncluttered.

All profiles are is supplied with fixing clips, connectors (physical and electrical), and end caps as standard.

Future Options and Use
This range will shortly be expanded to include a black finish and corner sections for changes in direction. Please contact us for availability and details.

This is lighting designed to manage glare, protect visual comfort, and create professional environments where people can work and focus effectively.

If you require an emergency version of the luminaire do contact us for detrails.

Warranty: 3 years
