Wireless RF RGB+White Controller for Colour Changing LED Tape & 12-24v Lights

Design and Control
The CY20036 is the four-channel RGB+White controller in this compact RF control range, designed for installations where both colour and dedicated white light control are required. Suitable for constant-voltage 12v or 24v systems, it provides separate control of red, green, blue, and white channels, making it ideal for RGB+W LED tape and fittings used in domestic or commercial environments.

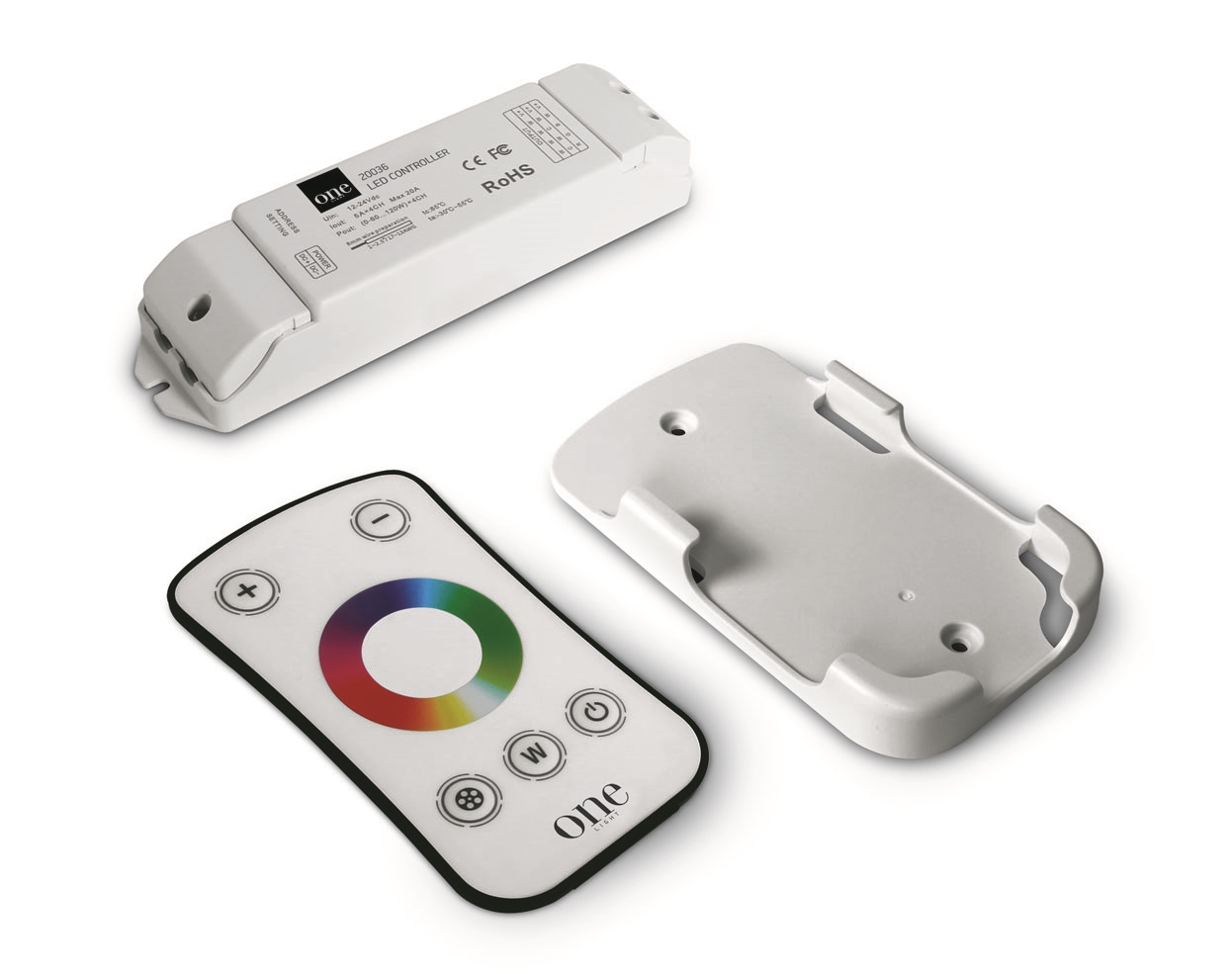

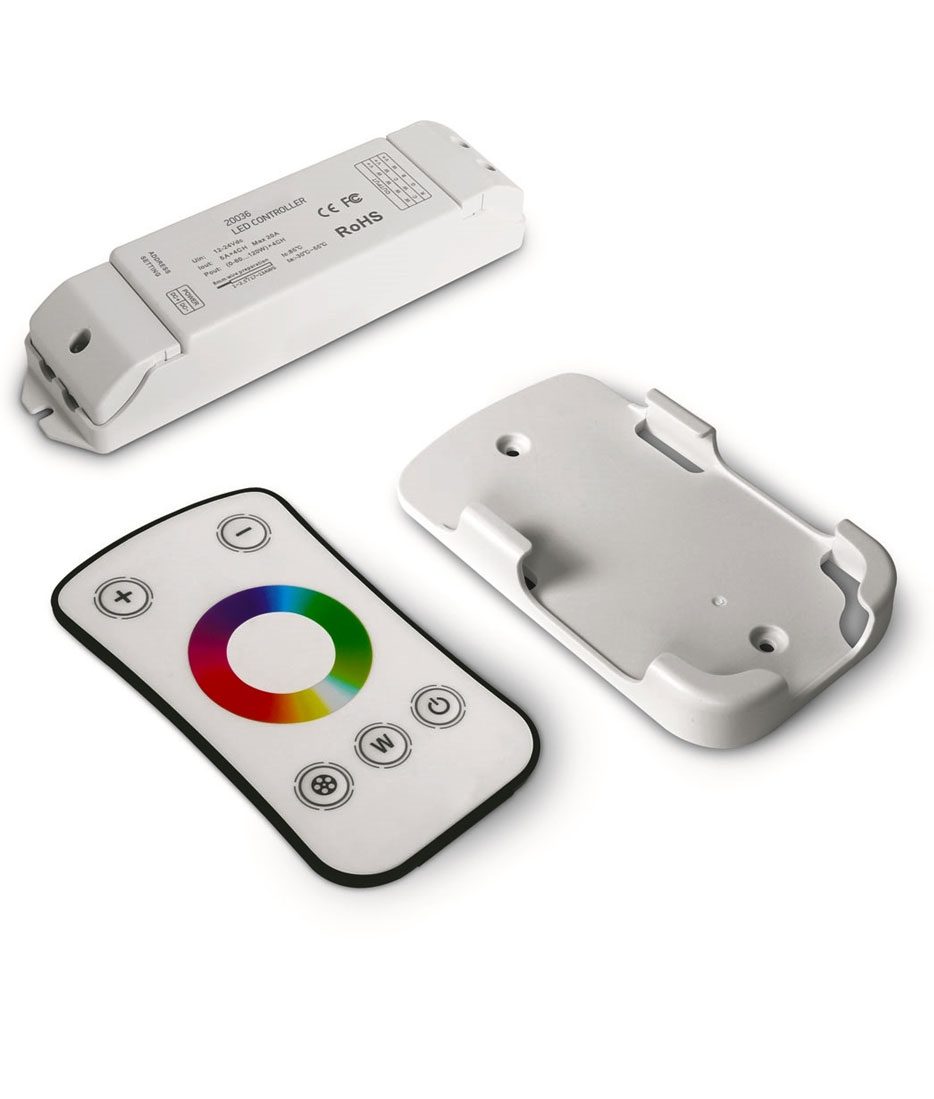

The system consists of a receiver and a handheld RF remote. The receiver is installed between the LED driver and the LED product. As it operates using radio frequency, there is no need for line-of-sight between the remote and the receiver, allowing flexible placement behind panels, above ceilings, or within cupboards.

Compatibility and Memory
All controllers in this RF range store their last setting. When switched off via the remote or a wall switch, the lights will return to the same colour and brightness level when next used. Installation is simple- connect the receiver between the driver and the LED tape, then pair it with the remote. The CY20036 can be added to most existing RGB+W LED installations, providing wireless control without the need for new wiring.

Operation
The touch-sensitive colour wheel controls the RGB channels, allowing selection from a wide spectrum of colours with a simple circular motion. Two buttons adjust brightness, with (–) to reduce intensity and (+) to increase it. An additional button provides independent control of the white channel, enabling you to introduce or isolate white light as required. A colour-programme function is also available, offering preset transitions and fades through various colours, with (–) and (+) used to adjust the transition speed when active.

Performance
Each output channel is rated at 3 A, providing 36 W per channel on 12 V systems or 72 W per channel on 24 V systems. Using 14.4 W per metre RGB+W LED tape (4.8 W per colour per metre), the controller can operate:

At 24 V – up to three 5-metre reels per colour channel when each reel is wired directly back to the controller, not connected end-to-end.
At 12 V – one 5-metre reel per channel is recommended to maintain voltage consistency and headroom.

Note: This product should only be installed on standard LED drivers; dimmable drivers are not compatible.
