Wireless RF RGB Controller for Colour Changing LED Tape & 12v - 24v RGB LED Lights

Three-channel RF control for 12v/24v RGB LED lighting - Simple design with improved user control

Product Ref: 58506

£56.00 inc VAT

Design and Control

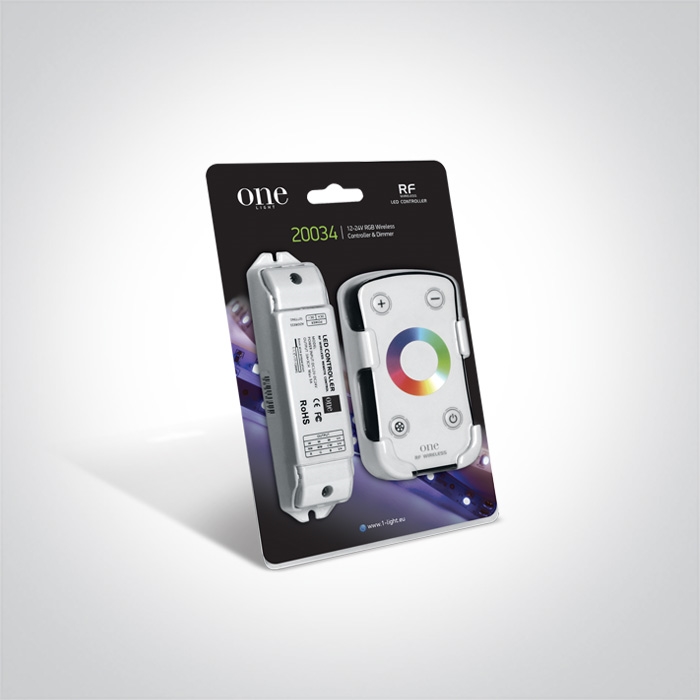

The CY20034 is a three-channel RGB controller within the same compact RF range as the single- and dual-channel models. Designed for colour-changing LED installations, it provides smooth control of the red, green, and blue channels in constant-voltage 12 V or 24 V systems. It is ideal for RGB LED tape and fittings where flexible colour adjustment and wireless operation are required.

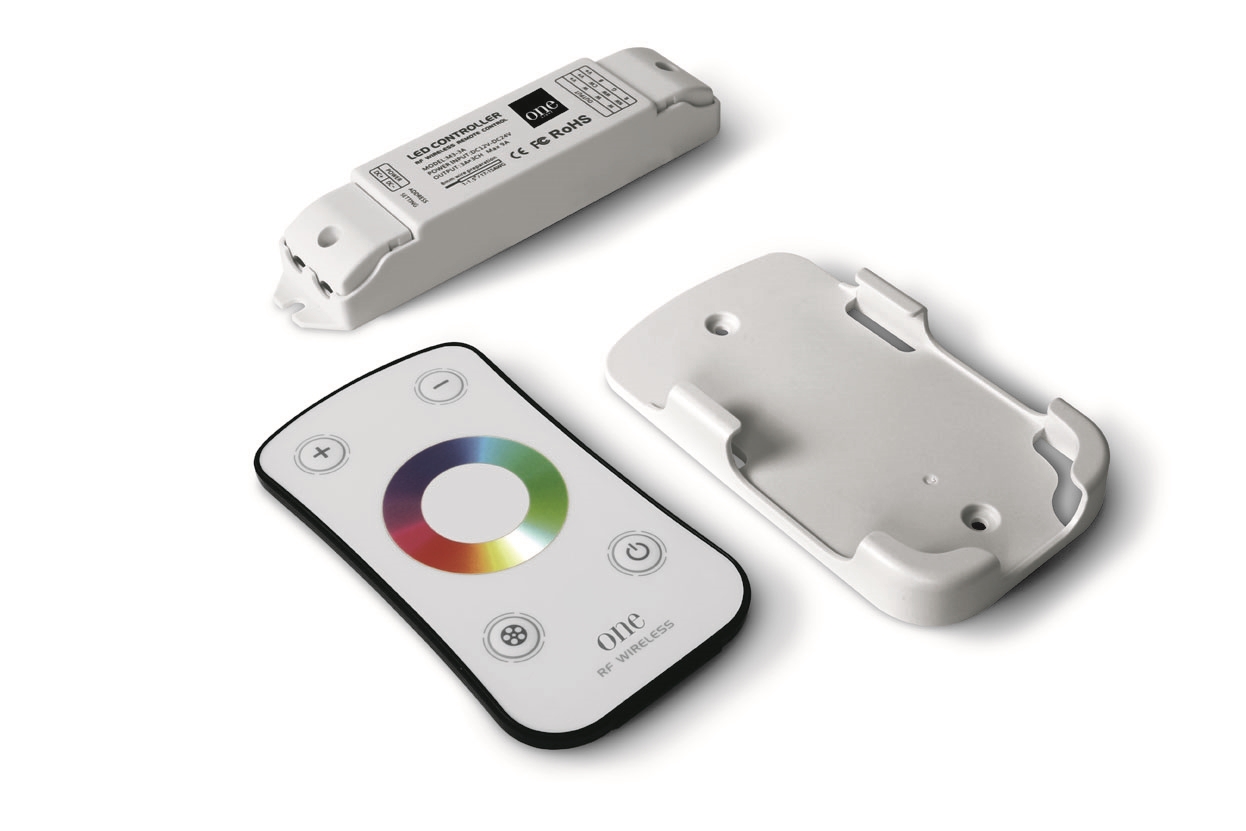

The system includes a receiver and a handheld RF remote. The receiver is fitted between the LED driver and the LED product. Because communication is via radio frequency, there is no need for line-of-sight between the remote and the receiver, allowing it to be concealed above ceilings, behind panels, or within cupboards.

Compatibility and Memory
All controllers in this RF range retain their previous settings. When switched off, either using the remote or a wall switch, the lights will return to the same colour and brightness level when powered back on. Installation is straightforward — connect the receiver between the driver and the LED tape, then pair the remote. The unit can be added to existing RGB LED installations in domestic or commercial spaces where colour control adds flexibility.

Operation
The touch-sensitive dial at the centre of the remote selects colour by fingertip rotation, offering direct access to a full range of hues. Two buttons adjust brightness, with (–) to reduce intensity and (+) to increase it. A colour-programme button provides access to preset colour sequences and fades, including constant colour and smooth-transition modes. When the programme is active, the (–) and (+) buttons alter the transition speed to create either gentle fades or quicker changes.

Performance
Each output channel is rated at 3 A, providing 36 W per channel on 12 V systems or 72 W per channel on 24 V systems. Using typical 14.4 W per metre RGB LED tape (4.8 W per colour per metre), the controller can operate:

At 24v – up to three 5-metre long reels of 14.4w RGB tape when each reel is wired directly back to the controller, not connected end-to-end.
At 12v – one 5-metre reel per channel is recommended to maintain voltage consistency and headroom.

Note: This product should only be installed on standard LED drivers; dimmable drivers are not compatible.

View more items from this supplier

Availability: Typically dispatched in 4-7 days
We offer free delivery on orders over £80 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
CY20034
Wireless RF RGB Controller for Colour Changing LEDs & Tape
£56.00
£46.67 exc VAT
