Wireless RF CCT Controller for Adjustable White LED Tape & Lights - Adjust Warm to Daylight and Dimming

Design and Control
The CY20032 forms part of the same compact RF control range as the single-channel dimmer, designed to provide simple and reliable control for colour temperature adjustable (CCT) LED lighting. This two-channel version operates at 12 V or 24 V DC and is suitable for LED tape or luminaires featuring warm and cool white LEDs.

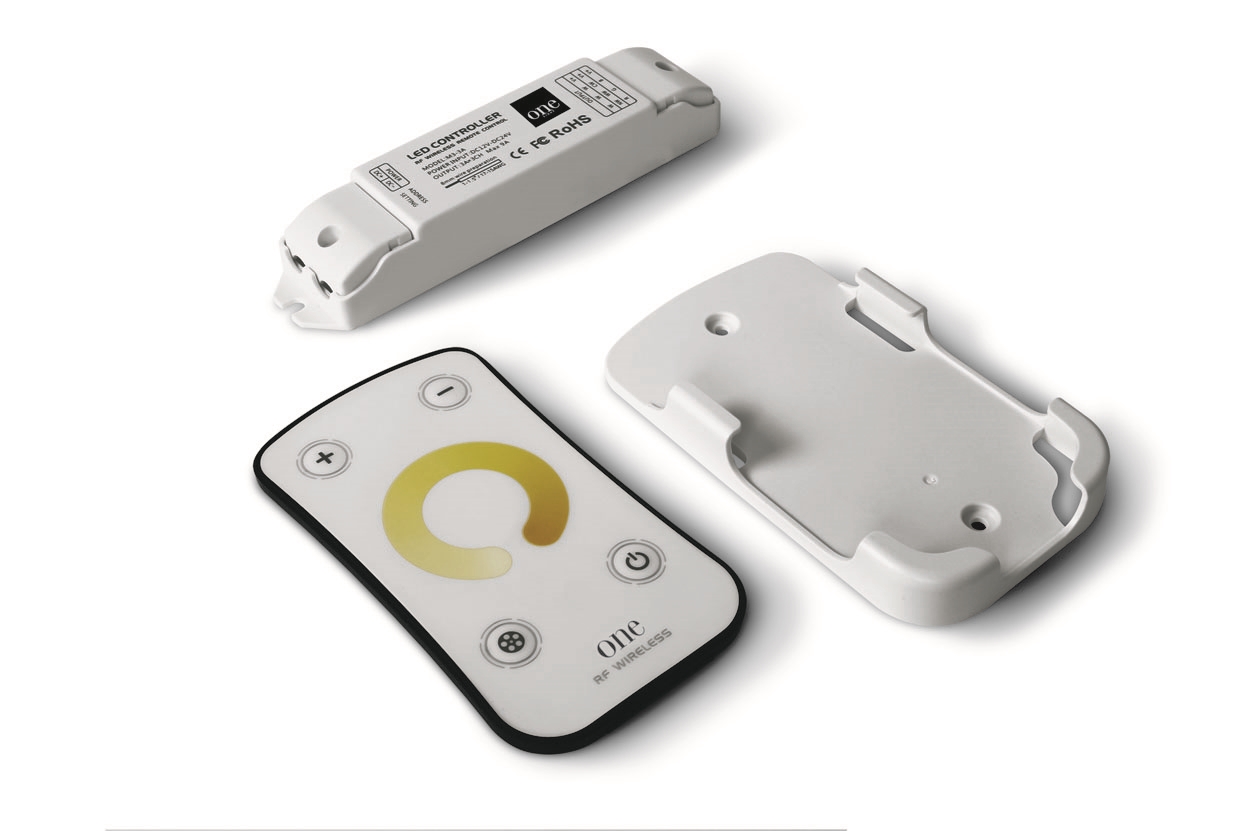

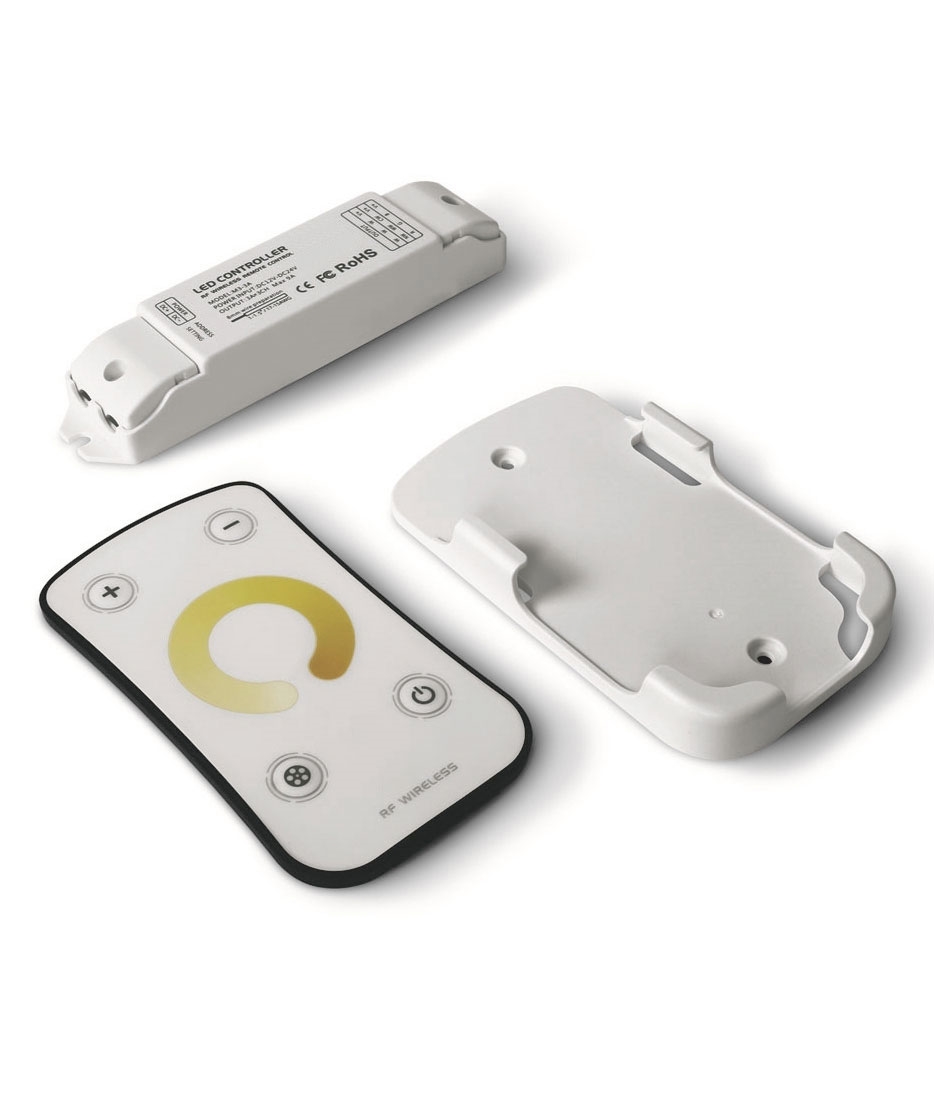

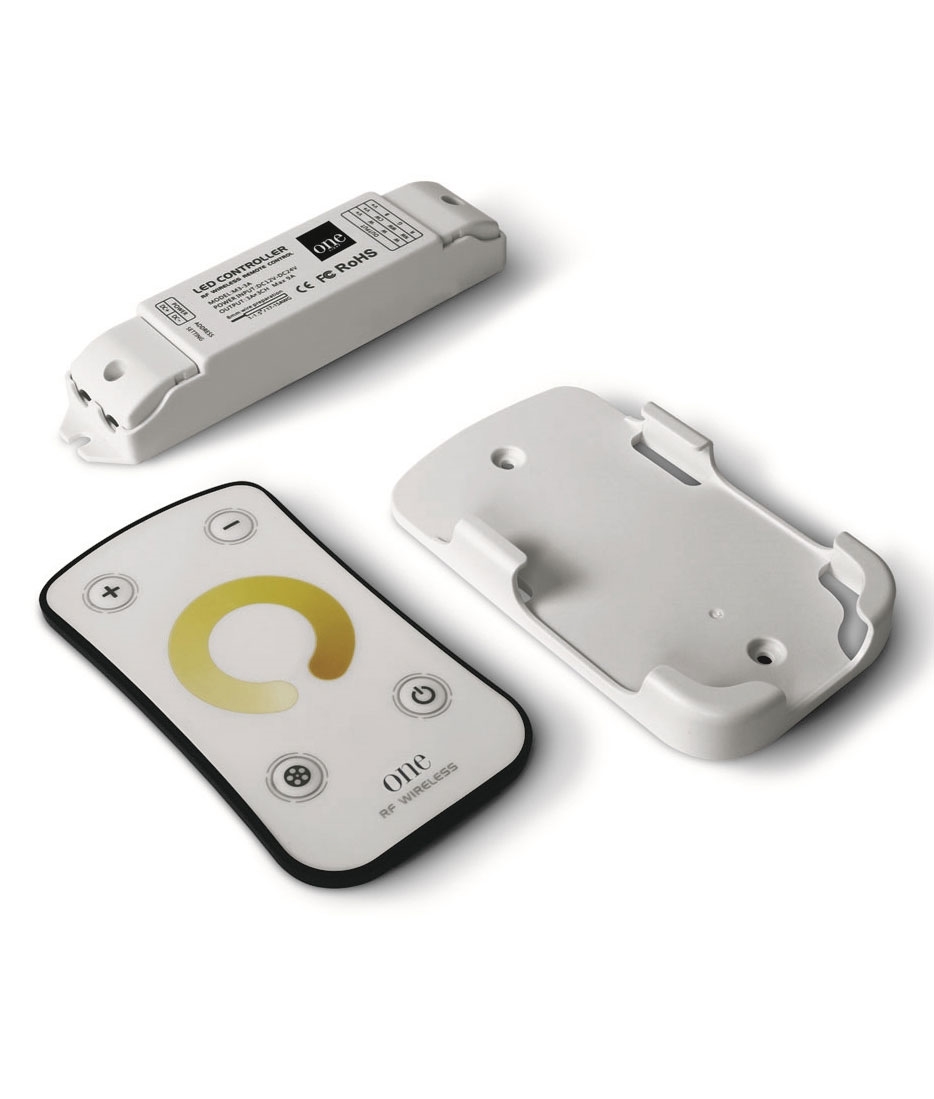

The system comprises a receiver and an RF remote control. The receiver is fitted between the LED driver and the LED product. Because the system uses radio frequency communication, there is no requirement for line-of-sight between the remote and the receiver, allowing it to be installed discreetly within ceilings, cupboards, or behind panels.

Compatibility and Memory
All RF controllers in this range retain their last setting. Whether the lights are switched off via the remote control or a wall switch, they will return to the same brightness and colour temperature when powered back on. Installation is straightforward — simply connect the receiver between the driver and the LED tape, then pair the remote. The system can be added to most existing CCT LED installations in domestic or light commercial environments, including kitchens, bathrooms, and motorhomes.

Operation

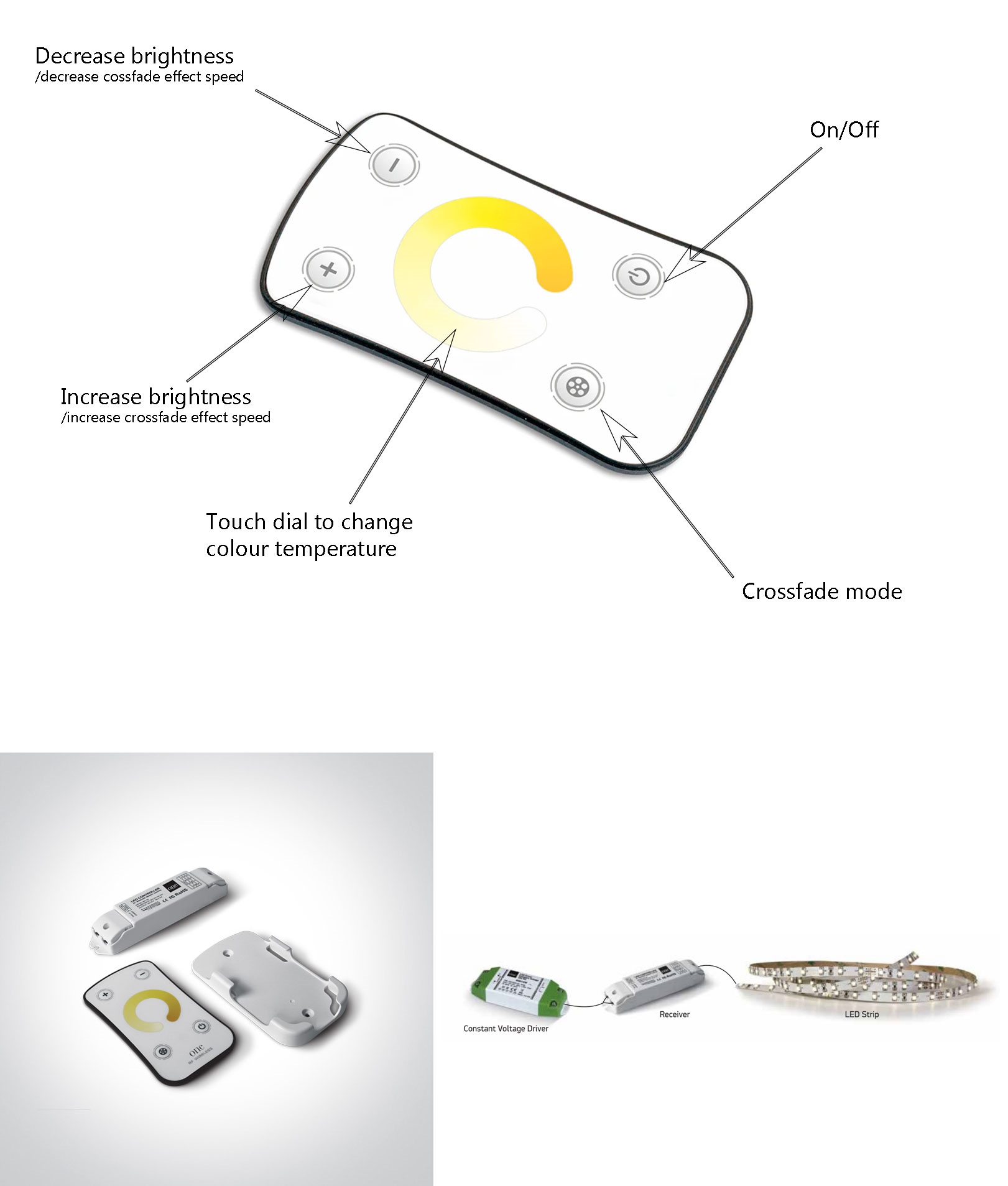

The touch-sensitive dial at the centre of the remote adjusts colour temperature, allowing smooth transition between warm and cool white light. Two buttons control brightness, with one (-) to reduce intensity and the other (+) to increase it. An additional function enables automatic crossfading through the colour range. When active, the (-) button decreases the transition speed, and the (+) button increases it.

Performance
Each output channel is rated at 3 A, providing a combined maximum of 6 A. On 12 V systems this allows for a total load of 72 W, and on 24 V systems up to 144 W. The CY20032 provides accurate, wireless control of tunable white LED lighting, combining compact design with intuitive operation.

Note: This product should only be installed on standard LED drivers; dimmable drivers are not compatible.
