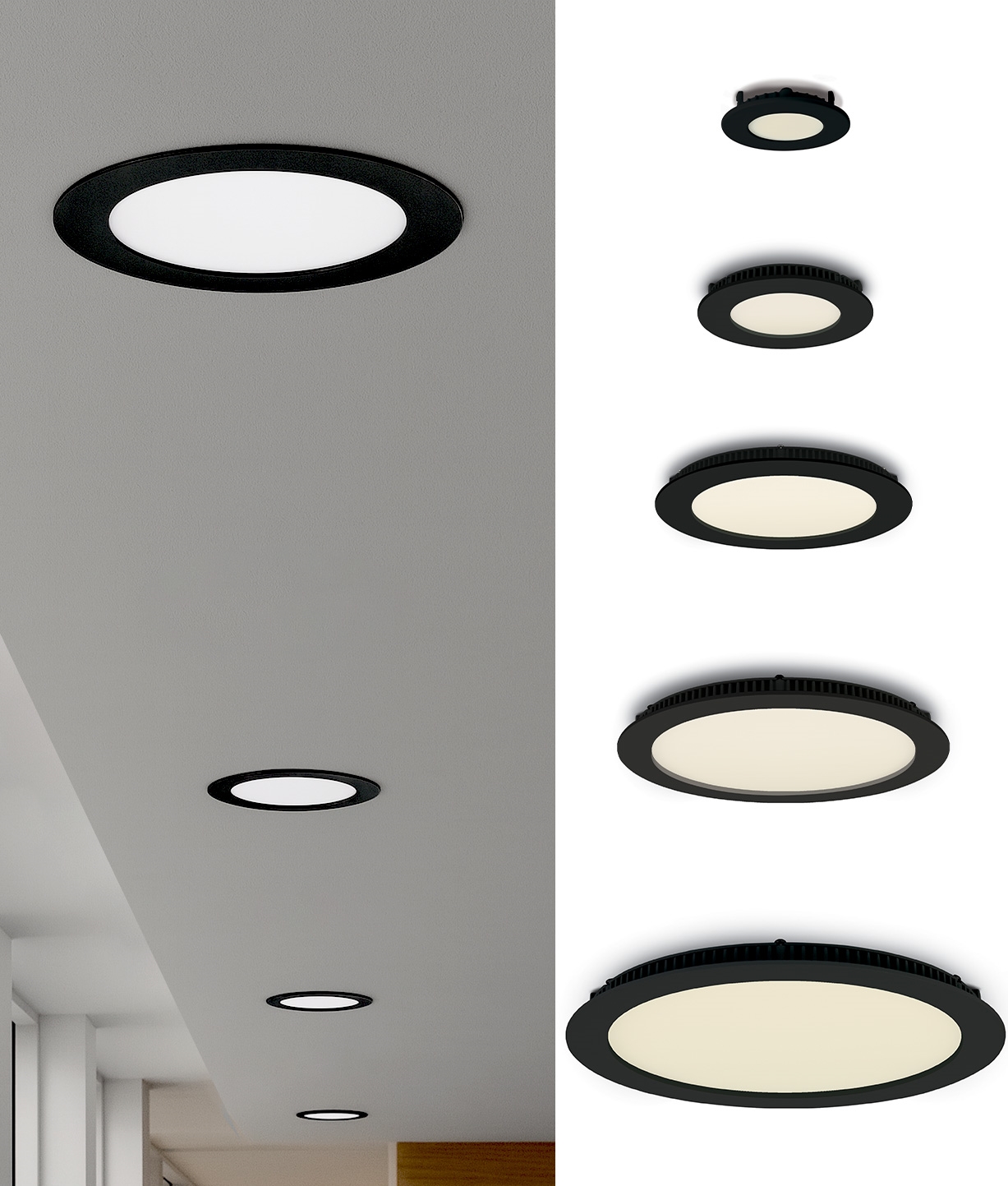

Black Low Profile Recessed Round LED Panels - low-glare general illumination for commercial and domestic applications

Design and Style
This low-profile recessed round LED panel range offers a neat architectural finish suited to both commercial and domestic interiors. The black die-cast alloy bezel sits almost flush with the ceiling, while the acrylic diffuser provides smooth, low-glare illumination. With a body depth of just 22mm, each panel keeps visual impact to a minimum, maintaining clean ceiling lines even in shallow voids.

Usage
The range is designed for general lighting in kitchens, hallways, living spaces, offices and circulation areas. Although rated IP20, the panels can be used in bathrooms when positioned outside of any designated zones, offering a practical option for ceilings with limited depth. Their wide beam and even distribution make them suitable for single-room installations or coordinated lighting schemes across larger floor areas.

Key Features and Benefits
The panels are available in five wattages, allowing selection based on room size and required light levels. All versions include CCT switching, allowing selection of 3000, 4000 or 5700°k, giving flexibility at installation to match the preferred colour temperature. The die-cast alloy body provides stability and effective heat management, while the acrylic diffuser contributes to uniform illumination with reduced glare. The shallow profile and typical 50mm recess depth requirement make these panels suitable for a wide range of ceiling types, including plasterboard and metal ceiling tiles.

Sizes and Light Output:

3w panel – 240 lumens
Bezel diameter 85mm, Cut-out 70mm

8w panel – 640 lumens
Bezel diameter 120mm, Cut-out 108mm

12w panel – 1200 lumens
Bezel diameter 173mm, Cut-out 155mm

18w panel – 1800 lumens
Bezel diameter 223mm, Cut-out 210mm

30w panel – 3300 lumens
Bezel diameter 295mm, Cut-out 285mm

All panels
Body depth 22mm
Material die-cast alloy with acrylic diffuser
Typical recess depth required 50mm
IP rating IP20
CCT switchable - 3000, 4000 or 5700°k
