Edge Lit Black Downlight with UGR19 Diffuser for Commercial Ceilings - CCT Switched

Design and Style

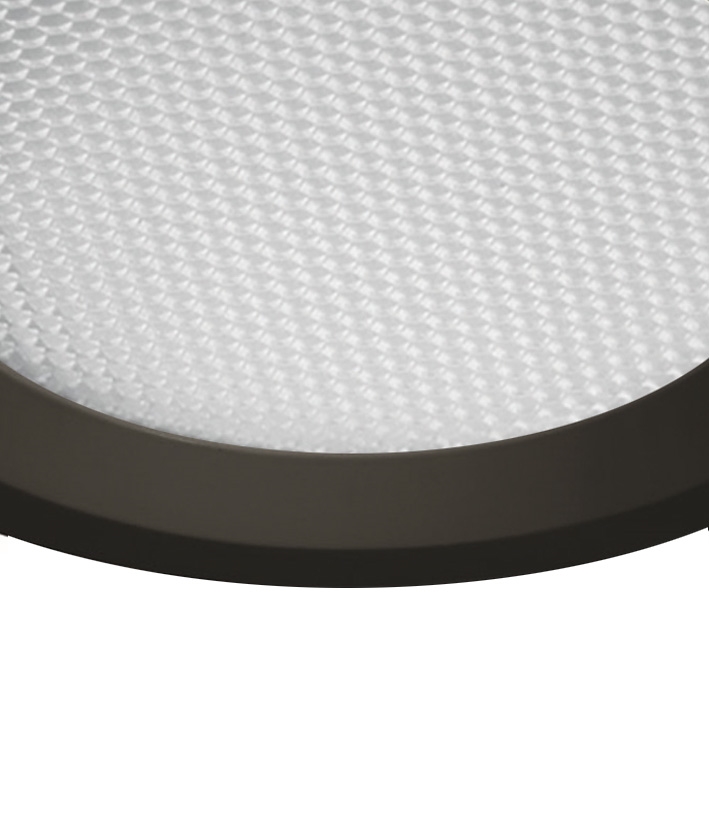

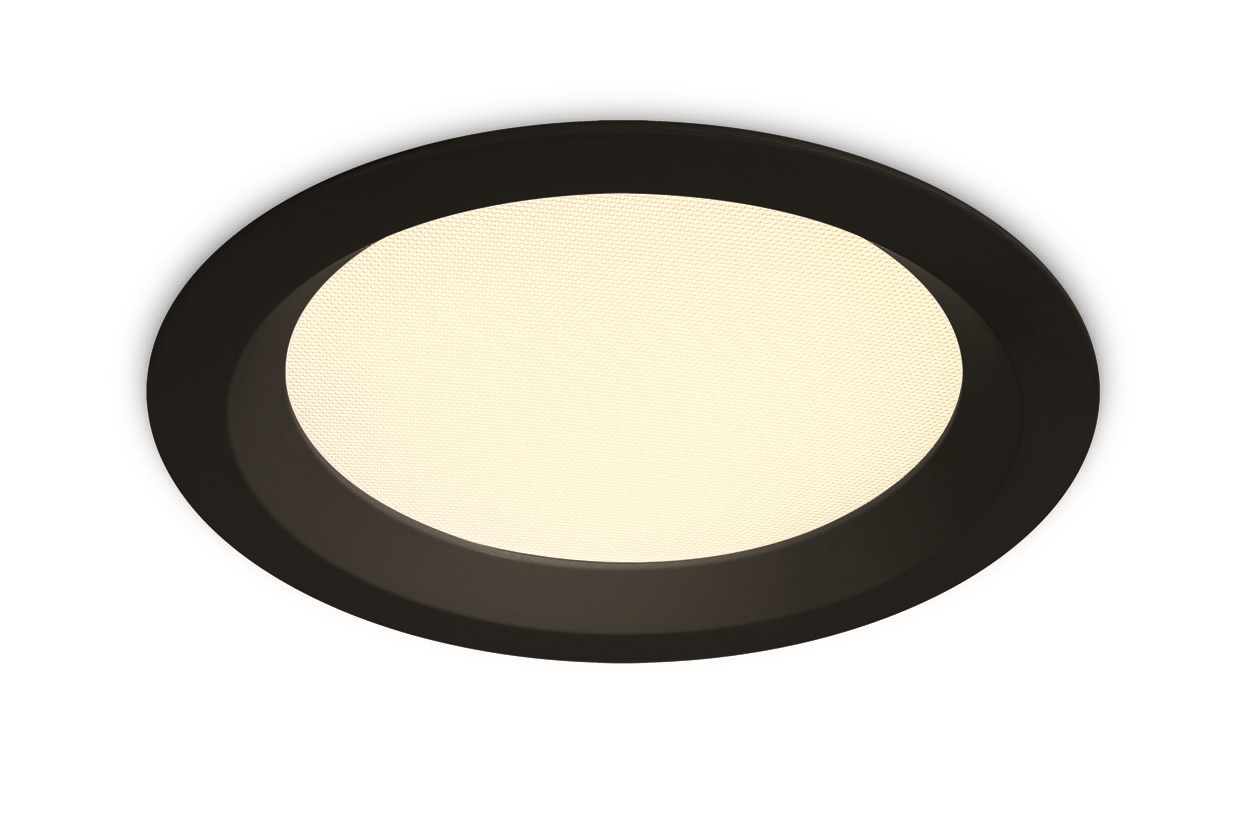

This recessed downlight uses a flat circular form with a black bezel surrounding a centred edge lit disc. The diffuser has a patterned structure that supports UGR19 compliance by softening the output and reducing discomfort glare. The low profile design creates a neat finish in ceilings that benefit from a clean, understated appearance.

Usage

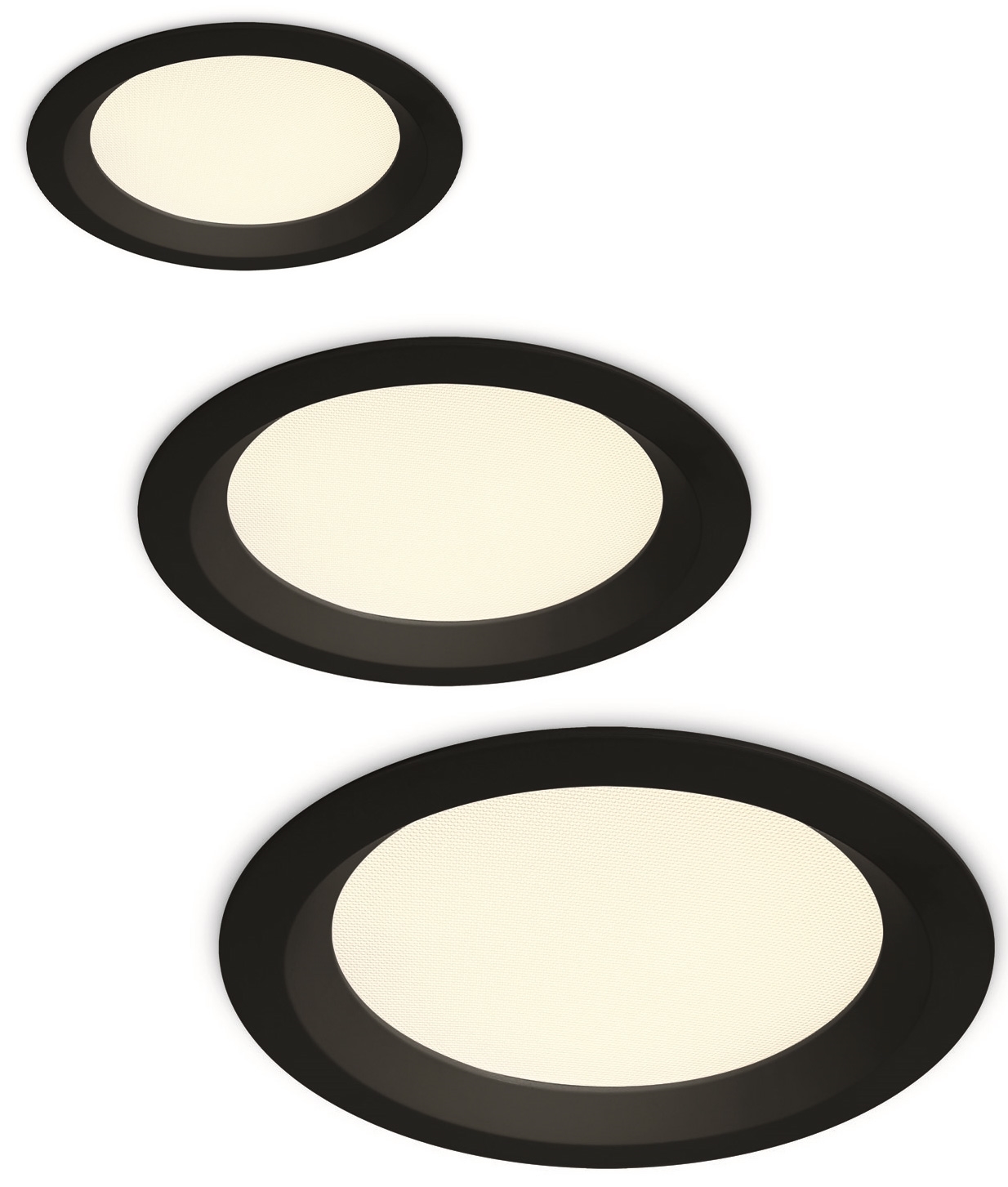

These downlights suit bathrooms, washrooms and changing areas thanks to the IP44 rating. They also fit circulation routes, reception spaces and offices where a black edged luminaire complements darker ceiling grids or design-led interiors. The three diameters allow the same visual style to continue through a building, from narrow corridors to larger rooms needing higher light levels.

Key Features

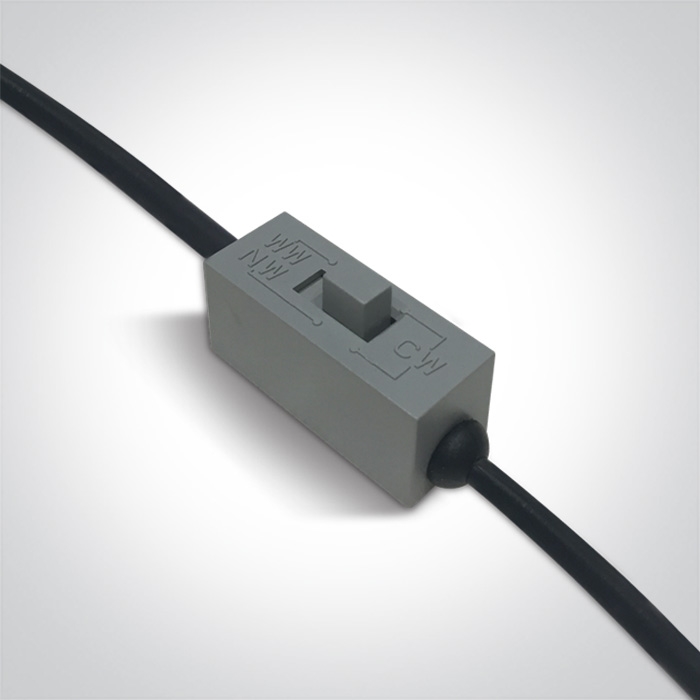

Each fitting includes a remote driver with an inline switch that allows the installer to select 3000 K, 4000 K or 6000 K. Epistar SMD2835 chips deliver stable illumination with a CRI of 90, helping colours remain consistent in commercial environments. The edge lit arrangement provides a smooth distribution of light, while the structured diffuser controls glare for more comfortable everyday use.

Specification
The smallest model measures 135 millimetres in diameter with a 120 millimetre cut out, uses 13 watts and produces 975 lumens. Its recessed depth is 48 millimetres.

The mid sized version has a diameter of 190 millimetres with a 170 millimetre cut out. It operates at 20 watts, gives 1500 lumens and requires a depth of 55 millimetres.

The largest option reaches 240 millimetres in diameter with a 210 millimetre cut out. It runs at 30 watts, provides 2250 lumens and has a recessed depth of 60 millimetres.
