Product Ref: 57931

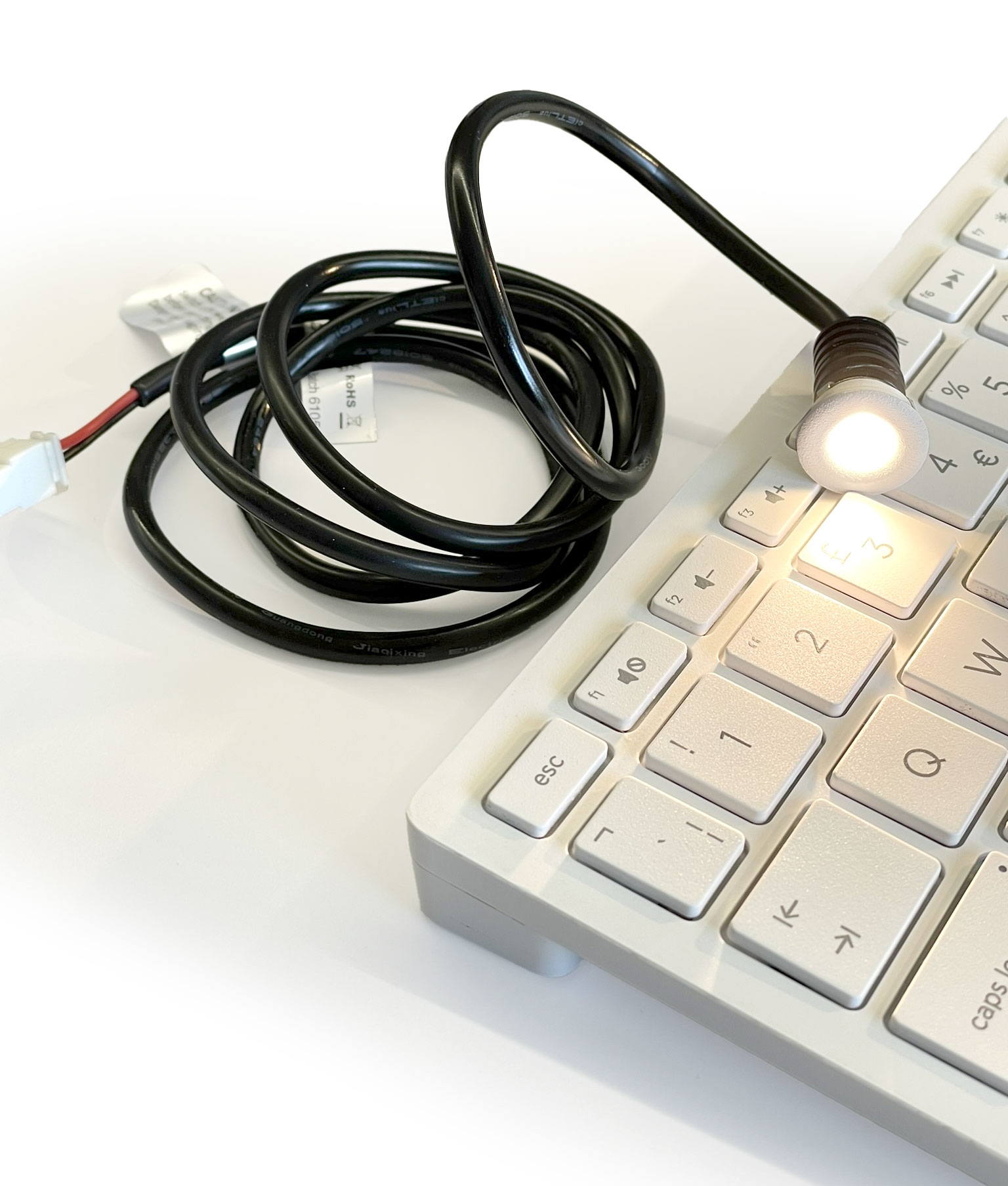

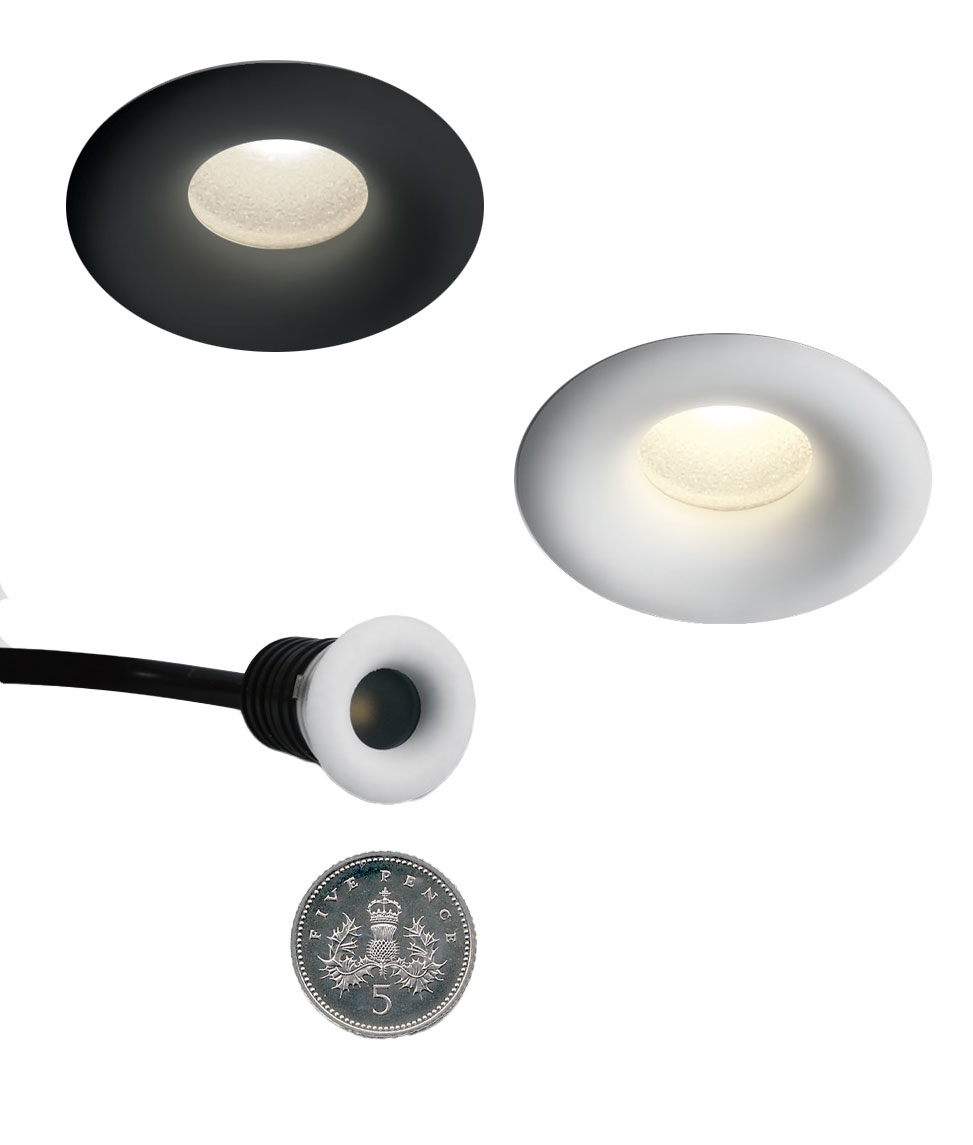

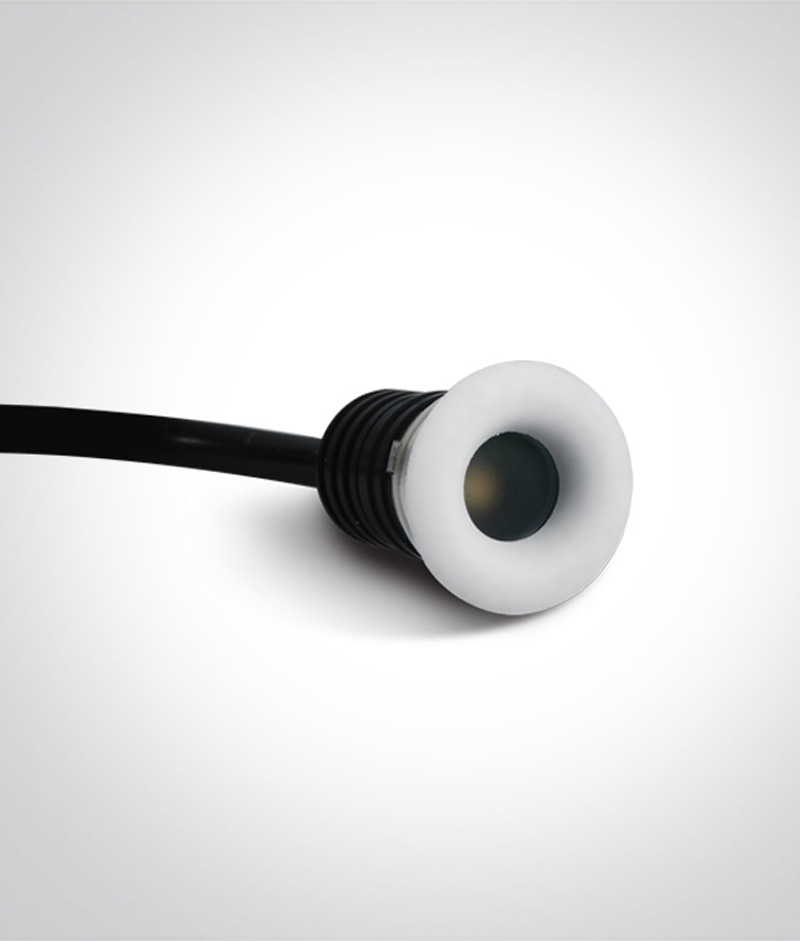

£18.60 inc VATDesigned for subtle yet effective illumination, this miniature recessed LED light is only 16mm in diameter, making it an ideal choice for discreet lighting applications. The smooth, recessed design allows it to blend seamlessly into ceilings or walls, producing a soft glow that enhances the surrounding space.

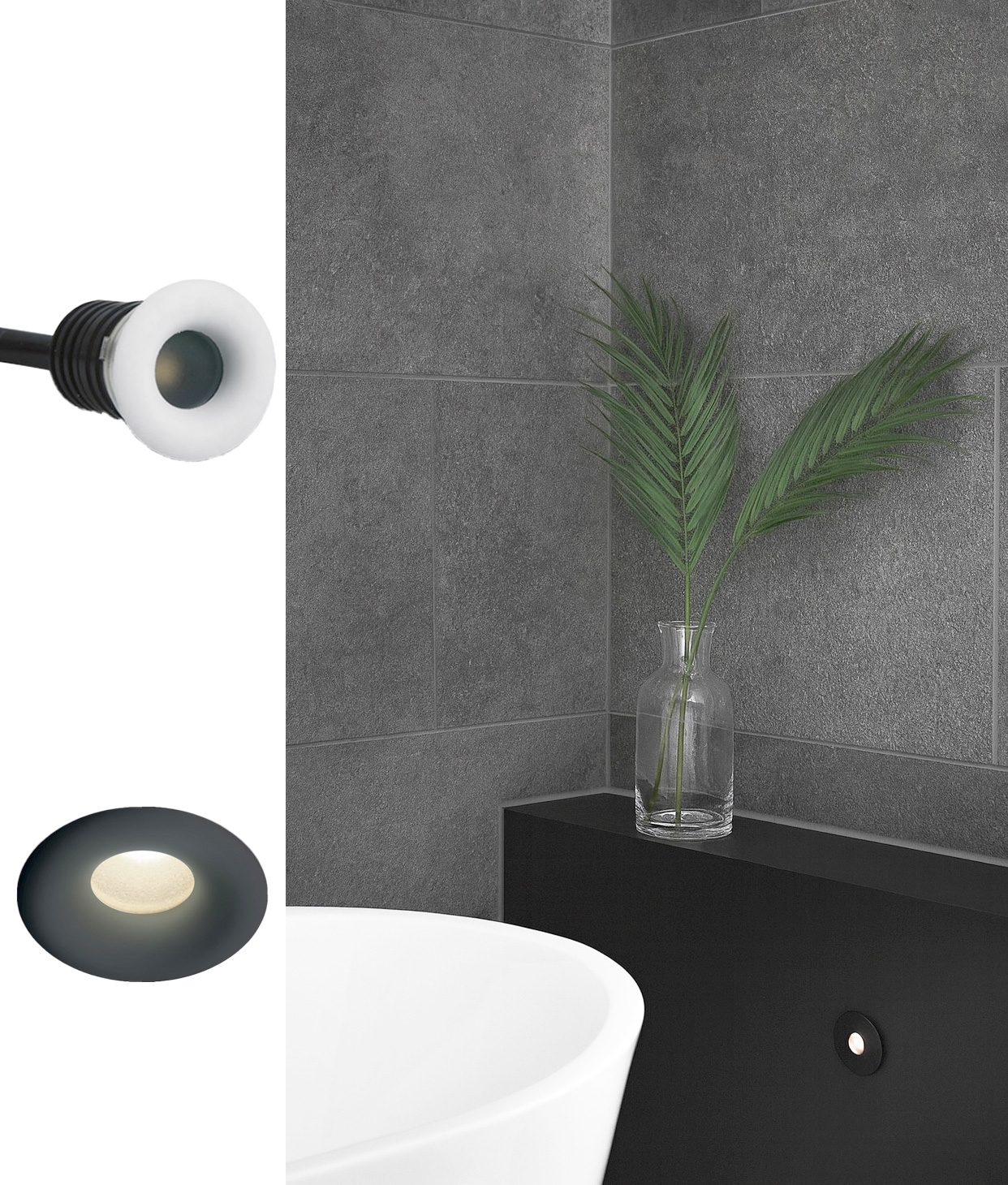

With an IP44 rating, it is suitable for use in bathroom zones 2 and 3, as well as other indoor areas where a small yet powerful light source is required. Emitting 95 lumens from just 1W of power, this compact fitting provides an impressive level of brightness relative to its size. When installed in multiples, it can create a scattered effect, resembling little bursts of light across a ceiling.
The built-in Bridgelux LED delivers a warm 3000K light with a high colour rendering index (CRI) of 90, ensuring accurate colour representation. A cutout diameter of 12mm and a depth requirement of just 30mm make it easy to install in confined spaces. Supplied with a 100cm cable for flexibility during installation, this fitting is an excellent choice for architectural and decorative lighting schemes.
This LED fitting operates at 350mA and must be wired in series with a suitable constant current driver.
When using a higher-capacity driver, it is essential to ensure that the total load matches the driver’s output by connecting the correct number of fixtures in series. Connecting a single LED to an oversized driver or wiring LEDs in parallel can cause overvoltage, which may permanently damage the LED chip.
Warranty: 3 Years
Dali dimmable drivers are available for this fixture - please contact us for details.
View more items from this supplier
Lamp Type | Long Life LED Light Source |
Lamp Lumens | 95 |
Lamps Included | Yes - Integrated |
Dimmable? | Yes - when used with a dimmable LED driver |
Total Wattage | 1w |

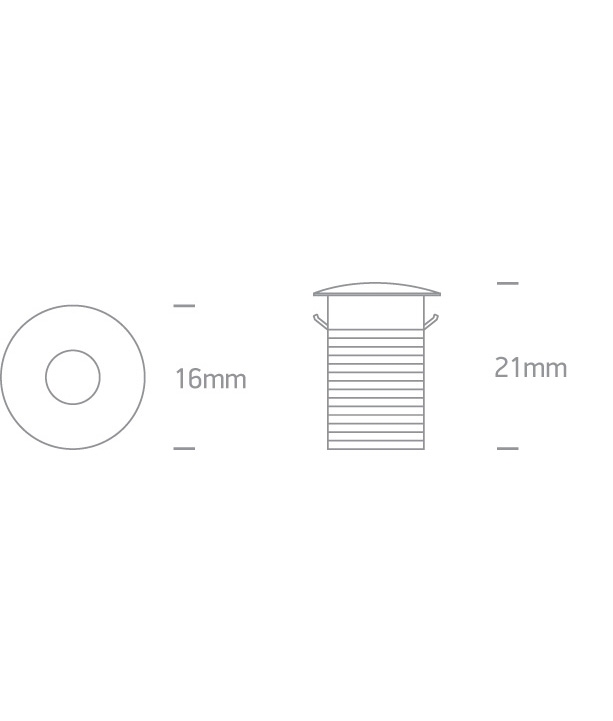

Height | 21mm |
Diameter | 16mm |
Cut-Out Diameter | 12mm |
Construction | Aluminium - Powder Coated |
Wiring Details | Class 3 - Requires a low voltage supply |
IP Rating | IP44 |
Kelvin | 3000°K - Warm White |
Driver | No driver or transformer is supplied with this fixture (sold separately) |
