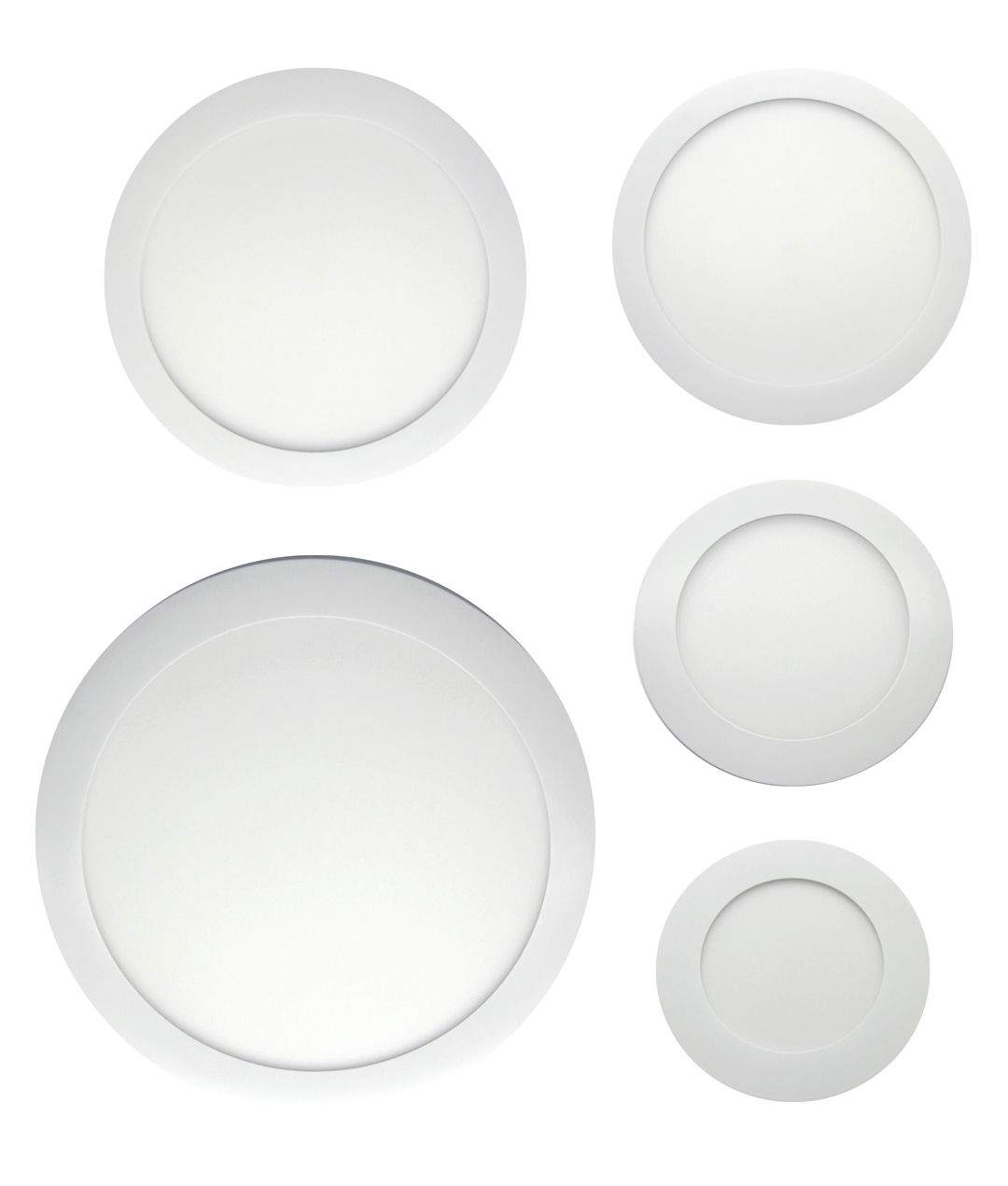

IP44 Low Profile Slim LED Downlight - CCT Switched

3000k, 4000k & 6000k Available with 3 Hour Emergency Option

Suitable for Zone 2 - splash proofClass 2 – This fitting is double insulated and does not require an earth.No, this product is NOT dimmableSuitable for Bathroom Zones 2 and 3Bulbs IncludedIncludes integral driver/transformer suitable for 230 - 240v supply

Kelvin Chart

Product Ref: 7229

From £18.70 inc VAT

Commercial quality LED downlight, incorporating the latest in LED technology, combining energy efficiency with an exceptionally high light output.  Perfect omnidirectional light distribution where the LEDs cannot be seen through the opal diffuser.

This is a SMD high power Phillips LED downlight suitable for indoor use within office buildings, restaurants and residential areas.

Easy to install with a simple spring clip design.

This downlight is a great choice for energy-efficient lighting which provides a high lumen output. Ideal for use in shallow ceiling voids or under plant equipment and can be installed in voids as low as 16mm.

Outer Bezel: cast alloy with matt white finish
Diffuser: acrylic with matt white finish

Supplied with hot-swap remote micro driver (22mm deep) and a CCT switch on the input flex that allows the installer to select warm, neutral or daylight light outputs.

Just wire into mains. Double insulated - no earth required.

IP44 so will work in all sorts of commercial and residential spaces including bathroom zone 2 and zone 1 when used in conjunction with a 30MA RCD

The lumen output changes depending on the colour temperature chosen:

 CCT Setting3 Watts6 Watts12 Watts18 Watts24 Watts
3000°k Warm White160 lm342 lm845 lm1455 lm1757 lm
4000°k Neutral White188 lm390 lm995 lm1662 lm2067 lm
6000°k Cool Daylight184 lm378 lm962 lm1605 lm1917 lm
Diameter85mm120mm170mm220mm300mm
Cut out size70mm105mm155mm205mm280mm



Emergency Option

Pre-wired auto self-test emergency pack with LED indicator on flying lead, inverter, lithium ion battery

Complete with a 3 year warranty.





Cut-out Diameter:
280mm
Availability: Typically dispatched in 2-4 days
We offer free delivery on orders over £80 to most UK Mainland Addresses
Product Code
Product Title

Price
Quantity
Choose your product
Standard Option
LS97190
3w LED Disc Downlight
£18.70
£15.58 exc VAT
LS97191
6w LED Disc Downlight
£22.50
£18.75 exc VAT
LS97192
12w LED Disc Downlight
£34.00
£28.33 exc VAT
LS97193
18w LED Disc Downlight
£44.90
£37.42 exc VAT
LSD97194
24w LED Disc Downlight
£56.00
£46.67 exc VAT
Emergency Options
LS97193EM
Emergency Option 18w LED Disc Downlight
£144.00
£120.00 exc VAT
