Square Recessed Dark Light Downlight with 4 or 9 LEDs Low Glare Grid Design

Design and Style

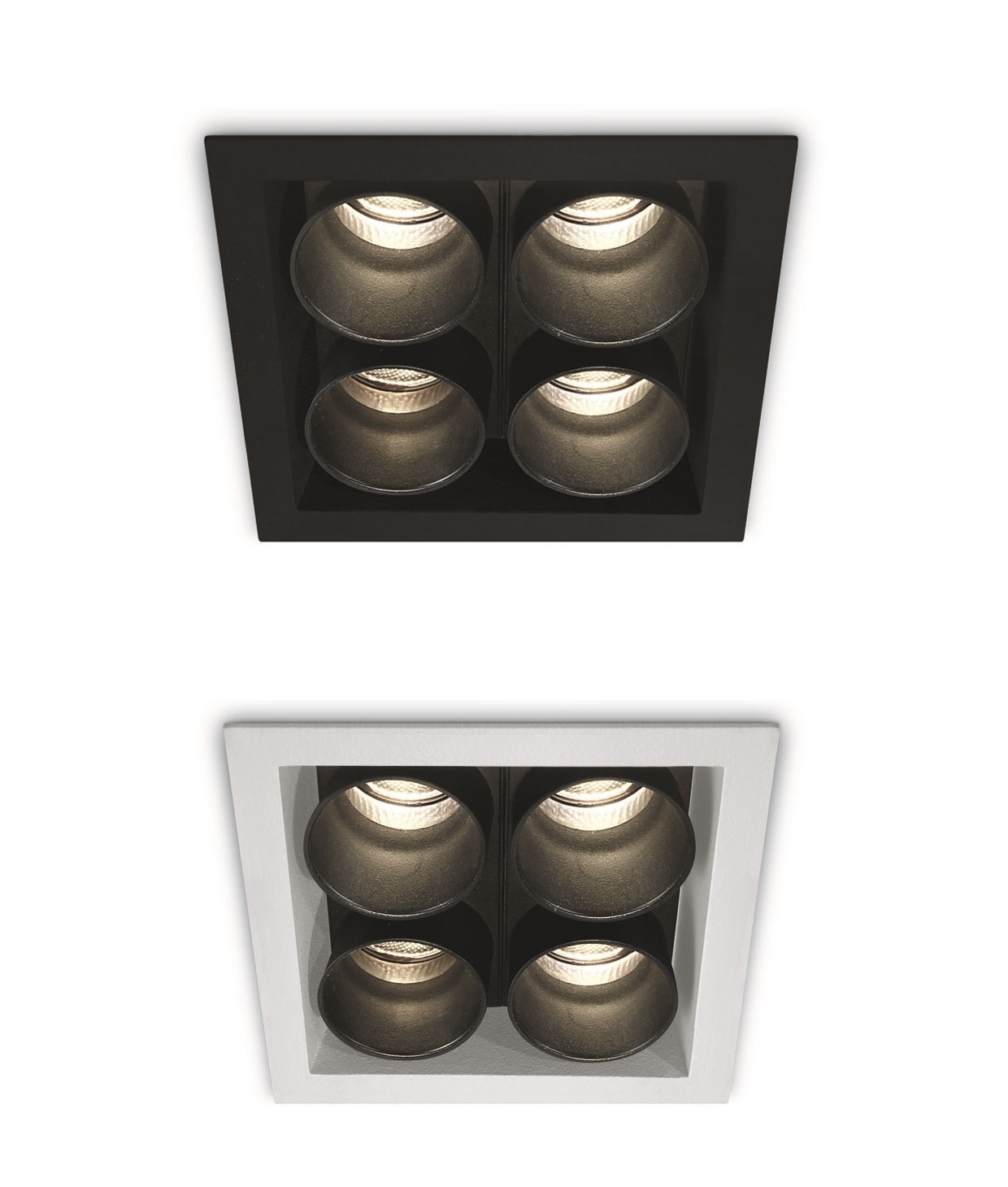

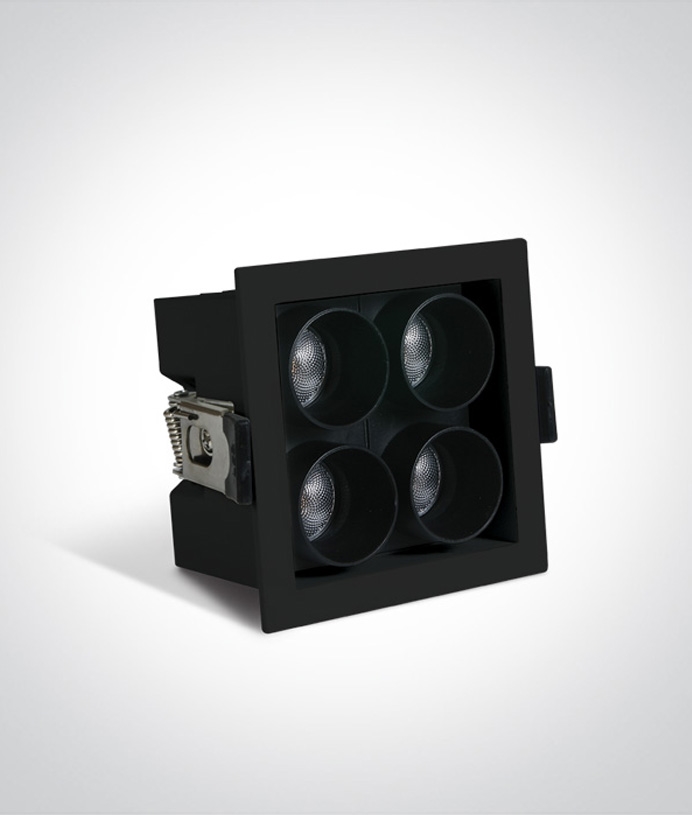

This square recessed downlight is built around a compact box format that houses multiple fixed light cells within a single aperture. Each LED sits deep within a dark light tube, creating a recessed appearance that limits visible brightness at ceiling level. The square bezel frames the internal cells cleanly, reinforcing a precise architectural look that works well in both contemporary residential interiors and commercial environments. The smaller four-cell version is available with a white or black bezel, while the larger nine-cell version is supplied with a white bezel only.

Usage
Application suits spaces where controlled, directional light is required without drawing attention to the fitting itself. Use works well in kitchens, circulation areas, living spaces, galleries, retail environments, and hospitality settings. The focused beam and low glare design make it particularly effective for highlighting textures, artwork, shelving, and architectural details while maintaining visual comfort.

Product Shape and Design

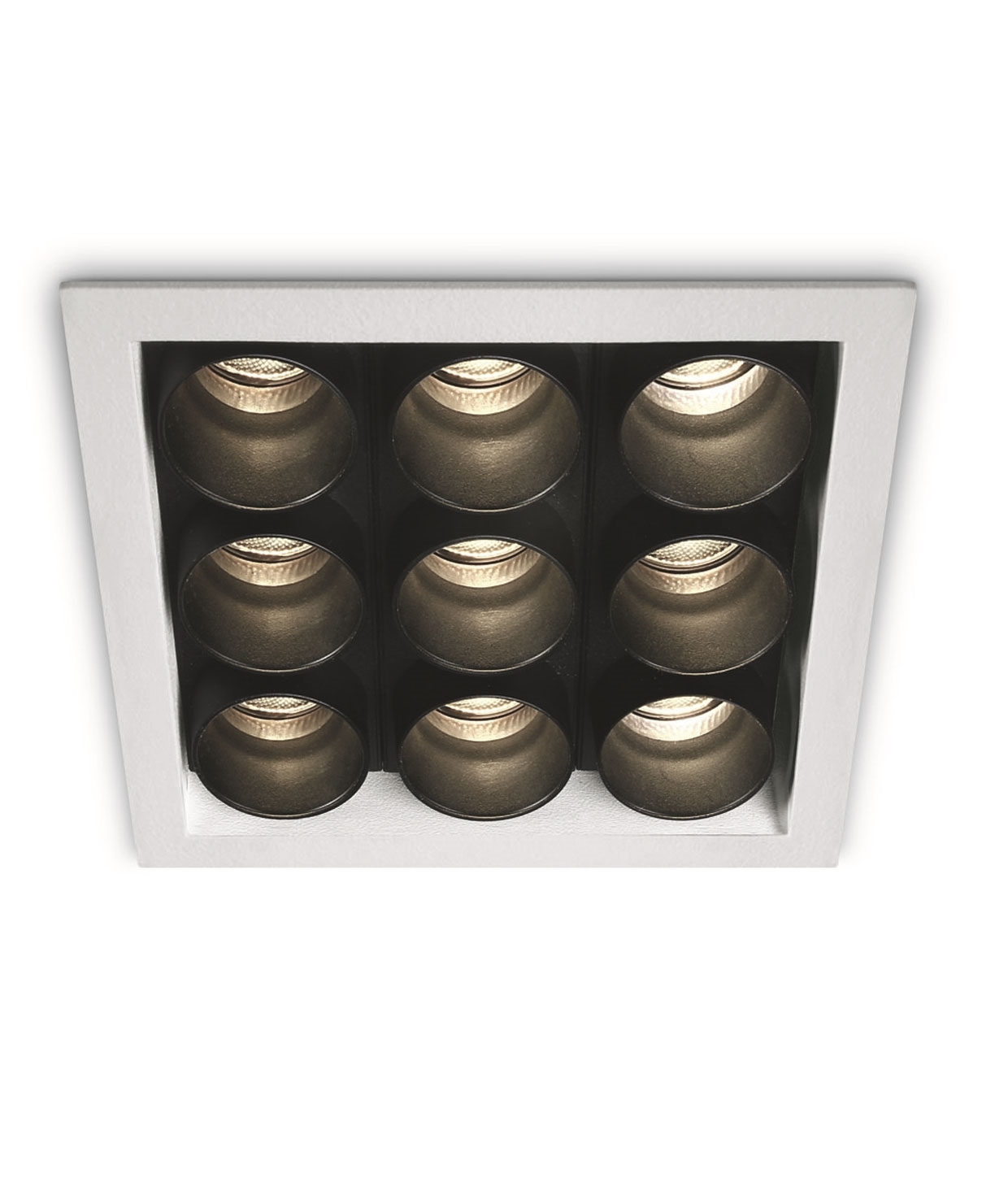

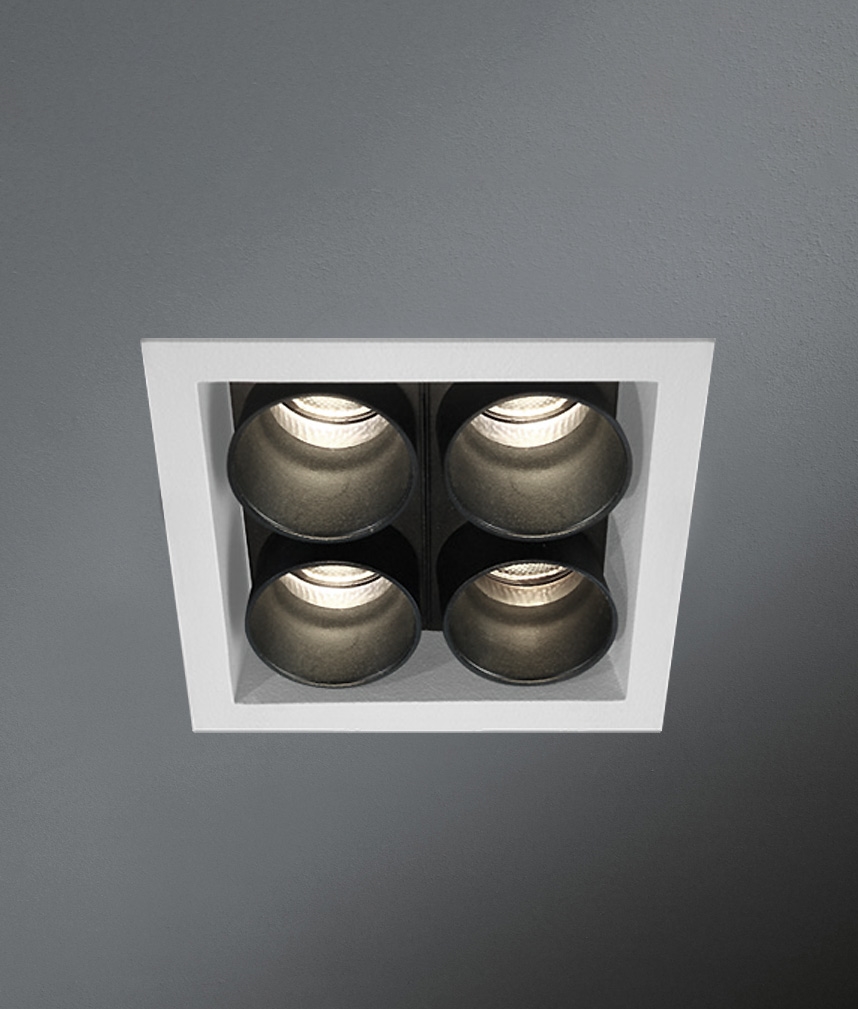

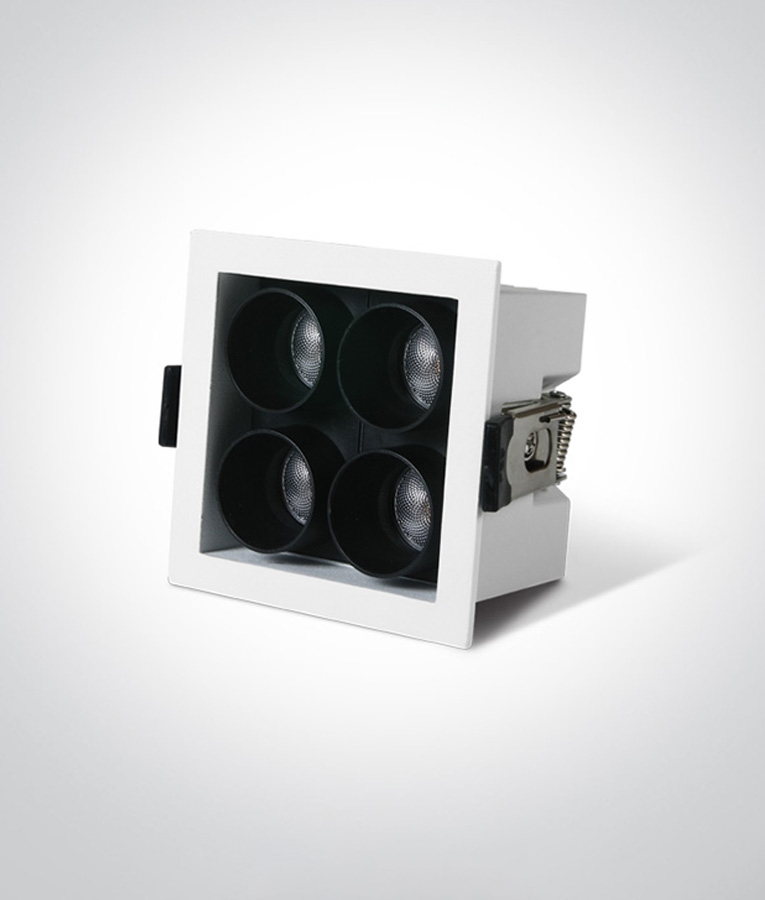

Form is defined by a square recessed housing with either four or nine circular light cells arranged in a fixed grid. Each cell is set back within a dark internal tube to control glare and maintain contrast. The bezel sits flush to the ceiling, keeping ceiling lines sharp and uncluttered. Despite the multi-cell layout, the fitting remains compact and requires only a modest recess depth, making it suitable for standard ceiling voids.

Key Features and Performance

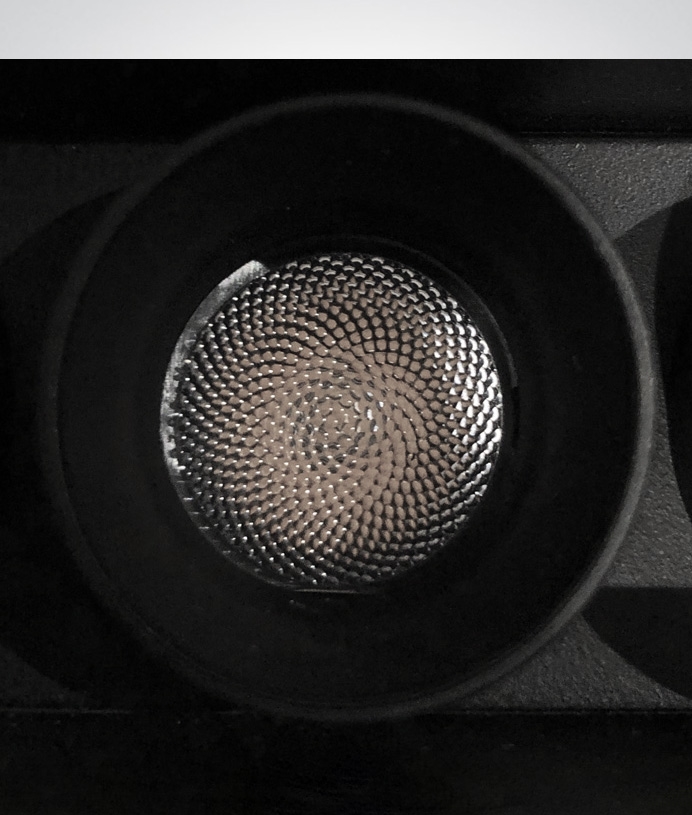

Light output is produced by high quality Cree 3535 LED chips with a colour rendering index of 85+, supporting accurate colour appearance on surfaces and finishes. The warm white 3000K colour temperature is paired with a narrow 25° beam angle to deliver crisp, defined illumination. The four LED version delivers 800 lumens, while the nine LED version delivers 1760 lumens. LEDs are positioned behind a compound diffuser within each tube, softening the light source without widening the beam. A non-dimmable remote driver is supplied with the fitting, simplifying installation and reducing heat build-up within the ceiling.

Installation and Specification
Recess depth requirement is 70mm. The four LED version uses a 77mm by 77mm bezel and requires a 68mm square cut-out. The nine LED version uses a 107mm by 107mm bezel and requires a 96mm square cut-out. Installation is recessed and ceiling mounted for indoor use. Warranty is three years.
