Illuminated Bathroom Mirror 700mm x 600mm

Name: Illuminated Bathroom Mirror 700mm x 600mm
Brand: Lighting Styles
SKU: 4096
Price: 168.28 GBP
Availability: InStock
Rating: 4.2 (38 reviews)

Built-In Shaver Socket & Demister Pad Options

Class 1 – This fitting will require an earth connection.

Product Ref: 4096

From £168.28 inc VAT

Description

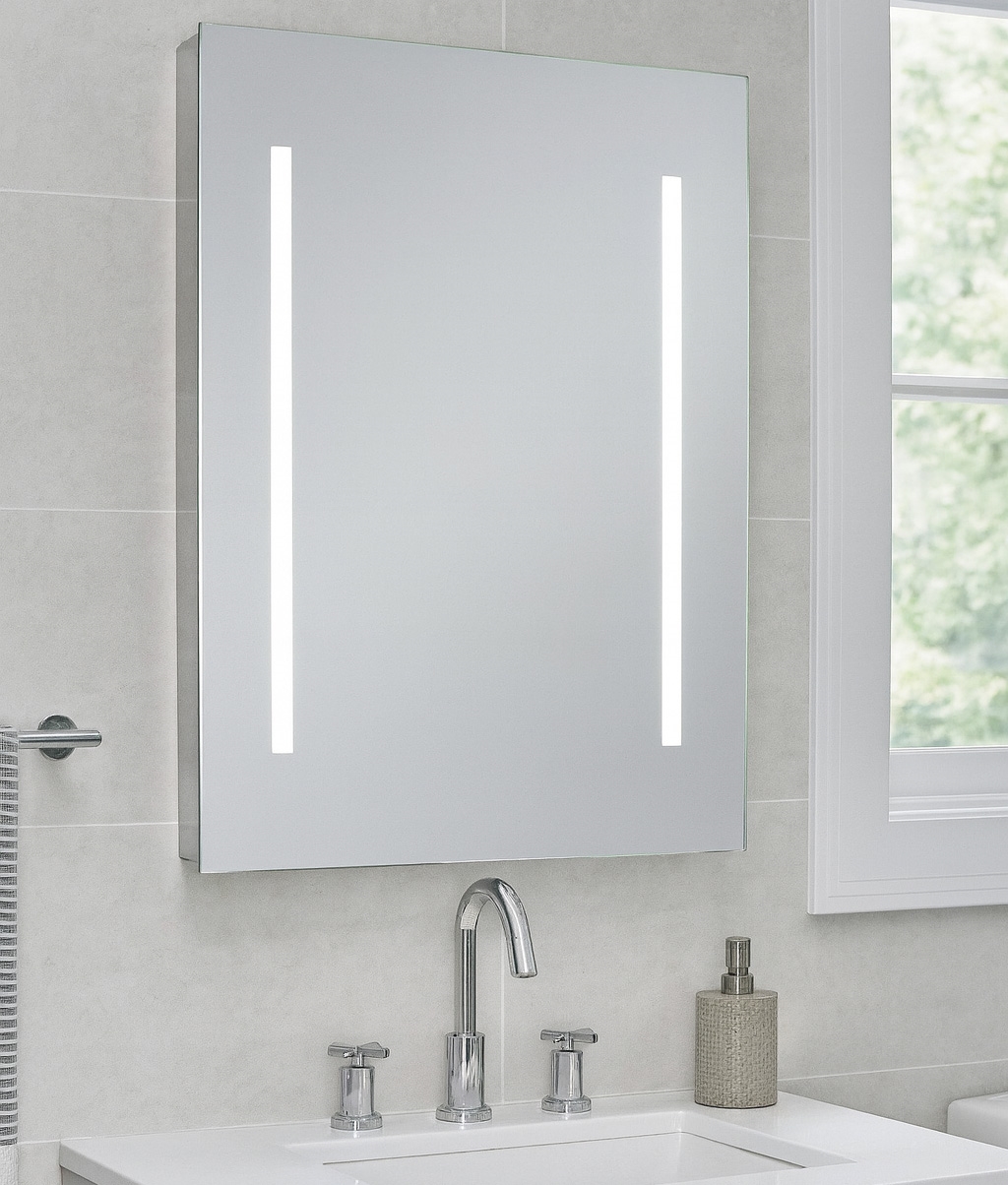

A well constructed bathroom mirror available in three options. Great for providing illumination when shaving or applying make-up and of course provides further illumination and ambience to a bathroom.

Each option has twin T5 13w fluorescent tubes integrated in the mirror unit to give a soft, even and diffused light. The lamps operate on electronic high frequency electronic control gear giving flicker-free performance and long lamp life.

Available with either a shaver socket or shaver socket and demister pad. The shaver socket is located on the left hand side of the mirror and is a dual voltage shaver socket with hinged cover. The socket is protected with a safety isolating transformer. The shaver socket is live at all times meaning you do not need the lights to be on to charge your toothbrush overnight.

The demister pad measures 390mm X 590mm. Internal lead with 2 pin plug fitted with the heat pad for ease of mirror removal. This is already fitted to the back of the mirror.

Cable entry for this mirror is in the centre of the mirror, 120mm down from the top of the fitting.

IP44 rated (suitable for zones 2 & 3) for use in wet spaces.

Specification

Number Of Lamps	2
Lamp Type	T5 Fluorescent
Part L Compliant Luminaire	No
Lamps Included	Yes
Dimmable?	No
Max Wattage	26w
Total Wattage	26w
Width	600mm
Height	700mm
Depth/Projection	50mm
Construction	Glass & Powder Coated Steel
Wiring Details	Class 1 - Requires an Earth Connection
IP Rating	IP44

Bulbs

	T5 Lamp 13w - 3500º White FOX05411
	T5 Lamp 13w - 4000º Cool White FOX05412
Click here to choose your bulbs

Frequently Asked Questions

I have a 12v cable currently in my bathroom - switched on and off from a light switch. I`m after an illuminated bathroom mirror - can you please advise what mirrors you have that would work with such a set up?
I`m afraid all of our illuminated mirrors run on mains or integrated LED`s. You`ll struggle to find a 12V fitting for this as the bulbs that are suited to these (long tube bulbs) all run on mains. We`d suggest, if appropriate, pulling out the 12V cable and transformer, replacing this with a mains cable and standard mains or LED fitting.

I have one of these mirrors (with saver socket and demister pad) and the saver socket has stopped working - how do I repair or replace it?
Disconnect the electrical supply and remove the mirror front. The rear of the shaver socket may have been inadvertently pushed away from the socket by a plug.

Does the demister pad switch on with the lights or is there a different switch, also how is the mirror mounted as I am considering mounting it on the front of a bathroom cabinet.
There is no separate switch, The demister pad comes on when the light is switched on. The fixing screws are located at each corner of the backing plate. This mirror can only be installed onto a wall, as of the weight.

Recently moved into new house that has one of these and the righthand side bulb is not working. How do you change the bulb? I dont want to experiment and break anything.
Remove the glass (you will find two screws either side of the housing - then pull off. The lamps are twisted 90 degrees and the slot aligns so the lamp can be removed.

Where is the shaver socket located? ie left/right, top/bottom
The shaver socket is located on the left hand side of the mirror.

Availability: IN STOCK 2-3 working day dispatch
