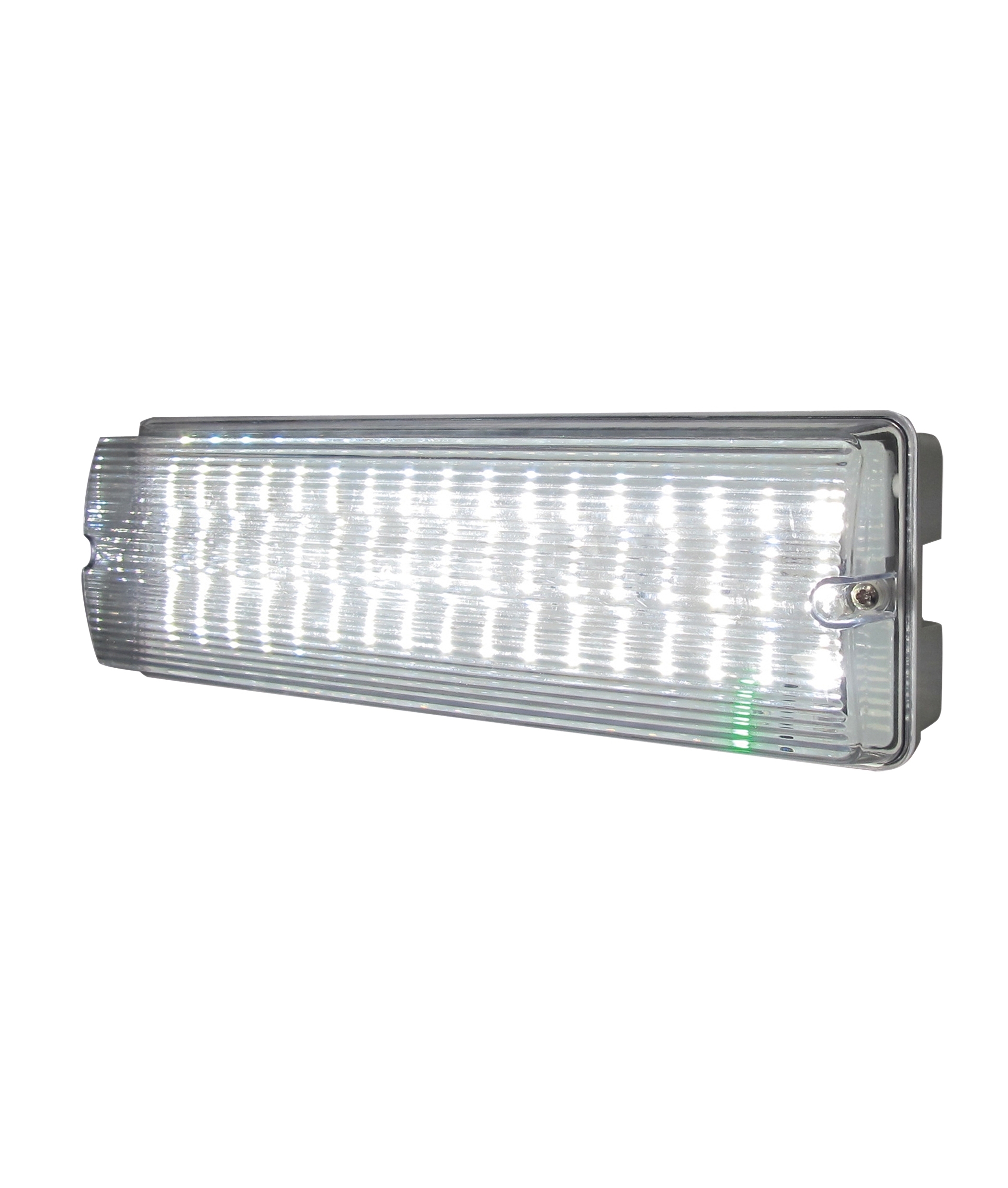

Emergency LED bulkhead suited for use in both domestic and commercial applications and can be either wall or ceiling mounted.

IP65 rated providing protection from projected water, perfect for installation in external areas.

For use as maintained or non maintained. Discharge duration three hours.

Maintained
Allows the fitting to be switched on at any time, if the fitting was switched off and there was a power cut. the emergency exit sign will come on. This requires 2 live feeds 1 switched and 1 unswitched.

Non maintained
This will normally be off and cannot be switched on - if there is a power cut the exit sign will come on. This requires a single unswitched live feed.

6W LED panel with built-in driver for direct connection to mains. The LED is 6500°k. 115º beam angle. Light output 400 lumens, 66 lumens per watt. Emergency mode the lumen output is 120.

3 year warranty supplied.

Lamp Type	Long Life LED Light Source
Part L Compliant Luminaire	Yes
Lamps Included	Yes
Dimmable?	No
Max Wattage	6w
Length	345mm
Height	76mm
Depth/Projection	107mm
Construction	ABS Polycarbonate
Wiring Details	Class 1 - Requires an Earth Connection
IP Rating	IP65
Kelvin	6500°K - Daylight
Driver	Includes remote driver/transformer suitable for 230 - 240v supply
