Dali Constant Current LED Drivers - Switchable output range 160-700 mA for LED fittings

Design and Style

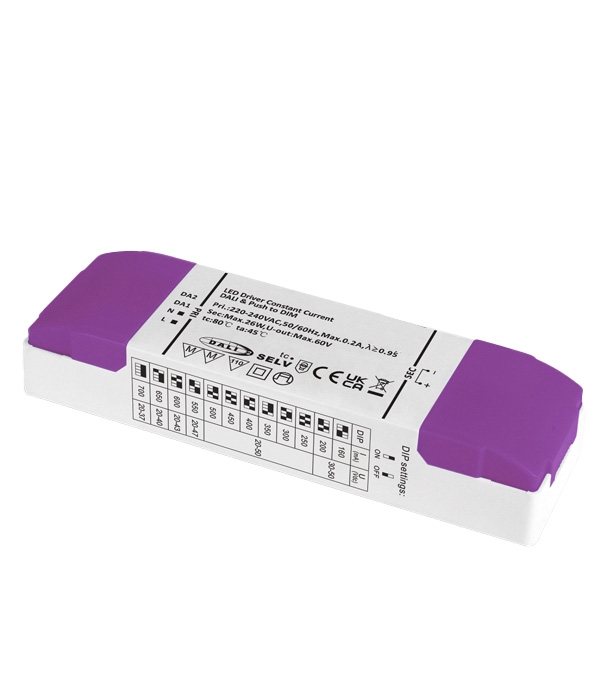

This product is a problem solver for anyone wanting new or existing LED lighting to operate on a DALI system. This constant current LED driver provides a DALI compatible interface within a compact, durable enclosure.
By replacing a standard driver, it enables LED fittings to be incorporated into DALI lighting systems during an upgrade or installation. The adjustable output range makes it suitable for a wide selection of constant current LED modules, with settings configured via internal DIP switches.

Usage
Suitable for powering LED downlights, linear fittings, or other luminaires with internal or remote gear. It provides consistent, reliable performance across multiple current settings, offering flexibility for controlled or networked installations.

Key Features
The driver supports constant current outputs from 160 mA to 700 mA, adjustable by internal DIP switch. It accepts a 230 V AC input and provides a stable regulated output across 20 V to 60 V depending on the selected current.
, the housing is compact enough for use within ceiling voids, enclosures, or larger light housings where space is limited.
With an IP20 rating, it is intended for indoor use only. Manufactured to European safety and performance standards, it offers dependable operation and straightforward DALI compatibility.

Also compatible with momentary Push-to-Dim controls for manual operation if required.
Not suitable for use with standard rotary or leading-edge wall dimmers.

Smaller - Max 15w ((Measuring 138 mm long, 38 mm wide and 25 mm high)
Dip switch selection offers:
350mA 9-42v
400mA 9-37v
450mA 9-33v
500mA 9-30v
550mA 9-27v
600mA 9-25V
650mA 9-23V
700mA 9-21V

Larger - Max 60w (Measuring 138 mm long, 42 mm wide and 25 mm high)
Dip switch selection offers:
160/200mA 30-50V
250/300/350/400/450/500mA 20-50V
550mA 20-47V
600mA 20-43V
650mA 20-40V
700mA 20-37V
See datasheet for full details of Current/Voltage/Wattage
