Curved Arm Weatherproof Wall Lantern, Galvanised or Black
Outdoor Wall Light for Coastal and Garden Use, PIR Option Available
Product Ref: 2697
From £63.95 inc VATDesign and Style

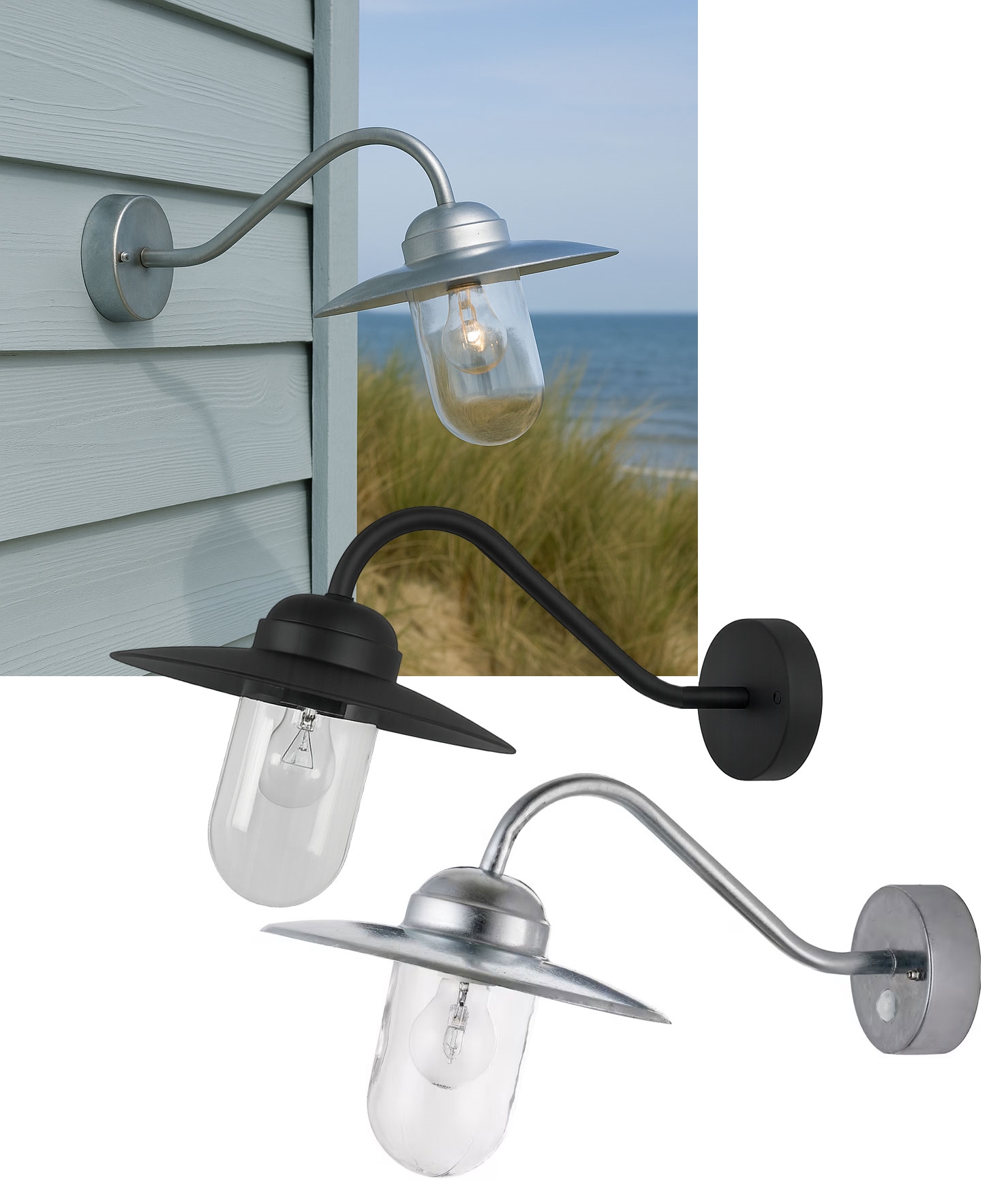

This outdoor wall lantern features a gently curved arm and clear glass shade, offering both classic and coastal appeal. Available in a weatherproof galvanised finish for a traditional look, or matt black for a more contemporary style, the fitting complements beach huts, cottages, gardens, and external walls in coastal and rural settings.
Usage
Designed for outdoor use, this lantern is ideal for entrances, pathways, and patios. The galvanised finish is especially suited to exposed or seaside locations, resisting corrosion and weathering. The fitting accommodates a standard E27 base lamp and can be installed with or without PIR sensor functionality.
Key Features
The main shade has a diameter of 220mm, with a projection from the wall of 420mm on the standard version, and 470mm on the PIR sensor model. Each fitting is supplied with a 115mm wall plate, providing dual cable entry points to assist with straightforward installation. The clear glass cover ensures optimum light output and lamp protection. Selected galvanised models feature an integrated PIR sensor, which automatically activates the light on movement within an 8-metre range and 100-degree detection angle. The PIR version includes an override function for manual operation and requires an earth connection (Class 1).
Number Of Lamps | 1 |
Lamp Type | E27 (ES) Base Mains Lamps |
Part L Compliant Luminaire | No |
Lamps Included | No |
Dimmable? | Yes - on standard dimmer (TRIAC or leading edge) |
Max Wattage | 60w |
Width | 260mm |
Height | 280mm |
Depth/Projection | 420mm |
Wiring Details | Class 2 - Double Insulated - Requires no Earth Connection |
IP Rating | IP54 |
What size is the base that screws to the wall ? |
Can these lamps be used in conjunction with the corner bracket which you sell to enable fixing to the corner of a building? |
Does the PIR override function allow you to switch the light both permanently off and permanently on? In other words, is it possible to disable the PIR in both the off and on position? |
Does the PIR need to installed at a specific height or is there a limit to the height it can be placed at? |
Can these lights be surfaced wired or used with 20mm steel conduit |
Does the PIR have a phtocell so it only activates at night or is it just a motion sensor? |
Would this light fitting be suitable for a coastal home? |
I wish to use these fittings in place of an existing external floodlight. It is unswitched - so operates via PIR only. Can I also use these fittings via PIR only, so connect them without the switch wire?
|
Hi, please can you confirm that the PIR version of this light can come on when motion is detected but can also be turned on at the wall and left on until turned off? |
What finish is the third from the left of the top row of the smaller pictures? I note that one of the first two pictures, which otherwise appear identical, has a pir. |
Do you have a photo of the copper light? |
Is there any way you could put a PIR sensor on the rusty brown version? If not do you have any weathered/brass coloured traditional lights with PIR sensors?
|
Please could you advise me of the diameter of the opening of the glass shade that screws in please? |
What is the detection angle on the PIR for this light? |
Regarding the copper version of the Well Light, is it possible to purchase the item without the protective coating as we would prefer a weathered look? |
Love these fixtures. Will they work in the US without issue (electrically and using US bulbs)? |
Do you supply replacement glass for these lights. If so what price? Or do you know where I can get glass. Thank you |
Please can you tell me what colour the galvanised version with PIR sensor is? |
Please could you confirm whether the stainless steel version of the Waterproof Well Light is the one shown in the larger main picture (the night-time one) of the selection pictured? |
Can you tell me if the override facility on the PIR model is activated by switching off and on again? |
Do these lights come with a bracket for corner use? |
