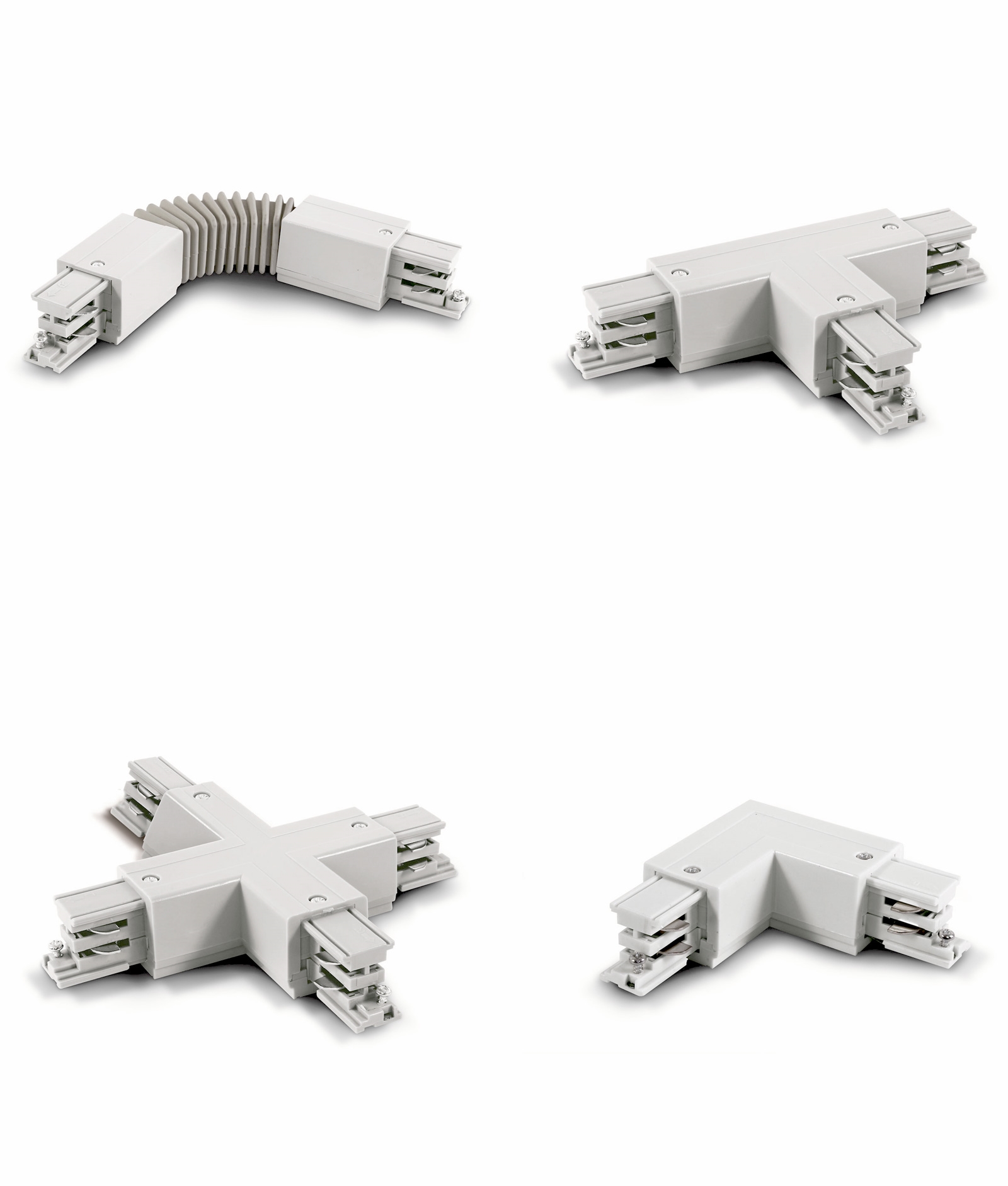

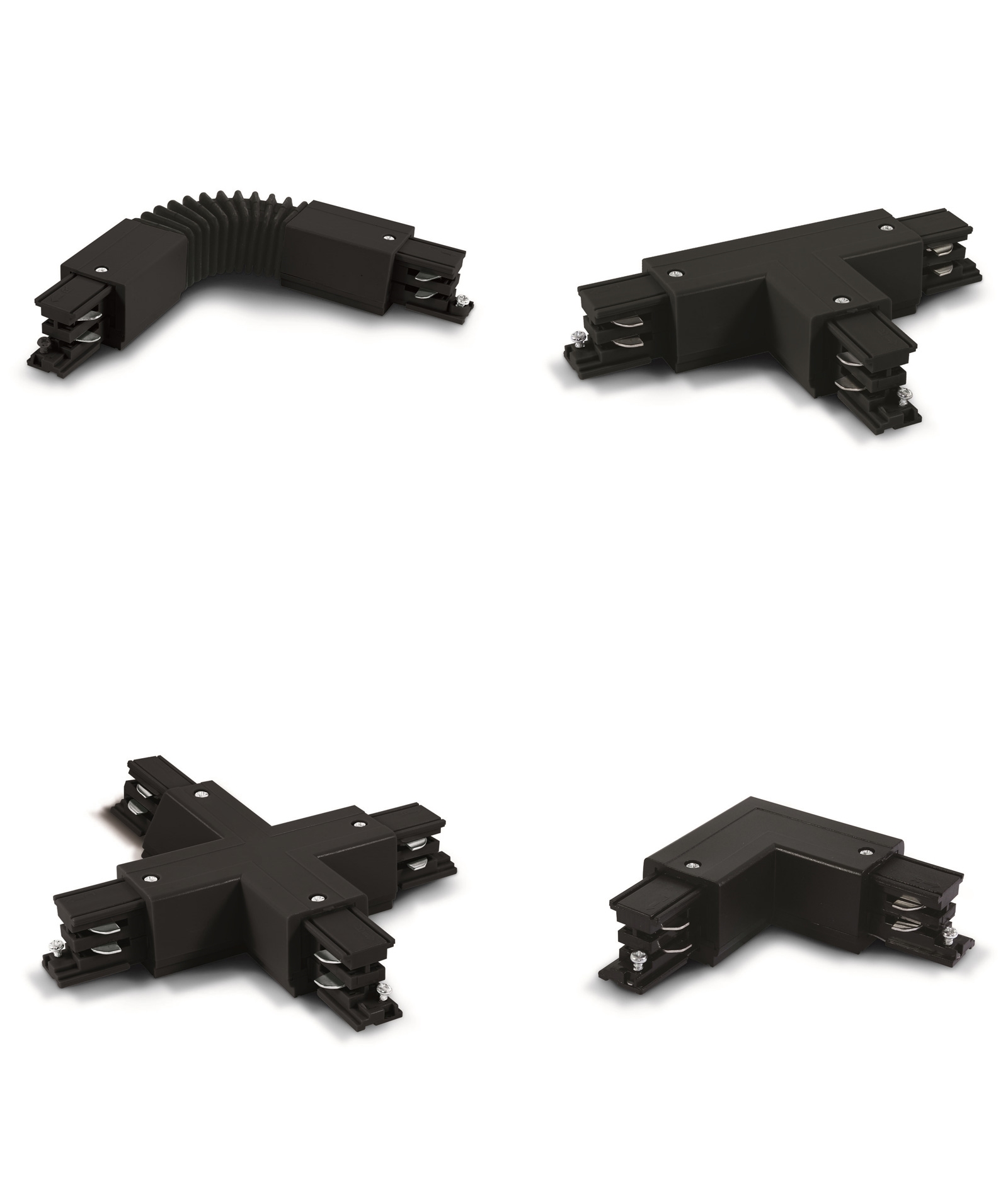

Complex Joints for 3-Circuit Lighting Tracks – Bends, T and X Connections

This is a range of products designed to allow you more freedom when it comes to the design of your track system, with these components you can create simple changes of direction at a right angle or allow your lighting installation to split three or four ways.

Components are as follows:

Corner Connector - Inside or outside
Allows you to change the direction of your track at a 90 degree angle, available with either an inner or outer earth connection, it is important when creating advanced shapes that the earth position remains consistent throughout the system. Feed in capability.
Length: 150mm x Width: 150mm x Height: 32mm.

T-Connector for 3 Circuit Track Earth - Left or right
Allows the track to branch out in three separate directions without the need for several installations. Available in a left or right earth connection. Feed in capability.
Length: 260mm x Width: 185mm x Height: 32mm.

X-Connector for 3 Circuit Track
Allows the track to extend in four directions without the need for separate installations. Feed in capability.
Length: 260mm x Width: 260mm x Height: 32mm.

Flexible Connector for 3 Circuit Track
A flexible connector for our range of 3 circuit mains voltage track available in black or white finish. No Feed in capability
Length: 220mm x Width: 360mm x Height: 32mm.
