This is a double recessed spot plate supplied with mains GU10 lamp holders and can use any type of GU10 lamp. LED lamps can be used with this fitting if preferred for energy efficiency and low heat.

Great for use in living spaces, hallways, studies or commercial premises especially as the lamps can be titled to provide directional lighting either for visibility or to illuminate features.

Cut out required 165 x 80mm. Fitting lamp heads rotate 10° and tilt 355°.

Number Of Lamps	2
Lamp Type	GU10 Base Mains Lamps
Part L Compliant Luminaire	No
Lamps Included	No
Dimmable?	Yes - on standard dimmer (TRIAC or leading edge)
Max Wattage	50w
Total Wattage	100w
Width	92mm
Height	175mm
Depth/Projection	39mm
Suggested Void Depth	150mm
Construction	Cast Aluminium
Wiring Details	Class 2 - Double Insulated - Requires no Earth Connection

Can you fit led bulbs in this light?
Yes LED lamps can be used in this fitting.

how is the fitting fixed
This is installed via spring clips. These are supplied with the fitting.

Can this twin spot be surface mounted?
No this fixture needs to be recessed into your ceiling.

What is the minimum internal clearance that is required around this light fitting? Does insulation have to be removed from the ceiling so that there is a minimum distance between the insulation and the light fitting?
Insulation should not cover any type of light fitting unless specifically designed for use under insulation. Some installers construct a box to put over a fitting and if necessary lay insulation over the top. The void should be in the region of 100mm when using LED lamps and 150mm when using halogen.

	4.2w Pro HD Dimmable GU10 LED Lamp Neutral White 470 Lumens - FOX60644
	4.2w Pro HD Dimmable GU10 LED Lamp Daylight White 470 Lumens - FOX60645
	4.2w Pro HD Dimmable GU10 LED Lamp Warm White 470 Lumens - FOX60643
	Neutral White 5w Affordable GU10 Lamp Dimmable 420 Lumens - OBMLGU5DCW
	Single Elite HD RGB CCT Colour Changing Lamp RMAG700
	GZ10 Lamp 35w Dichroic Reflector 38º Beam LUM213502
	GZ10 Lamp 50w Dichroic Reflector 30º Beam LUM205002
	Elite HD RGB CCT RF Remote Control Only RMAG609
Click here to choose your bulbs

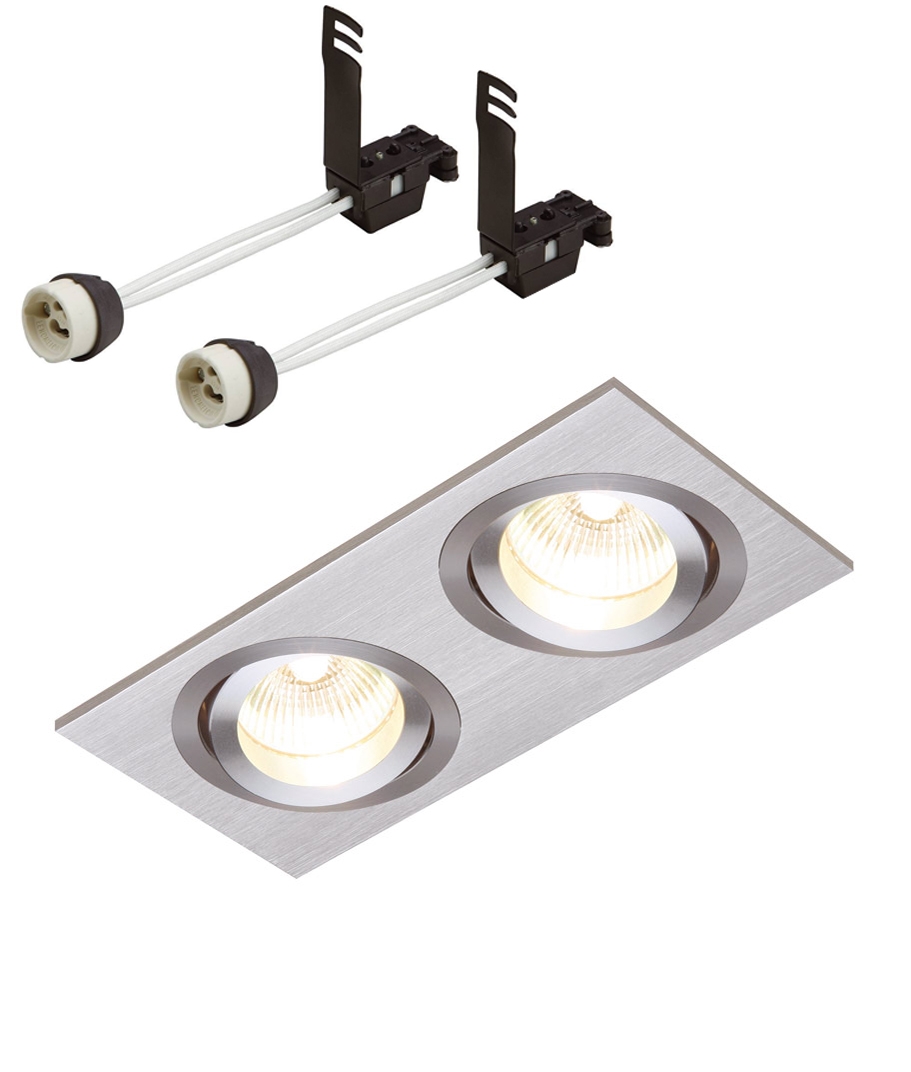

Double Recessed Adjustable Spotlight for GU10 Lamps

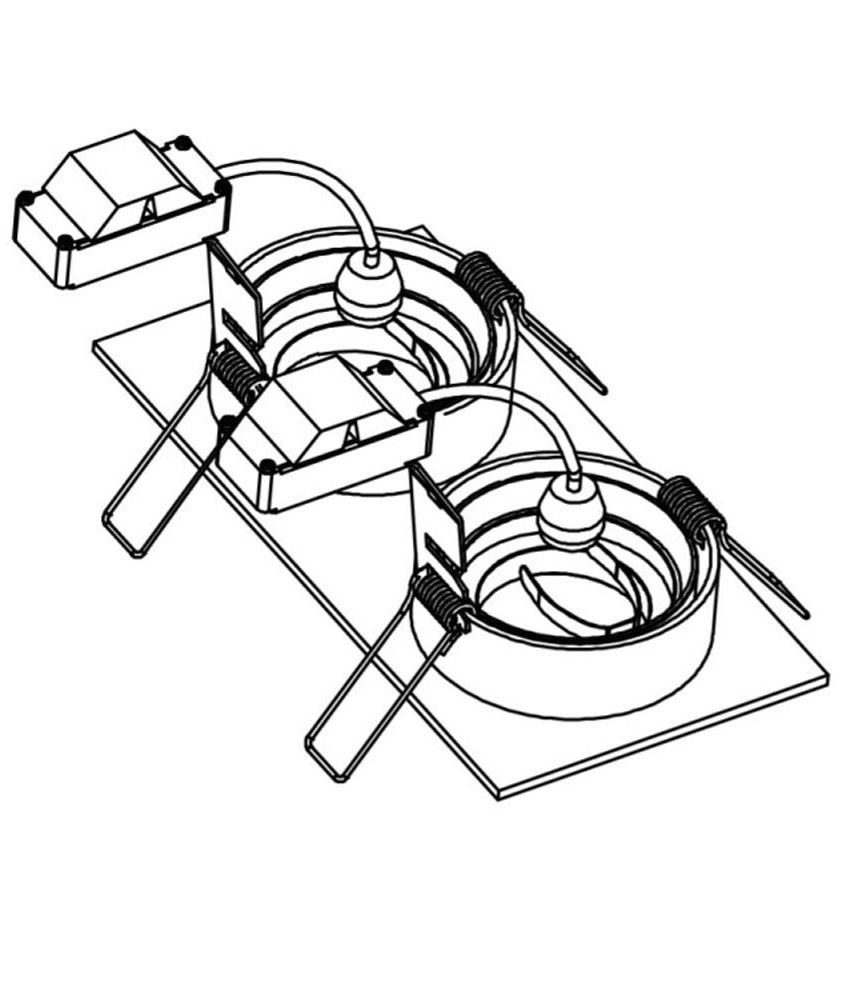

Simple Relamping from Below and Easy to Rotate and Adjust
