Modular Downlight Single, Dual or Triple - White or Aluminium

Mains 240v - Suitable for GU10 Lamps

Offers no protection from splashed or sprayed water

Class 2 – This fitting is double insulated and does not require an earth.

Yes, this product is dimmable - See the specifications tab for more details

Product Ref: 823

From £9.00 inc VAT

Description

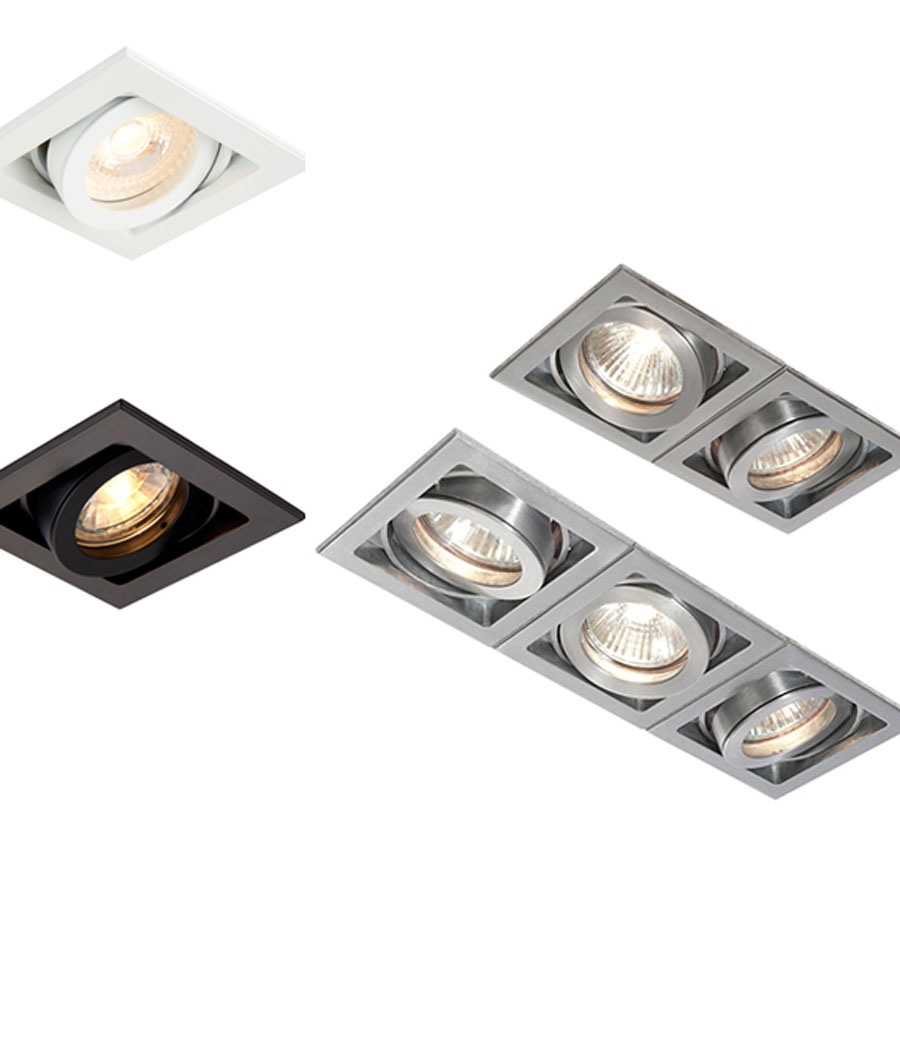

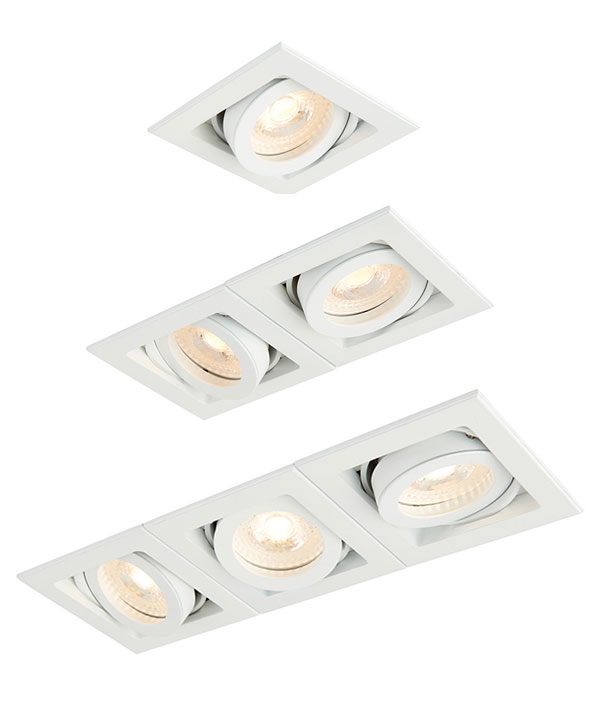

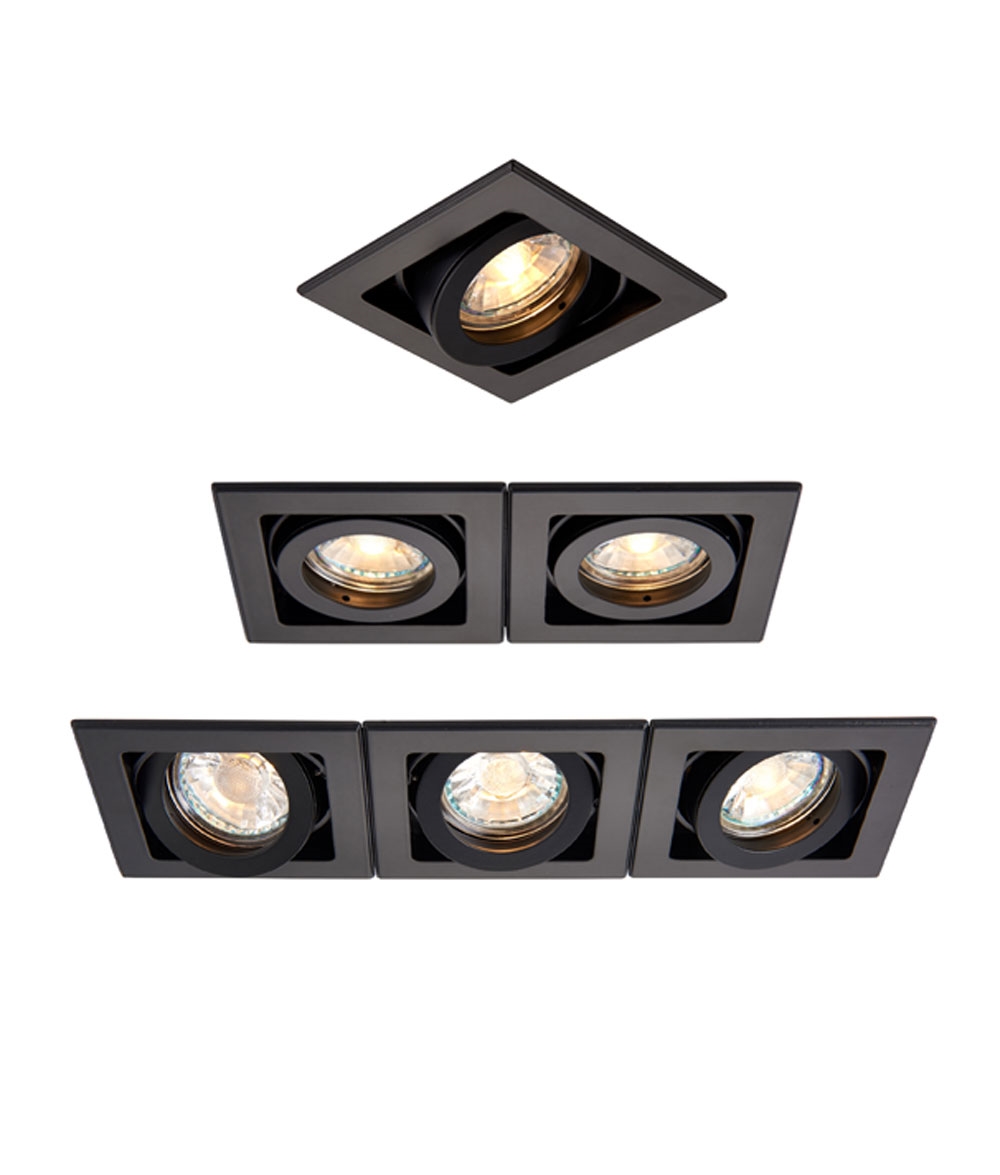

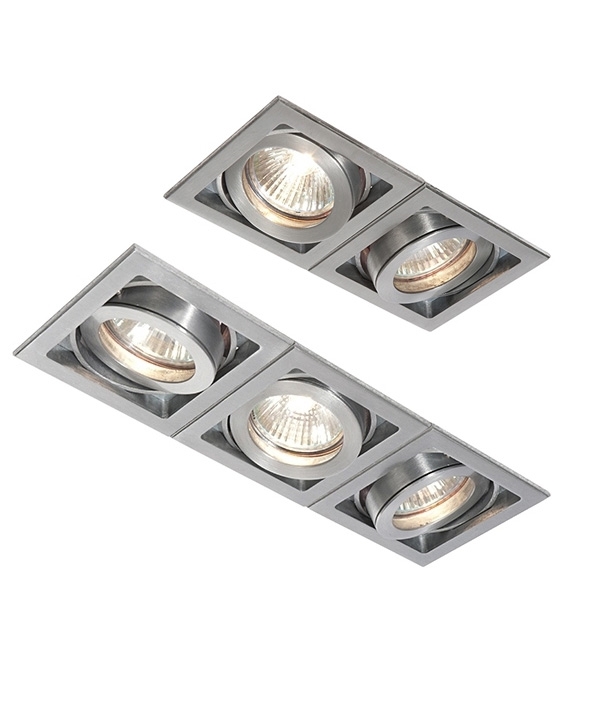

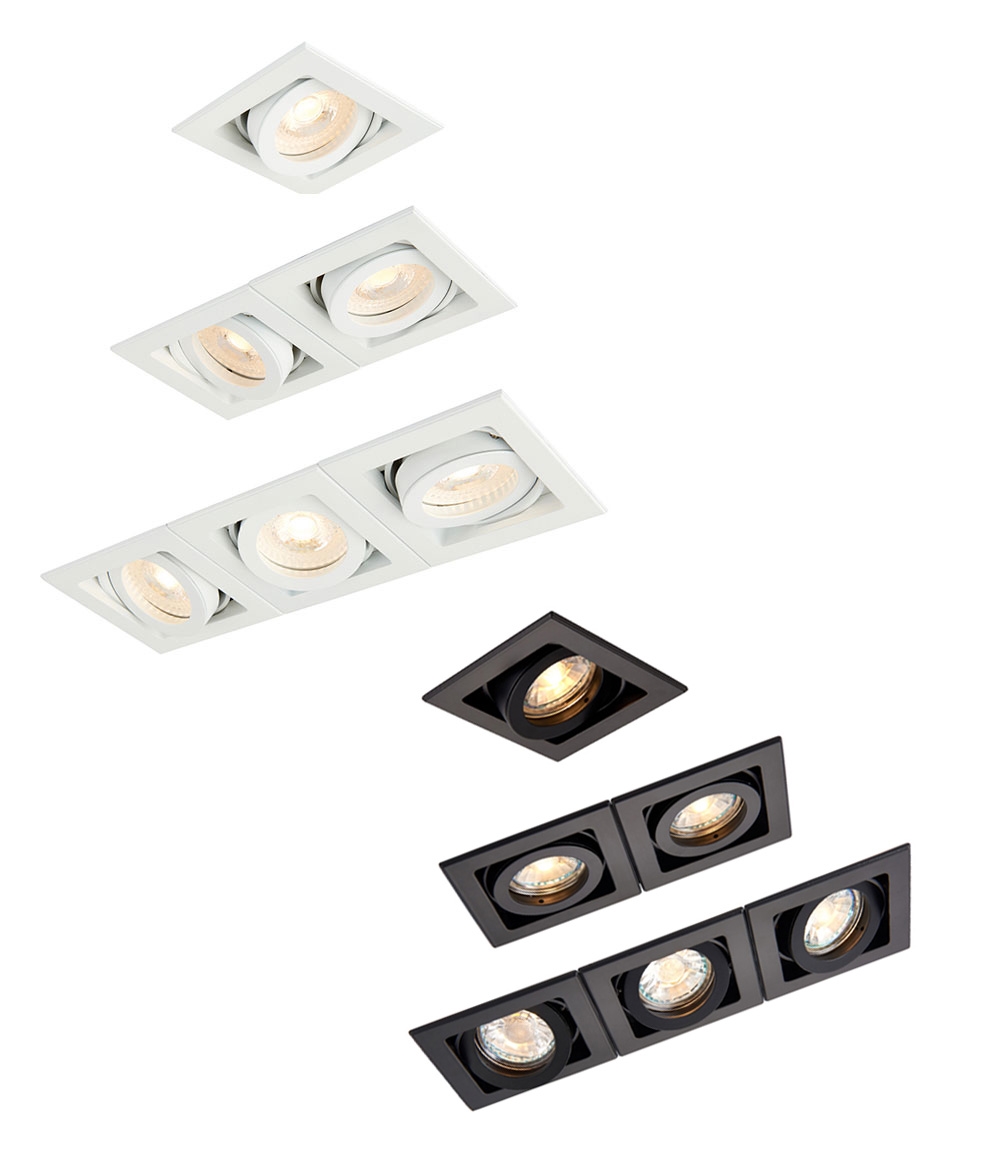

This range of recessed boxed downlights is available in singular, twin or triple variants. Providing a clever tilt and turn mechanism for each head providing a flexible lighting solution. In the box are lamp holders for use with halogen or LED lamps and easy clip lamp securing design makes installation and re-lamping easy.

Constructed from a die-cast aluminium alloy. Each fixture has just 3mm projection and offers 355° rotation and up to 30° tilt.

Single Modular Downlight
Dimensions: 90mm square
Cut-out: 76mm square

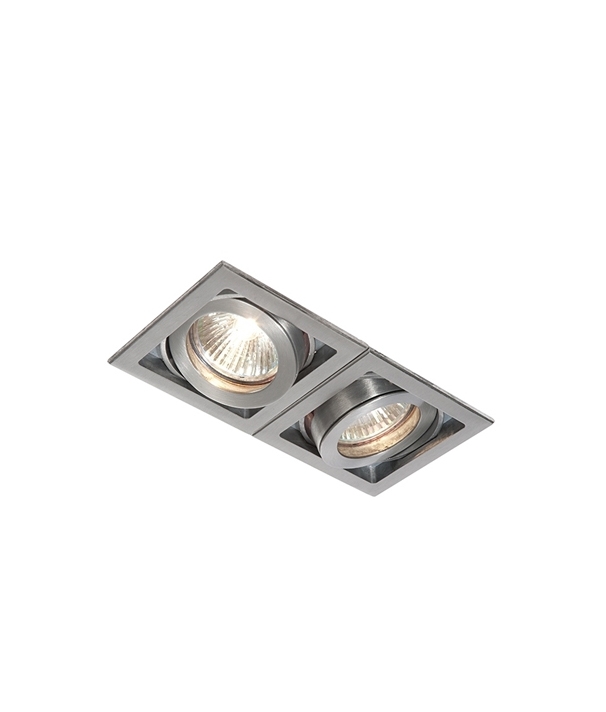

Twin Modular Downlight Mains
Dimensions: 90 x 180mm
Cut-out: 79 x 168mm

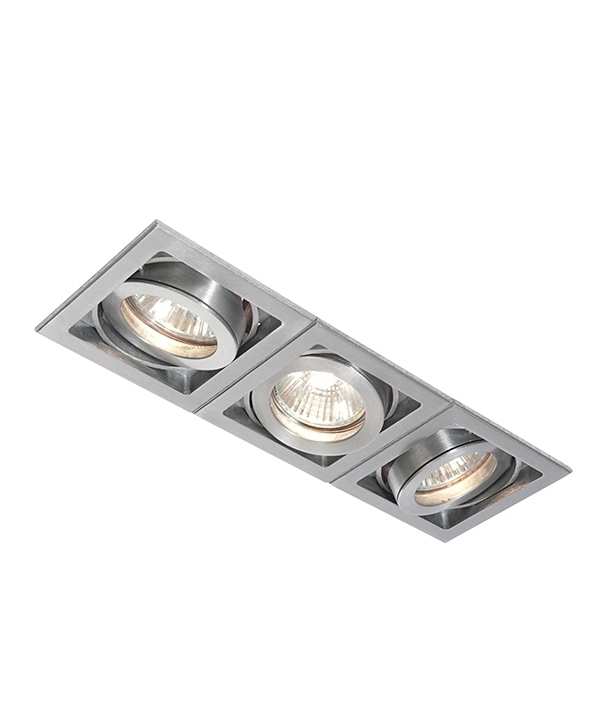

Triple Modular Downlight Mains
Dimensions: 90 x 270mm
Cut-out: 79 x 258mm

Available in brushed aluminium or matt white finishes.

Specification

Lamp Type	GU10 Base Mains Lamps
Part L Compliant Luminaire	No
Lamps Included	No
Dimmable?	Yes - when used with a dimmable lamp (bulb)
Max Wattage	50w
Suggested Void Depth	150mm
Construction	Aluminium - Brushed
Wiring Details	Class 2 - Double Insulated - Requires no Earth Connection
IP Rating	IP20

Bulbs

	Pro HD Dimmable GU10 LED Lamp Warm White 520 Lumens - FOX05963
	Pro HD GU10 LED Lamp Warm White 520 Lumens - FOX05960
	Pro HD Dimmable GU10 LED Lamp Daylight White 520 Lumens - FOX05965
	Pro HD Dimmable GU10 LED Lamp Neutral White 520 Lumens - FOX05964
	Pro HD GU10 LED Lamp Daylight White 520 Lumens - FOX05962
	Pro HD GU10 LED Lamp Neutral white 520 Lumens - FOX05961
Click here to choose your bulbs

Frequently Asked Questions

What holds the light up, is the box screwed to the ceiling joists?
This fitting is like a downlight and has spring clips to hold it in place.

Are these light fittings suitable with dimmable GU10 LED's?
Yes the mains versions can use dimmable GU10 LED lamps.

Is there a 240V mains supplied version instead of the low voltage type?
This is a mains fitting. GU10 based lamps. Can use Halogen or LED lamps.

What is the IP rating on these lights please?
The fixtures are open so have a IP rating of IP20 or IP21. Fine for most applications but not suitable for bathrooms or exterior locations.

How do I change a lamp in this design? I cannot find a way to unscrew the front rim. Taking the whole unit out of the ceiling seems like a horrible option to me.
There is no need to remove the fixture from the ceiling - the bezel in front of the lamp pulls off (it is held in by a spring steel. Just hold the housing and pull the bezel infront of the lamp off.

Is this product fire safe?
There is no fire rating for this fitting. If used in a location where the ceiling is fire rated i.e. double skin plasterboard or FireBoard you should use a fire hood over the fitting to maintain any fire protection. If it`s just going into a single skin plasterboard ceiling it more than likely not a fire-rated ceiling and therefore fire protection is not required. However you may have to argue this point with your electrician or building control inspector and they sometimes hold strong (and wrong) opinions about this vague part of the building regs.

Availability: IN STOCK 2-3 working day dispatch
