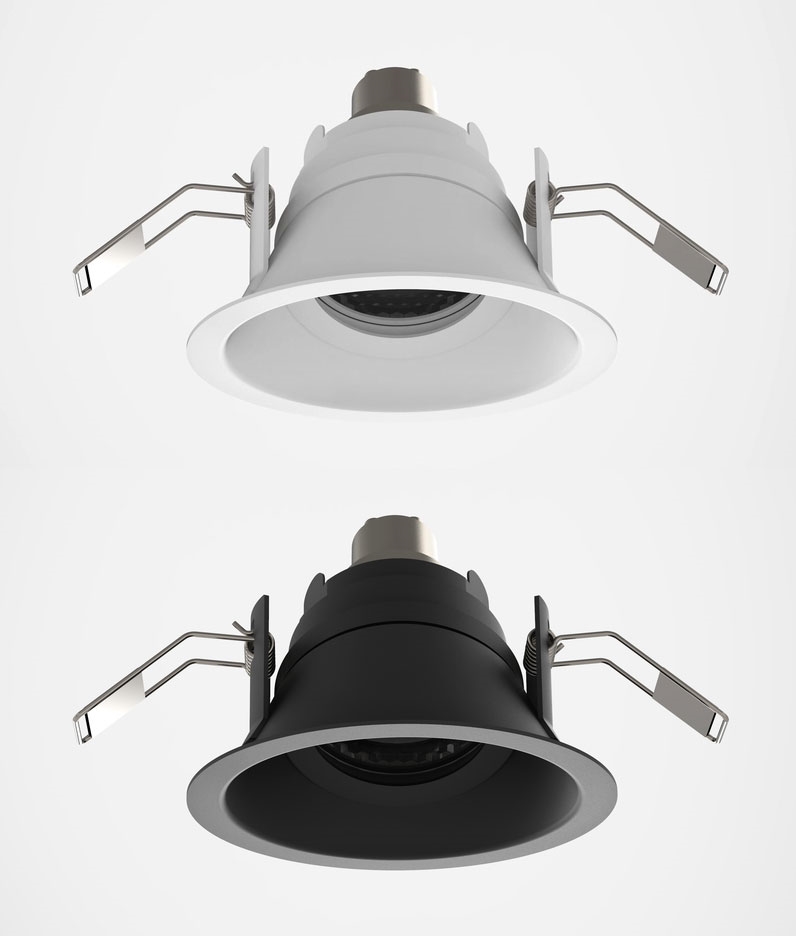

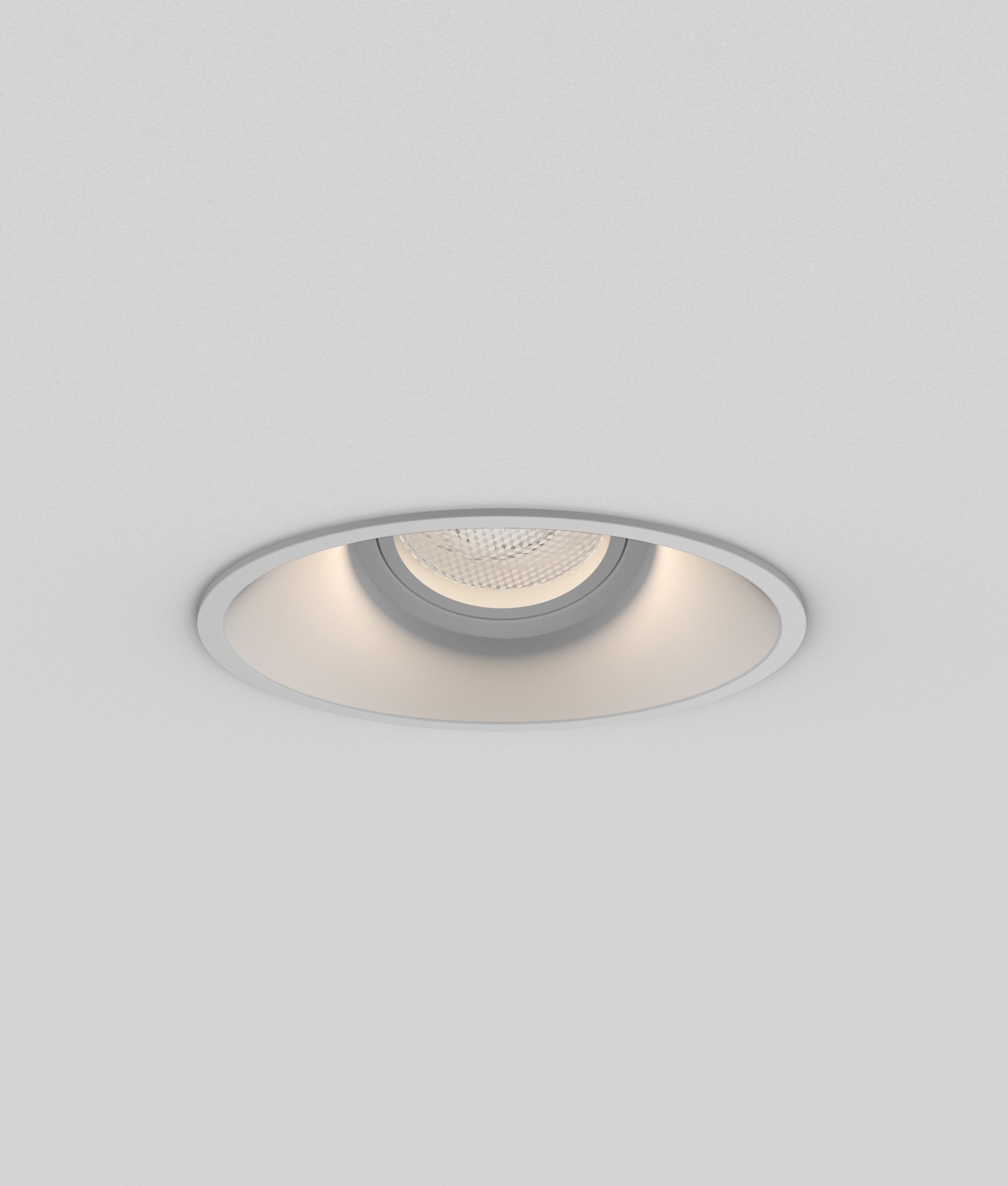

Low glare mains downlight offered in black or white.

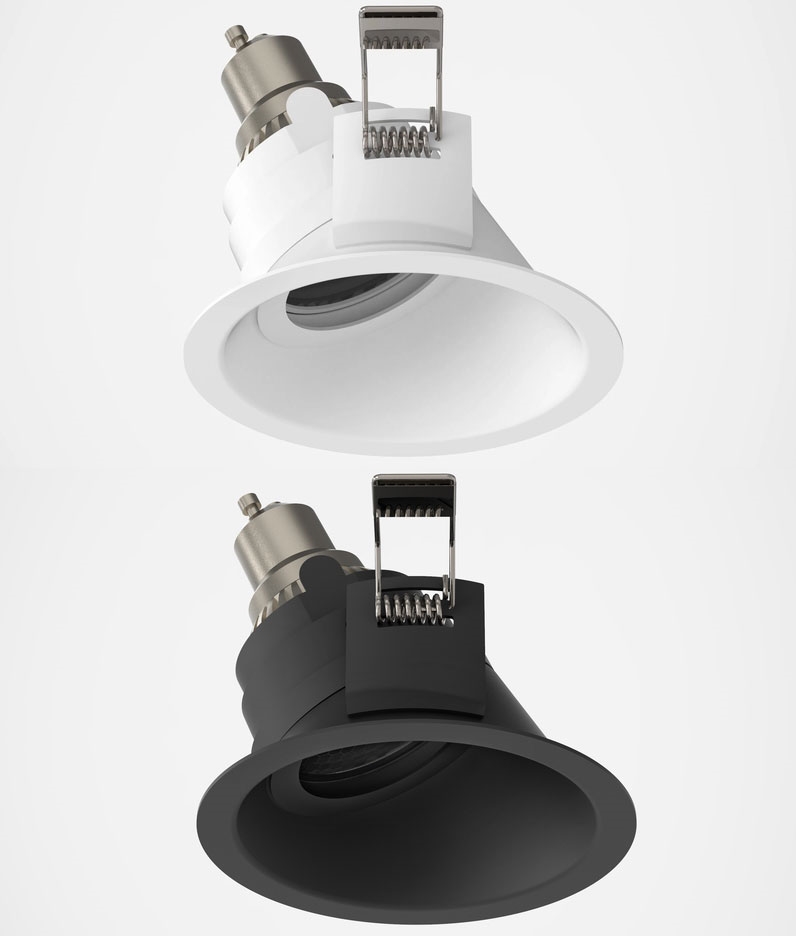

With a fixed angle (25° from vertical) this would kick light onto a wall to provide an interesting light effect.

An interior design favourite and look great in many rooms. IP65 rated, providing protection against jets of water - making this ideal for bathroom use. (Zones 1, 2 and 3)

Designed for GU10 base mains lamps up to 6w. LED lamps must be used with this fixture. Choose a dimmable LED lamp for maximum flexibility in lighting your space.

View more items from this supplier

Cut-out Diameter:
86mm

Overall Diameter:
100mm

Number Of Lamps	1
Lamp Type	GU10 Base Mains Lamps
Lamps Included	No
Dimmable?	Yes - when used with a dimmable LED driver
Total Wattage	10w

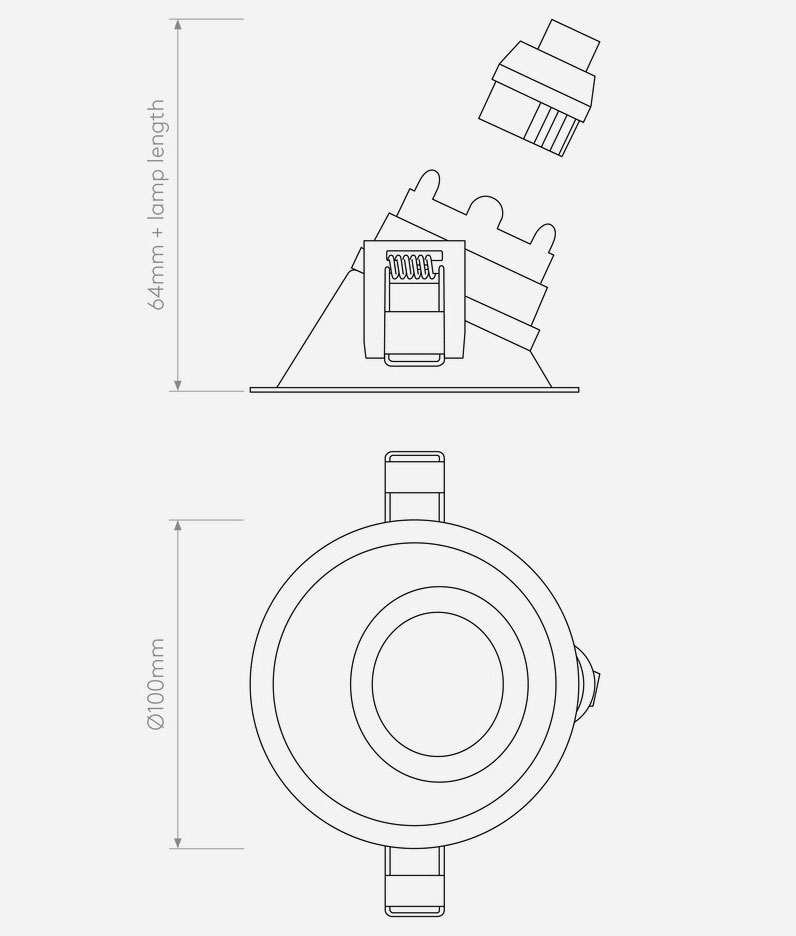

Height	64mm
Diameter	100mm
Suggested Void Depth	150mm
Cut-Out Diameter	86mm
Construction	Steel
Wiring Details	Class 2 - Double Insulated - Requires no Earth Connection
IP Rating	IP65
PDF Document(s)	Datasheet

I am thinking of using these as wall up-lights on a batten plasterboard wall - at the top to illuminate the exposed truss 30deg pitch ceiling of my garage/garden room (from each wall) - I have 2 questions, 1. what is the beam angle of a standard GU10 LED bulb within the housing, 2. the proposed location is above the wall plate - currently occupied with A1 non-combustible rockwool - I realise I will need to cut out a space in this to create a void for the body of the light housing, but how much clearance should I leave around it for heat dissipation etc?
The suggested void depth is 150mm, most standard gu10 bulbs have a beam angle of 38 degrees.

Can be used for masonery ceiling (no plasterboard ceiling)?
No, these need to to installed into a plasterboard ceiling with a void behind it.

I want to buy and dim 4 of these. Can I use one LED driver for all 4 - if if so which one?
Good news, this fixture uses GU10 base mains lamps, so you don’t need a driver just a mains supply, dimmable LED lamps and a wall dimmer switch.

	6w Pro HD GU10 LED Lamp Neutral white 520 Lumens - FOX05961
	6w Pro HD GU10 LED Lamp Daylight White 520 Lumens - FOX05962
	6w Pro HD Dimmable GU10 LED Lamp Neutral White 520 Lumens - FOX05964
	6w Pro HD Dimmable GU10 LED Lamp Daylight White 520 Lumens - FOX05965
	6w Pro HD GU10 LED Lamp Warm White 520 Lumens - FOX05960
	6w Pro HD Dimmable GU10 LED Lamp Warm White 520 Lumens - FOX05963
Click here to choose your bulbs

Low Glare Downlight with Angled Lamp holder - Black or White

Kicks Light Onto A Wall To Provide Interesting Light Effect
