Aluminium Profiles for LED Tape - 2000mm

Below you will also find aluminium heatsink section, this is essential for improved heat dissipation and adhesion of LED strip. Please choose from the options below or contact the office for assistance.

Sold in 2000mm lengths, Each 2000mm would require 3 to 4 mounting clips and 2 end caps.

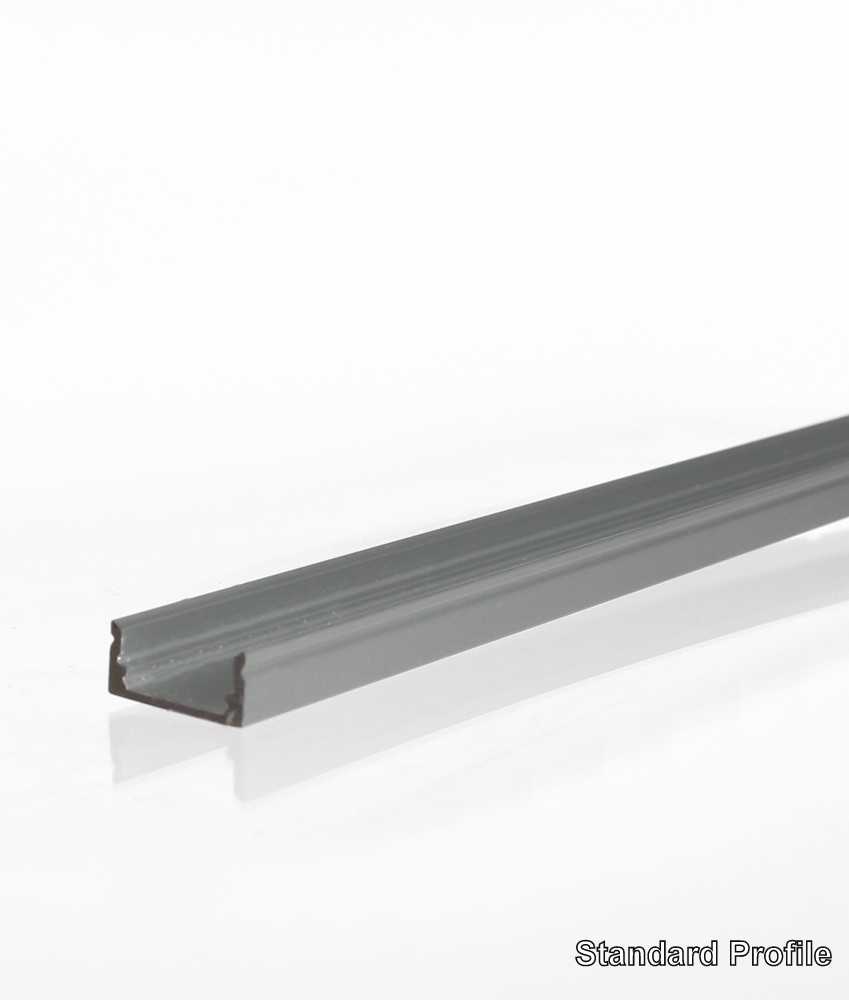

Standard Aluminium Profile

Installation Type: Surface mounted
Dimensions: 17mm x 8mm

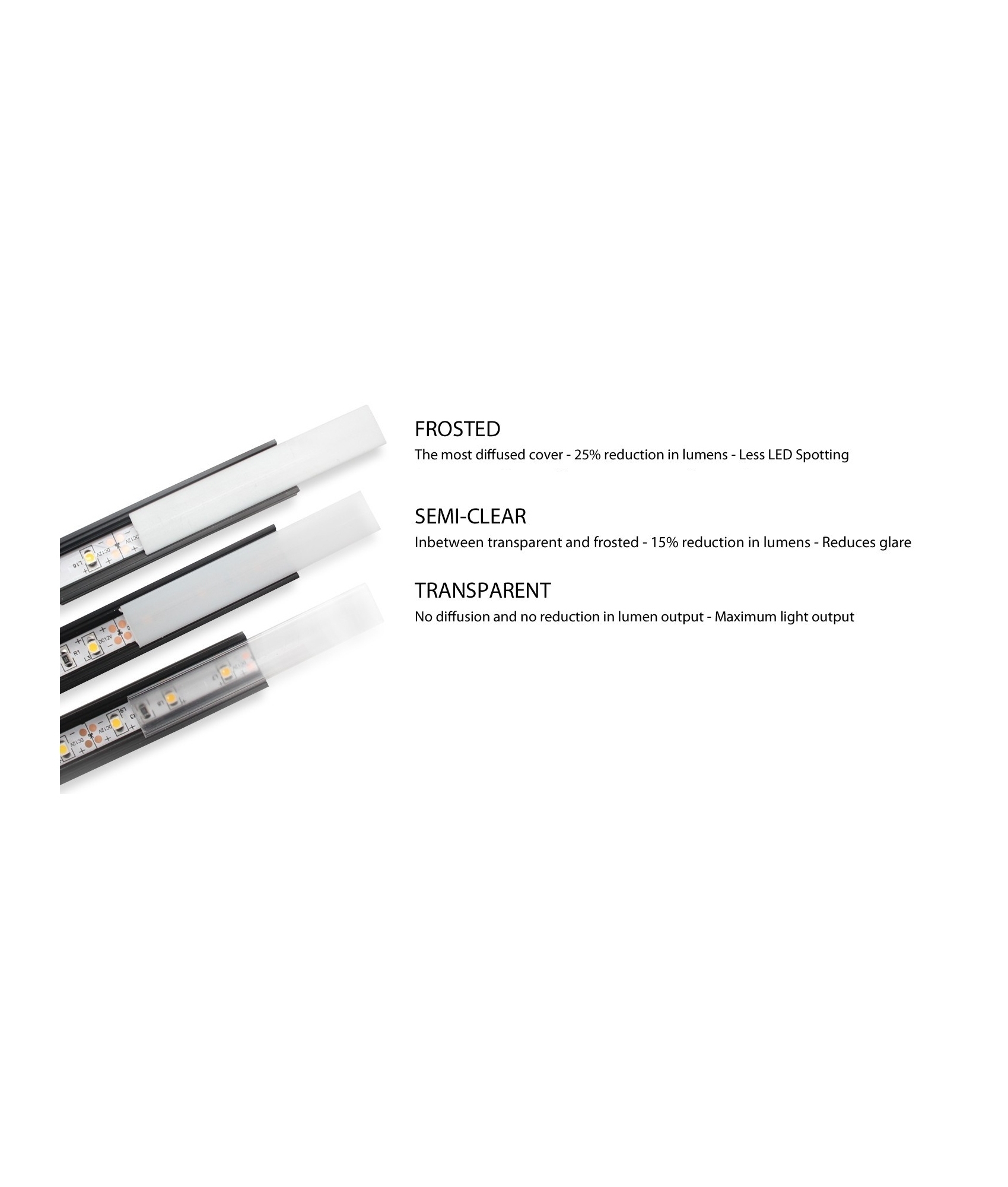

Diffuser options: Opal, Semi-clear or Transparent.
Max Tape Width: 12.2mm
Finish: Silver

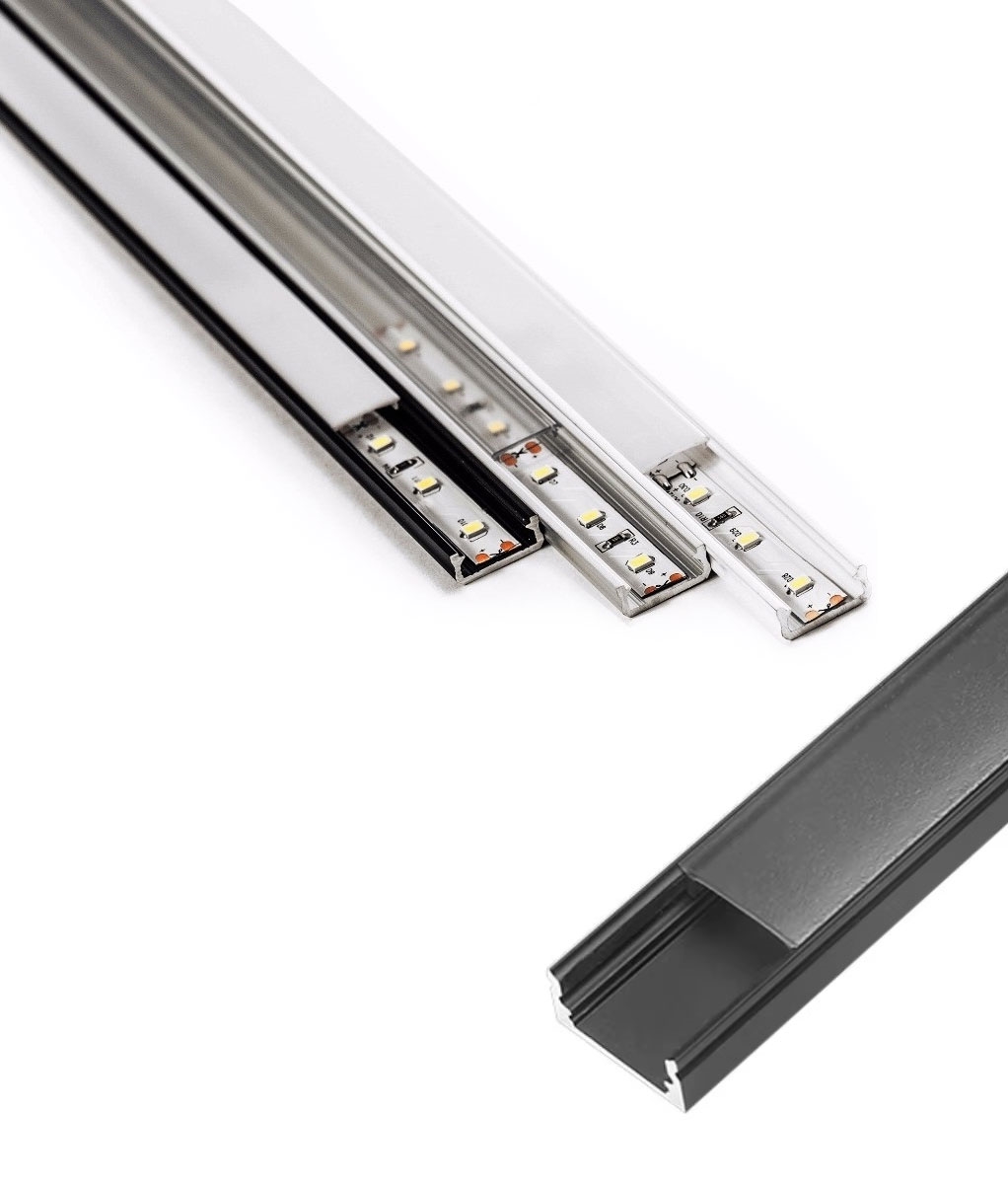

Shallow Aluminium Profile

Installation Type: Surface mounted
Dimensions: 16mm x 6.3mm
Diffuser options: Opal, Semi-clear or Transparent.
Max Tape Width: 12mm
Finish: Silver

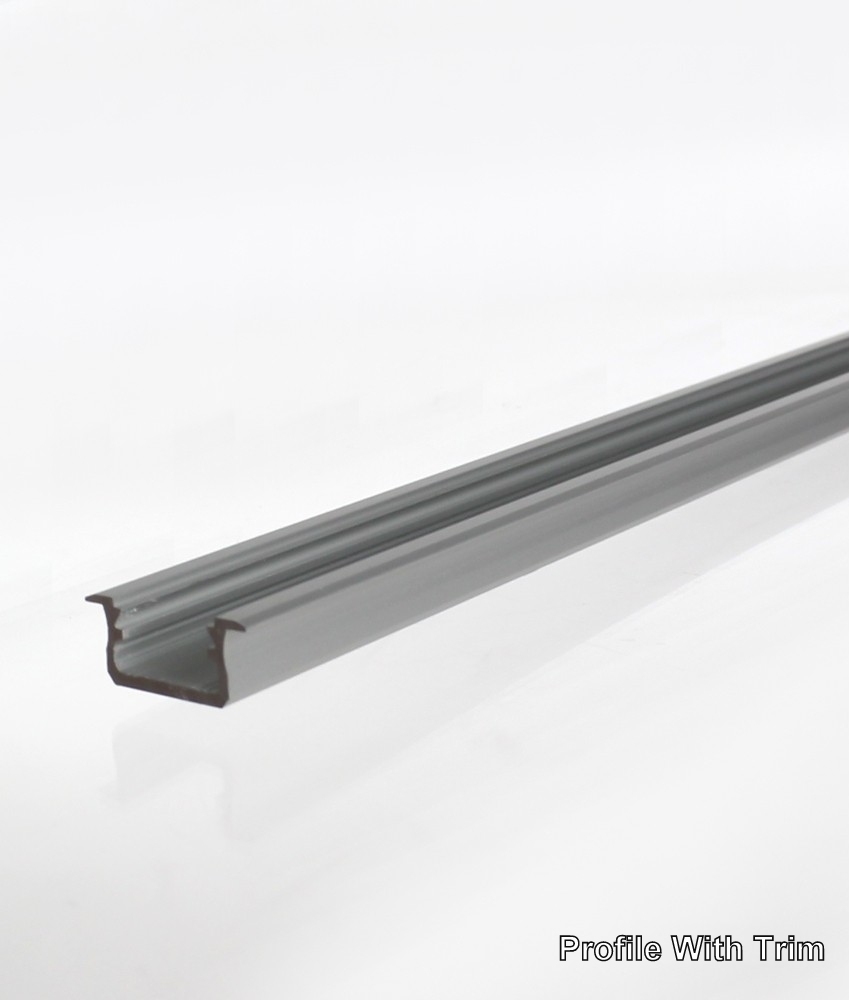

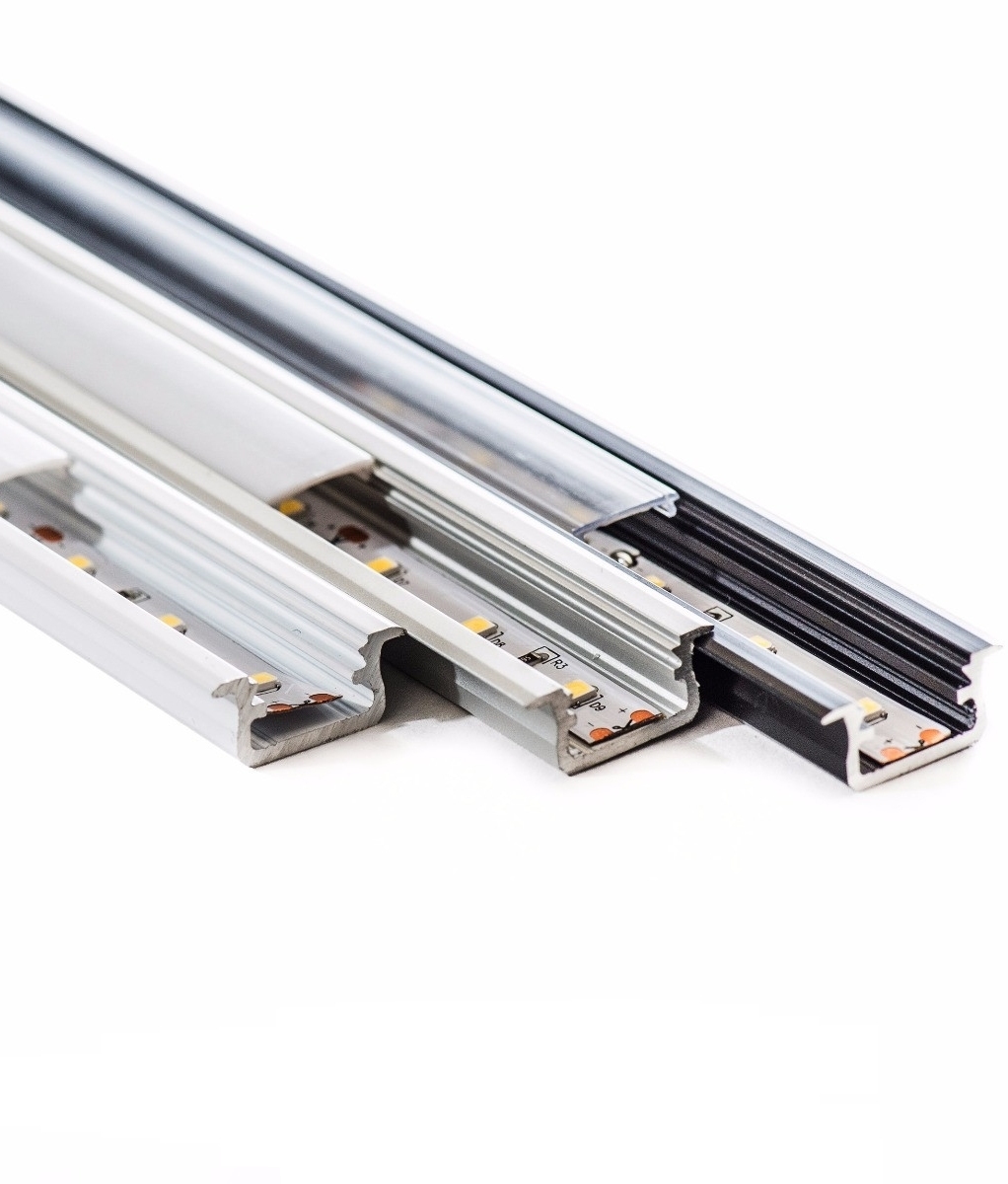

Aluminium Profile with Trim

Installation Type: Recessed
Dimensions: 21mm x 9.3mm
Diffuser options: Opal or Semi-Clear.
Max Tape Width: 12mm
Finish: Black, White or Silver
